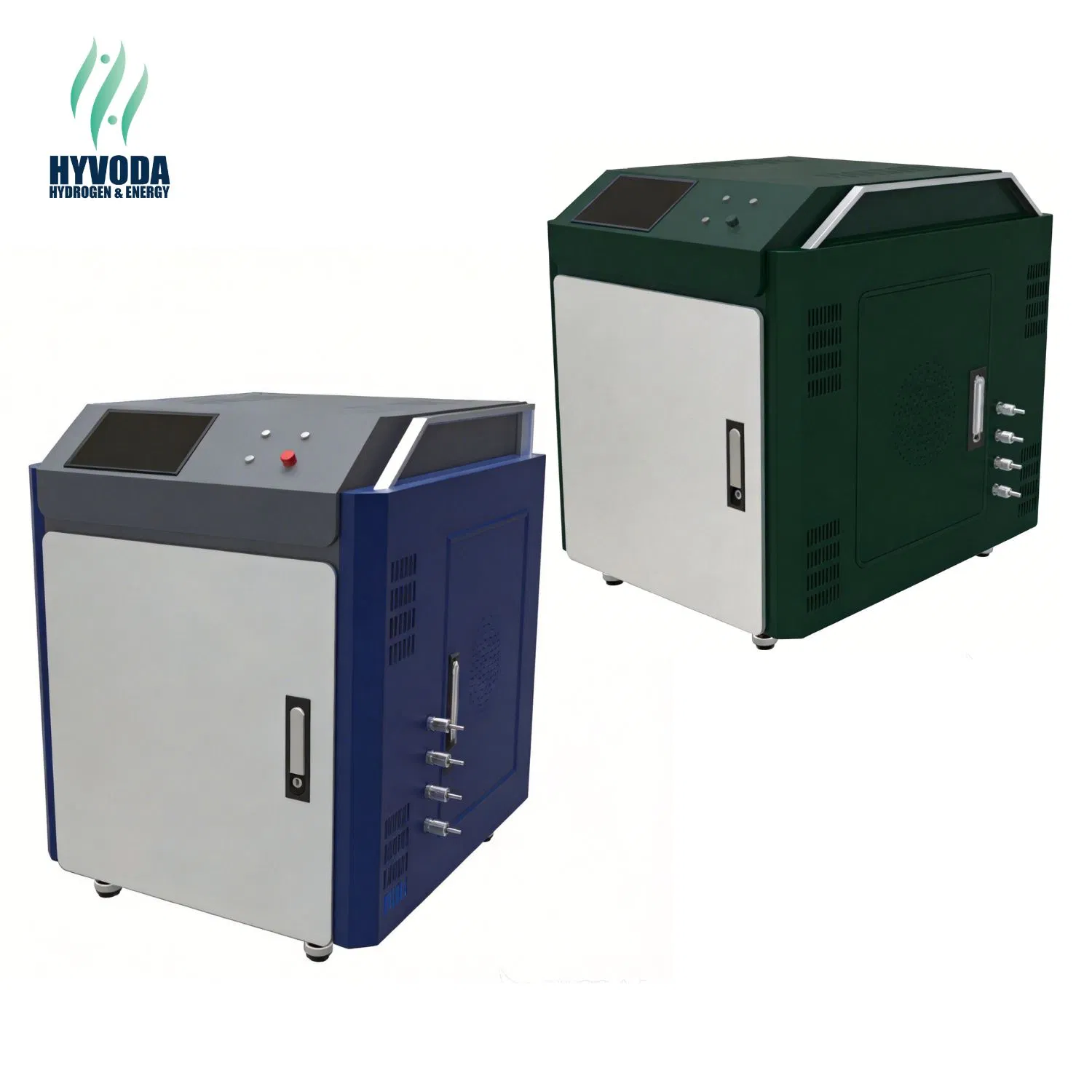

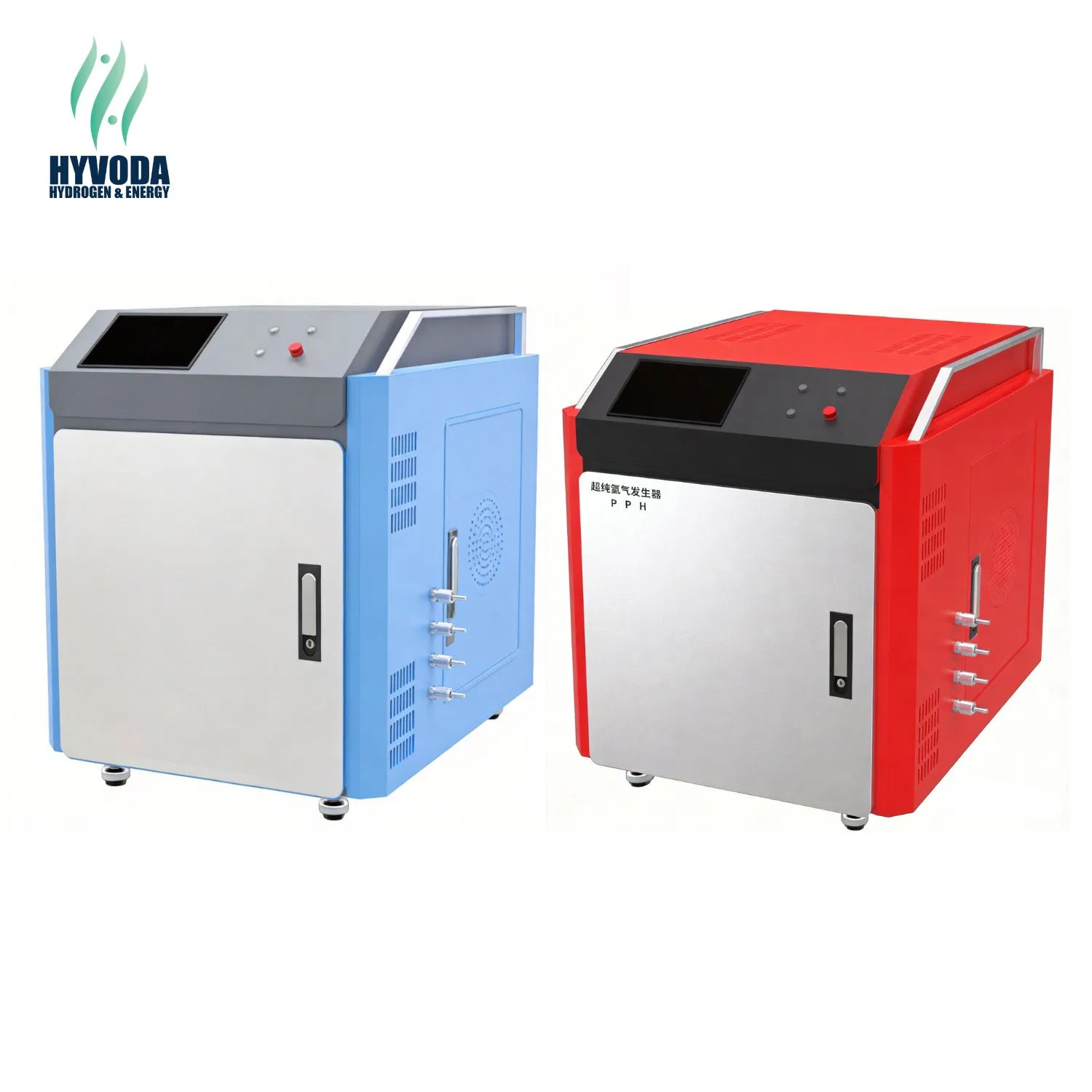

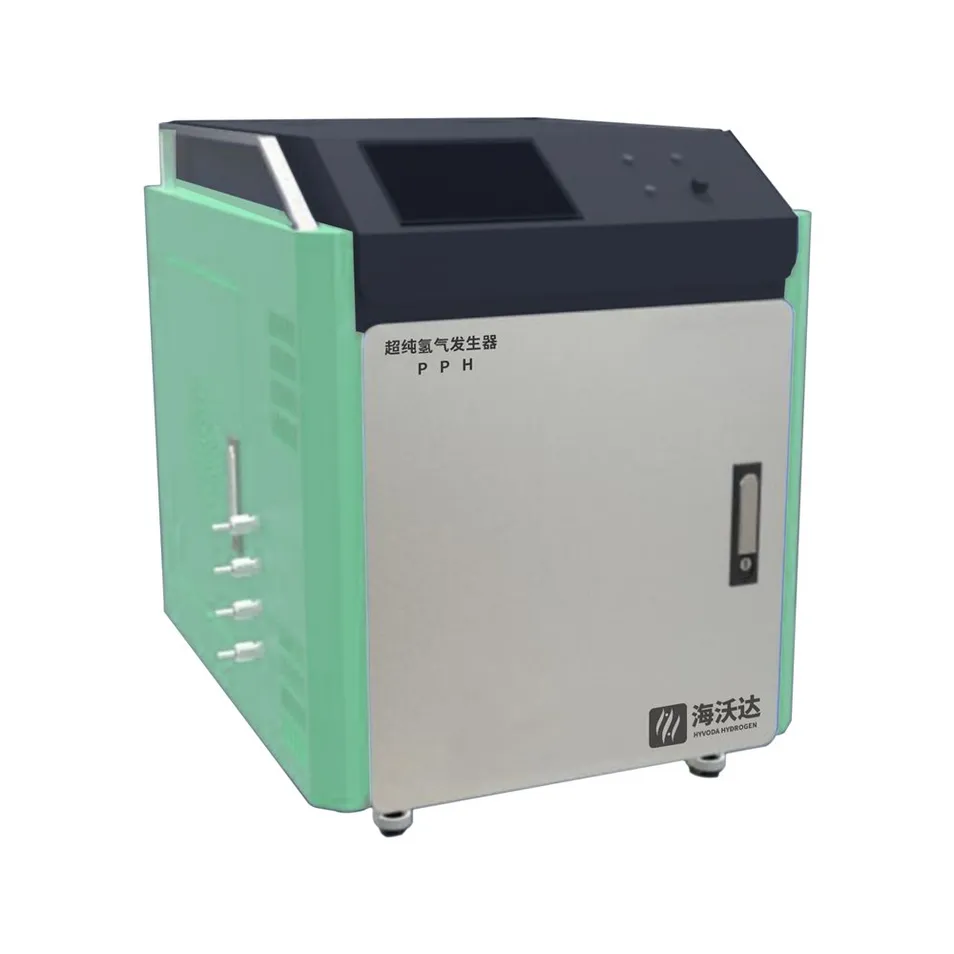

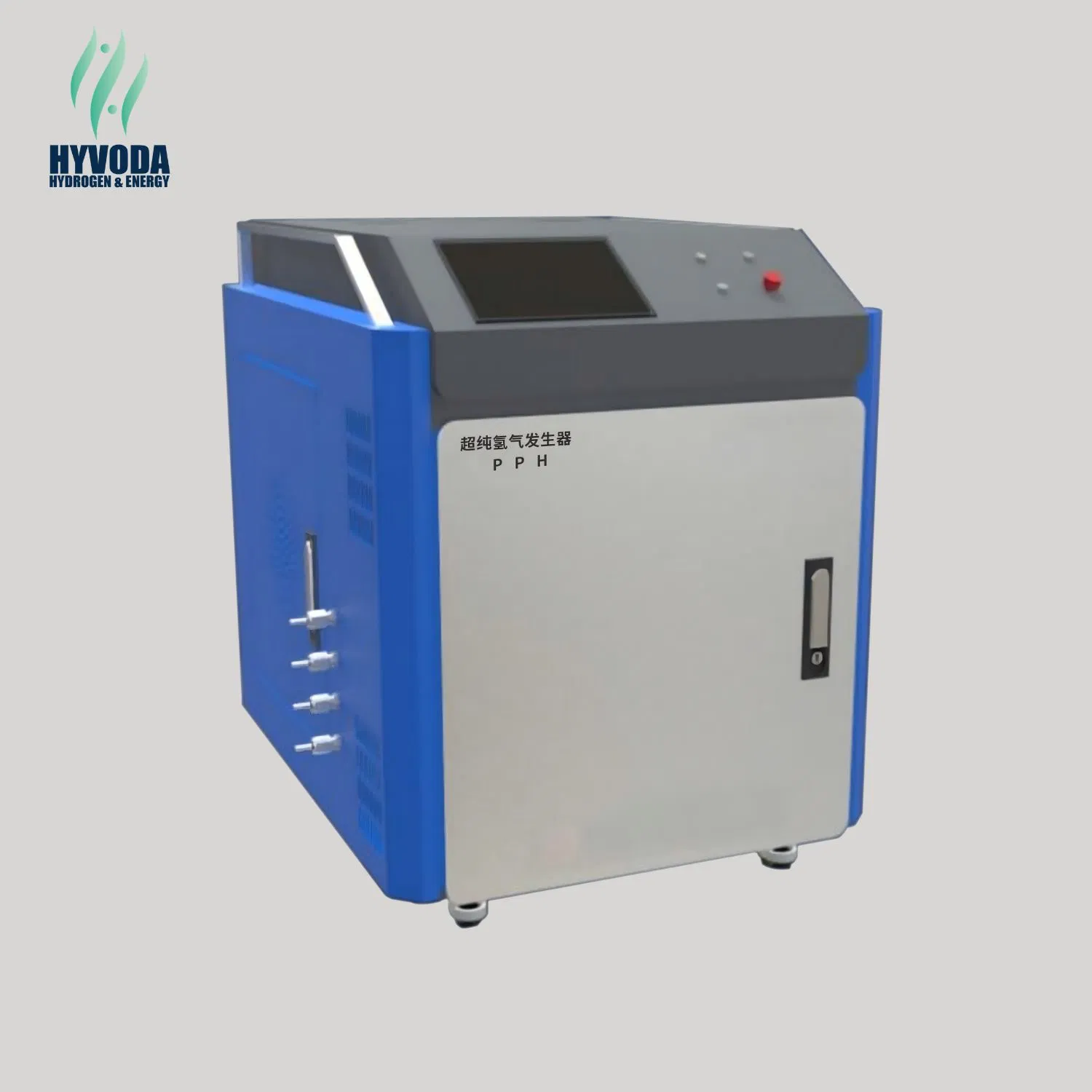

The PPH series hydrogen production machine is a small-scale equipment utilizing the latest PEM electrolyzed water technology combined with a metal film purification process. It achieves an ultra-pure hydrogen purity of 99.9999999% (9N).
Designed for excellence, the equipment features a small footprint, one-button operation, silent design, and remote monitoring capabilities, making it ideal for unattended, environment-friendly industrial use.
| PEM Electrolysis of Water (9N Purity) | ||||||
|---|---|---|---|---|---|---|
| MP (Nm3/h) | Purity (vol%) | Dew Point (°C) | H2 Temp (°C) | Pressure (MPaG) | Weight (kg) | Size (LxWxH mm) |
| 0.1 | 9N | <-100 | ≤40 | 0.1~1 | 70 | 400*600*600 |
| 0.3 | 9N | <-100 | ≤40 | 0.1~1 | 90 | 600*800*800 |
| 0.6 | 9N | <-100 | ≤40 | 0.1~1 | 110 | 600*800*800 |

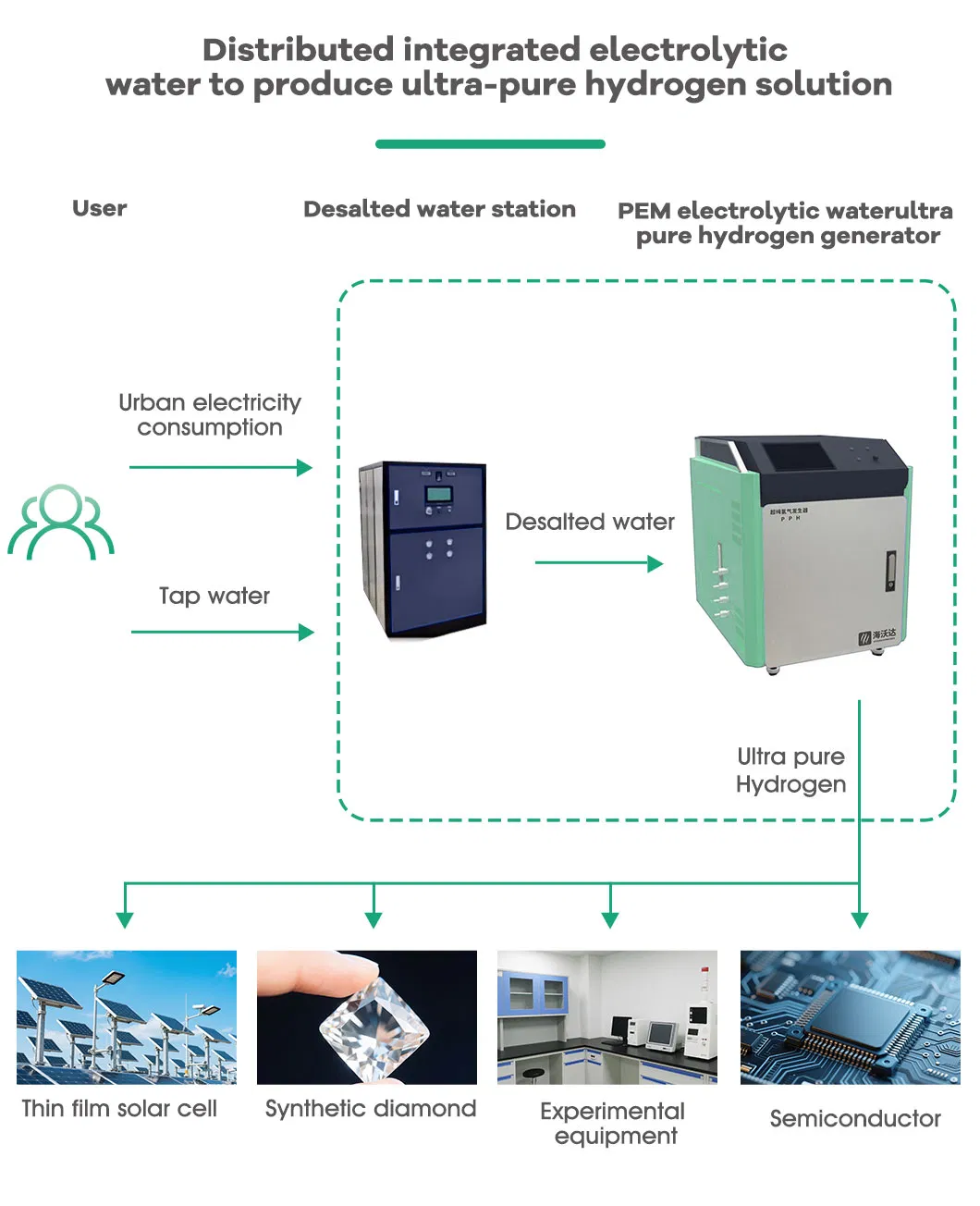

Delivers ≥99.99999% (9N) pure hydrogen for semiconductors and precision electronics.
Modular structure with near-silent operation, perfect for cleanrooms and labs.
One-button automated start/stop with remote real-time diagnostics.
Carbon-free supply when powered by renewables; eliminates cylinder storage risks.
A high-tech leader in hydrogen energy, providing compact, fast-starting distributed smart hydrogen machines. Serving industries such as steel, electronics, energy, pharmaceuticals, and aerospace with global solutions including production and compression systems.
