📋 Basic Information
Max Charging Voltage
840VDC
Corrosion Resistance
C4 (C5 Optional)
Specification
1000*620*160mm
Production Capacity
500,000
⚙️ Technical Specification
| Product Name | Solar-storage integrated machine |
| Cell type | LFP(LiFePO4) |
| Rated Capacity | 314Ah |
| Rated Energy | 241kWh |
| Rated Voltage | 768VDC |
| Maximum Charging Voltage | 840VDC |
| Discharge Cut-off Voltage | 648VDC |
| Human-computer Interaction | Internet of Things + APP |
| Communication Interface | CAN/RS485 |
| Protection Level | IP55 |
| Corrosion Resistance Grade | C4 (C5 optional) |
| Fire Protection Rating | Aerosol |
| Working Temperature | 25℃ ± 5℃ |
| Charge Temp Range | 0℃ - 55℃ |
| Discharge Temp Range | -20℃ - 60℃ |
| Number of Cycles | > 6000 times |
| Overall Dimensions | 1545x2045x1435mm |
| Weight | 2350kg |
National and Industry Standards:
Safety foundation: GB44240-2024 "Safety Requirements for Lithium Batteries and Battery Packs Used in Electric Energy Storage Systems", applicable to the battery system in energy storage integrated machines, mandatory requirements for overcurrent, overtemperature, and short-circuit protection.

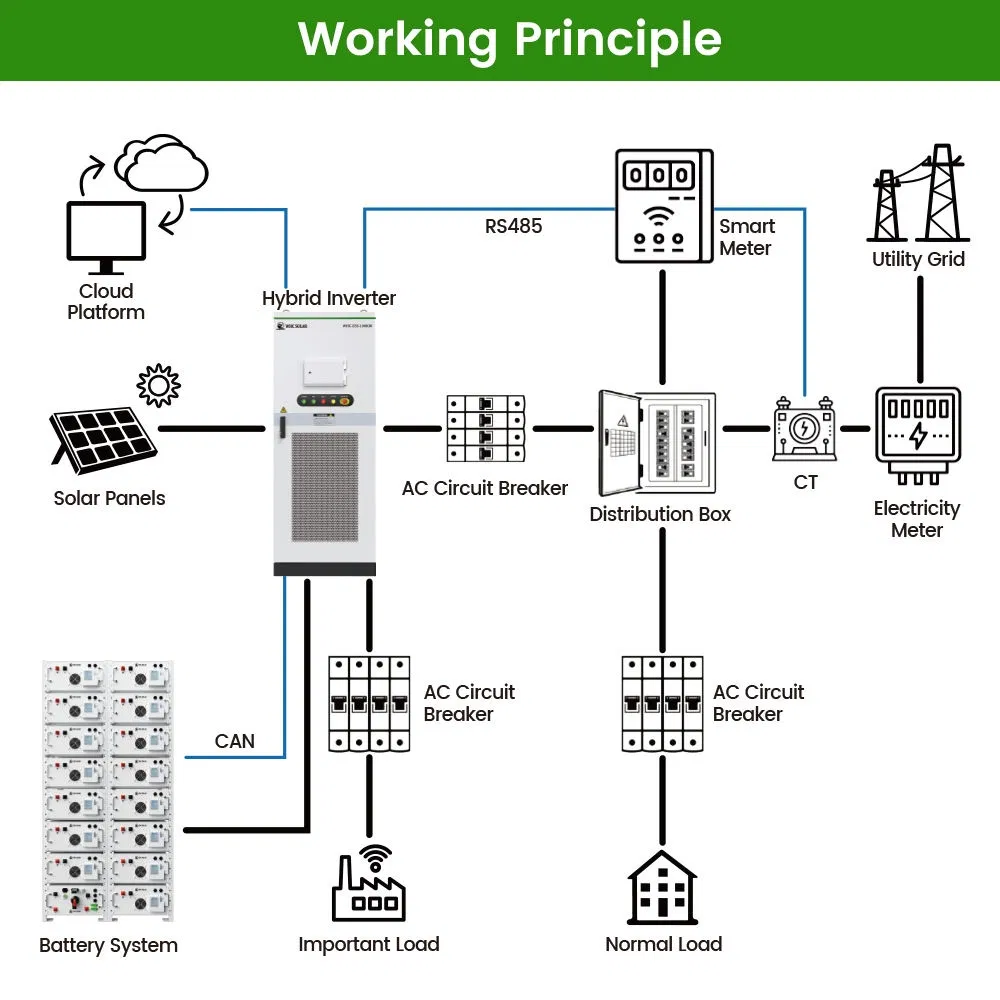

💡 Microgrid Integration Solution
In a microgrid system, the integration of photovoltaic and energy storage is the core for achieving efficient off-grid operation. This system achieves a multi-level and adaptive power supply system through the dynamic coordination of photovoltaic and energy storage: when there is sufficient sunlight, photovoltaic power is prioritized to meet the load demand, and the surplus electricity is intelligently stored in batteries; when sunlight is insufficient, the energy storage battery responds immediately and precisely releases the stored energy to ensure seamless power supply.
Application Scenarios: Industrial parks, zero-carbon parks, production-oriented factories, green transportation, commercial services, data centers and other high-power consumption scenarios.

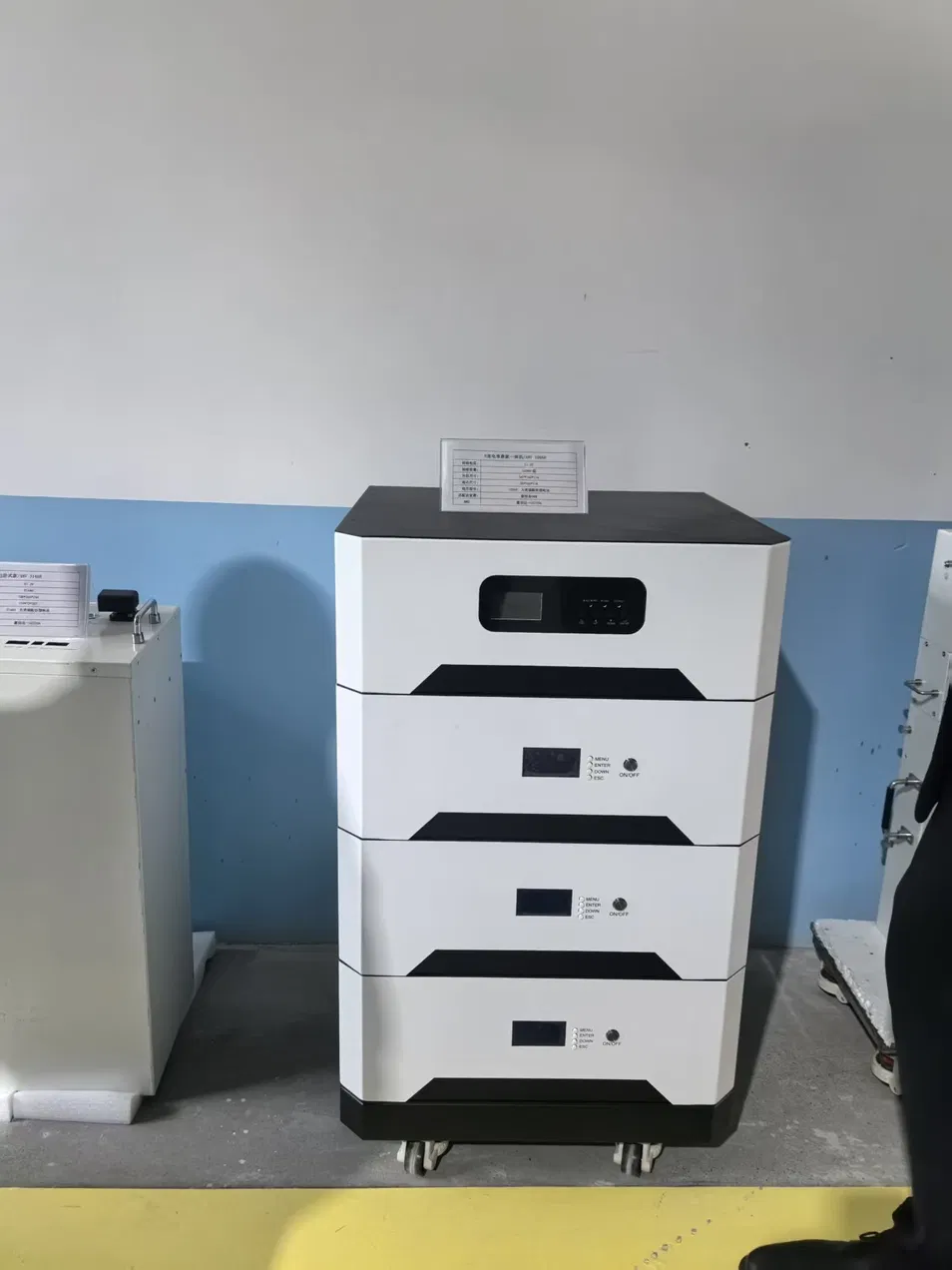

📦 Packing & Delivery
Package Size
1545.00cm * 2045.00cm * 1435.00cm
🏢 Professional Profile
Professional Approach: Having been deeply engaged in the industry for many years, we have always taken quality as the foundation and focused on industrial upgrading and value breakthrough. In response to the green development trend, our company has strategically ventured into the photovoltaic energy storage field, forming a dual-track development pattern. Relying on our mature supply chain management experience, we combine the rigor of traditional manufacturing with the efficiency of new energy to provide reliable and environmentally friendly products.
Transformation & Innovation: From textile manufacturing to dual-track operation, we proactively cross into the photovoltaic energy storage sector, integrating the technical advantages and resource endowments of both sides to build a unique competitive edge. We are practitioners of cross-industry cooperation, offering solutions that create continuous value for customers.
❓ Frequently Asked Questions
Are you a manufacturer or a trading company?
We are manufacturers with deep expertise in production and quality control.
Can you produce items which I cannot find on your website?
Of course, we are very pleased to design different styles and custom solutions for you based on your specific requirements.
Is the price negotiable?
Yes, the price is negotiable. However, our pricing is based on cost and is quite reasonable. Discounts are available depending on order quantity and material choices.
What kind of International Express Delivery is available?
We are high-ranking contracted customers of DHL, FEDEX, UPS, and other international companies, ensuring quick, efficient, and low-cost delivery to your location.
How do you control the product quality?
We create and test samples before mass production. Once approved, we perform 100% inspection during production and random inspections prior to shipment.
Why should I trust you after payment is made?
Our business is built on long-term cooperation, honesty, and stability. We participate in Trade Assurance programs to ensure your transaction is secure and professional.
