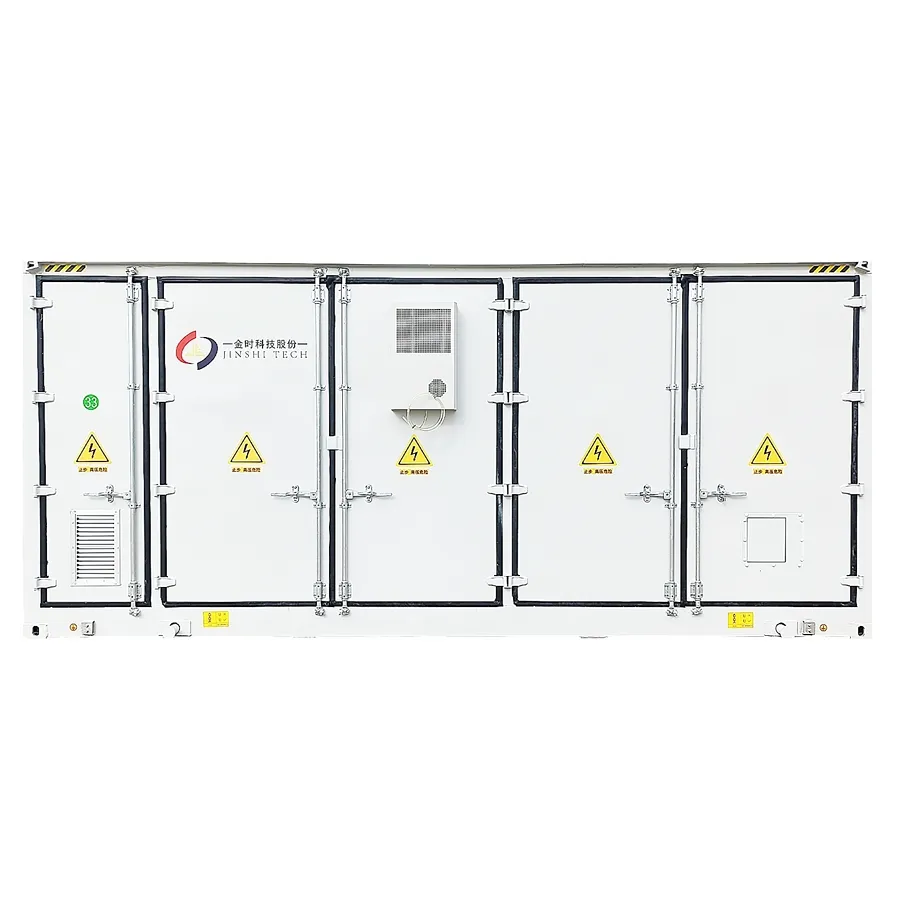

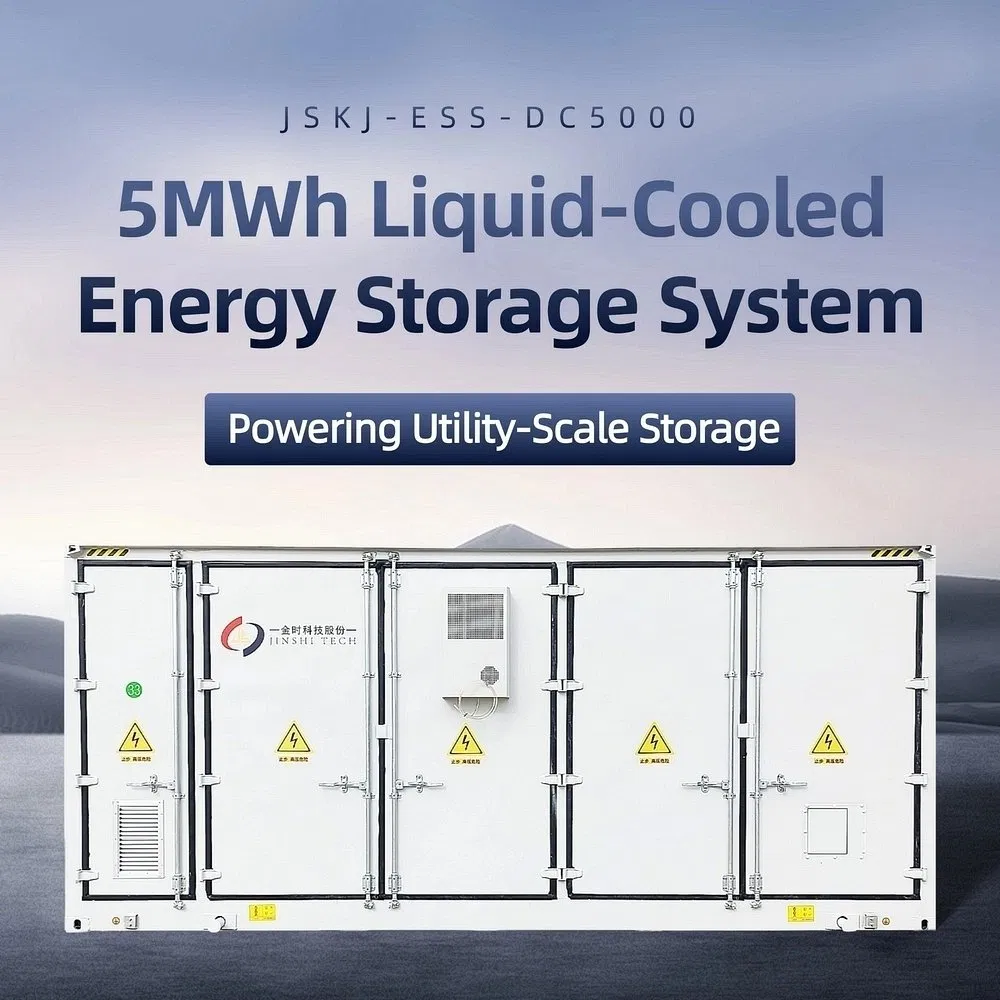

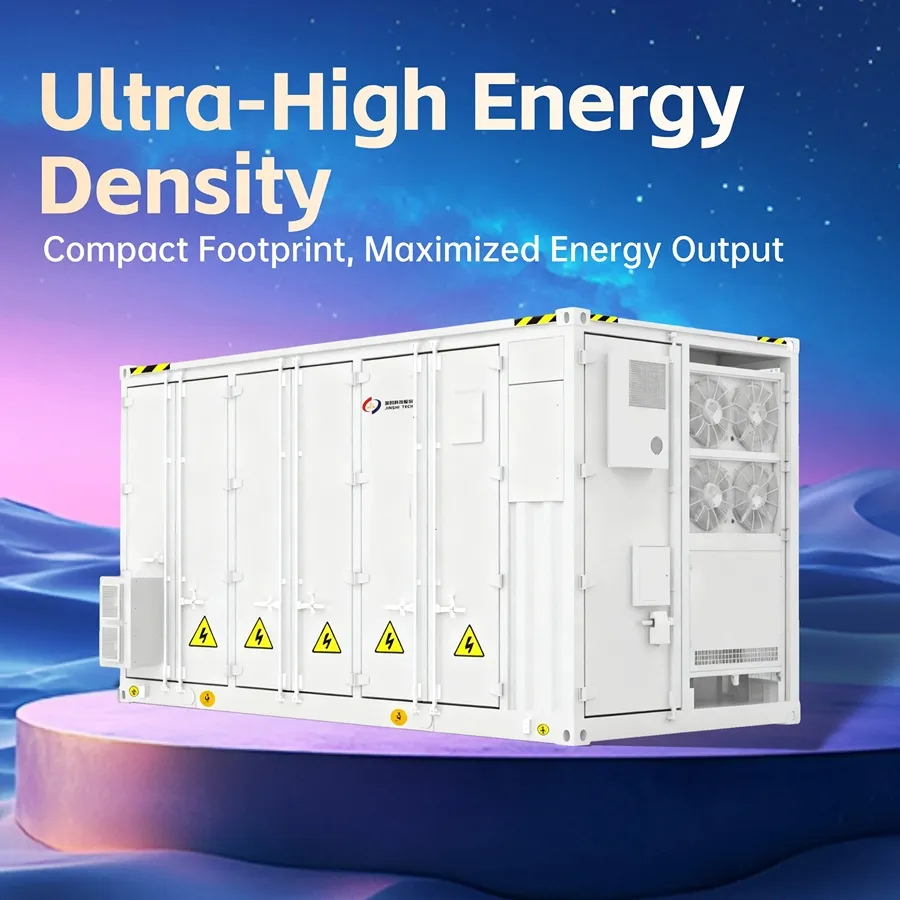

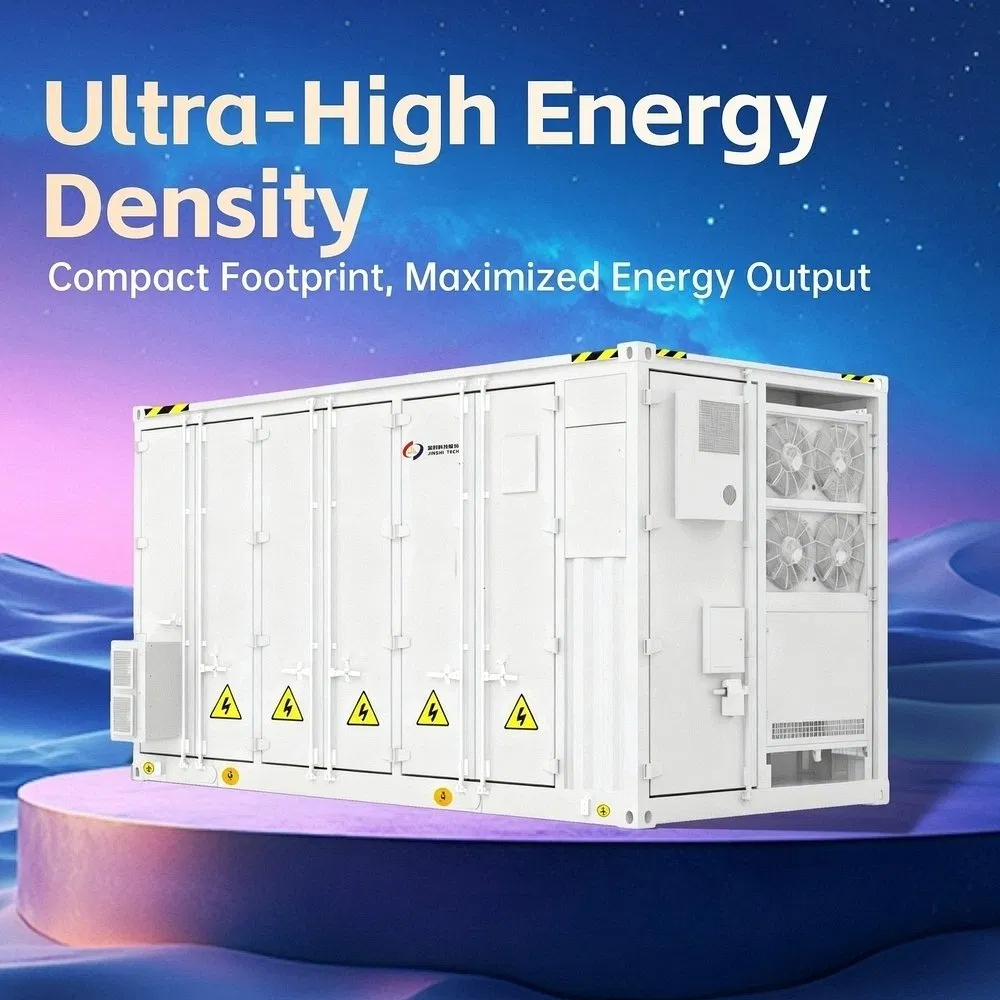

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.
24/7 BMS Monitoring with high-frequency regulation compatibility.
Supports NOVEC 1230, Liquid Nitrogen, and targeted explosion discharge design.

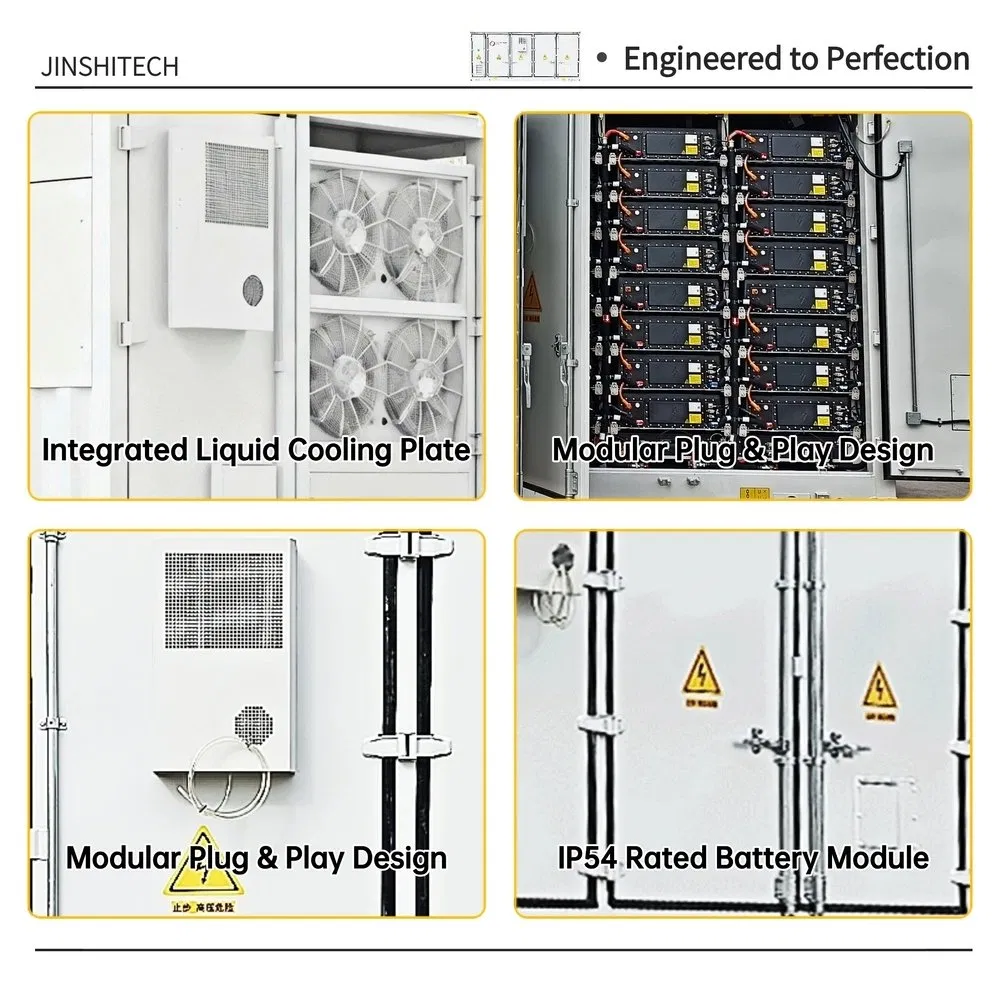

Multi-cabinet parallel connection for flexible energy storage expansion.

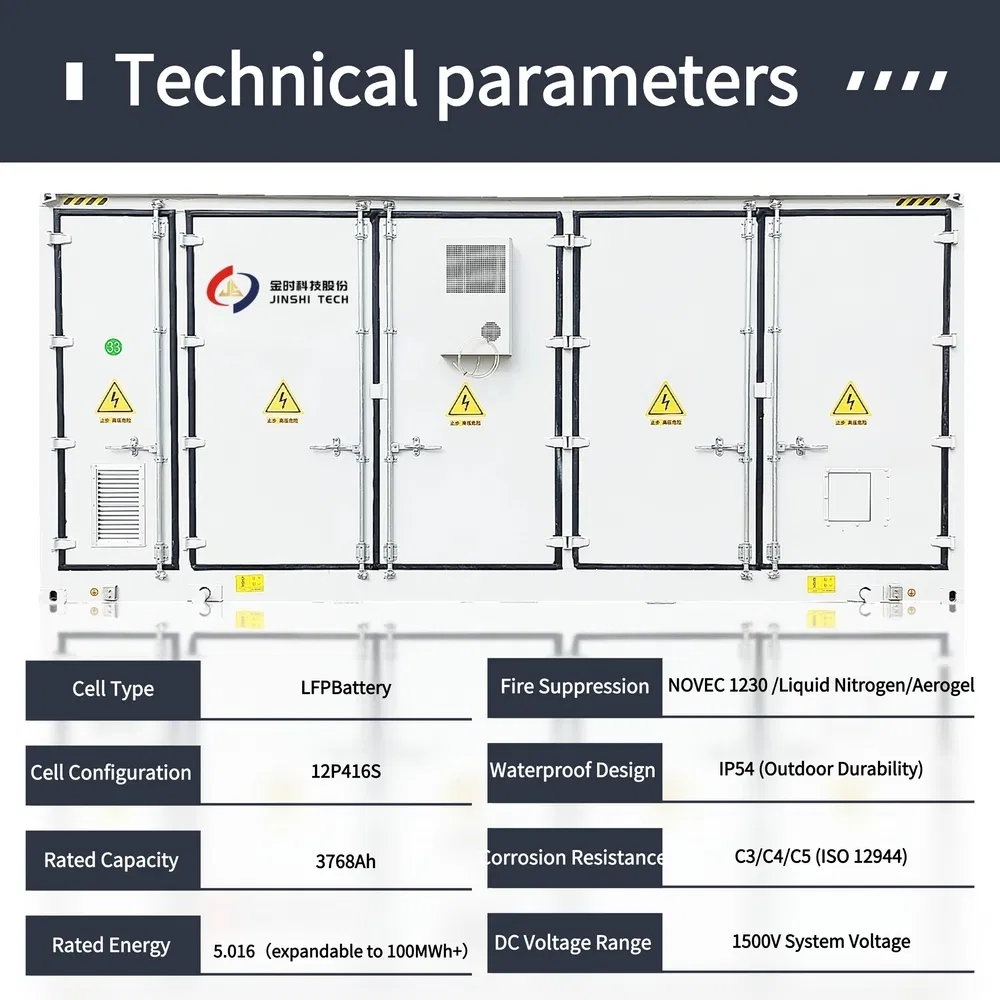

| DETAILED SPECIFICATIONS | |
|---|---|
| Cell Type | LFP Battery |
| Cell Configuration | 12P416S |
| Rated Voltage | 1331.2V |
| Charge/Discharge Rate | 0.5P |
| Operating Voltage Range | 1164.8-1497.6V |
| Standard Charge/Discharge Current | 1884A/1884A |
| Fire Detection | Temp, CO, Smoke Sensors |
| Corrosion Resistance | C3/C4/C5 (ISO 12944) |
| DC Voltage Range | 1500V System Voltage |
| Package Size | 650.00cm * 280.00cm * 289.60cm |
| Package Gross Weight | 44000.000kg |

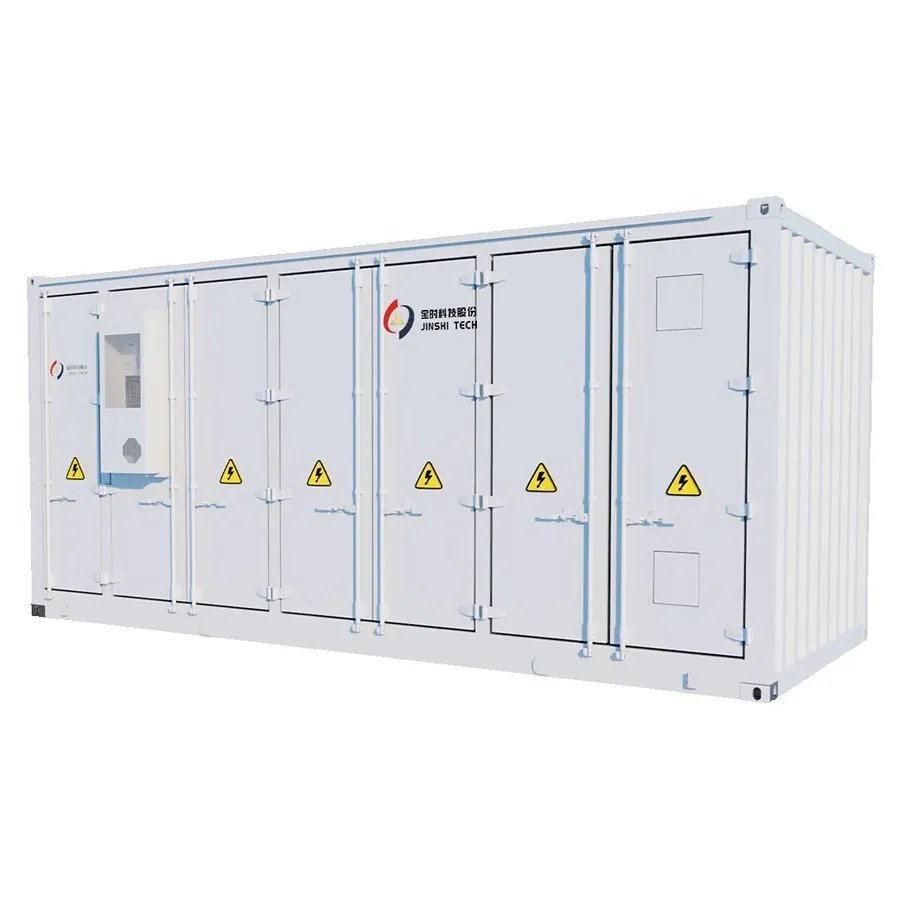

Containerized design with standardized interfaces for quick deployment and commissioning.
C3/C4/C5 corrosion resistance suitable for inland, plateau, and coastal applications.
