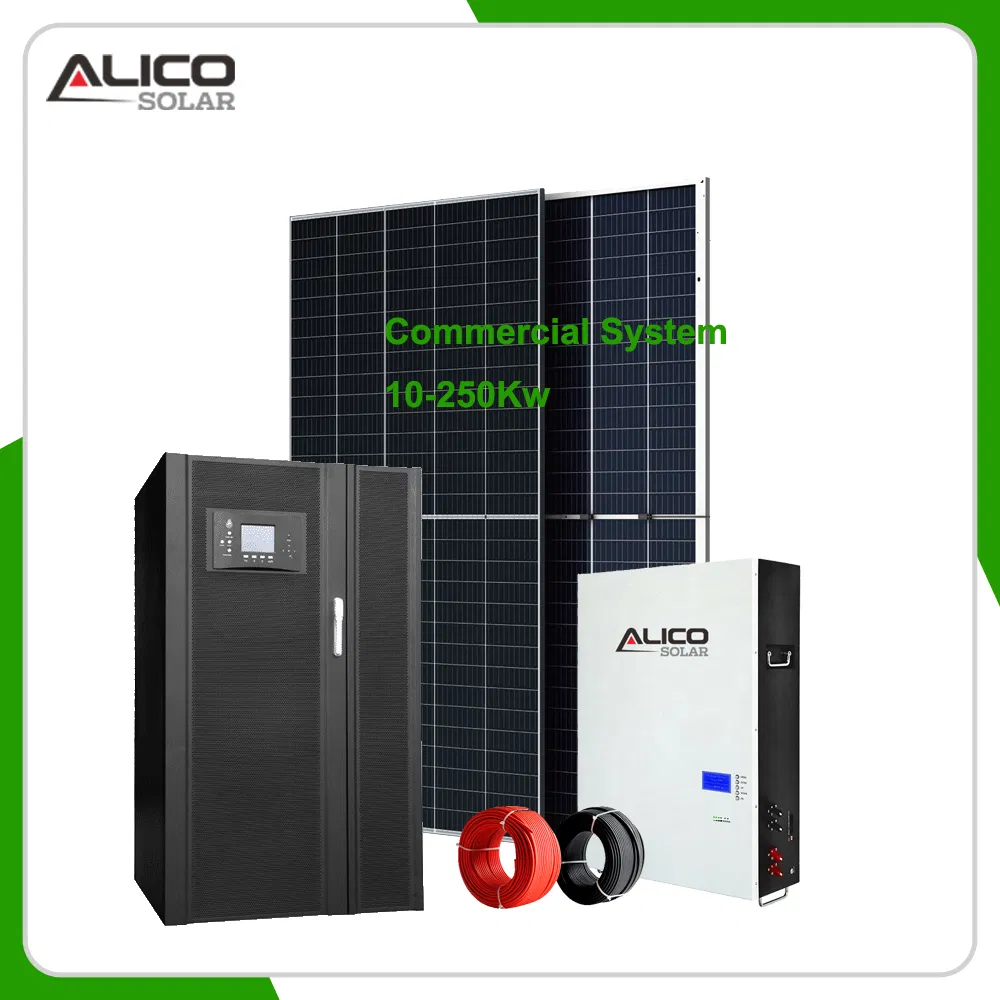

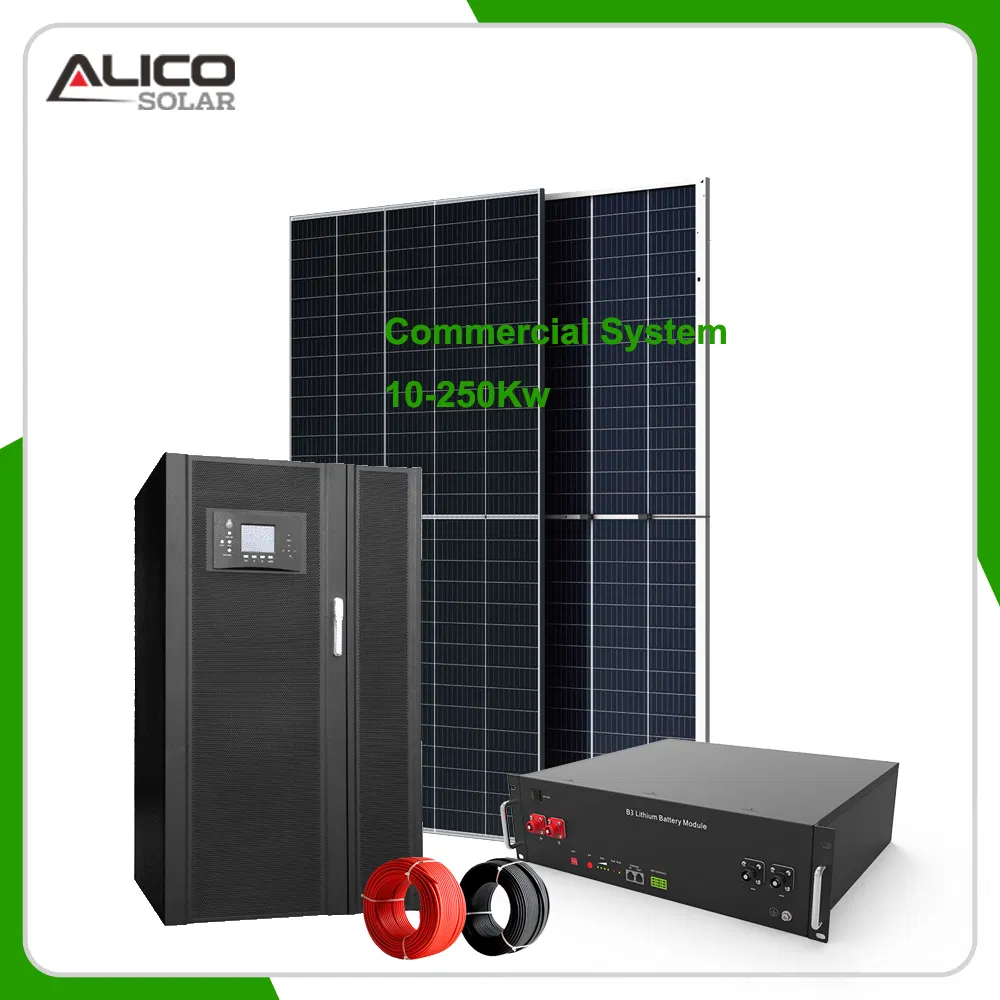

Solar Energy PV Wind Energy Storage System Ess Long Life Deep Cycle Battery 1MW 3MW 5MW Solar Power Storage off Grid Batteries

1 / 5

Solar Energy PV Wind Energy Storage System Ess Long Life Deep Cycle Battery 1MW 3MW 5MW Solar Power Storage off Grid Batteries

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

1MW-SYSTEM

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Grid-Tied & Hybrid Inverter

System Type

1 MW Solar System

Transport Package

Carton/Wooden Box

HS Code

85414020

Production Capacity

1.2 Gw/Year

Product Parameters

Name	1000KW On-grid Description	Quantity
Solar Panel	Mono 550Watt PV Module	1818 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On-Grid Inverter	120KW Three Phase	9 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	6 mm2	4000 Meters
MC4 Connector	6 mm2 1000VDC	10 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	10 Set

Note: Product dimensions and physical appearance in this data sheet are nominal. We reserve the right to make product changes from time to time without prior notification.

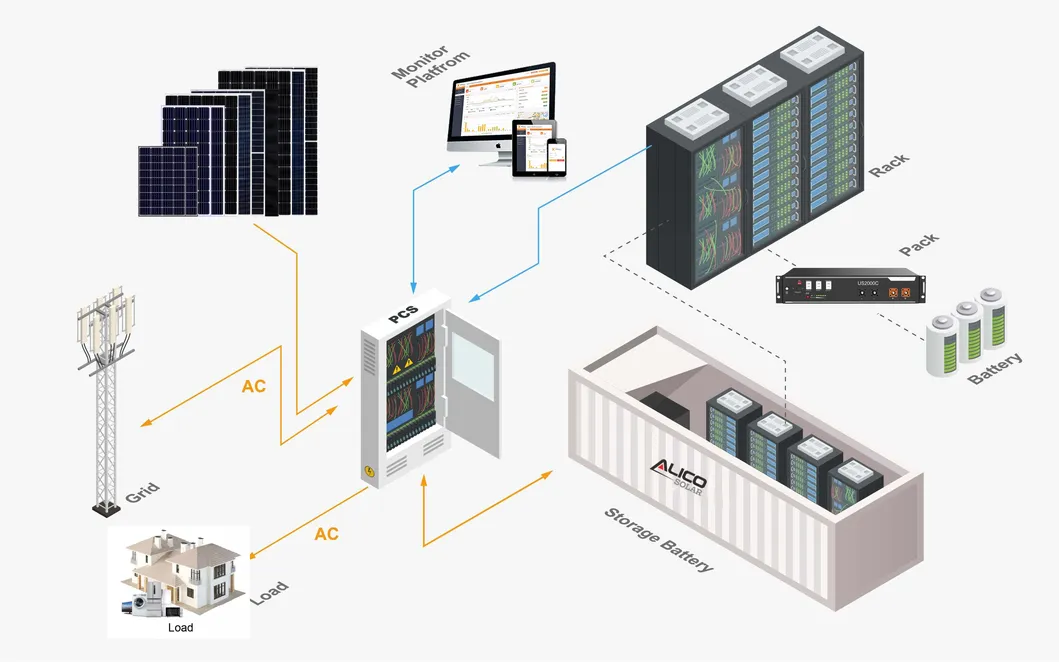

On Grid System Configuration

1. Solar Panel

2. On Grid Inverter

3. Switch Box

4. Power Meter

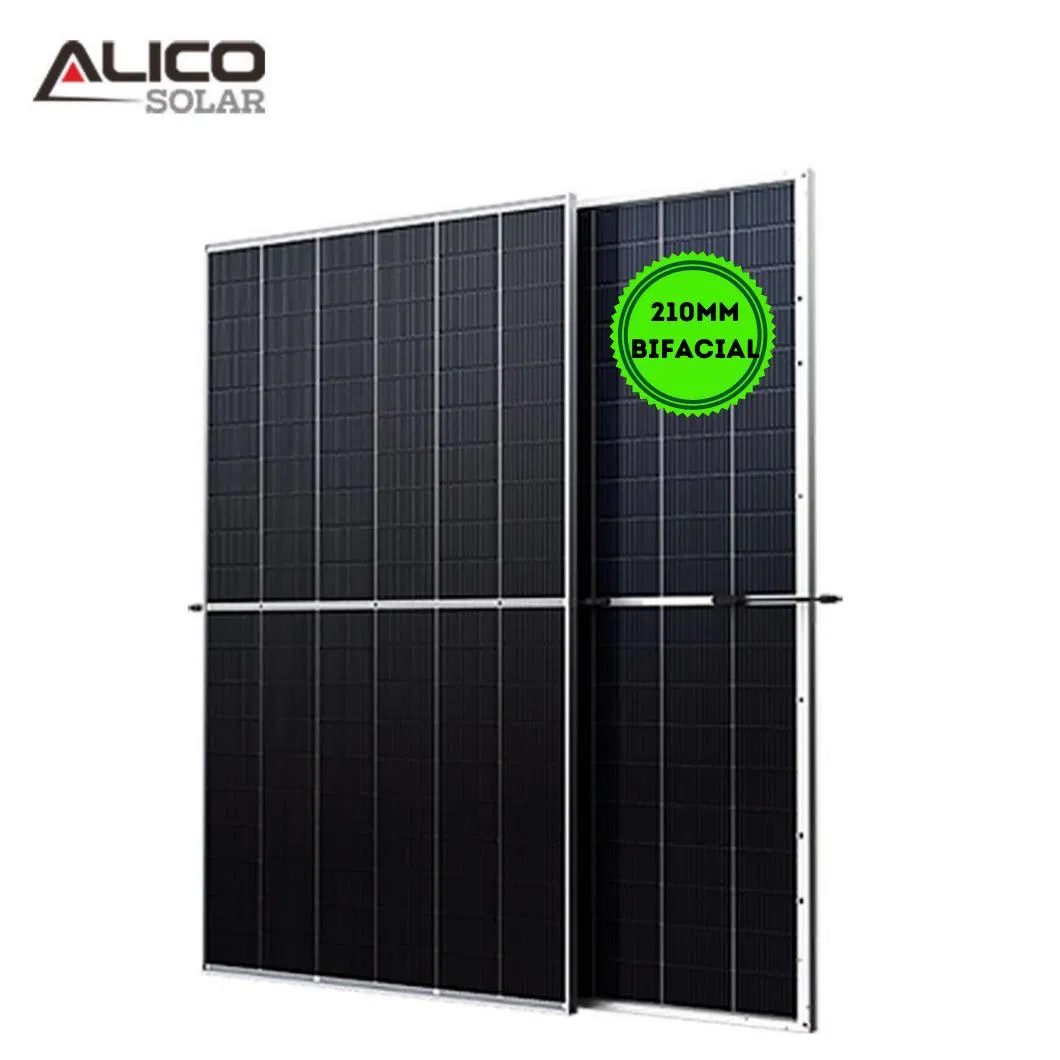

Mono Solar Panels

Peak Power Watts: 455-690Watt
Weight: 18.6 kg - 35 kg
Tier 1 standard
12 years warranty quality
30 years warranty power

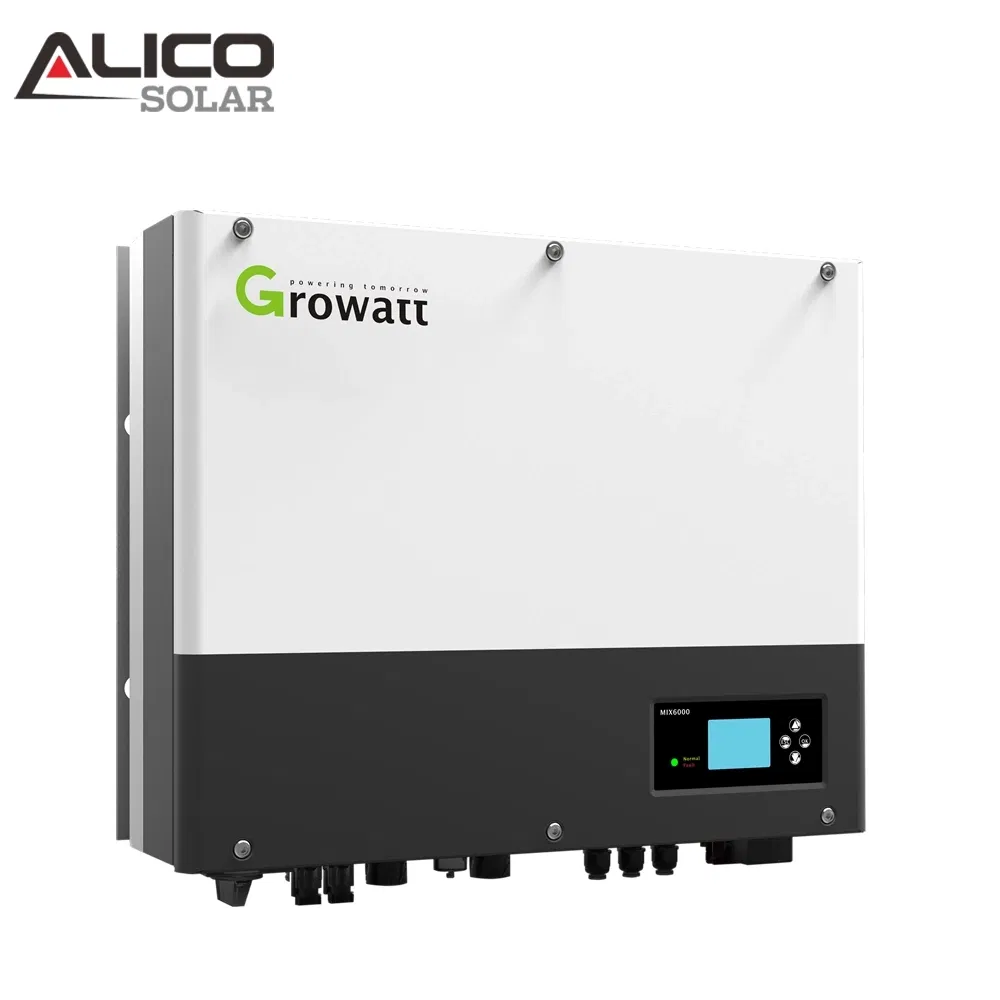

On-Grid Inverter

Max.DC Input Power: 5.8KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5-10 Years
Wifi Stick For STD, Lan & GPRS Optional.

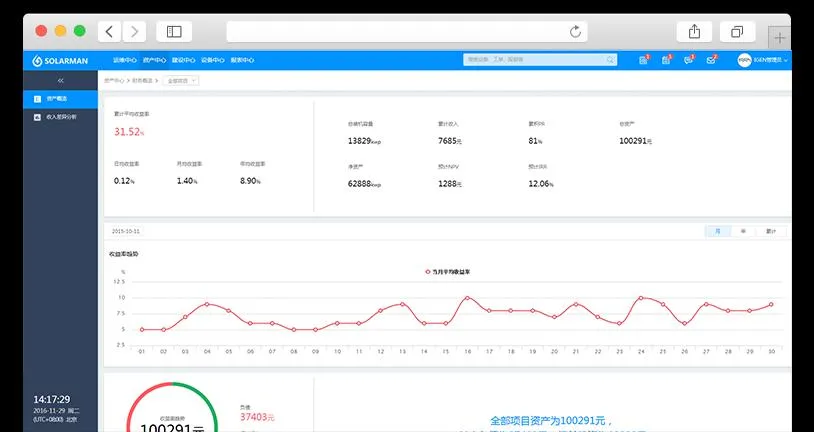

Remote Monitoring System

Data Logging Stick allows you to receive information from your solar power system everywhere and every time, accessible via Wi-Fi, Lan or GPRS. App Available for PC, IOS & Android.

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip, Tie, Ground Clip & Lugs Optional.

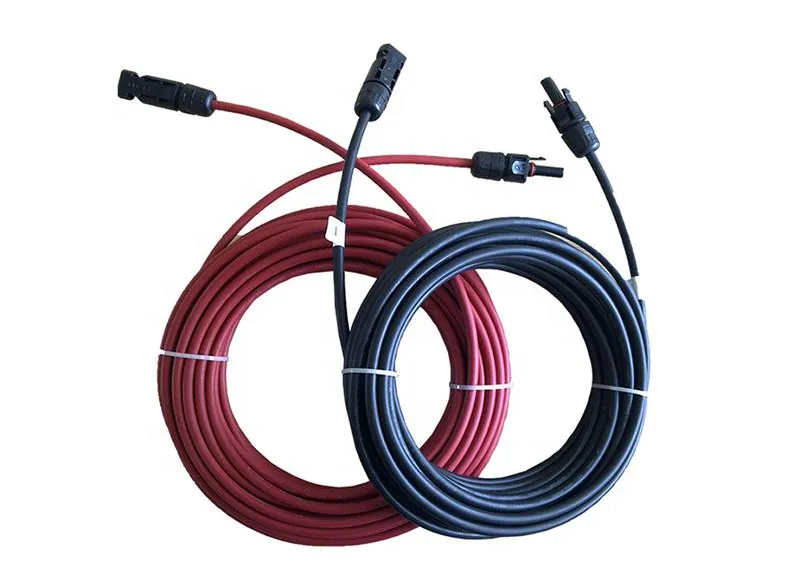

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years

PV Tools

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

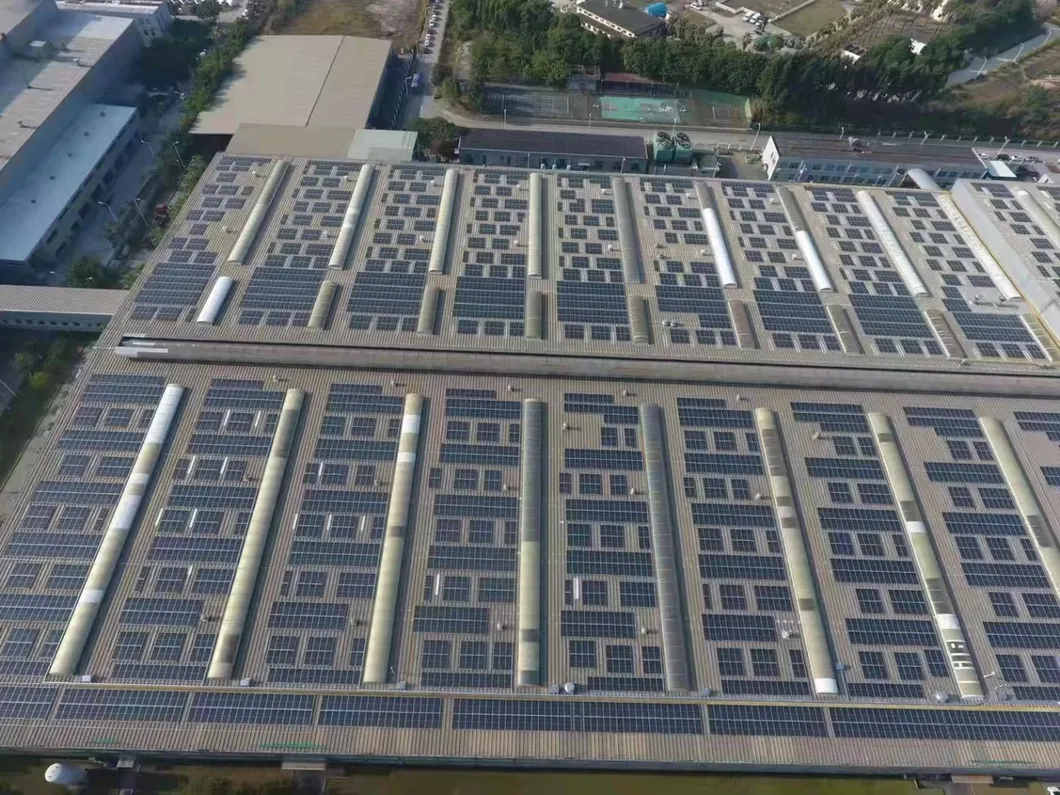

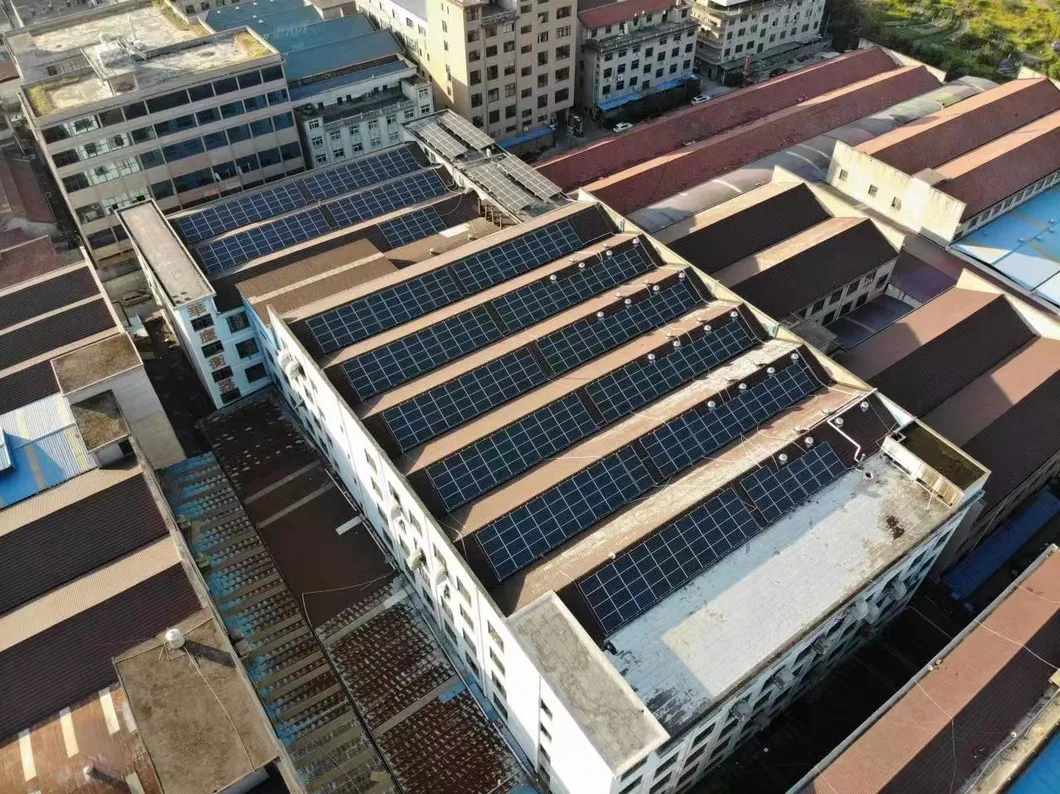

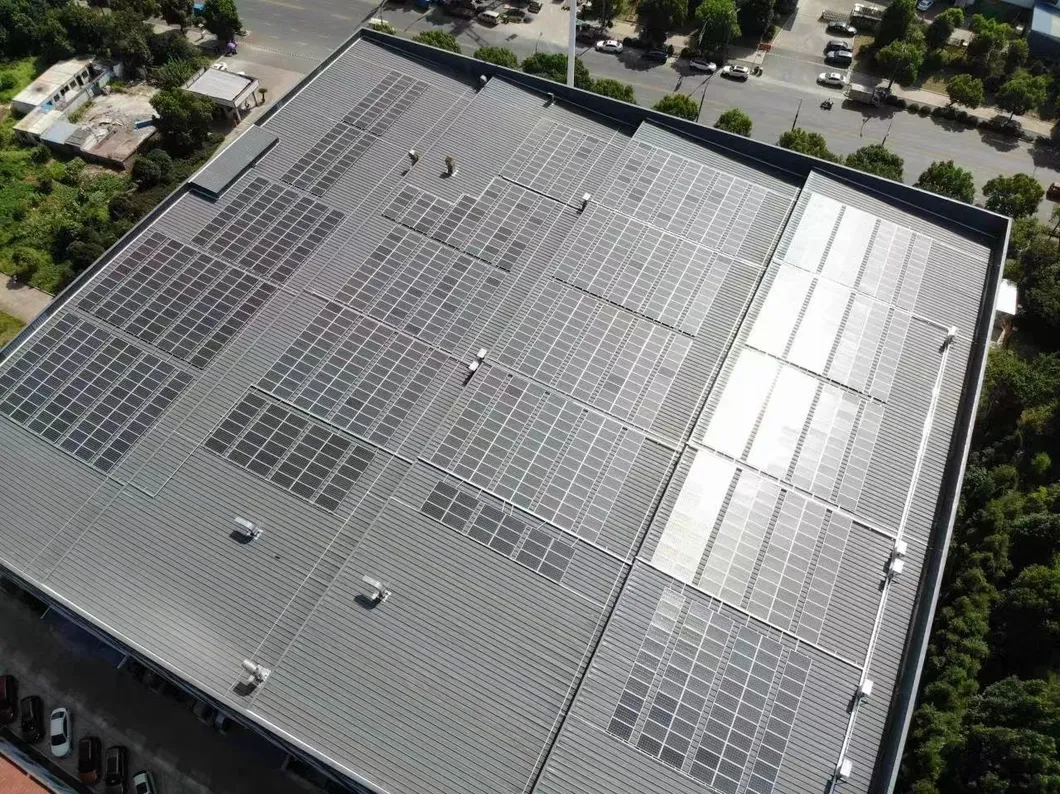

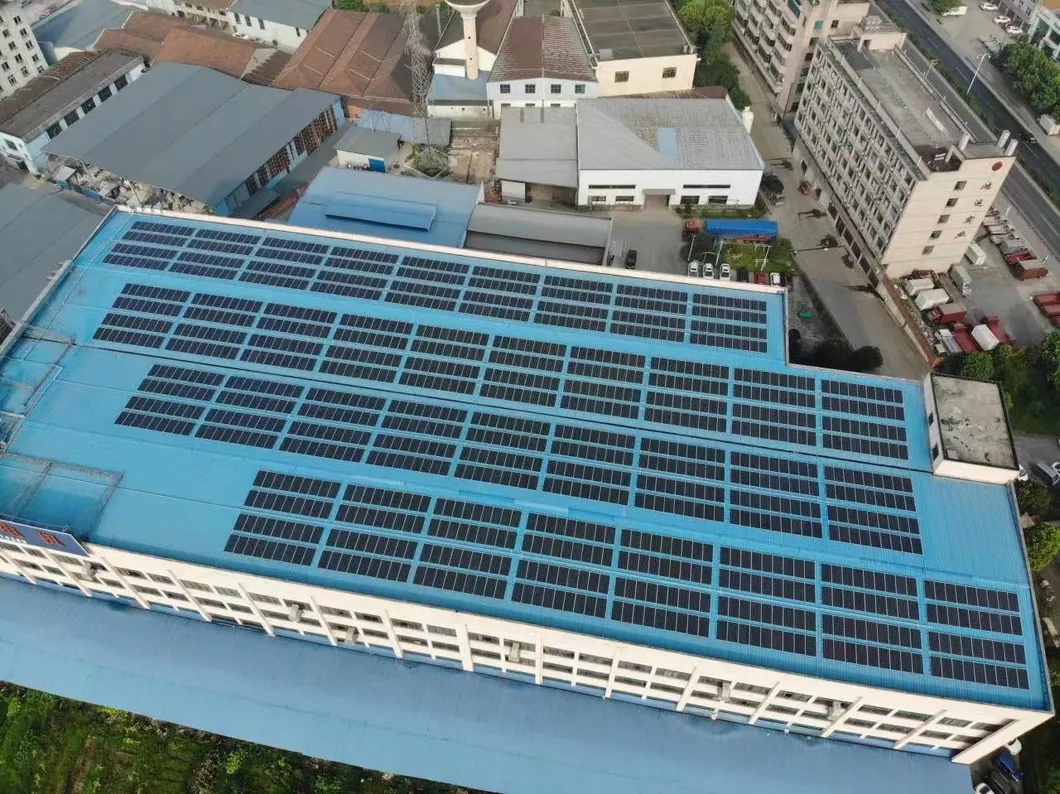

Projects Shown

Frequently Asked Questions

What components are included in the 1MW solar system package?

The 1MW system includes 1818 pieces of 550W Mono PV modules, 9 sets of 120KW three-phase on-grid inverters, DC/AC disconnect switches, 4000 meters of 6mm2 DC cable, MC4 connectors, a complete mounting system, and 10 sets of PV installation tools.

What is the warranty period for the solar panels?

The solar panels come with a 12-year quality warranty and a 30-year power output warranty, ensuring long-term reliability and performance.

Can the mounting system be customized for different roof types?

Yes, while the standard package includes a pitched roof mounting system, it can be customized for flat roofs, ground mounts, or specific asphalt shingle requirements.

How does the remote monitoring system work?

The system uses a Data Logging Stick (Wi-Fi, LAN, or GPRS) to transmit real-time data from the inverters to a web server. You can monitor performance via a dedicated App on PC, iOS, or Android devices.

What is the expected lifespan of the system's cabling?

The high-quality DC cables and MC4 connectors provided are designed for extreme outdoor conditions with an estimated service lifetime of up to 25 years.

Are the inverters compatible with international grid standards?

Yes, the inverters support various grid voltages including 208/240V (US standard) and 230V (EU standard), and they carry CE and other necessary certifications.
