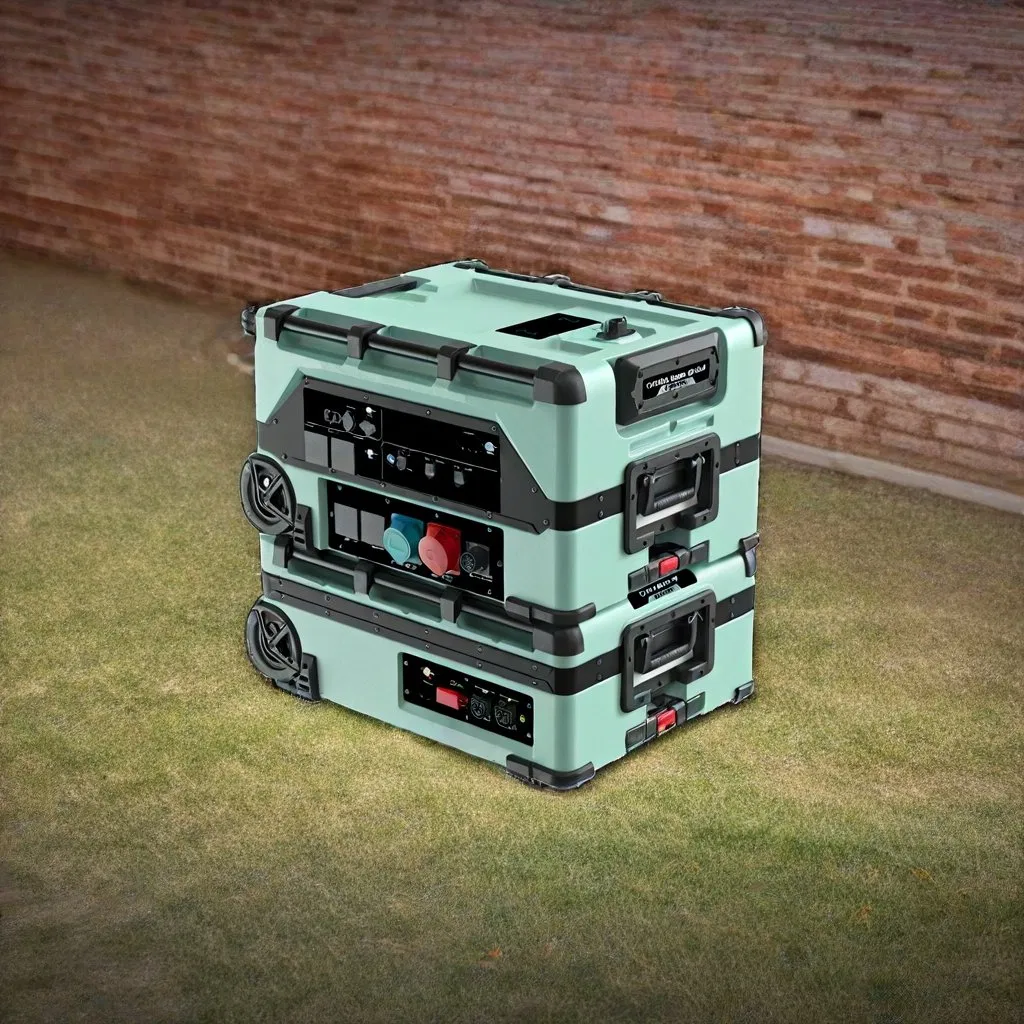

Portable Solar Wind Hybrid System 12000W Home Energy Storage System

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.
EP12000iL
Cycle Life
3000
Nominal Capacity
7680wh
Multiple Charging
AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion
Yes, Max 245kwh
Fast Charging
70mins Fully Charged
Certificates
CE RoHS IEC62619 Un38.8 MSDS
Inverter Type
Bi-Directional Inverter
Three-Phase Output
Yes
Portability
Drawbar & Wheels

Product Advantages

Built-in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, supporting 12kW output and 8.5kW charging.
Continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

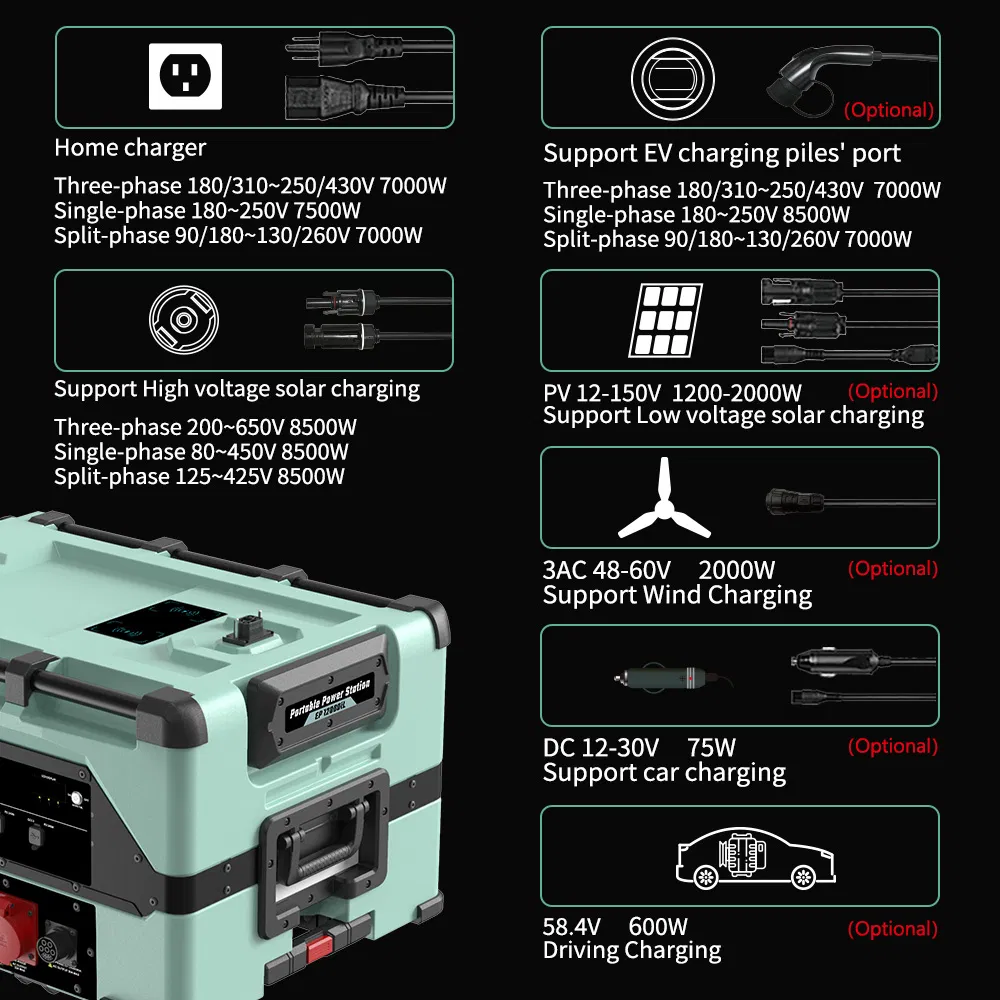

Multiple fast charging methods: utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator, and wind turbine.
Expansion capacity up to 245kWh by stacking and connecting up to 31 extra batteries.

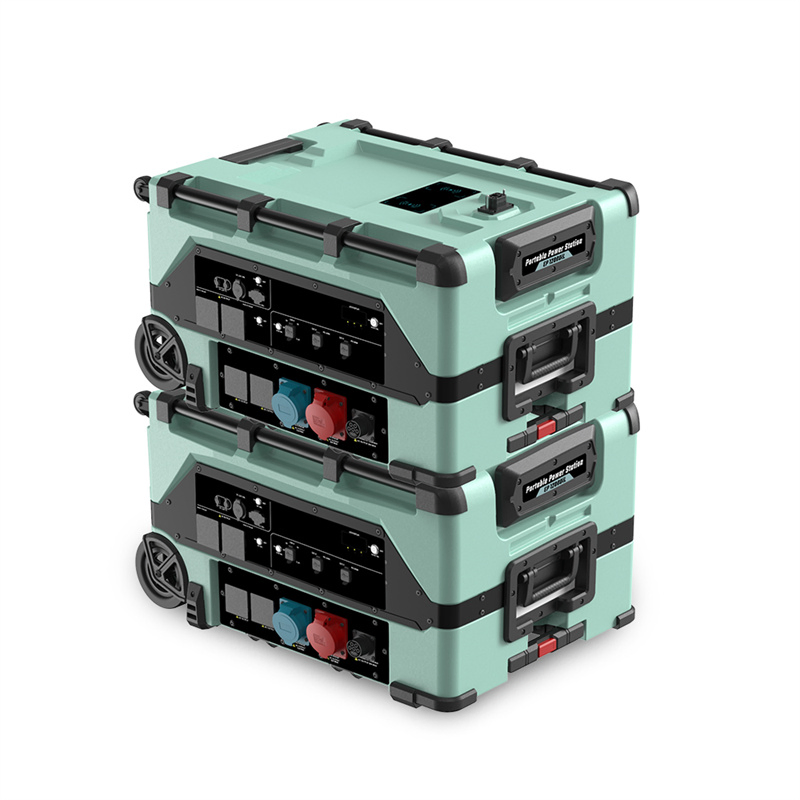

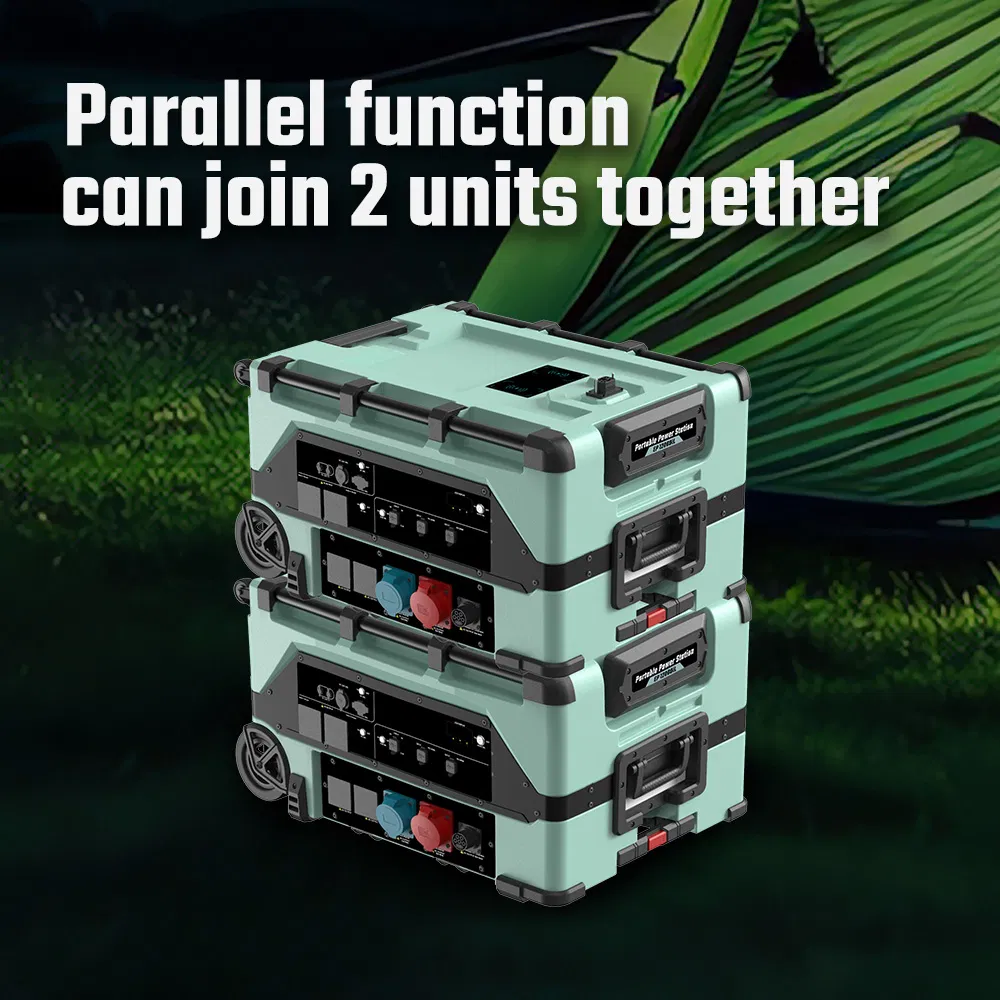

Patented stacked parallel technology: join 2 units for 24kW continuous output.
Built-in electric vehicle charger, capable of charging cars up to 22kW.
Switchable four-wheel chassis and large-diameter wheel for effortless portability.
High protection grades: Unit IP53 and Battery Pack IP66.
Advanced patented dual channel cooling system and V-0 level flame-retardant casing.
Intelligent control and monitoring via smartphone APP.
📊

Technical Parameters

Output Type Feature Specifications
AC Output Rated Power 12000VA (Three-phase) / 11000VA (Single) / 10000VA (Split)
Peak Power 24000VA (Three-phase) / 22000VA (Single) / 20000VA (Split)

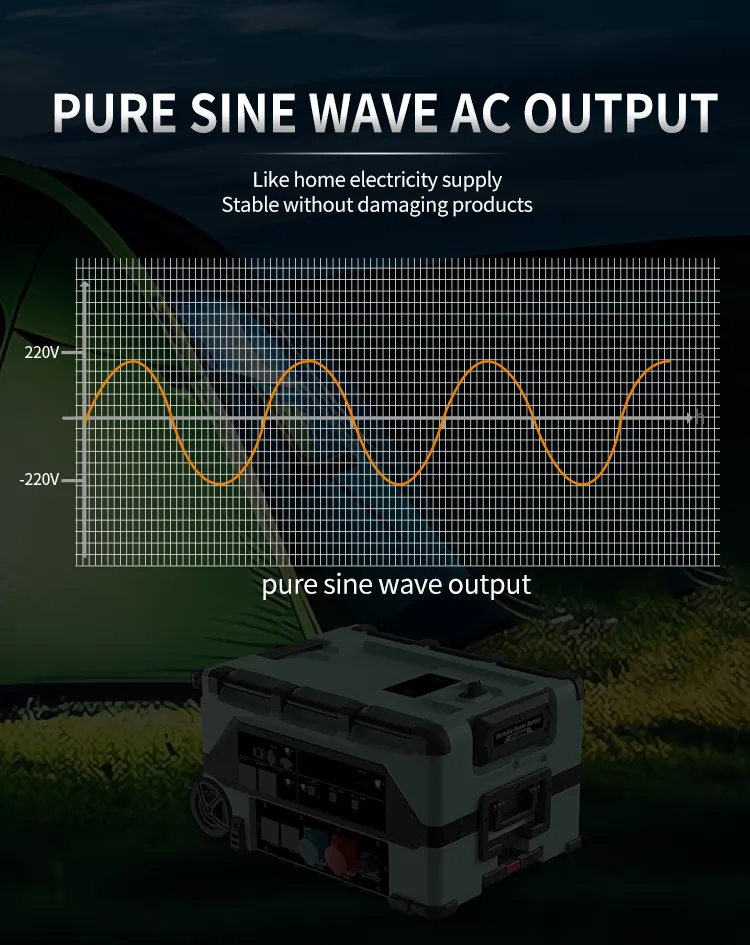

Waveform Pure-Sine Wave, THD < 3%
Frequency 50/60Hz
DC Output XT90 Port 12V/30A
Cigarette Lighter 12V/10A
USB/Type-C QC3.0, PD 140W (Max)
📷

Detailed Gallery

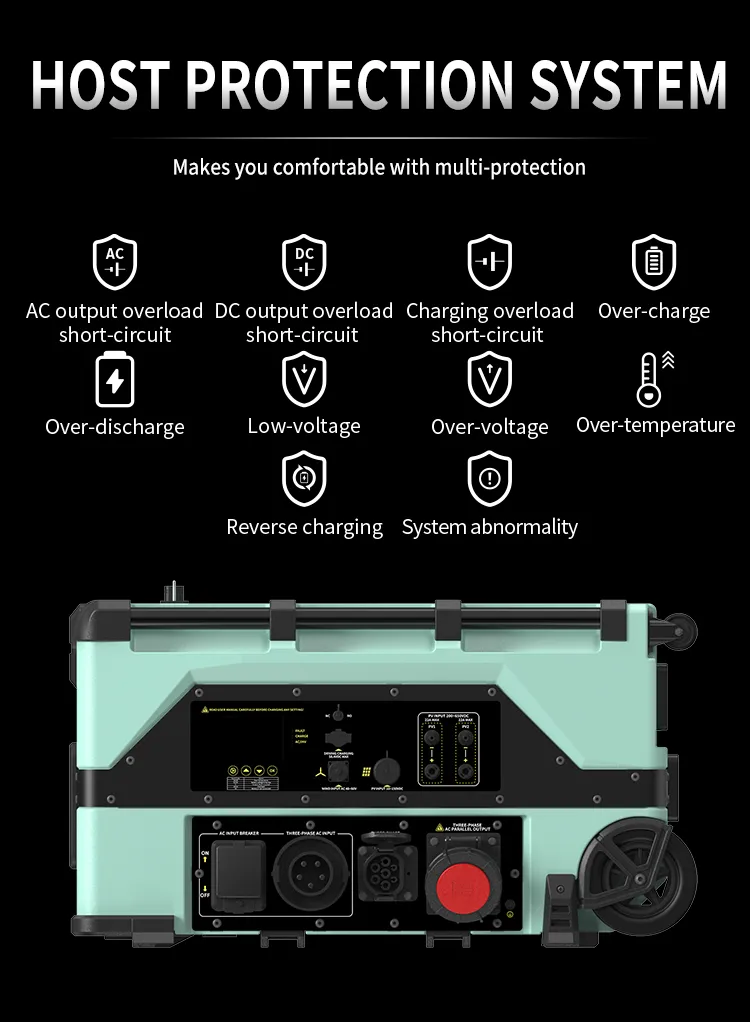

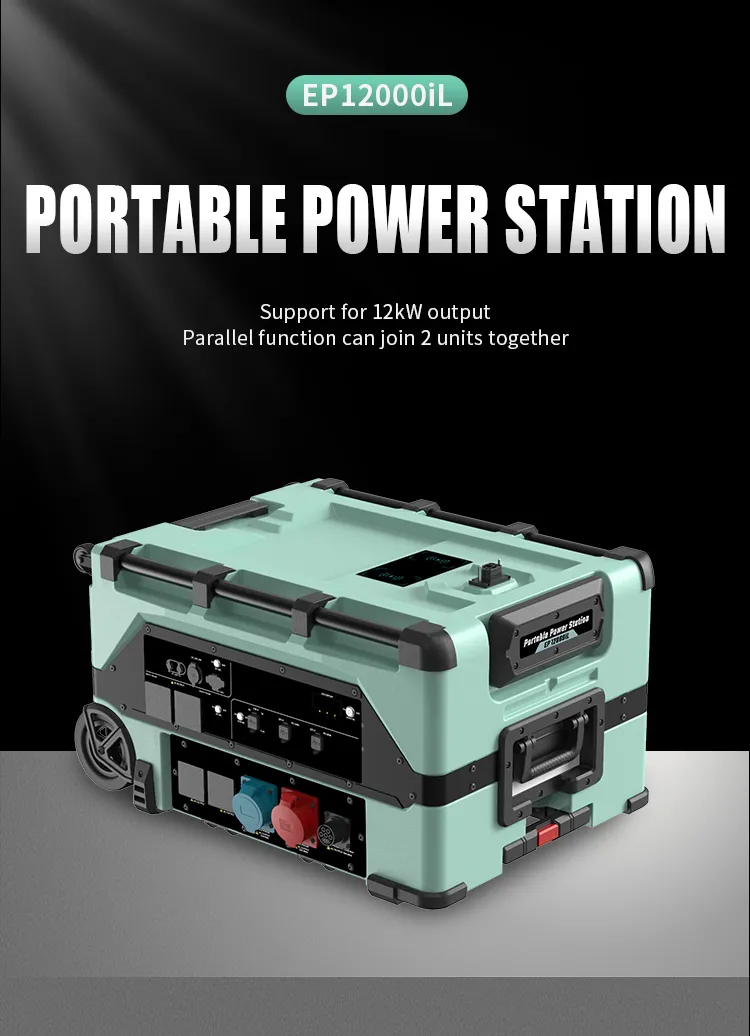

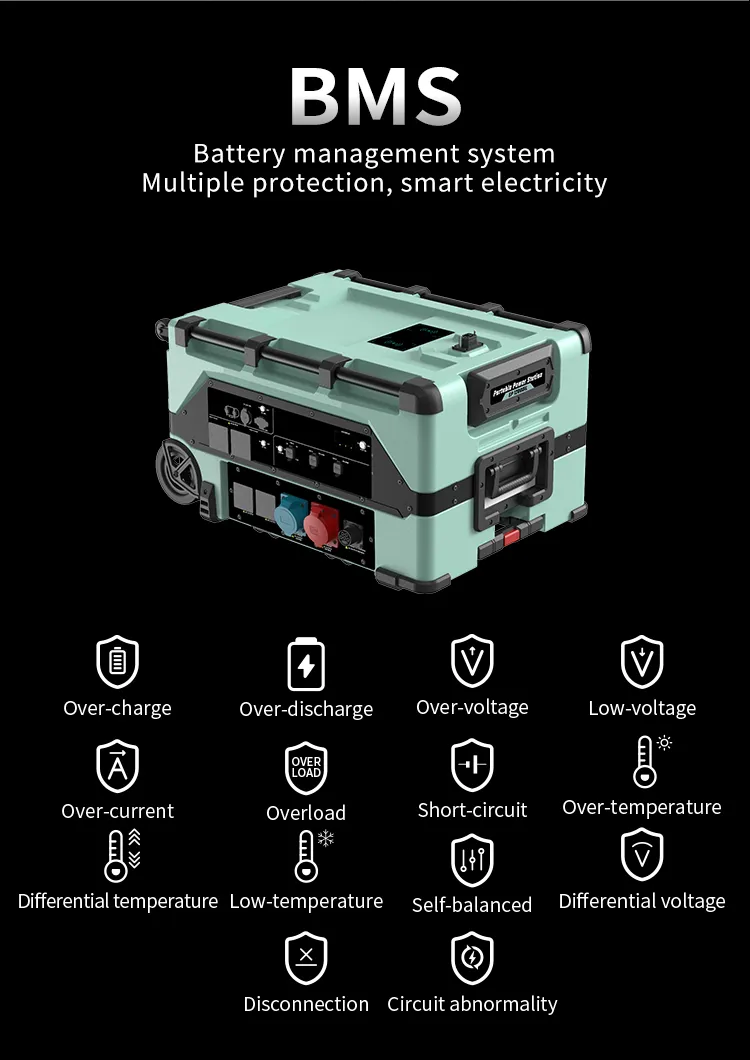

System View 1 System View 2 System View 3

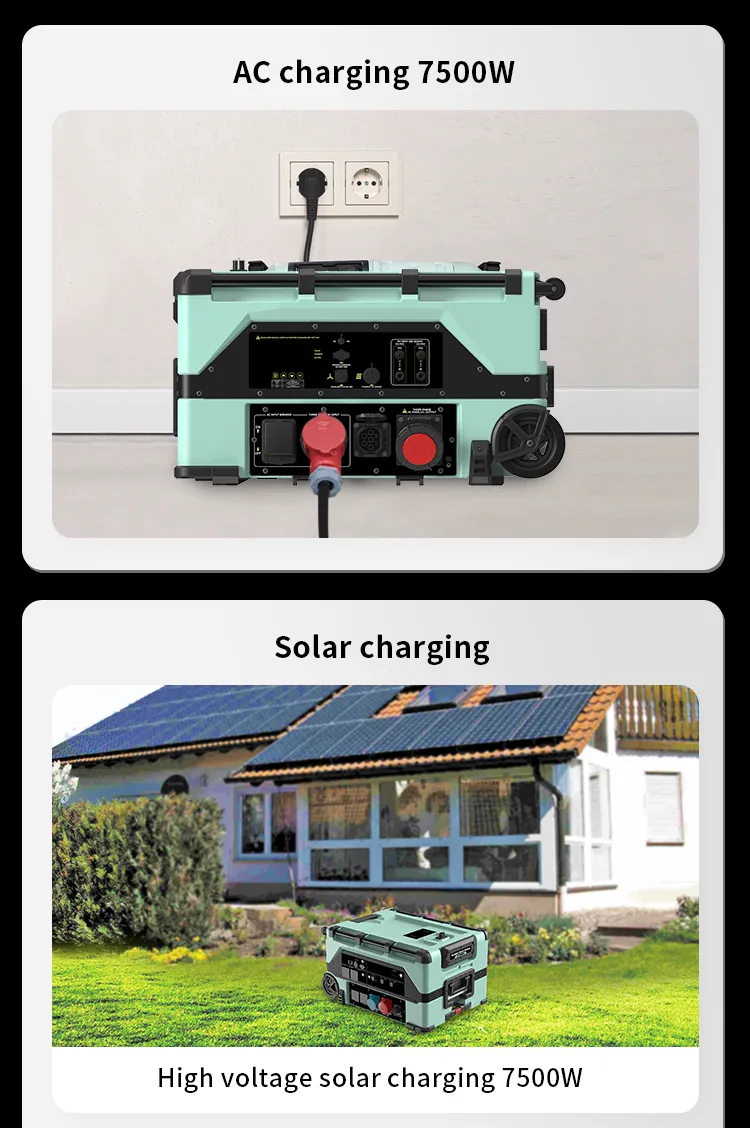

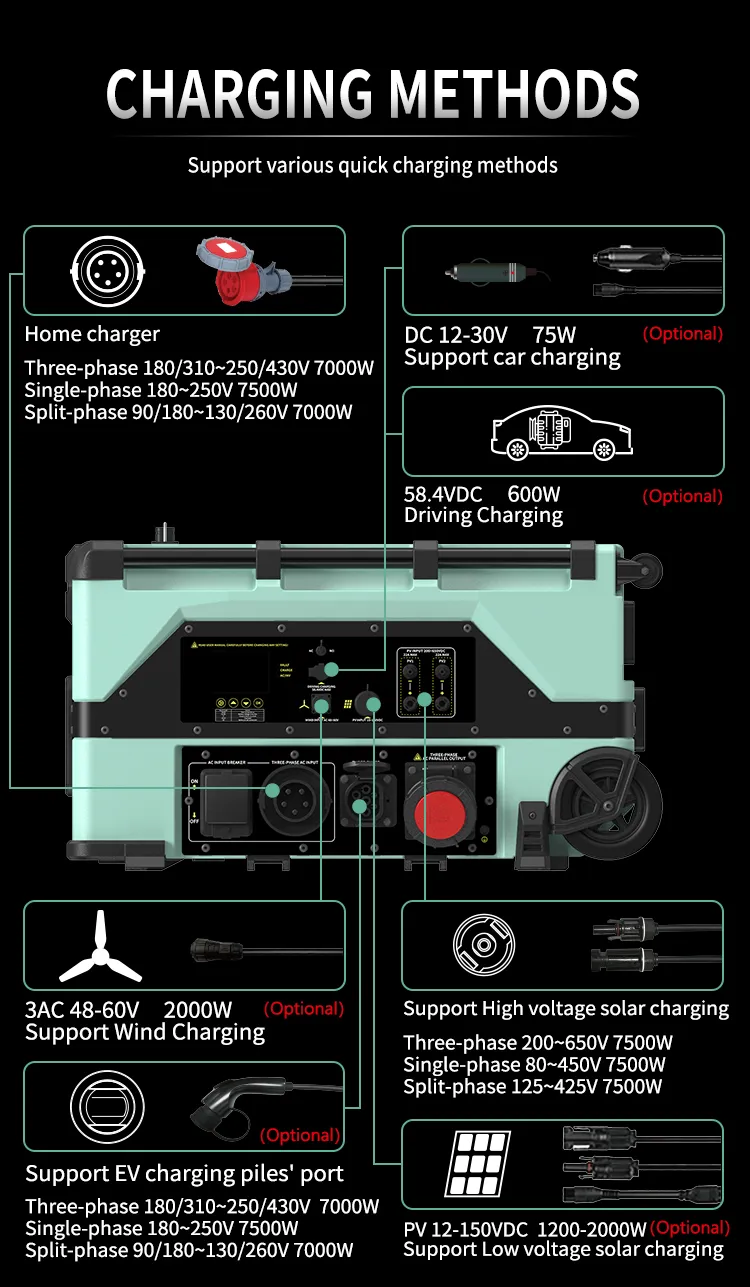

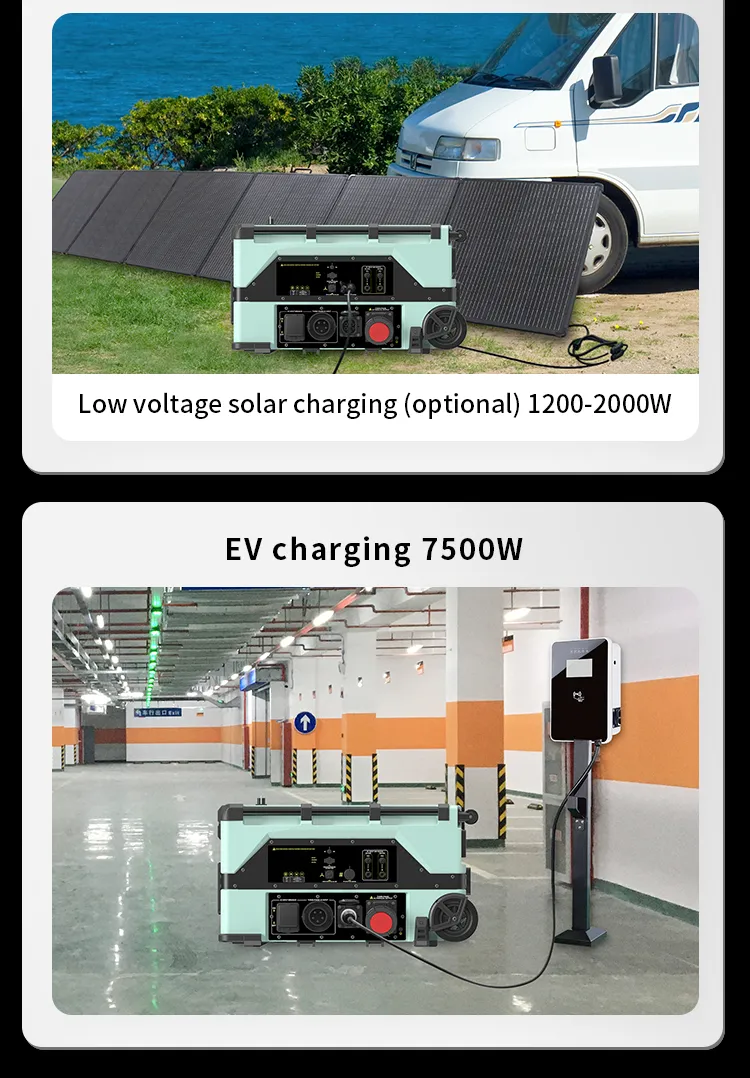

System Detail 1 System Detail 2 System Detail 3
Operation View

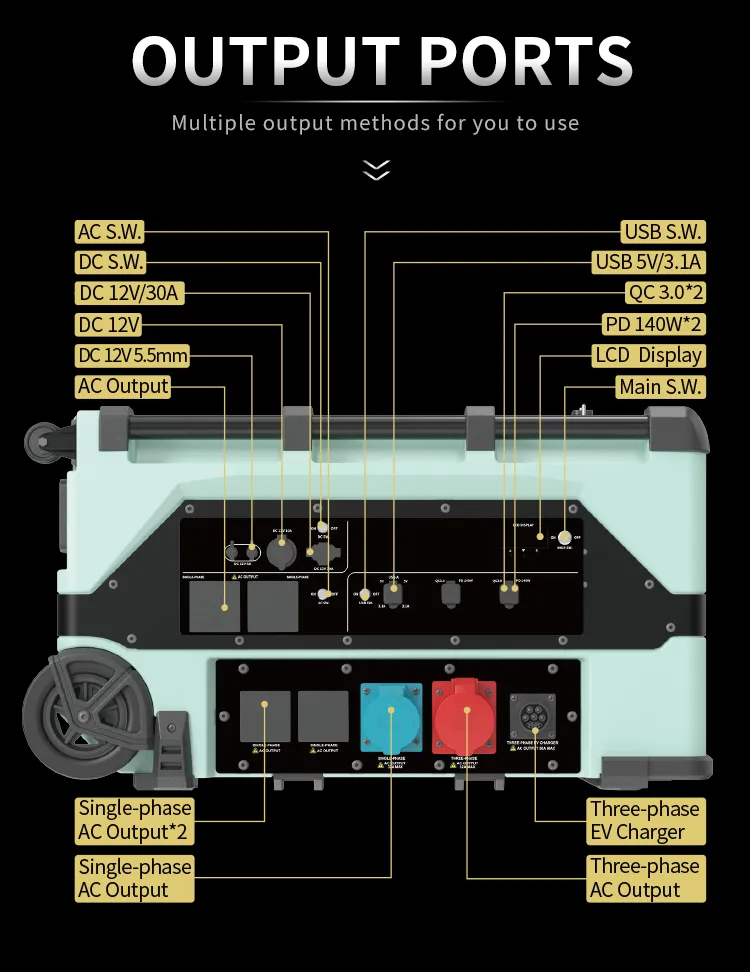

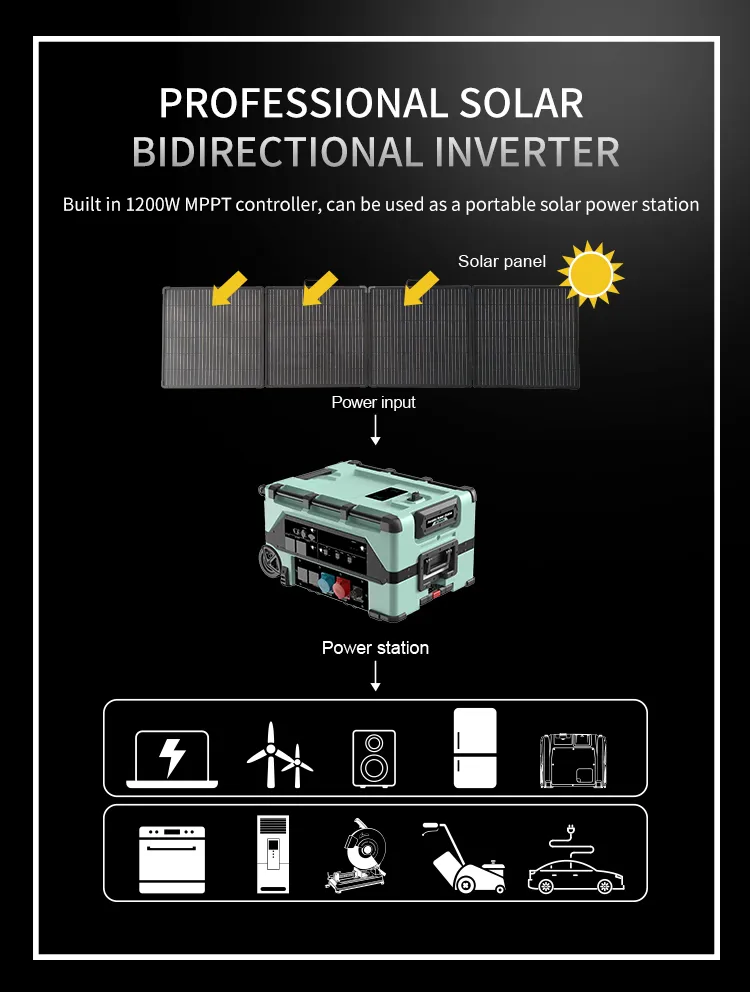

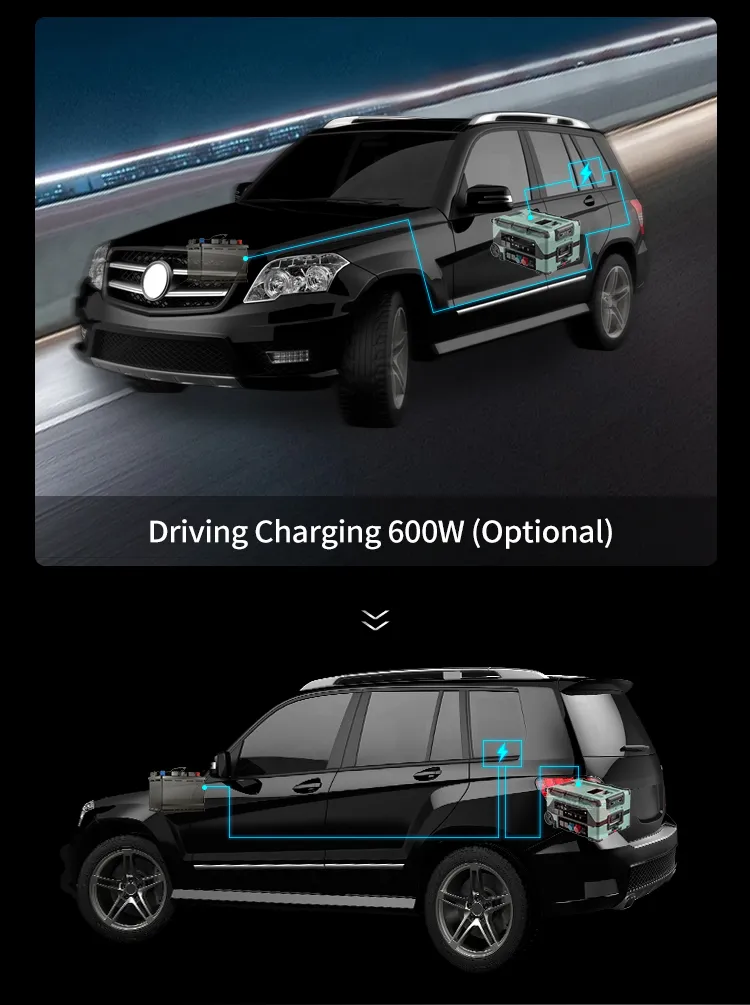

Feature 1 Feature 2 Feature 3

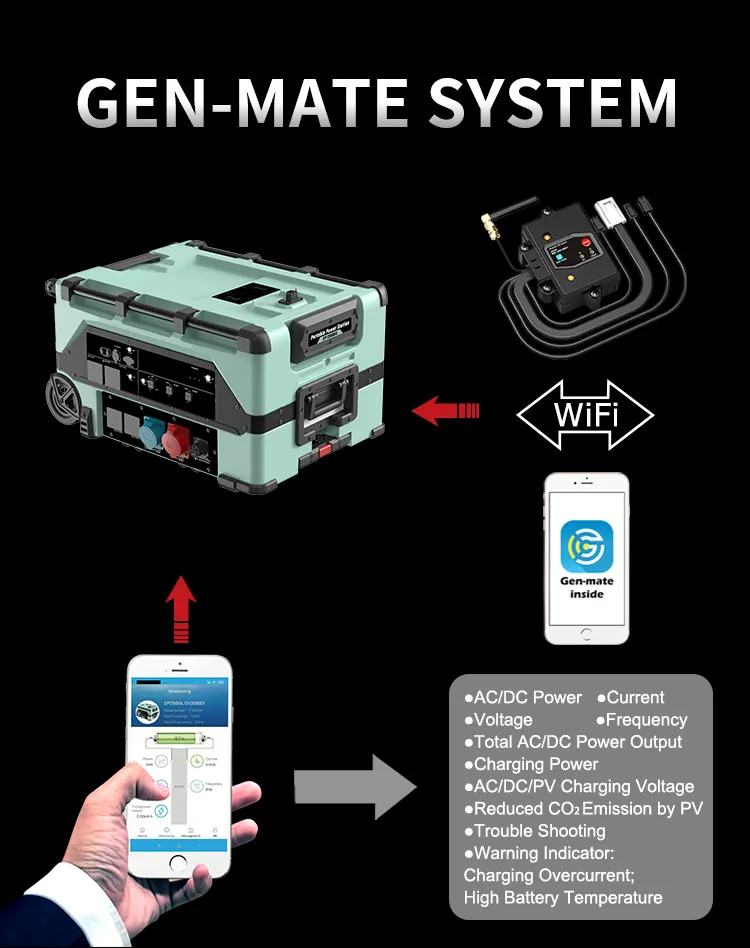

Feature 4 Feature 5 Feature 6
🏢

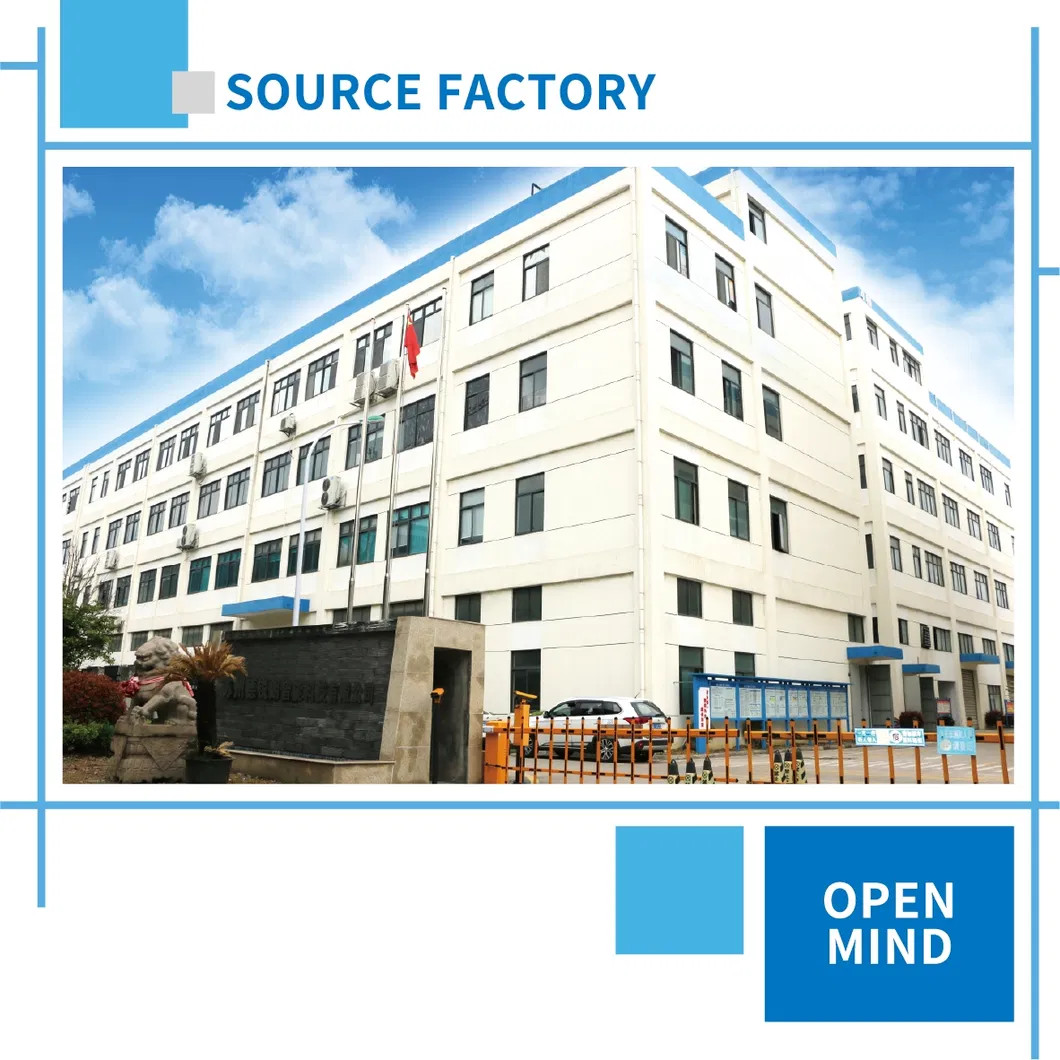

Manufacturing Excellence

Founded in March 2015, the organization is a high-tech enterprise integrated with research, manufacture, and sales. With advanced manufacturing plants and dedicated R&D departments, we provide premium inverter generators, power equipment, and electrical products globally.

Our strategy focuses on independent innovation, possessing over 70 critical patents in power equipment and intelligent controller fields. Our products maintain a leading market position in Europe and North America, recognized for superior quality and competitive performance.

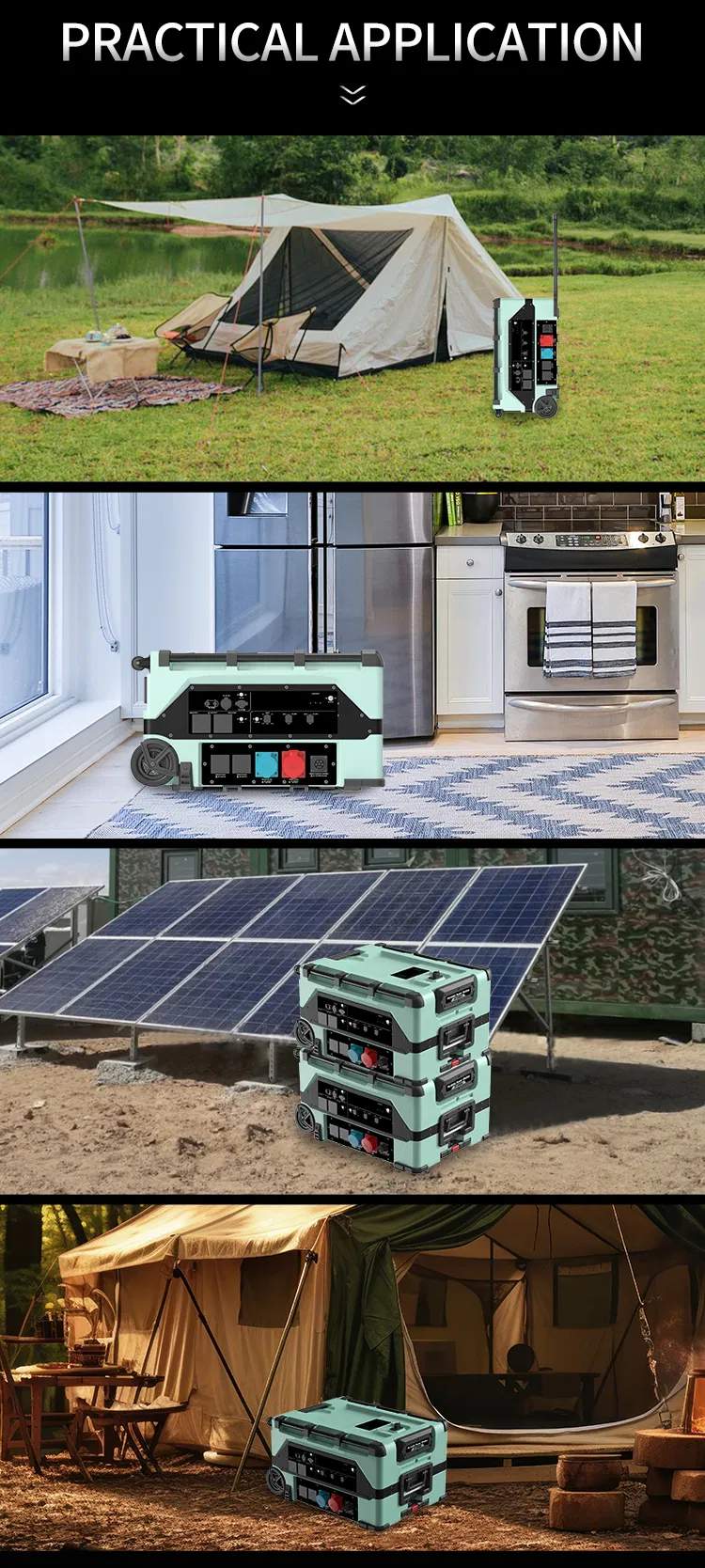

Technology and Production
?

Frequently Asked Questions

What is the maximum capacity this system can reach?
The base unit has a 7680Wh capacity, but it can be expanded up to 245kWh by connecting 31 extra battery packs.
How fast can the EP12000iL be fully charged?
The system supports super-fast charging and can be fully charged in approximately 70 minutes using optimized AC or solar inputs.
Can this unit charge electric vehicles (EVs)?
Yes, the system features a built-in EV charger that can replace traditional charging stations, supporting output up to 22kW.
What is the battery life expectancy?
The high-quality LiFePO4 battery is rated for 3000 cycles while maintaining 80% or more of its original capacity.
Is the system suitable for outdoor use?
Yes, the main unit is IP53 rated and the battery packs are IP66 rated, providing excellent protection against dust and water ingress.
Does it support three-phase power output?
Yes, it supports continuous 12kW AC three-phase output, as well as single-phase and split-phase configurations.
