Customization: Available
Type: Lithium-Ion Batteries
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home
Send Inquiry

Product Description

Basic Information
Model NO.
WHC15KW-Li-20KWH
Nominal Voltage
AC220V
Discharge Rate
High Discharge Rate
Electrolyte
Li-ion
Product Name
Offgrid Solar Power System Home
Power
15kw
Solar Panel Type
Half Cell Solar Panel
Battery Type
LiFePO4 Lithium Battery
Inverter
Pure Sine Wave Inverter
Controller
MPPT Solar Charge Controller
System Type
Off-Grid Solar Power System
Capacity
10000pieces/Month
Product Description

This off-grid solar system is the most cost-effective type for solar systems. It is a complete solar setup that comes with highly efficient solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery, and other standard solar accessories. This system will not only provide you with continuous electricity but will also reduce your electricity bills.

Solar Power System
Inverter Detail Battery Detail Solar Panel Setup

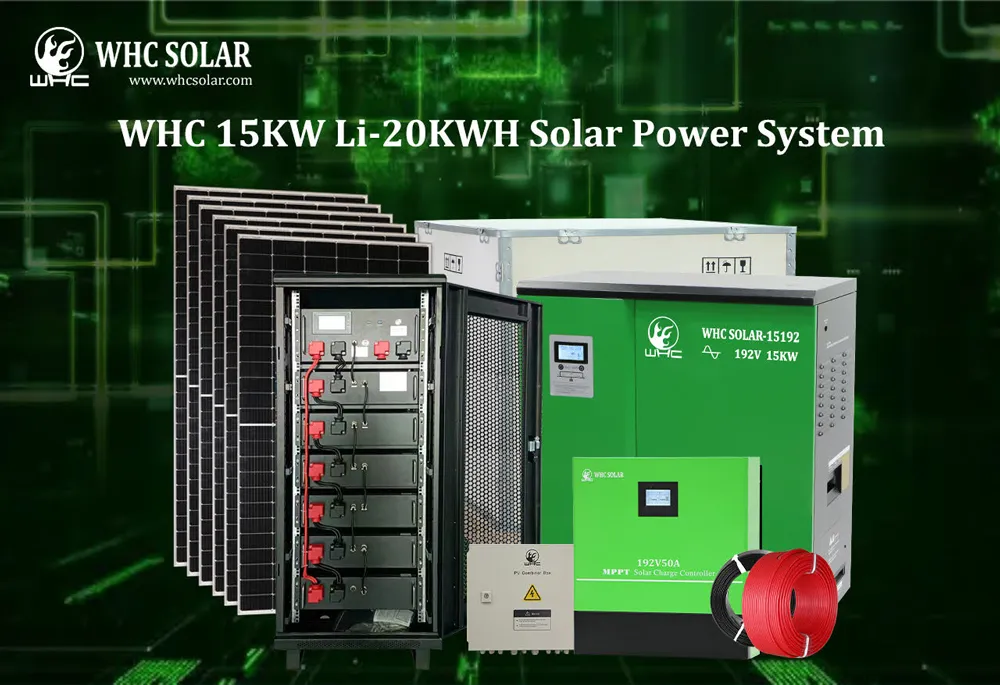

System Overview

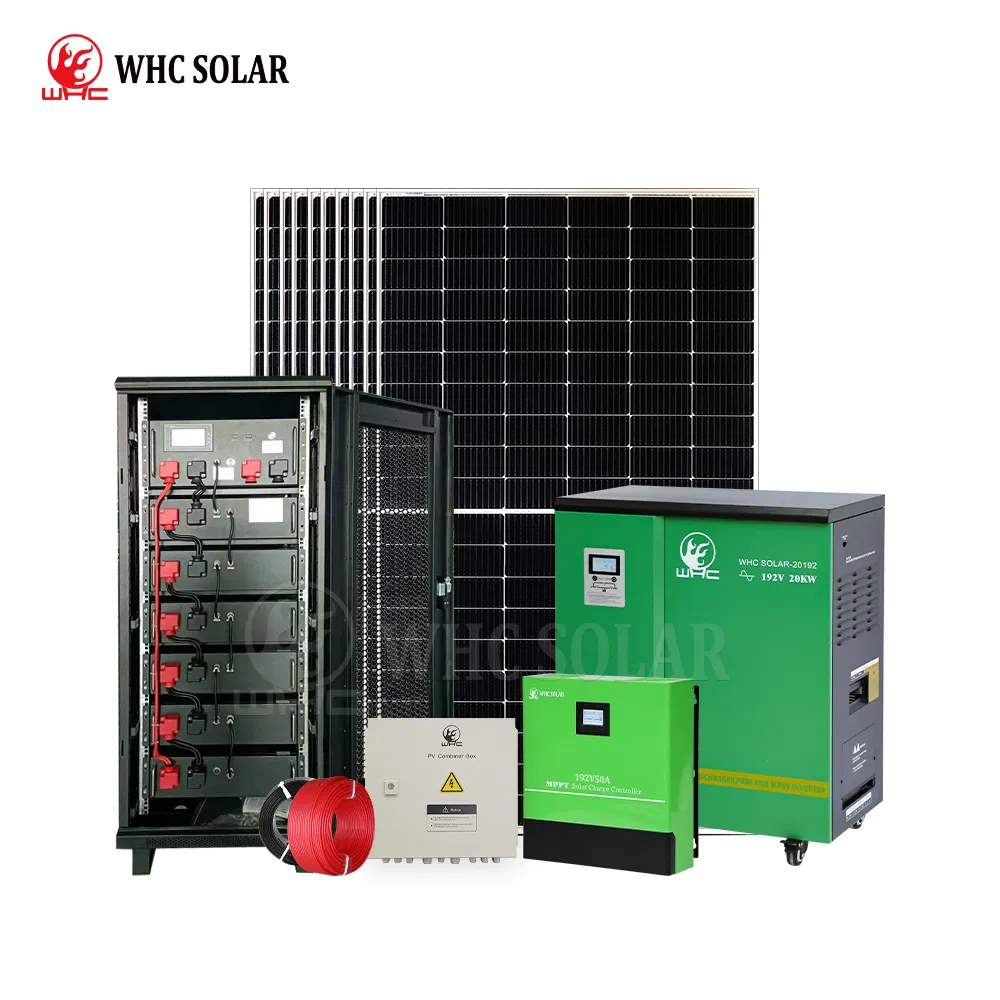

WHC15KW-Li-20KWH System Configuration
Item Description Quantity
Solar Lithium Battery192V100AH LiFePO4 Lithium Battery1 Pieces
Solar Panel450W Solar Mono Panel18 Pieces
Solar Controller192V 50A MPPT Controller1 Pieces
Solar Inverter192V 15KW Solar Inveter1 Pieces
PV Combiner BoxSix Input + Two Output1 Pieces
PV CableSingle-core 6mm2 PV cable 100m2 Pieces
PV Mounting SupportHot Galvanizing Ground Mounting Support1 Set
ConnectorMC4 Connector30 Pieces
Key Components
Mono Solar Panel
Mono Solar Panel 1. Model: WHC-450M-120
2. Max Power Voltage: 34.67V
3. Max Power Current: 12.98A
4. Open Circuit Voltage: 41.25V
5. Dimensions: 1909*1134*35mm

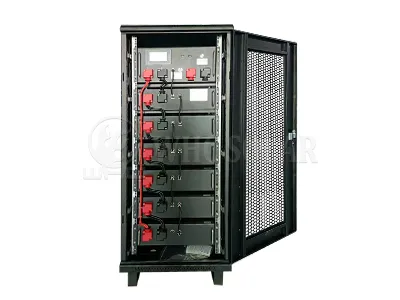

LiFePO4 Battery
LiFePO4 Battery 1. Type: LiFePO4 Lithium Battery
2. Nominal Voltage: 204.8V
3. Capacity: 20480WH
4. Lifespan: 10 Years
5. Max Discharging Current: 100A

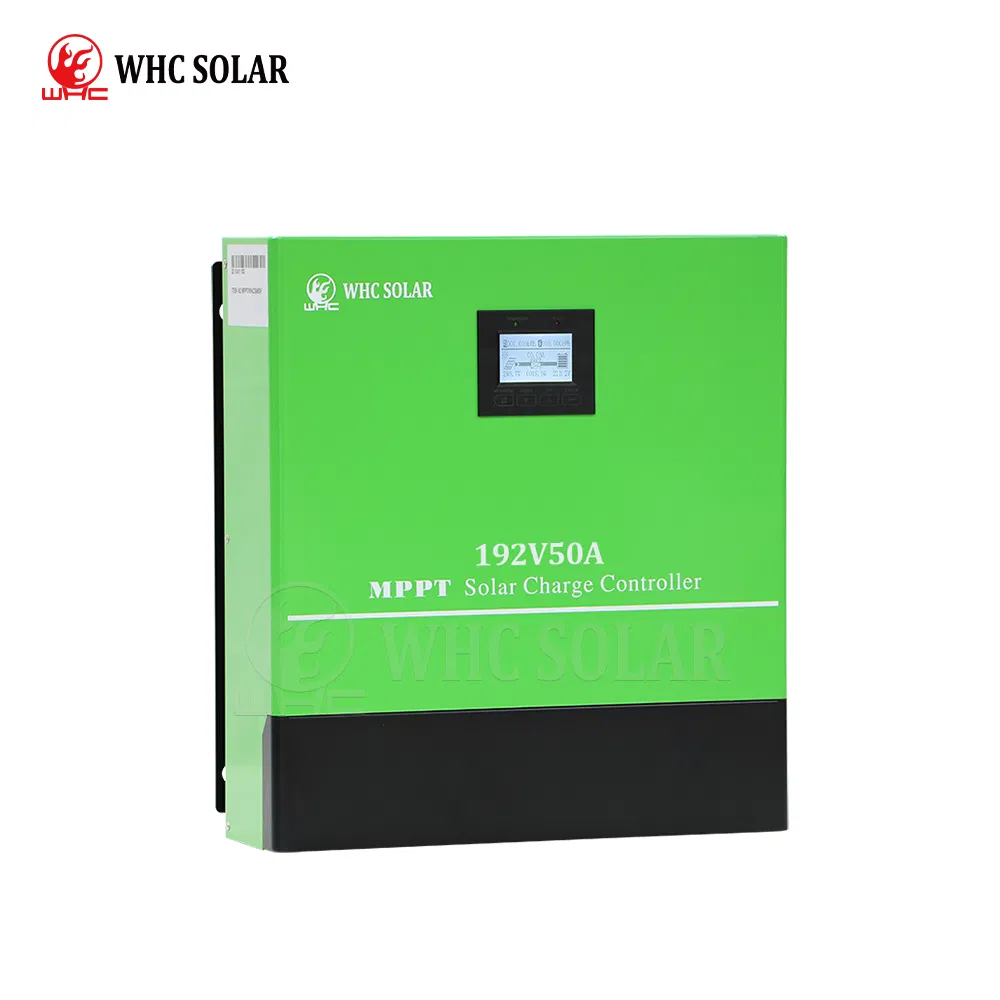

Solar Controller
MPPT Controller 1. Type: Heatsink Cooling
2. Max Charging Current: 50A
3. Max PV Open Voltage: 430V
4. DC Input: 192V
5. MPPT Efficiency: 99%
Solar Inverter
Pure Sine Wave Inverter 1. WHC 15KW Inverter
2. IGBT Pure Sine Wave with Transformer
3. DC Input: 192V
4. AC Output: 220V 50/60HZ
5. Recharging Current: 10A

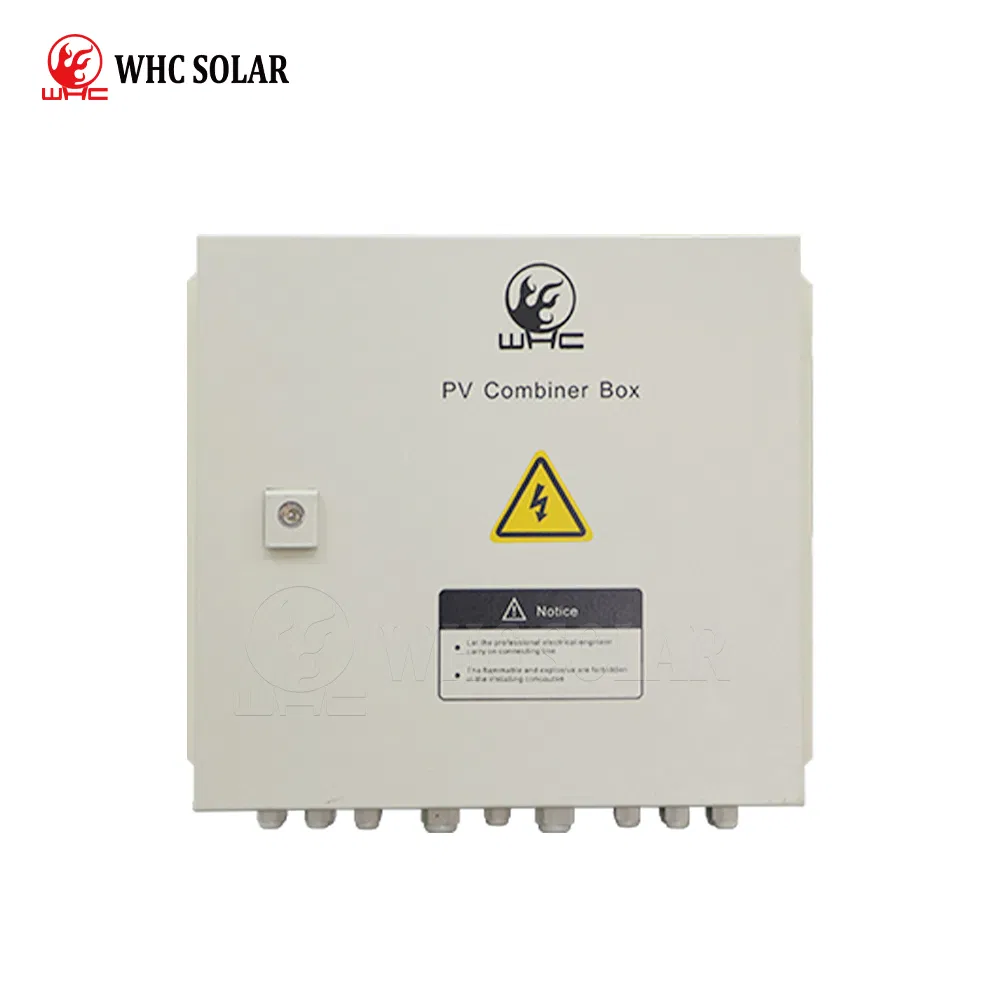

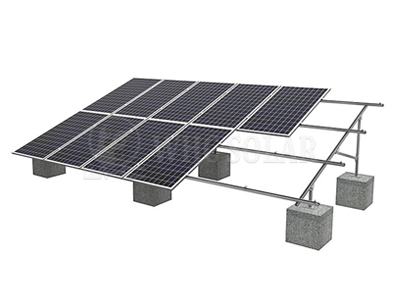

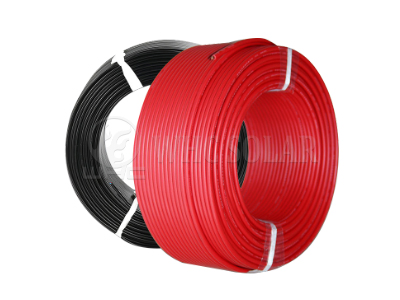

PV Combiner Box Mounting Support PV Cable

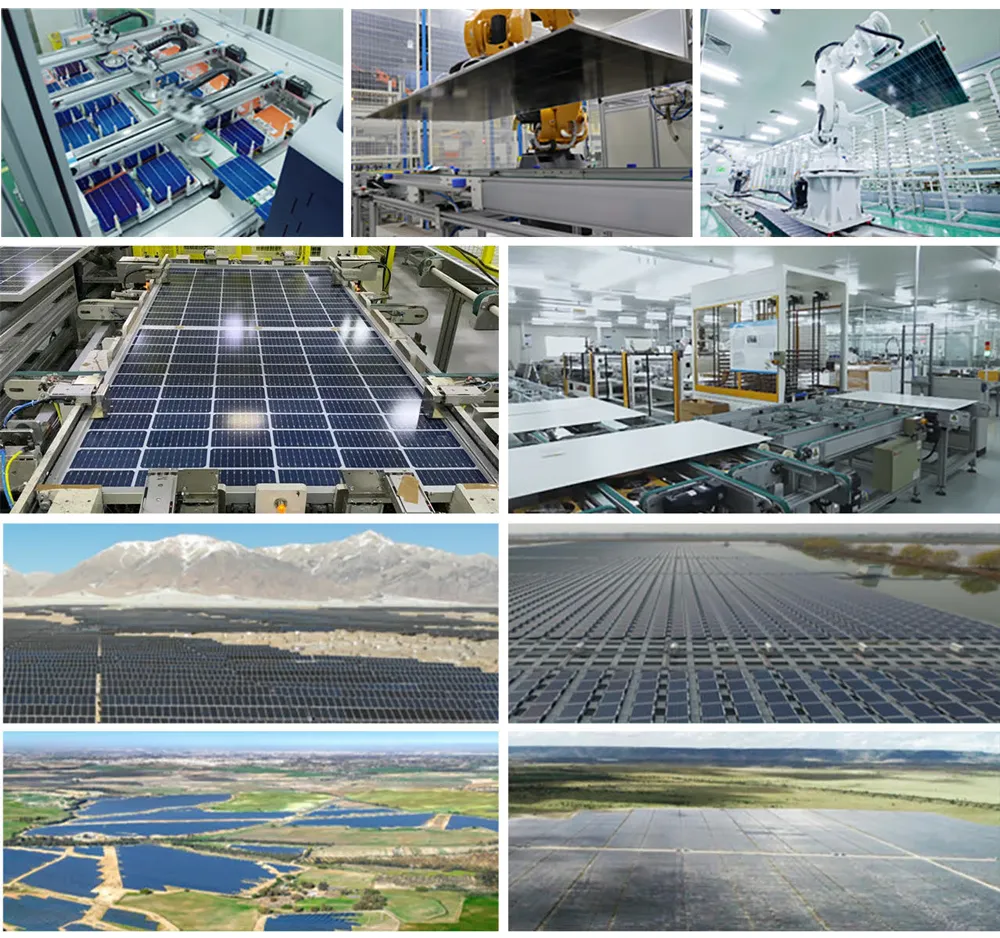

Application Scenario

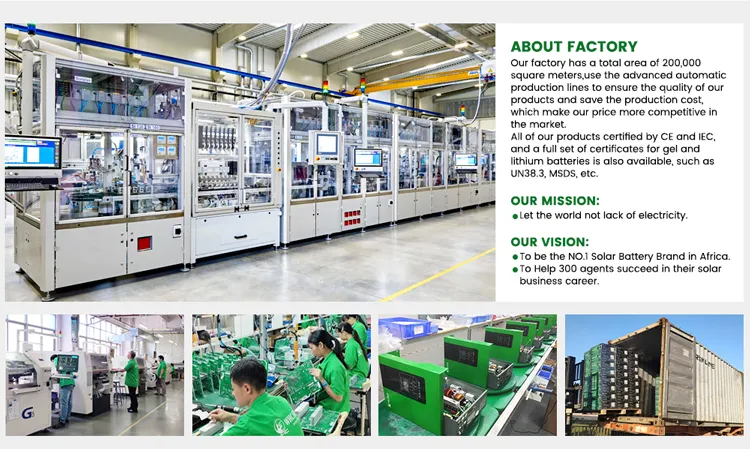

Factory Strength & Delivery

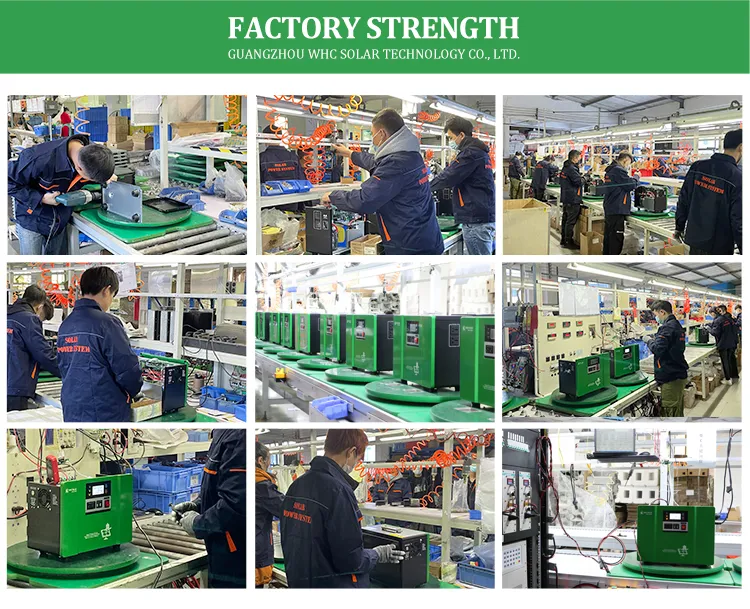

Company Facility Factory Line Certificates
Packing and Delivery
Frequently Asked Questions
Are you a factory or trading company?
We are a direct factory specializing in solar energy solutions.
Can you print my logo on the product?
Yes, OEM is available. We can print your logo on the battery cases and other components if you provide the design.
What certifications do your products have?
Our products have earned numerous national patents and passed CE, RoHS, and ISO9001:2008 quality management system certifications.
What is the typical delivery time?
Usually 14-20 days, depending on the specific product and order quantity.
Where are your primary markets?
Our main markets include Africa, South America, the Middle East, and Western regions.
What payment methods do you accept?
We accept T/T, Western Union, Money Gram, and other convenient payment methods upon discussion.
