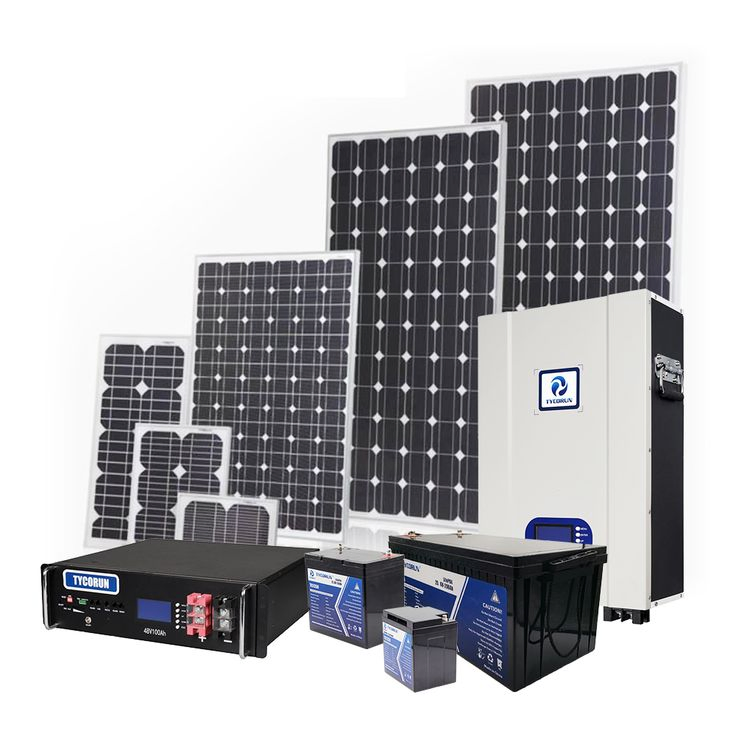

Photovoltaic Complete off Grid 15kw 30kw 50kw 80kw 100kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Industry Home

1 / 5

Photovoltaic Complete off Grid 15kw 30kw 50kw 80kw 100kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Industry Home

Customization:	Available
Weight:	1300 Kg
Warranty:	10 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CSAS solar system

Cycle Life

1000 Cycles

Nominal Capacity

5kw 3kw 1000W 10kw 10 Kw 6kw 15kw

Certification

ISO, CE

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

off Grid Inverter

Solar Panel

Monocrystalline Solar Panel

Origin

Jiangsu, China

HS Code

8501802000

Production Capacity

4500 Sets/Month

☀️ Product Overview

📊 Product Parameters

Parts	Specification	SP5KW	SP6KW	SP8KW	SP10KW	SP12KW
Solar Panel	590W Mono Panel	6 Pieces	10 Pieces	12 Pieces	16 Pieces	20 Pieces
Hybrid Inverter	Single Phase/Three Phase	1 pcs 5KW	1 pcs 6KW	1 pcs 8KW	1 pcs 10KW	1 pcs 12KW
LiFePO4 Battery	Powerwall/Rack-mounted, 48V 5/10KWH	1 Pieces	2 Pieces	2 Pieces	2 Pieces	2 Pieces
Bracket	Ground or Roof	1 set	1 set	1 set	1 set	1 set
PV Cables	4mm²	100 meters	200 meters	200 meters	200 meters	200 meters
MC4 Connector	Male + Female	5 pairs	10 pairs	10 pairs	15 pairs	15 pairs

Note: Product dimensions and physical appearance in this data sheet are nominal. The right to make product changes from time to time, without prior notification, is reserved, which may change the dimensions and/or physical appearance shown.

⚙️ Key Components

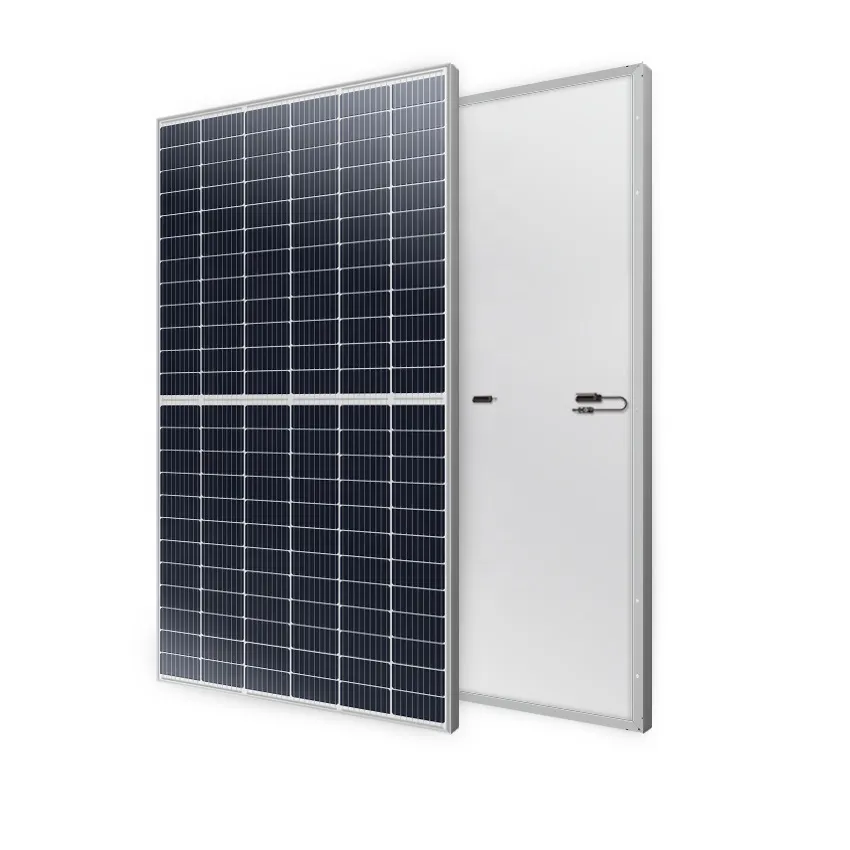

Mono Solar Panels

Peak Power Watts: 590W

Maximum Power Voltage: 41.5V

Maximum Power Current: 11.3A

Dimensions: 2094*1038*35 mm

Weight: 25 kg

Inverter with MPPT Controller

AC 220V/230V/50HZ, Capacity 5.5KW.

MPPT voltage range: 70-450Vdc.

Maximum photovoltaic connection: 5.5kwp.

Gross Weight: 15 KG

Packaging Dimensions: 600*180*420 mm

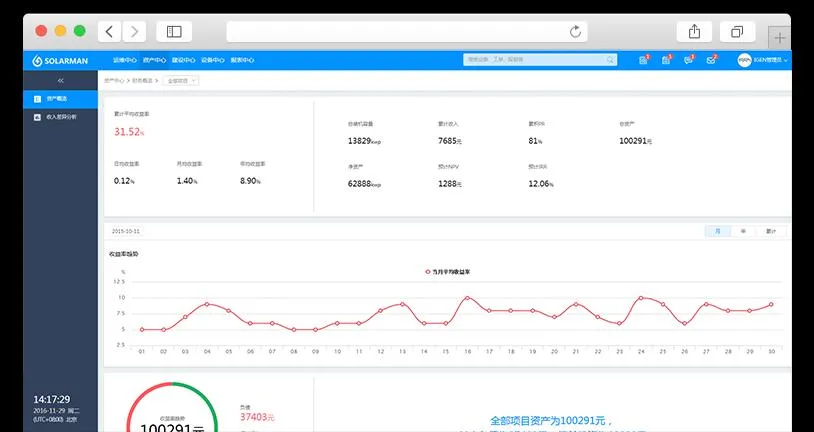

Remote Monitoring System

Data Logging Stick allows you to receive information from your solar power system in real-time.

Stay informed about your PV system and atmosphere conditions anywhere, anytime via Wi-Fi, Lan, or GPRS.

App available for PC, IOS & Android.

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.

Mid & End Clamps: 35, 40, 45, 50mm.

Optional: L Foot Asphalt Shingle Mount, Hanger Bolt, Cable Clips, and Ground Lugs.

Lithium Battery

Capacity: 4.8KWH

Includes battery connection cables and communication cables.

Gross Weight: 103 KG

Package Size: 710*500*310 mm

❓ Frequently Asked Questions

1. What is the lifespan of the solar system components?

The solar panels and DC cables are designed for a lifetime of up to 25 years, while the LiFePO4 battery offers approximately 1000 cycles of life.

2. Can I monitor my energy production remotely?

Yes, the system includes a Data Logging Stick that supports remote monitoring via Wi-Fi, Lan, or GPRS with a dedicated app for PC, iOS, and Android.

3. What mounting options are available for the panels?

We provide customized brackets suitable for both ground and roof installations, including specialized kits for asphalt shingle roofs.

4. What is the difference between the SP5KW and SP12KW systems?

The main difference lies in the quantity of solar panels (6 vs 20) and the inverter capacity, allowing for higher energy generation and storage in the SP12KW model.

5. Are the batteries included in the standard package?

Yes, the systems include LiFePO4 batteries (Powerwall or Rack-mounted) along with all necessary connection and communication cables.

6. Is the system compatible with three-phase power?

The hybrid inverters are available in both single-phase and three-phase configurations to meet different industrial or residential requirements.
