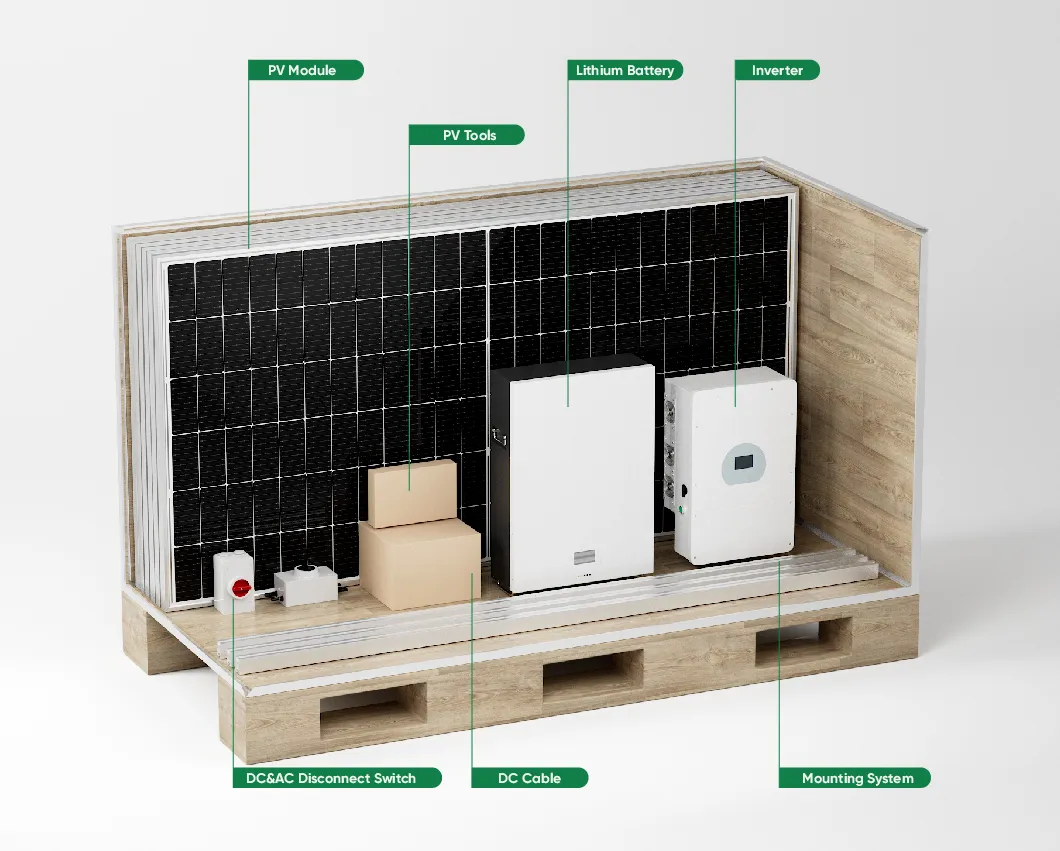

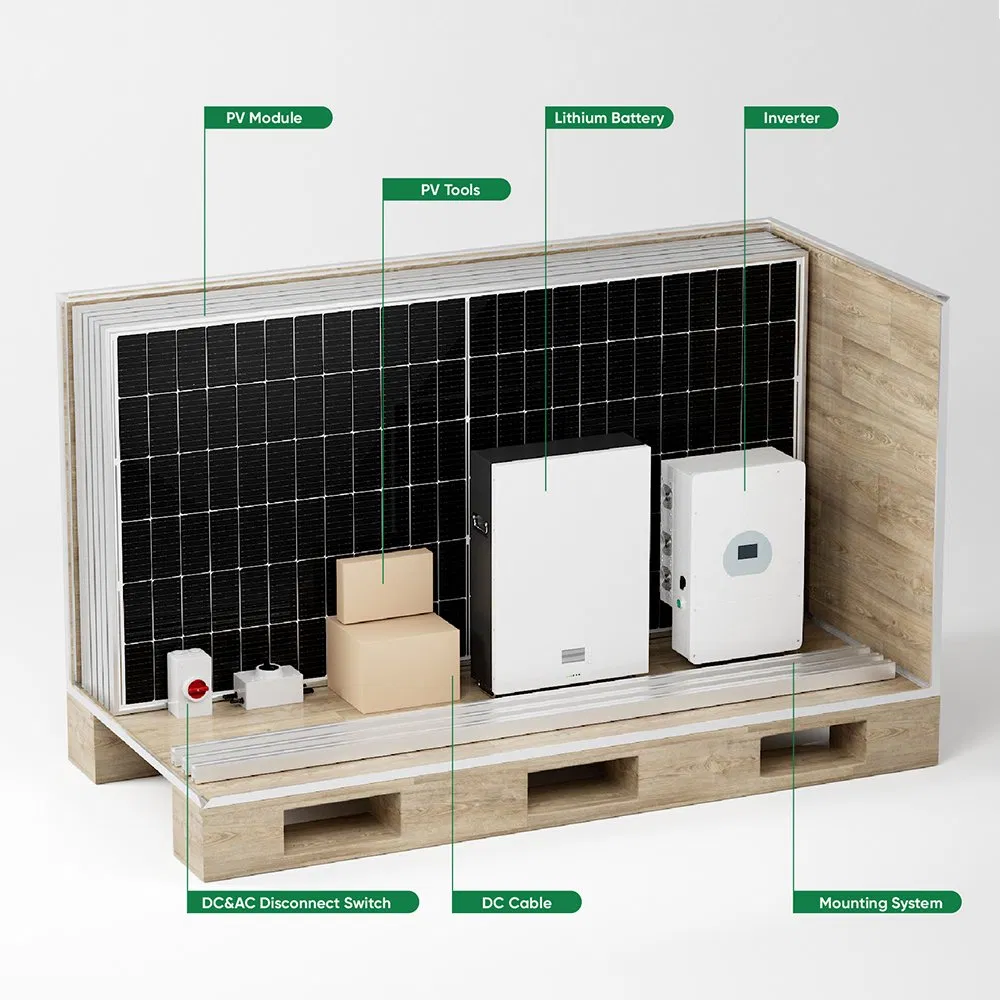

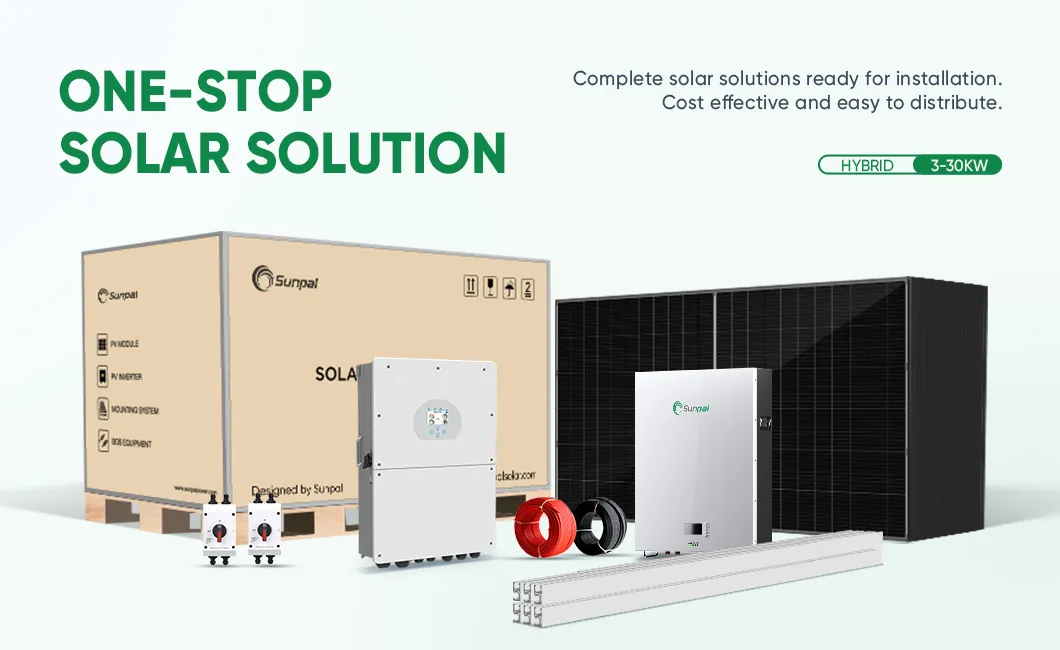

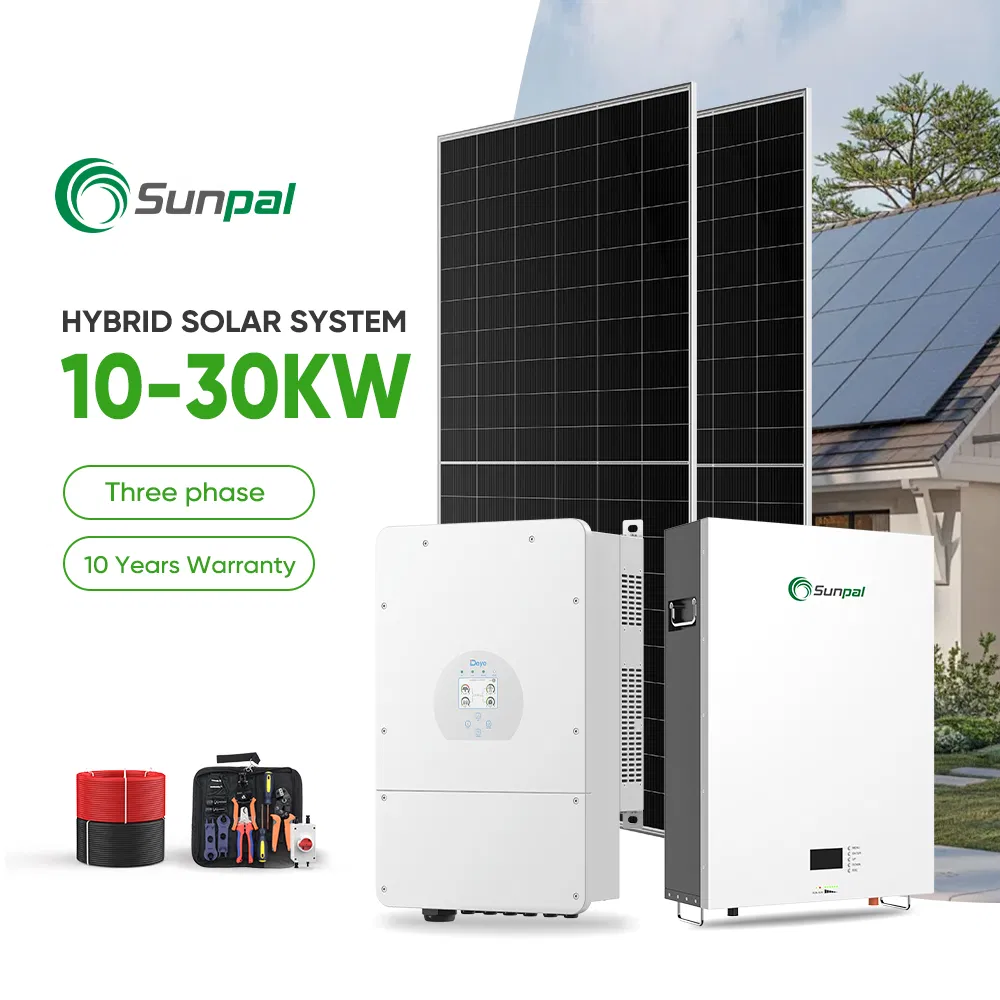

| Model | SP-3KW-HY | SP-5KW-HY | SP-10KW-HY |
|---|---|---|---|

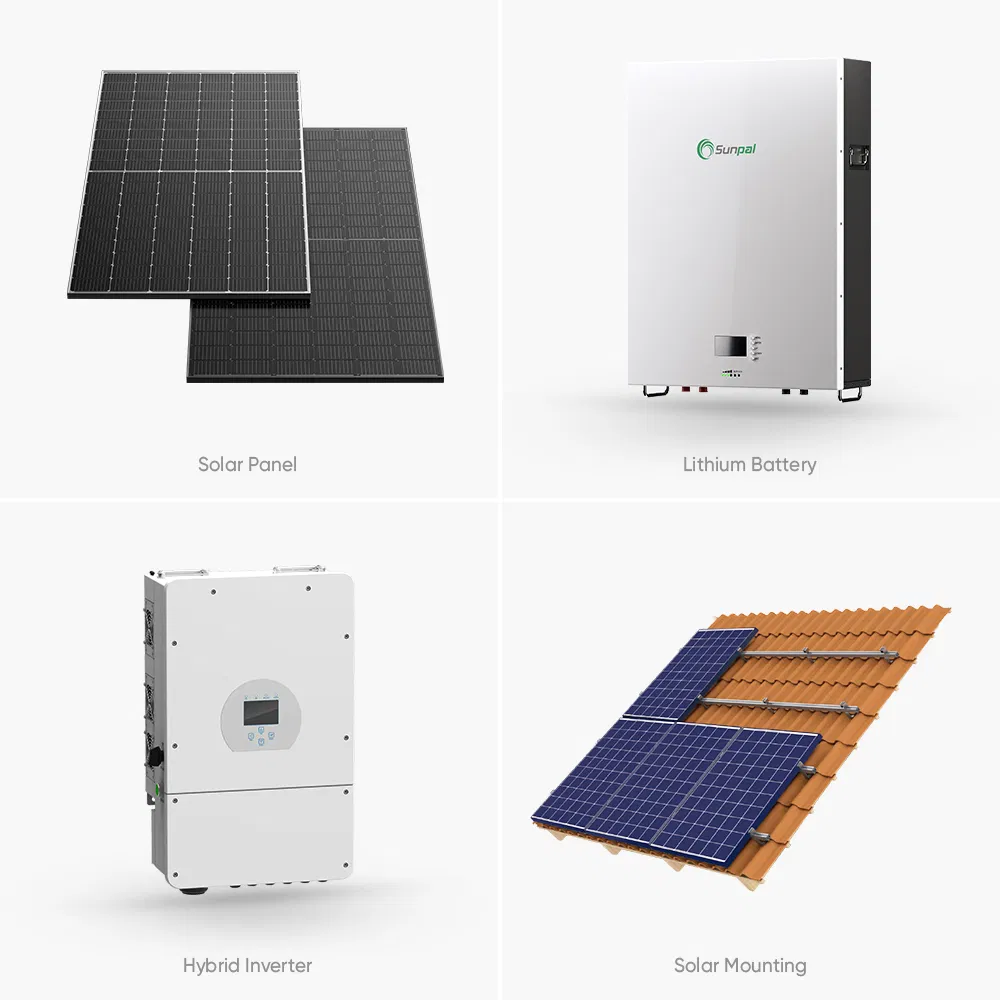

| Half Cut Mono 550W Solar Panel | 6 Pieces | 10 Pieces | 20 Pieces |
| DC Disconnect Switch | 1 Piece | 2 Piece | 3 Pieces |
| Hybrid Inverter | SUN-3K-SG04LP1-EU | SUN-5K-SG03LP1-EU | SUN-10K-SG04LP3-EU |
| Wall Mounted LiFePo4 Battery | 5Kwh | 5Kwh | 10Kwh |
| DC Cable 4mm2 | 100 meter | 200 meter | 400 meter |
| AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece |
| MC4 Connector | 10 Pairs | 10 Pairs | 10 Pairs |
| Model | SP-15KW-HY | SP-20KW-HY | SP-30KW-HY |
|---|---|---|---|
| Half Cut Mono 550W Solar Panel | 30 Pieces | 40 Pieces | 60 Pieces |
| DC Disconnect Switch | 4 Piece | 6 Piece | 9 Pieces |
| Hybrid Inverter | SUN-5K-SG03LP1-EU (3 Pcs) | SUN-10K-SG03LP1-EU (2 Pcs) | SUN-10K-SG04LP3-EU (3 Pcs) |
| Wall Mounted LiFePo4 Battery | 15Kwh | 20Kwh | 30Kwh |
| DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter |
Peak Power Watts: 550W
Maximum Power Voltage: 42.06V | Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V | Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg

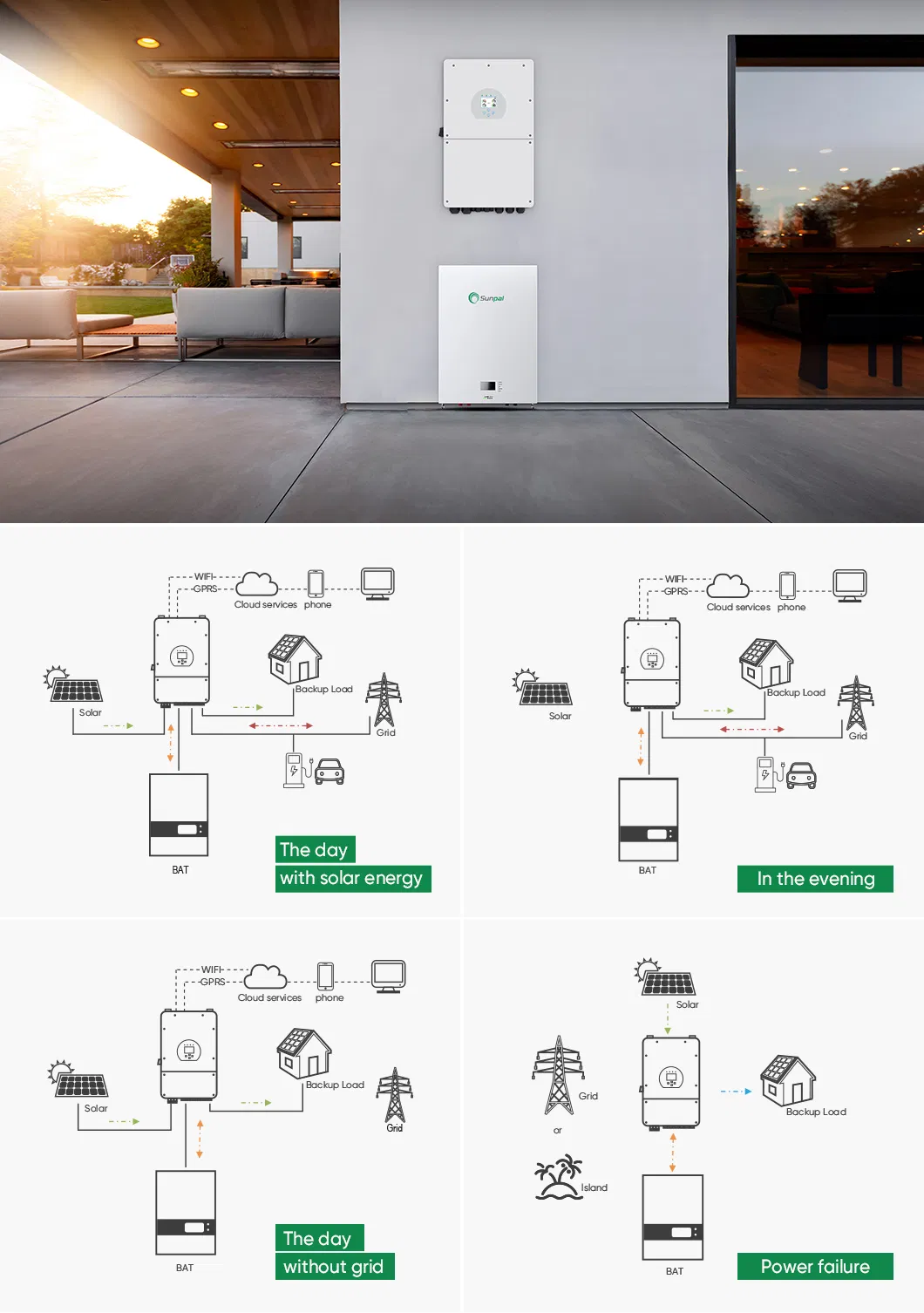

48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging. Max. charging/discharging current of 240A. Supports up to 10pcs parallel. DC/AC couple to retrofit existing solar systems.
One-click installation and registration. Safe operation with traceable logs. Supports full lifecycle data storage to ensure data security and reliability.
15-20 years design life. Up to 6000+ cycle life. Scalable modular design. Built-in high quality BMS for cell protection. Lithium iron phosphate technology for maximum home safety.

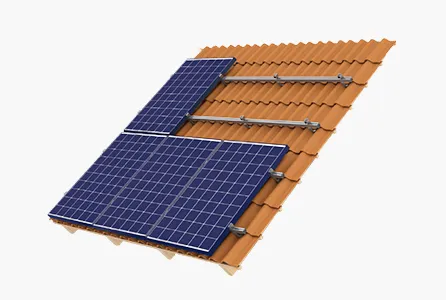

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35-50mm. Optional L Foot Asphalt Shingle Mount, Hanger Bolts, and Ground Clips.
IP Rating: IP66 | Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A

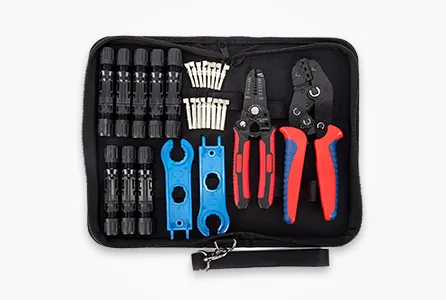

Includes Wire Cable Cutter & Stripper, MC3/MC4 Crimper, and MC4 Connector Assembly/Disassembly Tools.

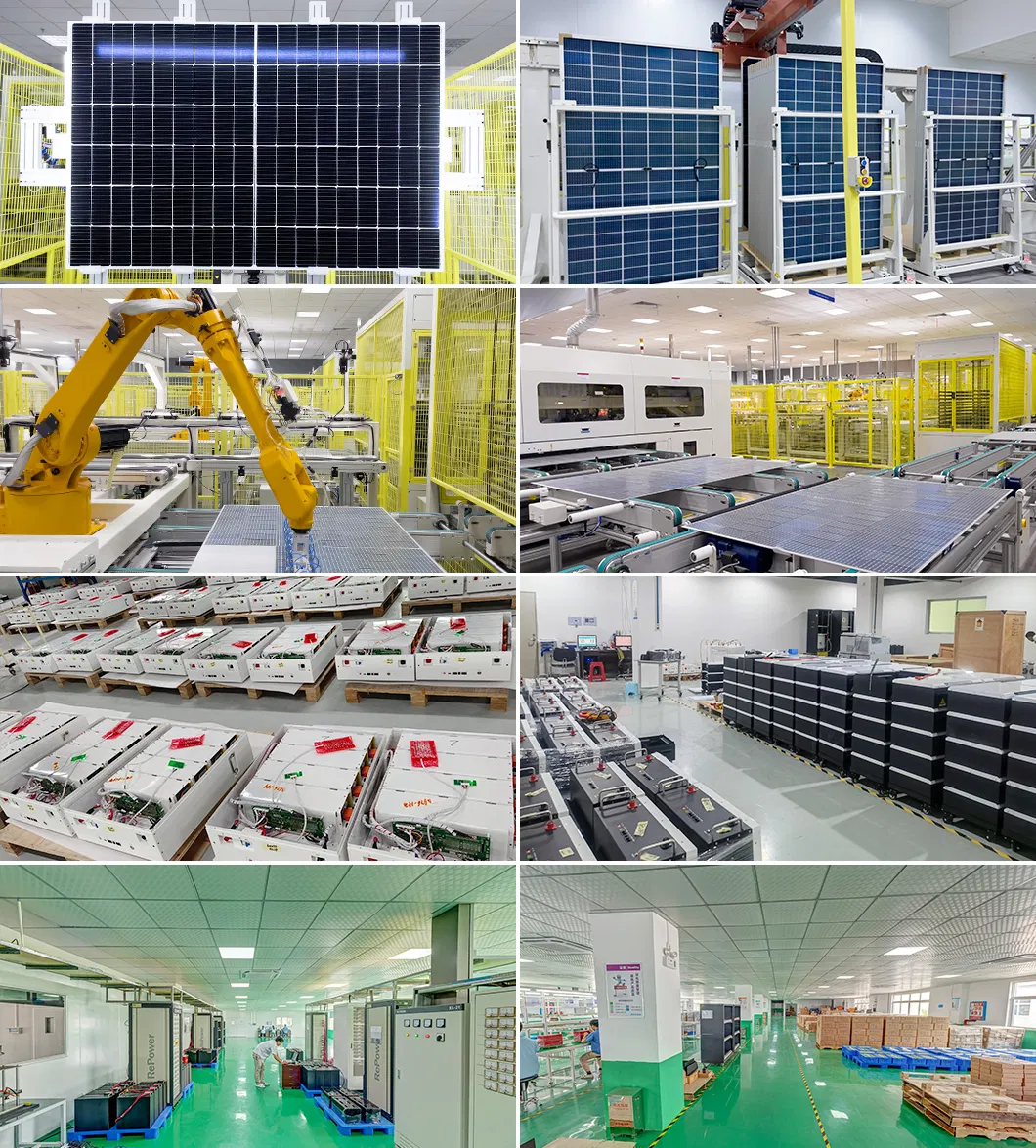

As a world-class solar products manufacturer, we specialize in the research, development, production, and sales of solar PV products and solar panels. Focusing on high-efficiency solar panels since 1998, we have exported to 86 countries. Our factory covers 150,000 square meters with over 600 experienced employees.
