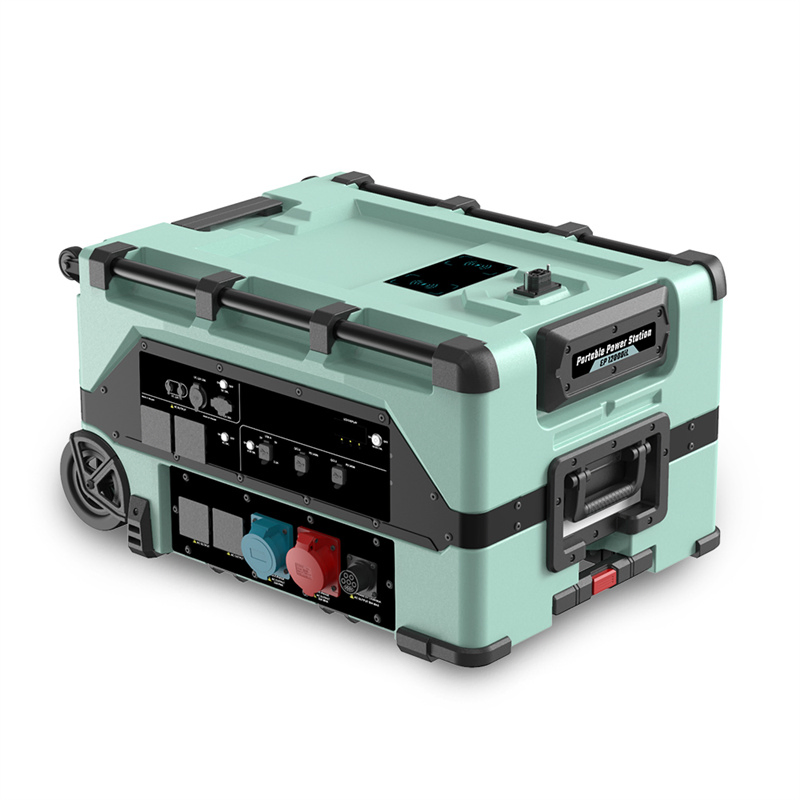

20kw off-Grid Solar Generator Home Energy Storage Solar System

i

Basic Info

Model NO.

EP12000iL

Cycle Life

3000

Nominal Capacity

7680Wh

Super Fast Charging

70mins Fully Charged

Inverter Type

Bi-Directional Inverter

Three-Phase Output

Yes

Battery Expansion

Yes, Max 245kWh

Certificates

CE RoHS IEC62619 Un38.8 MSDS

★

Product Advantages

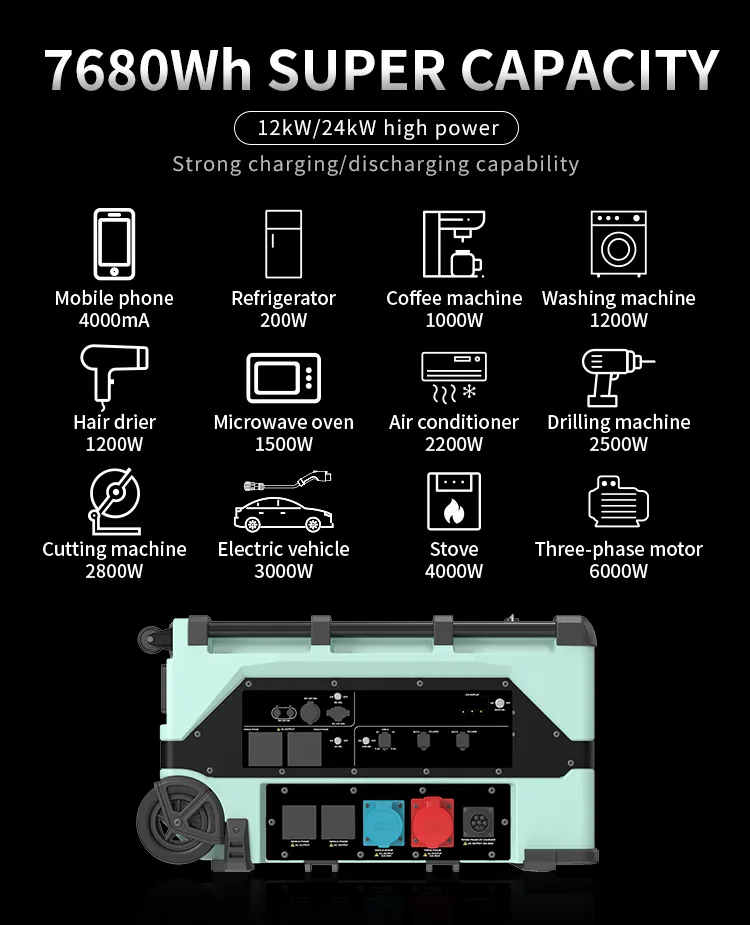

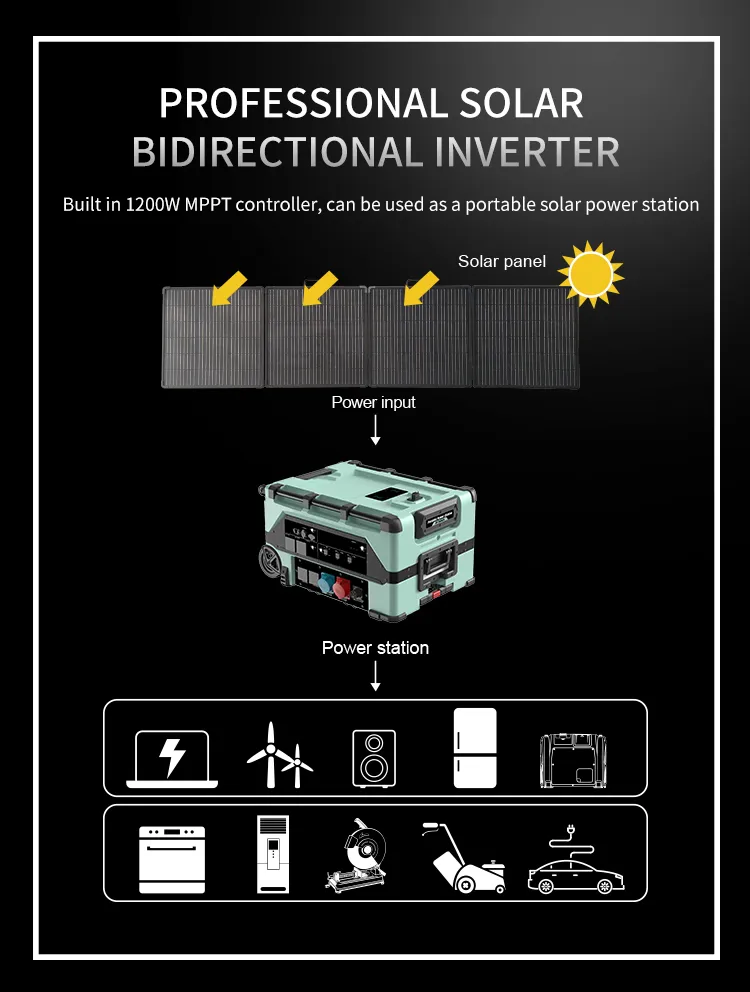

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter.
Supports 12kW output and 8.5kW charging power.
Supports continuous output: 12kW Three-phase, 11kW Single-phase, and 10kW Split phase.

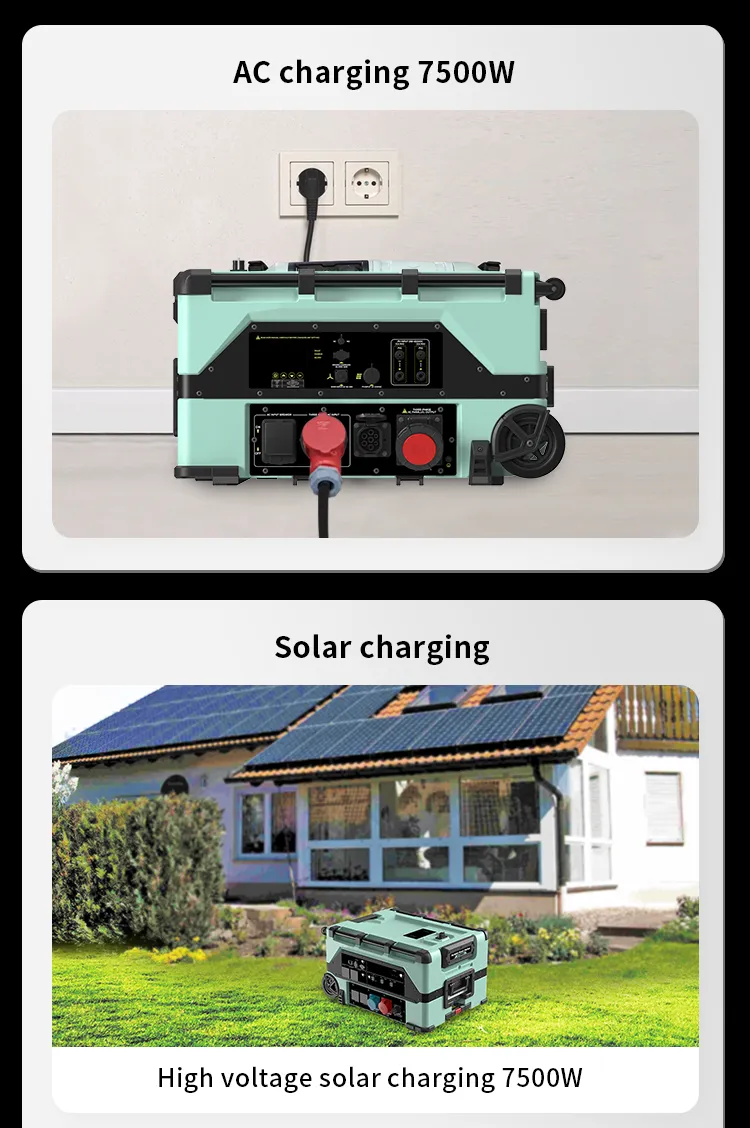

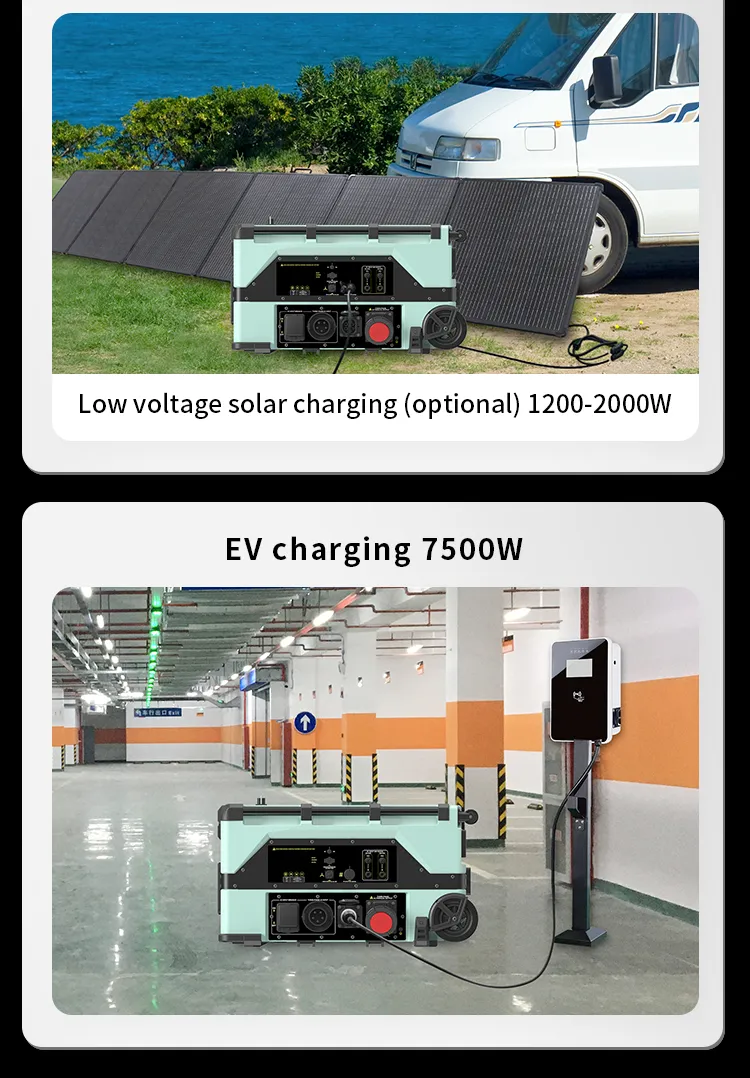

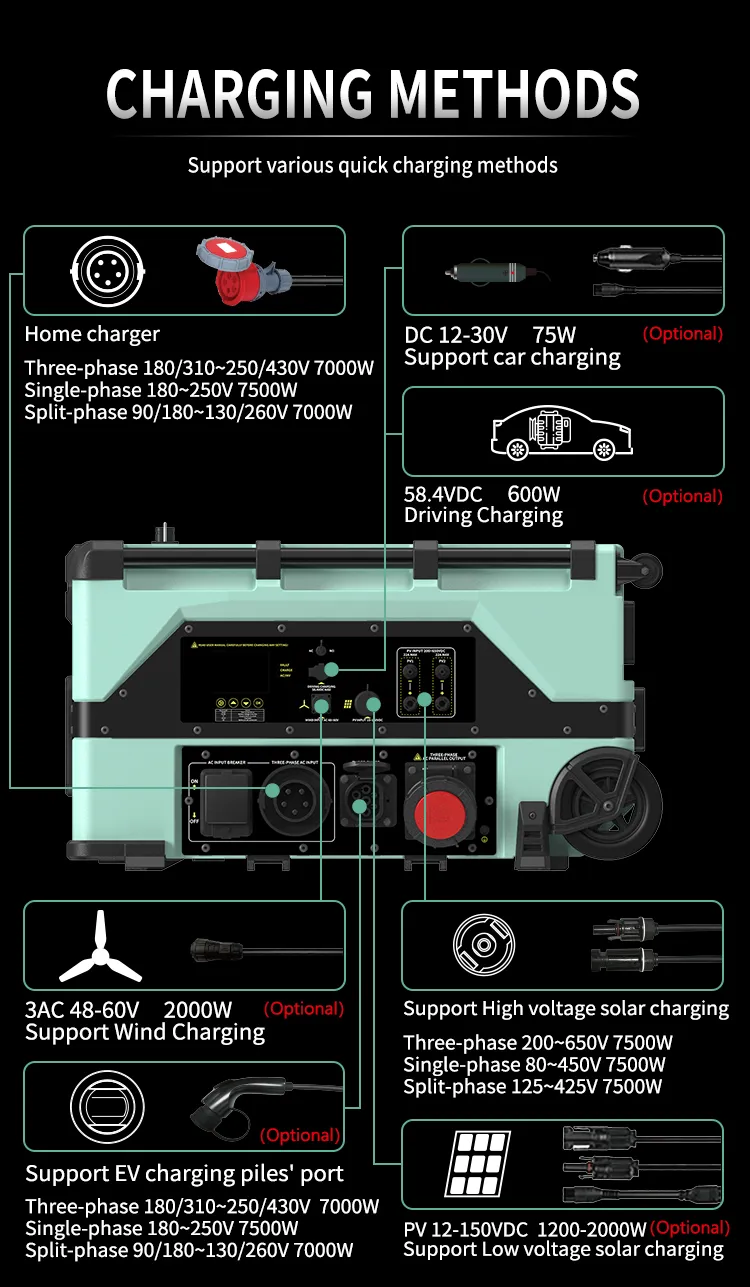

Multiple charging methods: Utility, High-voltage/Low-voltage Solar, EV charger, AC generator, and Wind.

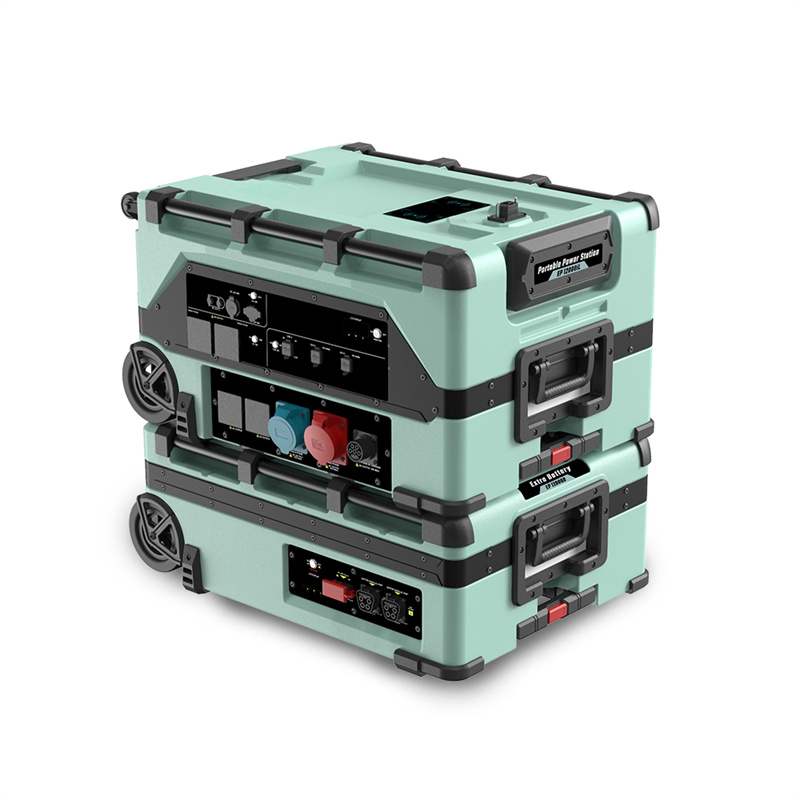

Expandable capacity up to 245kWh by connecting 31 extra batteries.

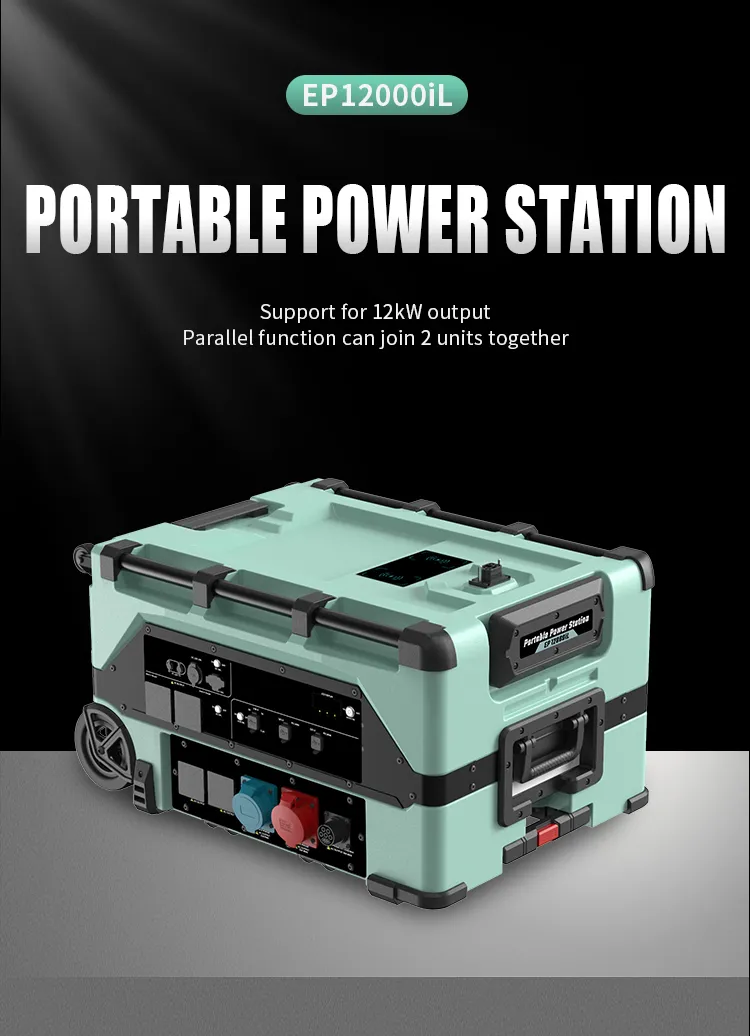

Patented stacked parallel technology to reach 24kW output.
Built-in EV charger, capable of charging vehicles up to 22kW.

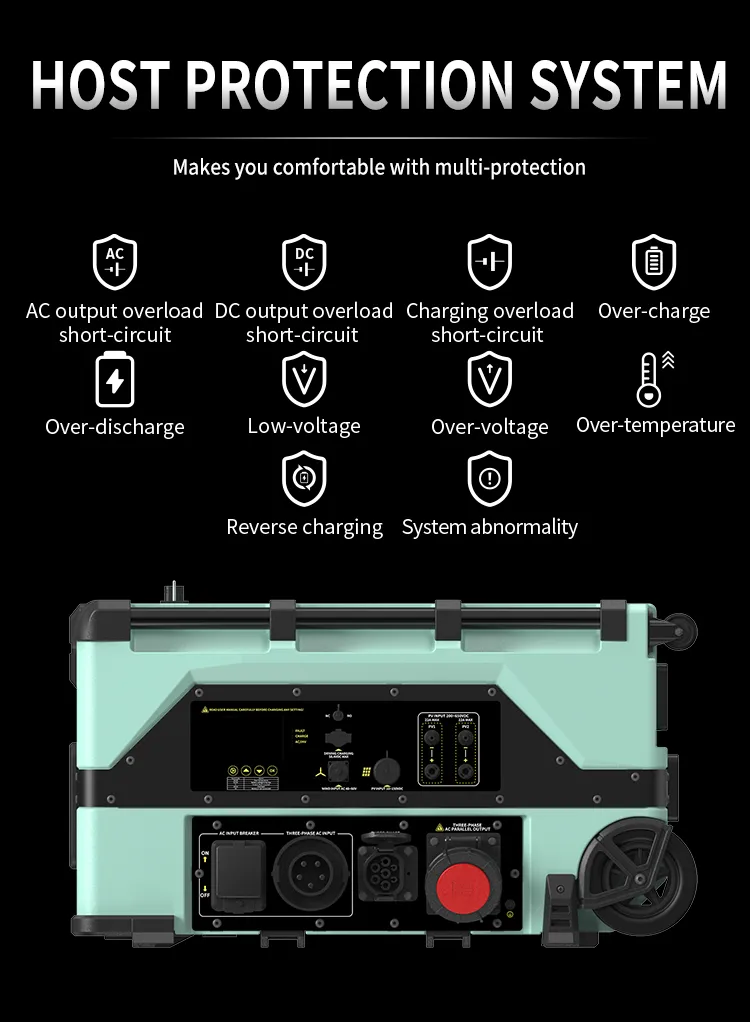

High protection grade: Unit IP53 and Battery Pack IP66.

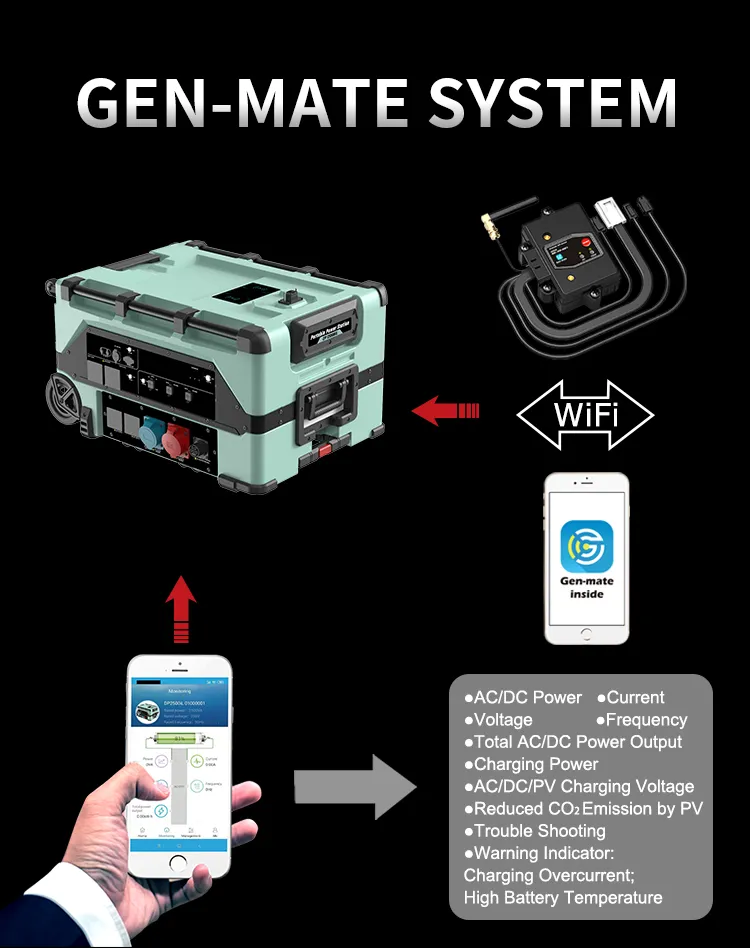

Intelligent control and monitoring via smartphone APP.
Flame-retardant and fire-resistant V-0 level casing with a 5-year warranty.

⚙

Product Parameters

AC OUTPUT SPECIFICATIONS

Parameter	Details
Rated Power	12000VA (Three-phase) / 11000VA (Single-phase) / 10000VA (Split-phase)
Peak Power	24000VA (Three-phase) / 22000VA (Single-phase) / 20000VA (Split-phase)

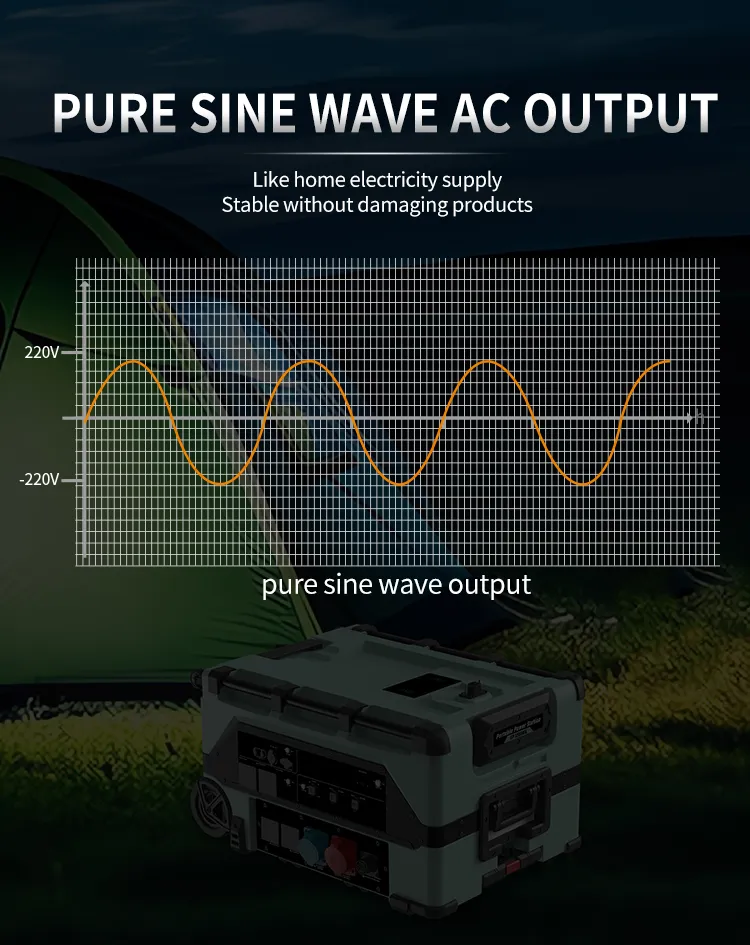

Output Waveform	Pure-Sine Wave, THD < 3%
Frequency	50/60Hz

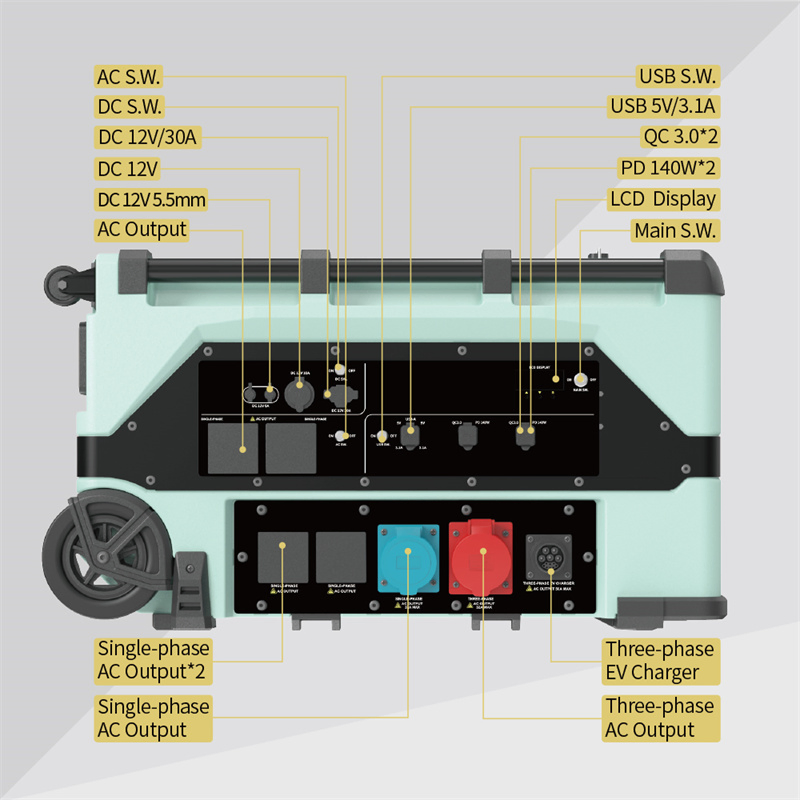

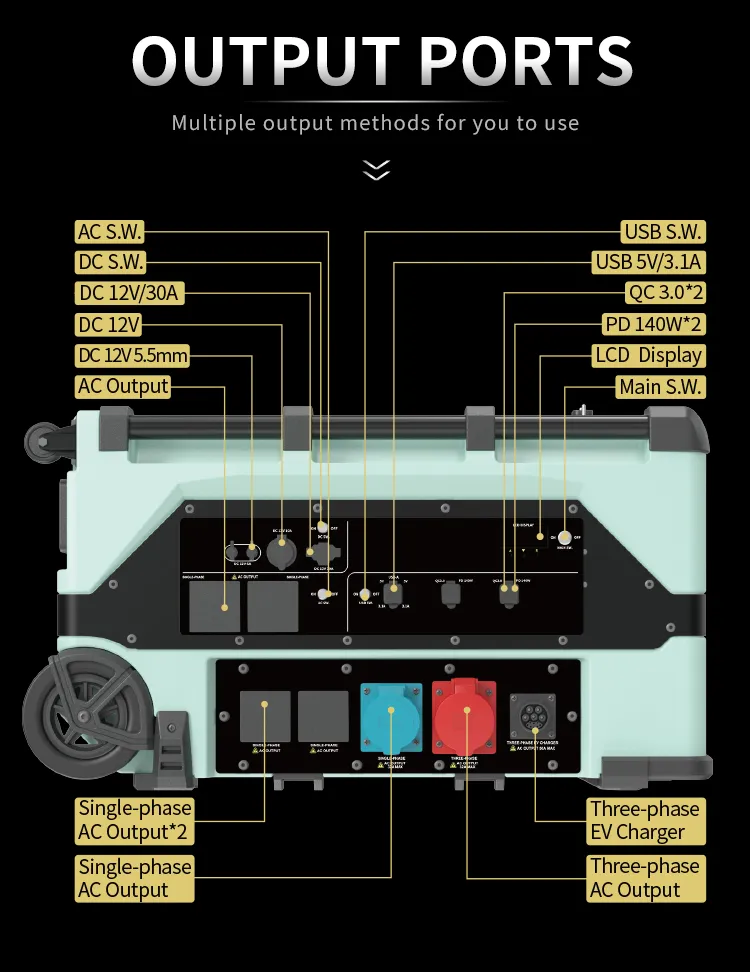

DC & USB OUTPUT

Port Type	Specification
XT90 (DC)	12V/30A
USB Type-C (x2)	PD 140W (up to 28V/5A)
USB QC3.0 (x2)	18W Max
Wireless Output	2 x 15W

🖼

Detailed Photos

?

Frequently Asked Questions

What is the battery capacity and can it be expanded?

The unit features a built-in 7680Wh LiFePO4 battery. It can be expanded up to 245kWh by stacking up to 31 additional battery packs.

How fast can this power station be charged?

With high-power charging support, it can be fully charged in as little as 70 minutes using utility power or solar input.

Does it support EV charging?

Yes, it has a built-in electric vehicle charger that can replace traditional charging stations, supporting cars up to 22kW.

Is it suitable for outdoor or harsh environments?

Yes, the unit is rated IP53 and the battery packs are IP66, providing excellent protection against dust and water. It also features a patented cooling system and anti-collision padding.

What is the expected lifespan of the battery?

The high-quality LiFePO4 battery is rated for 3000 cycles to 80%+ capacity, and the product comes with a 5-year warranty.

Can I monitor the system remotely?

Absolutely. The system supports intelligent control and real-time monitoring via a dedicated smartphone APP and an on-unit LCD panel.
