Streamlined Integrated Solar Energy Storage System for Renewable Energy Microgrid Support

1 / 5

Streamlined Integrated Solar Energy Storage System for Renewable Energy Microgrid Support

Customization:	Available
Nominal Voltage:	832V
Warranty:	2 Year

Send Inquiry

Product Description

⚡ Basic Info.

Model NO.

Smart PV-ESS All-in-One Unit

Nominal Capacity

314ah

Cycle Life

6000

Rated Power

125kw

Overload Capacity

110% Long-Term

Max PV Power

125kw

MPPT Voltage

438-900V

Battery Type

3.2V/314ah/LFP

Rated Voltage

832V

Battery Capacity

261kwh

Voltage Range

728-936V

Discharge Rate

0.5p

Cooling System

Intelligent Liquid Cooling

Weight

3000kg

Protection Level

IP54

Fire Protection

Perfluorohexane/Aerosol (Optional)

📦 Packaging & Delivery

Package Size

170.00cm * 130.00cm * 225.00cm

Gross Weight

3000.000kg

🚀 Product Description

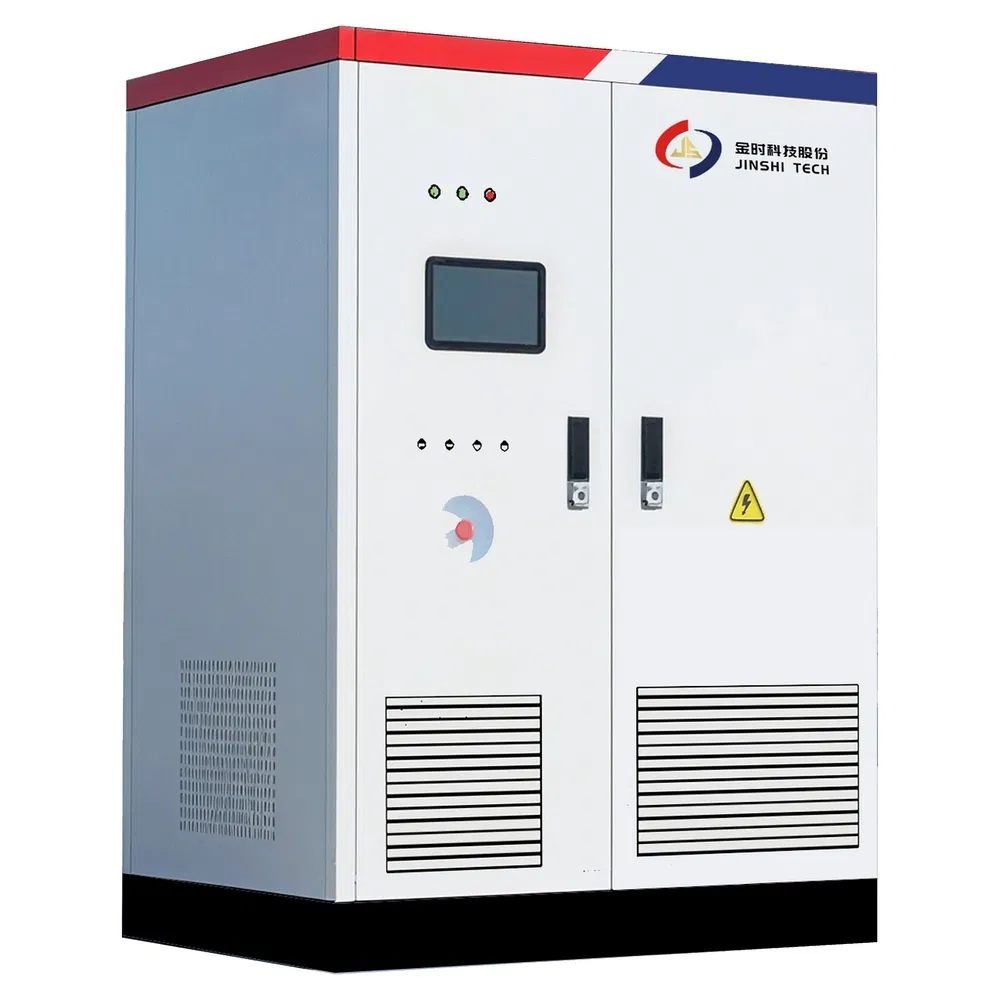

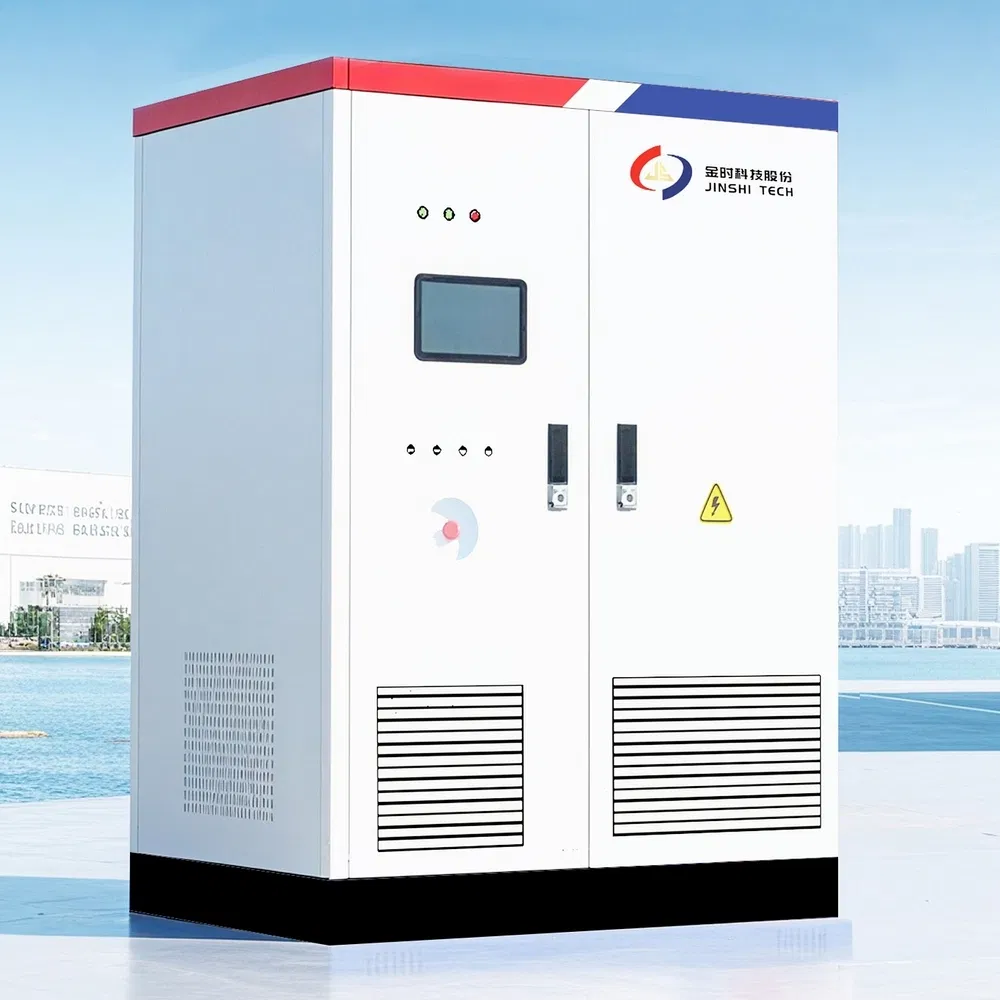

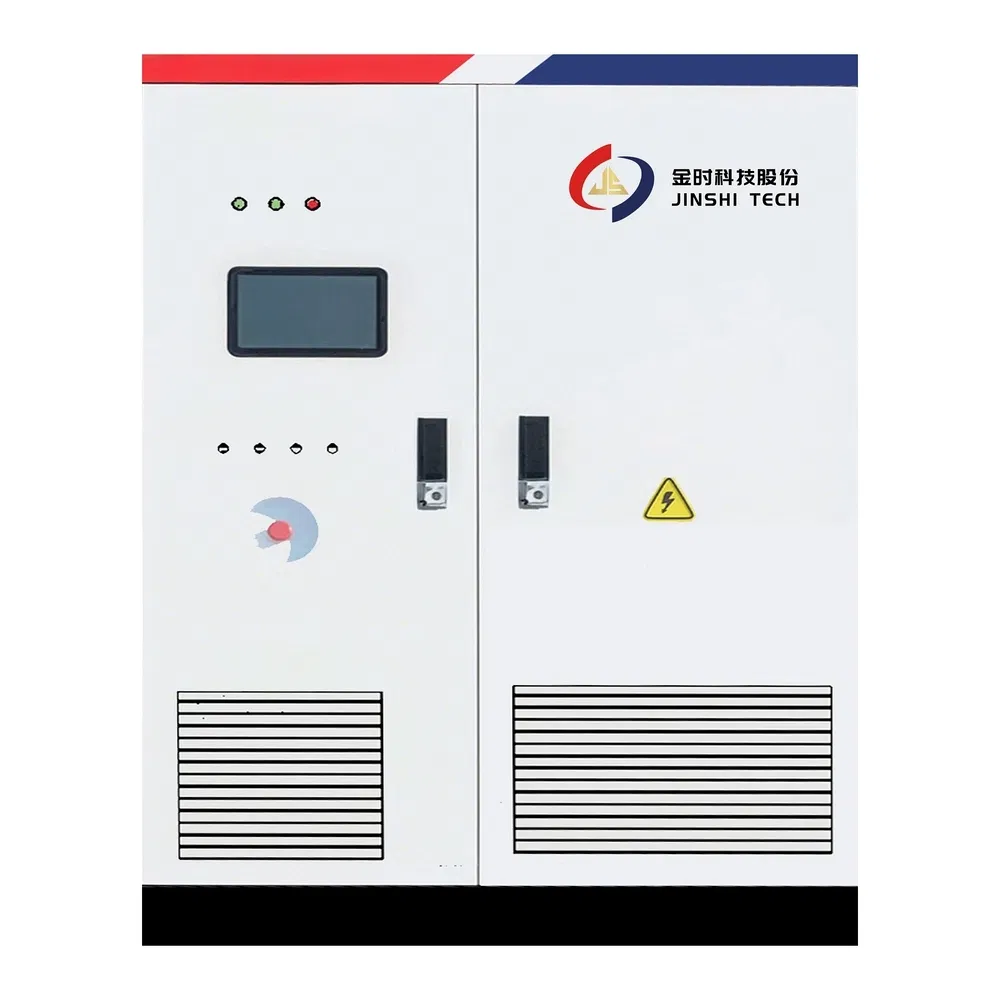

SMART PV-ESS ALL-IN-ONE UNIT

All-in-one systems integrate batteries, PCS, and EMS into a compact 1.3m² footprint. Equipped with intelligent liquid cooling, they support grid-tied operation for peak shaving, demand management, and energy arbitrage.

PRODUCT FEATURES

High energy density, space-saving
Triple-level fire protection + BMS architecture
Supports remote monitoring + fault early warning
Supports peak-valley arbitrage to reduce costs
Dual-circuit power supply for control unit
Supports multi-cabinet parallel expansion

📊 Technical Parameters

TECHNICAL SPECIFICATIONS
Cell Type	LFP Battery
Configuration	1P260S
Rated Capacity	314Ah
Rated Energy	261kWh
Rated Voltage	832V
Rated Power	125kW
Charge/Discharge Rate	0.5P
Operating Voltage Range	728~936V
Standard Charge/Discharge Current	157/157A
Cooling Method	Liquid Cooling
Maximum Efficiency	99%

📷 Detailed Photos

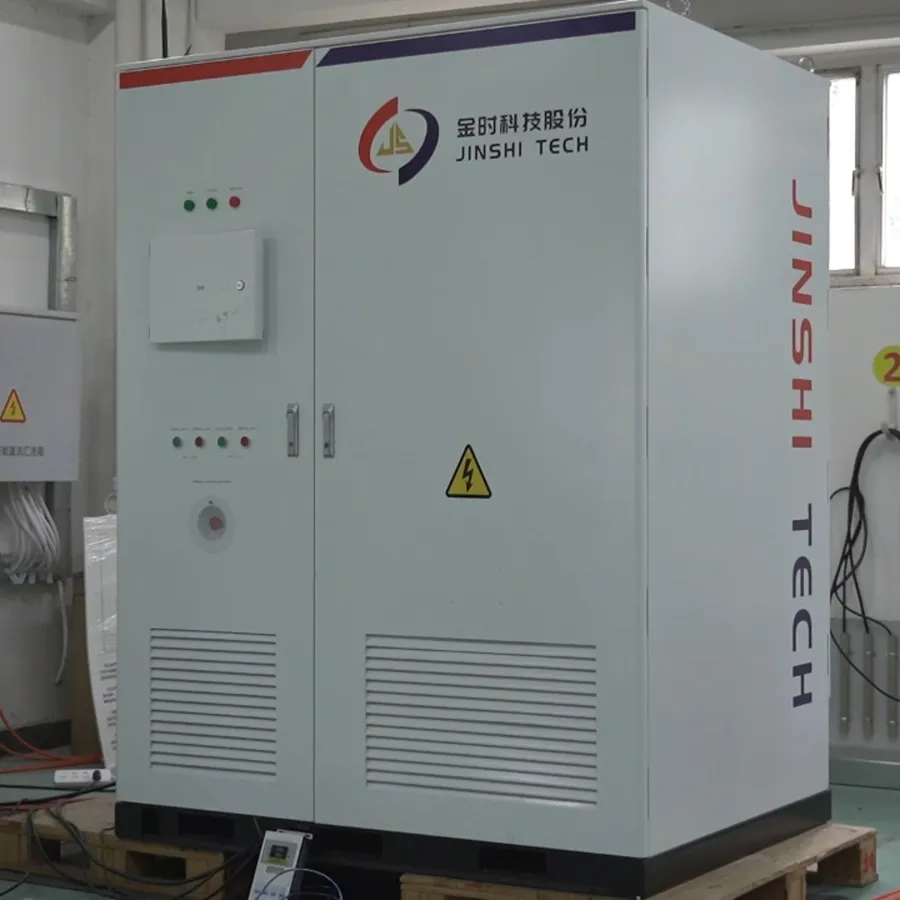

ULTRA-COMPACT HIGH ENERGY DENSITY DESIGN

261kWh rated energy capacity with 125kW rated power packed into a space-saving 1.3m² footprint, maximizing energy storage while minimizing floor space requirements.

ADVANCED INTELLIGENT LIQUID COOLING

State-of-the-art technology maintains optimal battery temperature, extending lifespan and ensuring consistent 99% maximum efficiency.

FAQ

Are you a factory or a trader?

We are a manufacturer integrating industry and trade.

Can I add my LOGO to the product?

We support on-demand customization, including LOGO customization, color customization, and appearance size customization.

What payment methods do you support?

We support T/T, Western Union, PayPal, cash, etc. The details can be negotiated.

What are your modes of transportation?

We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods or your requirements.

How can I get an accurate quotation?

Please send your specific demand information and product pictures, and we will customize a solution and price for you.

What is the cycle life of the battery?

The system uses premium LiFePO4 technology delivering a 6000+ cycle life for long-term reliability.
