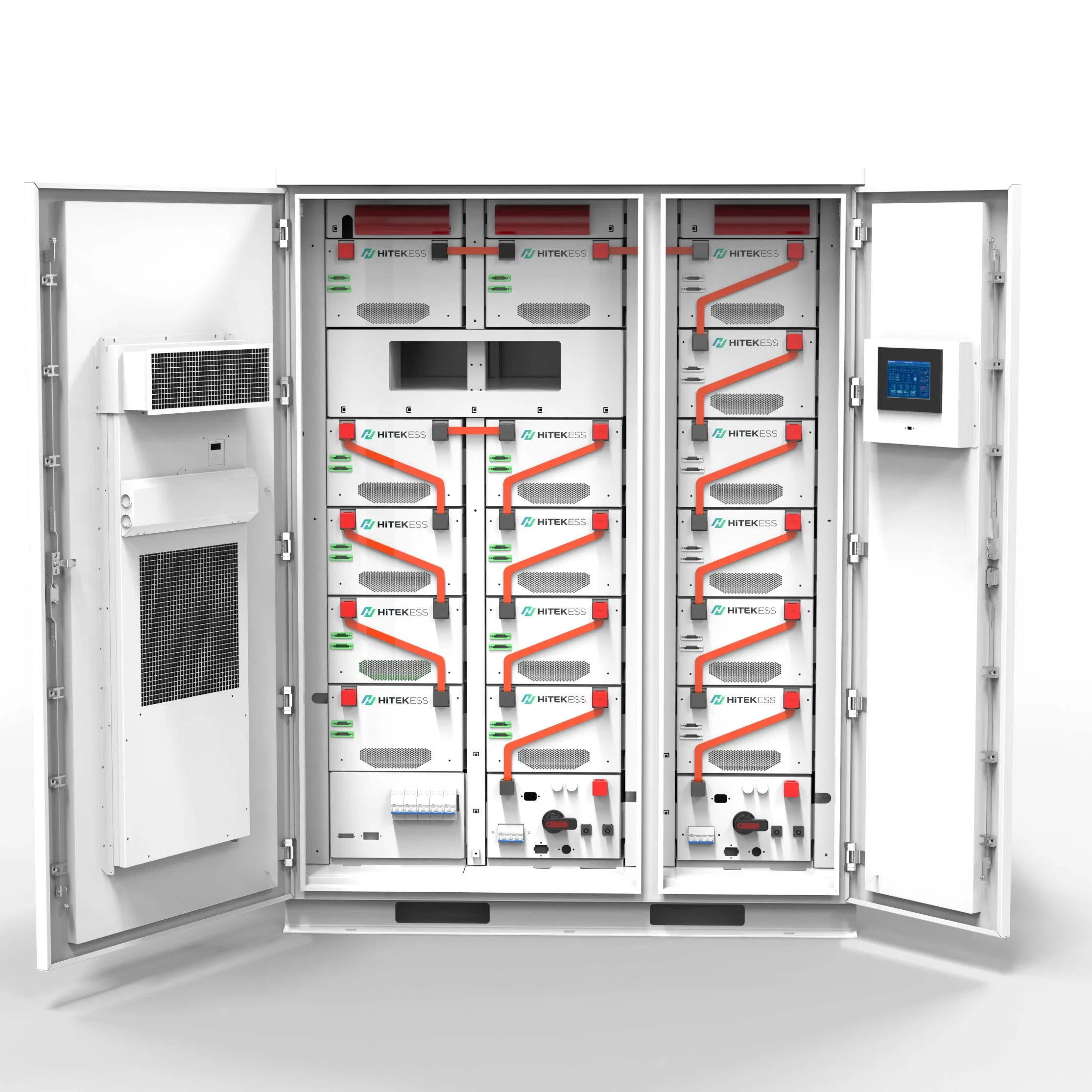

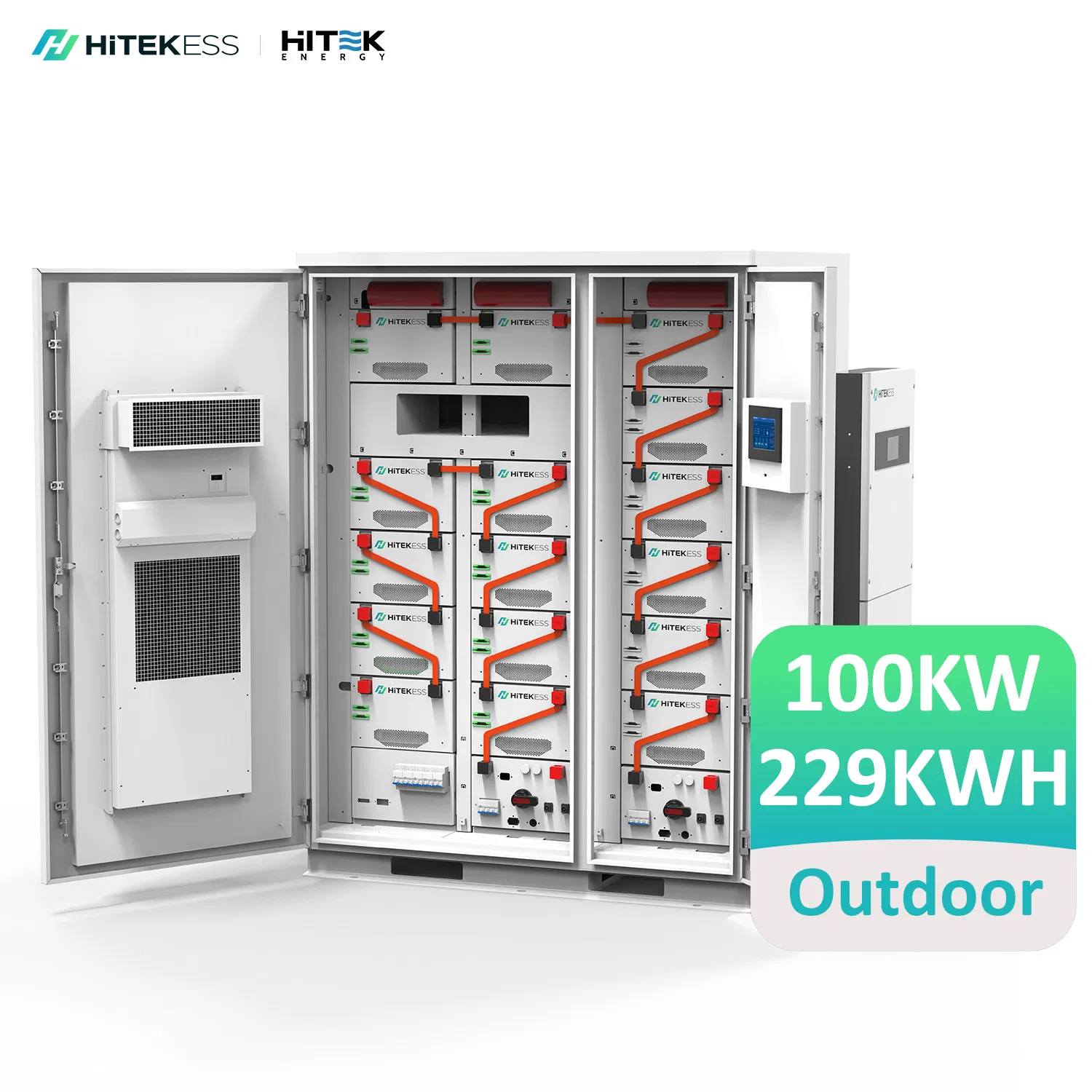

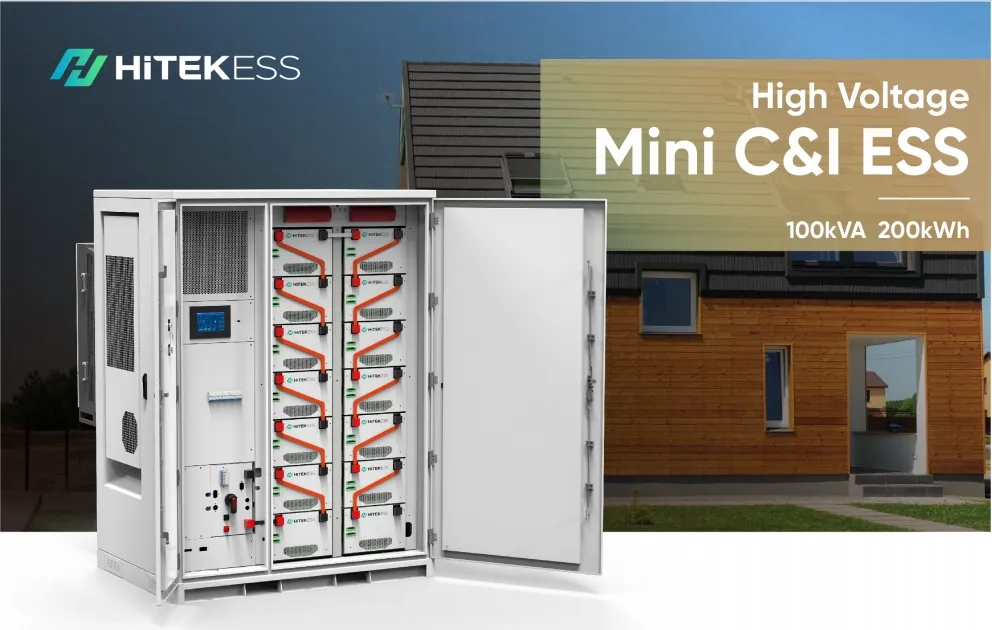

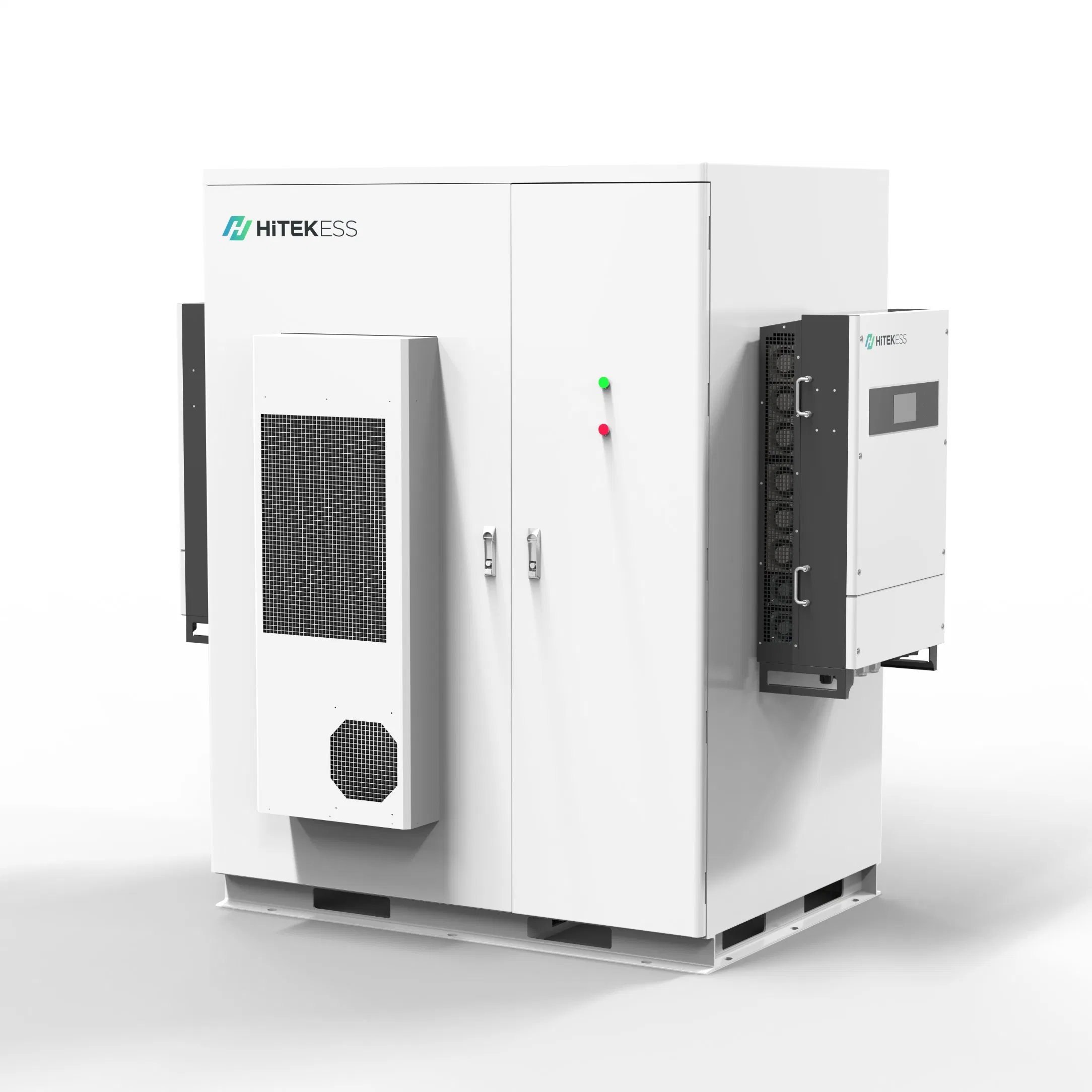

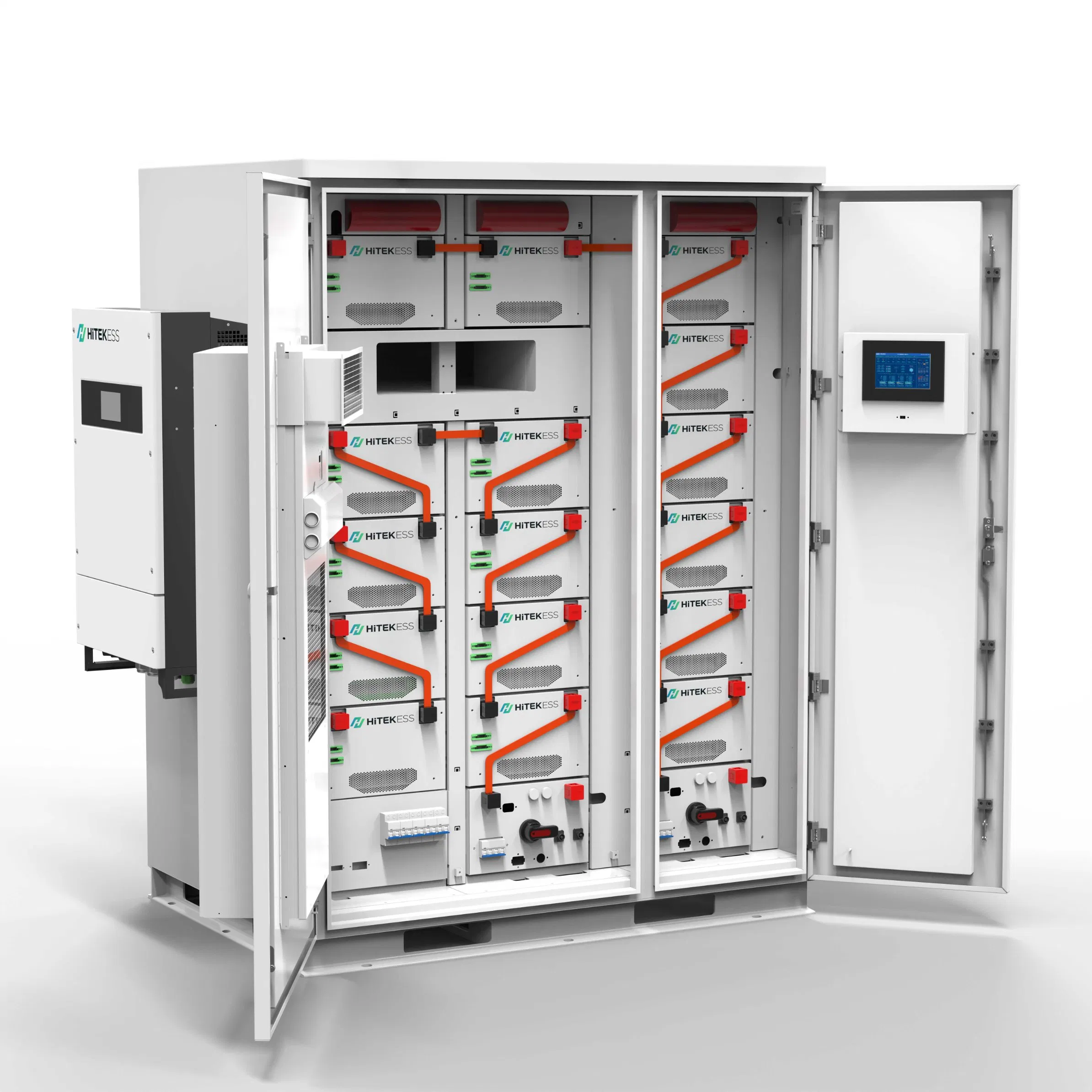

High Voltage 50kW/100kWh, 100kW/200kWh, 100kW/229kWh ESS Outdoor Cabinet Solution for fast install. This integrated system includes the inverter, lithium battery trays, racks, BMS, Microgrid Controller, HVAC, fire suppression, islanding switch, and an outdoor-rated enclosure.
The modular design allows for easy capacity expansion, ensuring safe technology with multi-level protection and powerful performance for diverse energy needs.

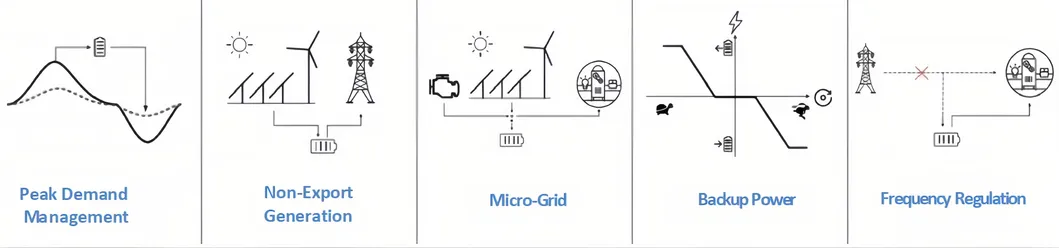

Optimize demand charge management through comprehensive load control and quantitative tracking of equipment utilization.

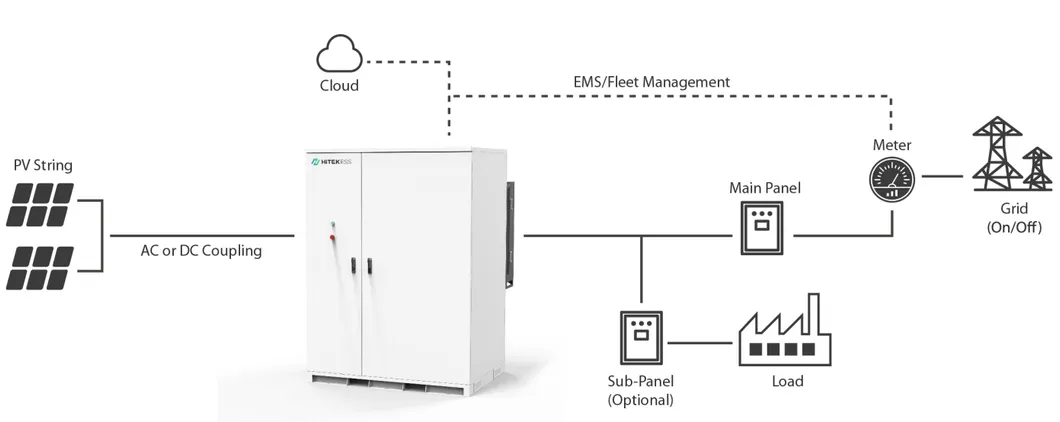

Establish self-contained microgrids with autonomous control, protection, and management for remote areas.
Provide reliable backup battery support during grid outages to ensure continuous operation for homes and businesses.
| Model | HTAC-50/100-OD | HTAC-100/200-OD | HTAC-100/215-OD | HTAC-100/229-OD |
|---|---|---|---|---|
| System Parameter | 50kW/100kWh | 100kW/200kWh | 100kW/215kWh | 100kW/229kWh |
| Cooling Method | Air-Cooling | |||
| Rated System Voltage | 358.4V | 716.8V | 768V | 409.6V |
| Battery Type | Lithium Iron Phosphate (LFP) | |||
| Operating Temperature | -25~60°C (Derating Above 45°C) | |||
| Protection Level | IP54/IP65 | |||
| Dimensions (W*D*H) | 850*1100*2060mm | 1500*1100*2060mm | 1570*1350*2100mm | 1570*1350*2100mm |
Model: HT600M-72HNB
Peak Power: 600Wp
Efficiency: High-performance monocrystalline technology.
All-in-one solution with smart monitoring, remote firmware upgrades, and configurable operation modes.
Deep cycle LFP batteries with over 6000 cycles, easy installation, and maintenance-free design.
