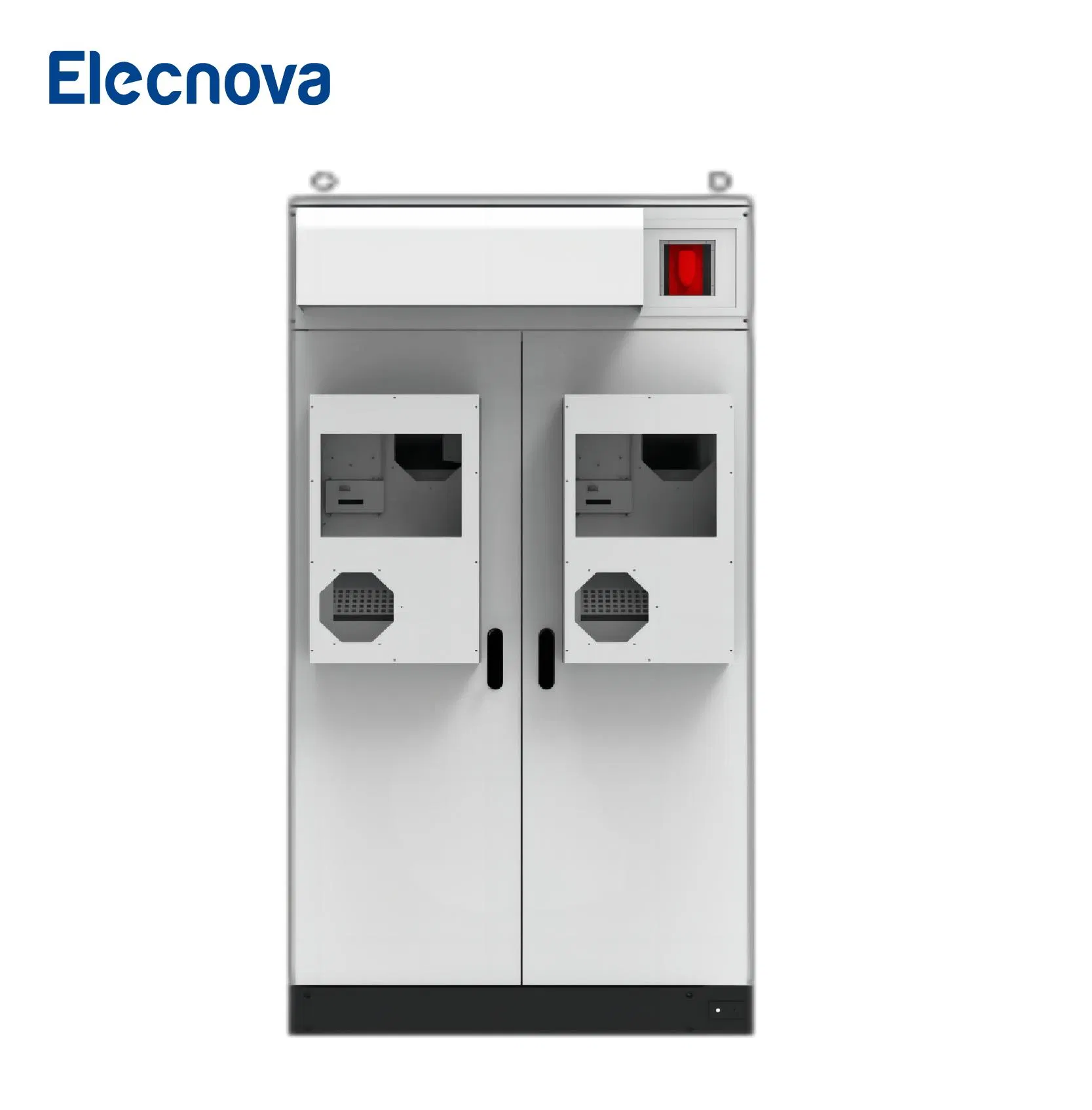

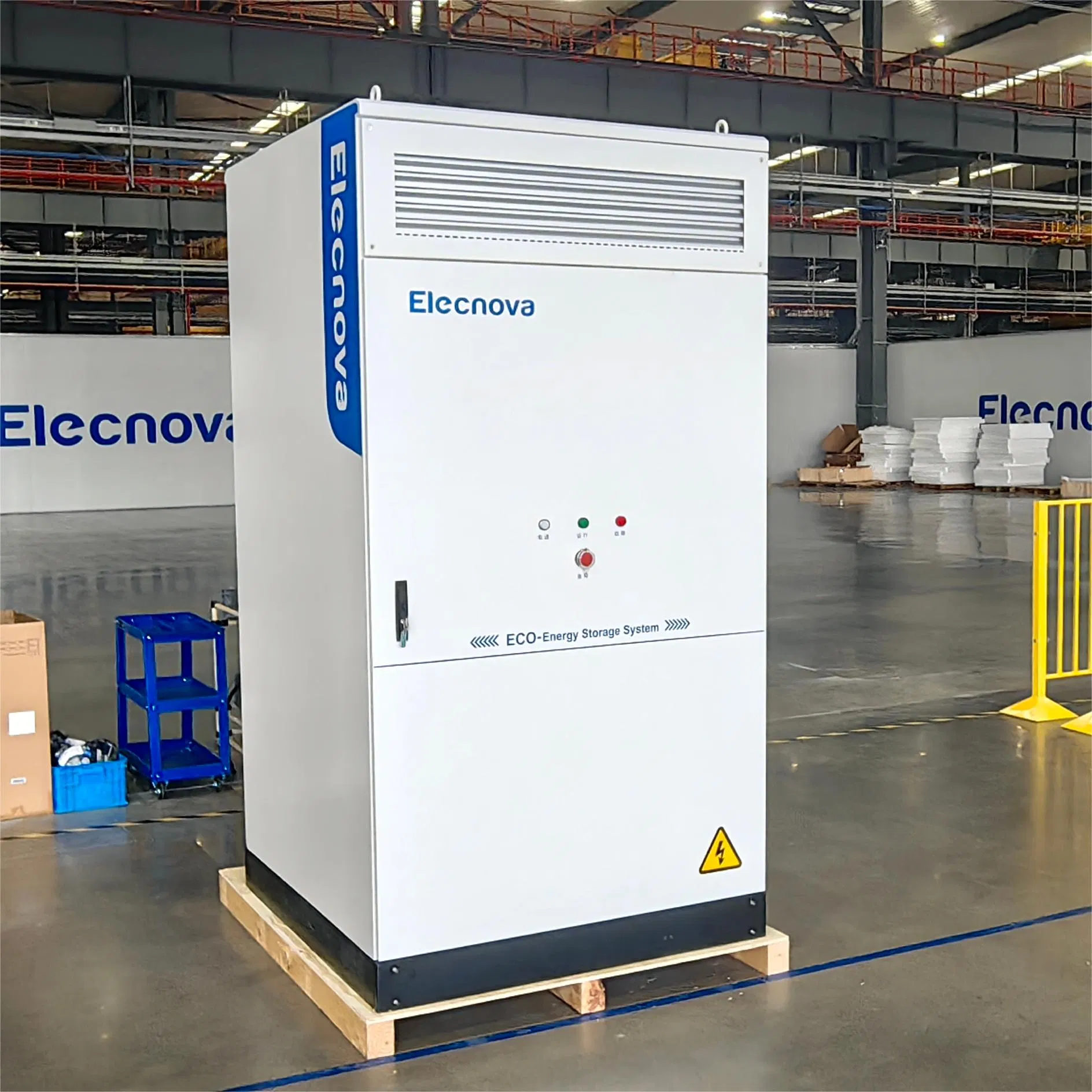

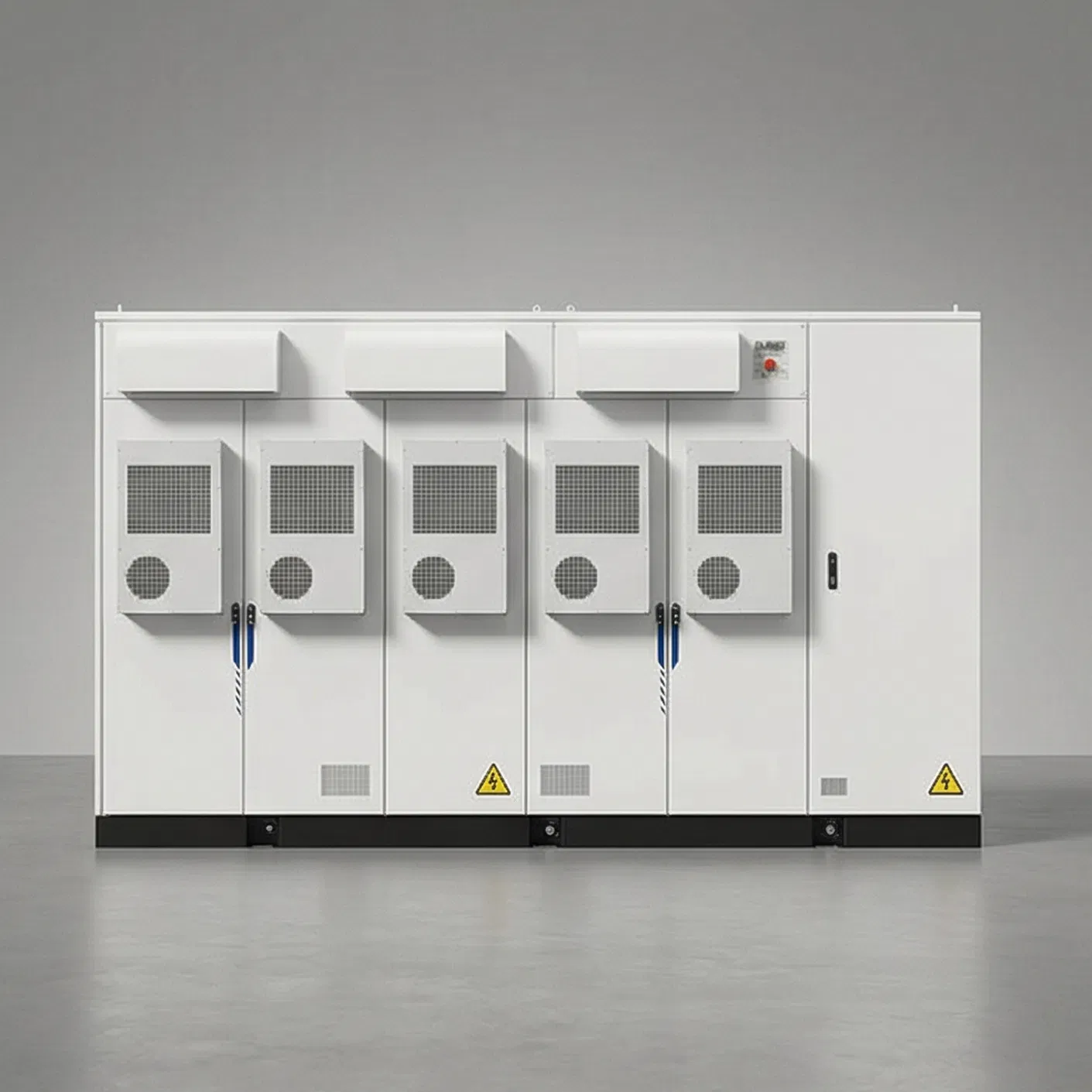

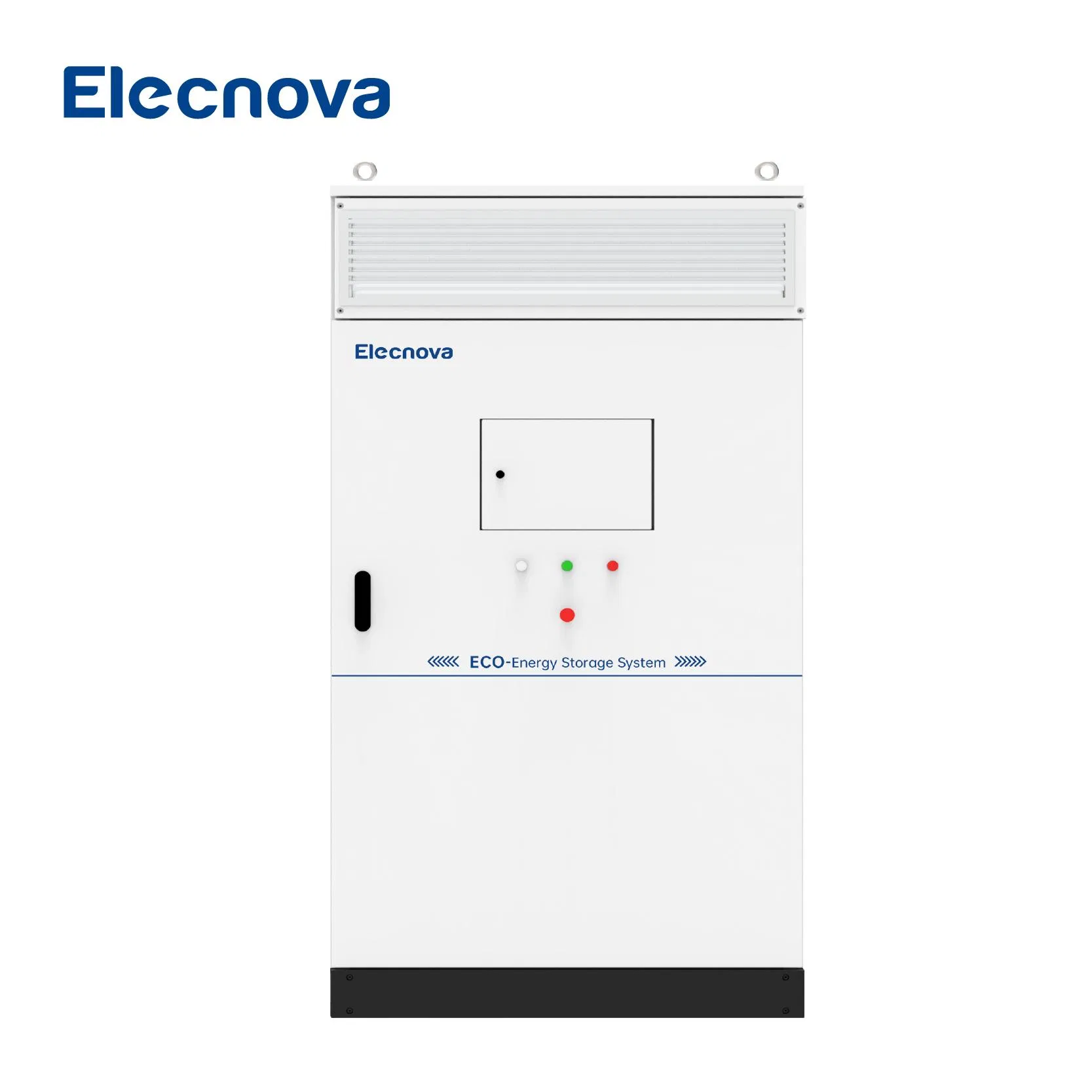

Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
1 / 5
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems

Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems

Send Inquiry

Product Description

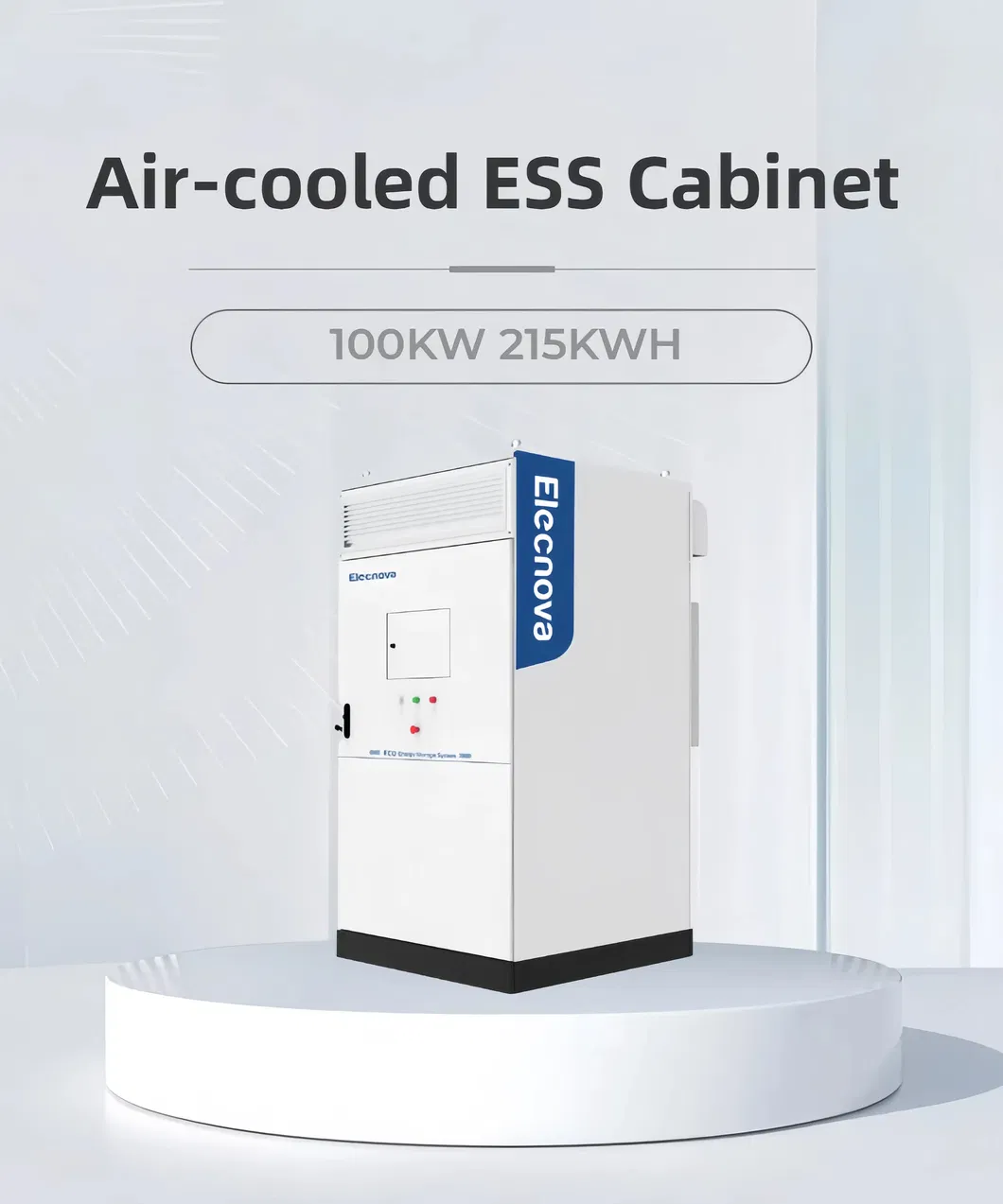

Energy Storage System Overview

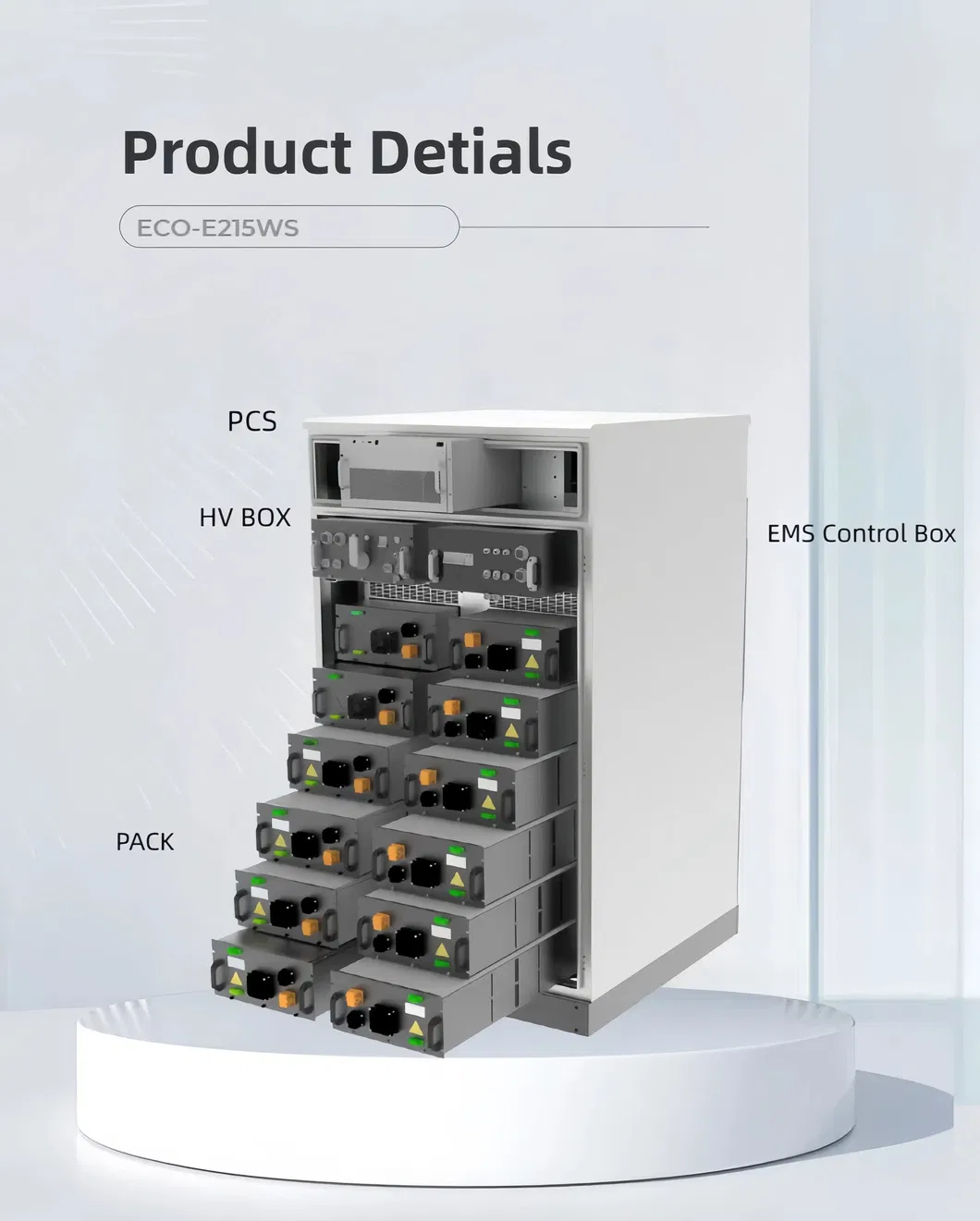

Industrial Power Solution

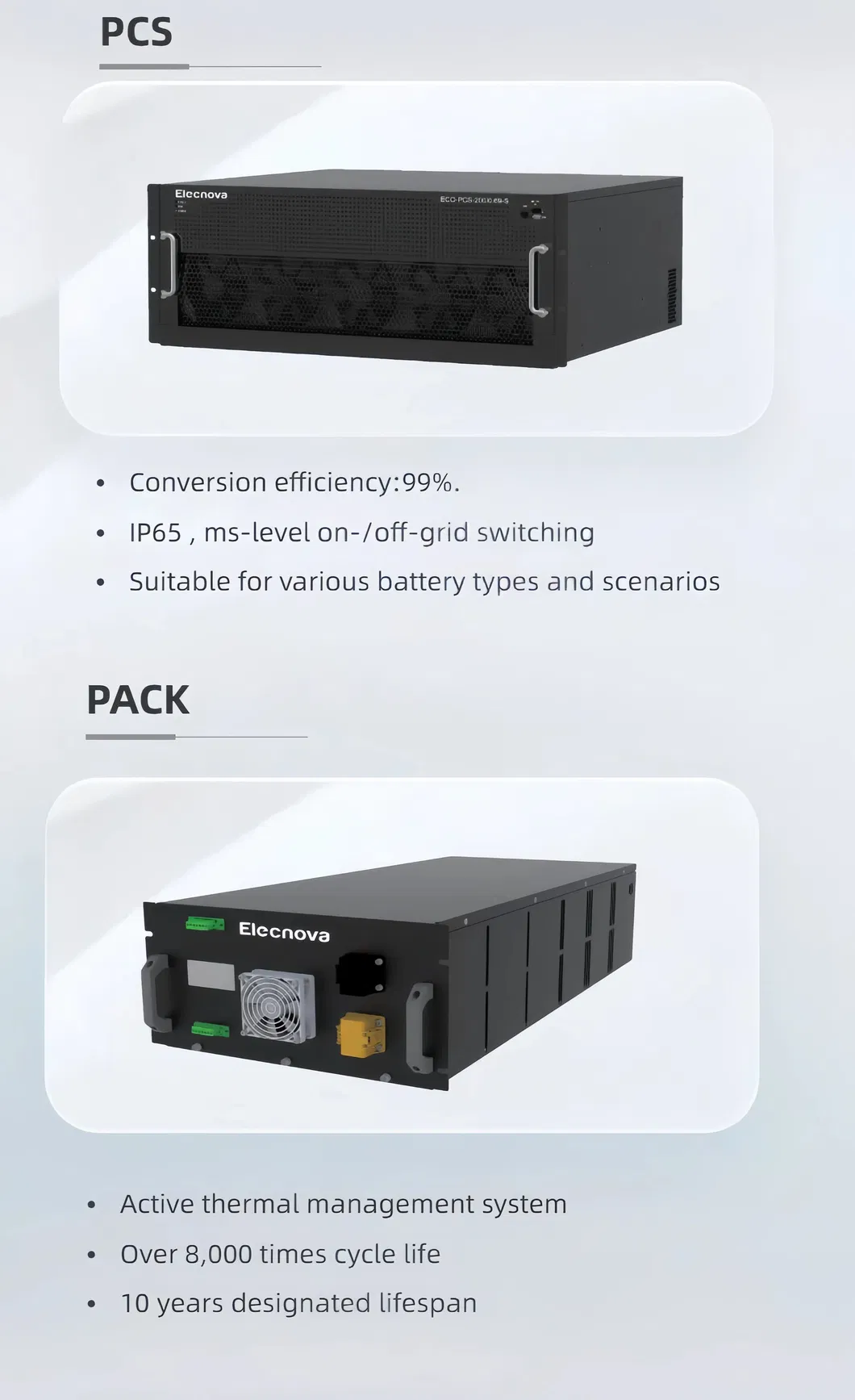

System Architecture
Product Specifications
DC Part Parameters
Cell TypeLFP 3.2V/280Ah
PACK17.92kWh/1P20S
Battery System215kWh/1P240S
Voltage Range672~864Vdc
Rated Voltage768Vdc
AC Part Parameters
Rated Power100kW
Max. Power110kW (60s)
THDi<3%
DC Ratio<0.5%Ip
Nominal Voltage400Vac
Nominal Frequency50/60 Hz
General Information
Efficiency≥90%
Charge/Discharge Rate≤0.5P
DoD95%
Cycle Life≥8,000 times
Switching Time<100ms
ConnectivityEthernet /RS485
Ingress RatingIP55
CoolingForced Air Cooling
Operating Temperature-25ºC~55ºC
Fire SafetyAerosol + Active Warning
Dimensions (W*D*H)1,250*1,300*2,400 (mm)
Weight2,500kg

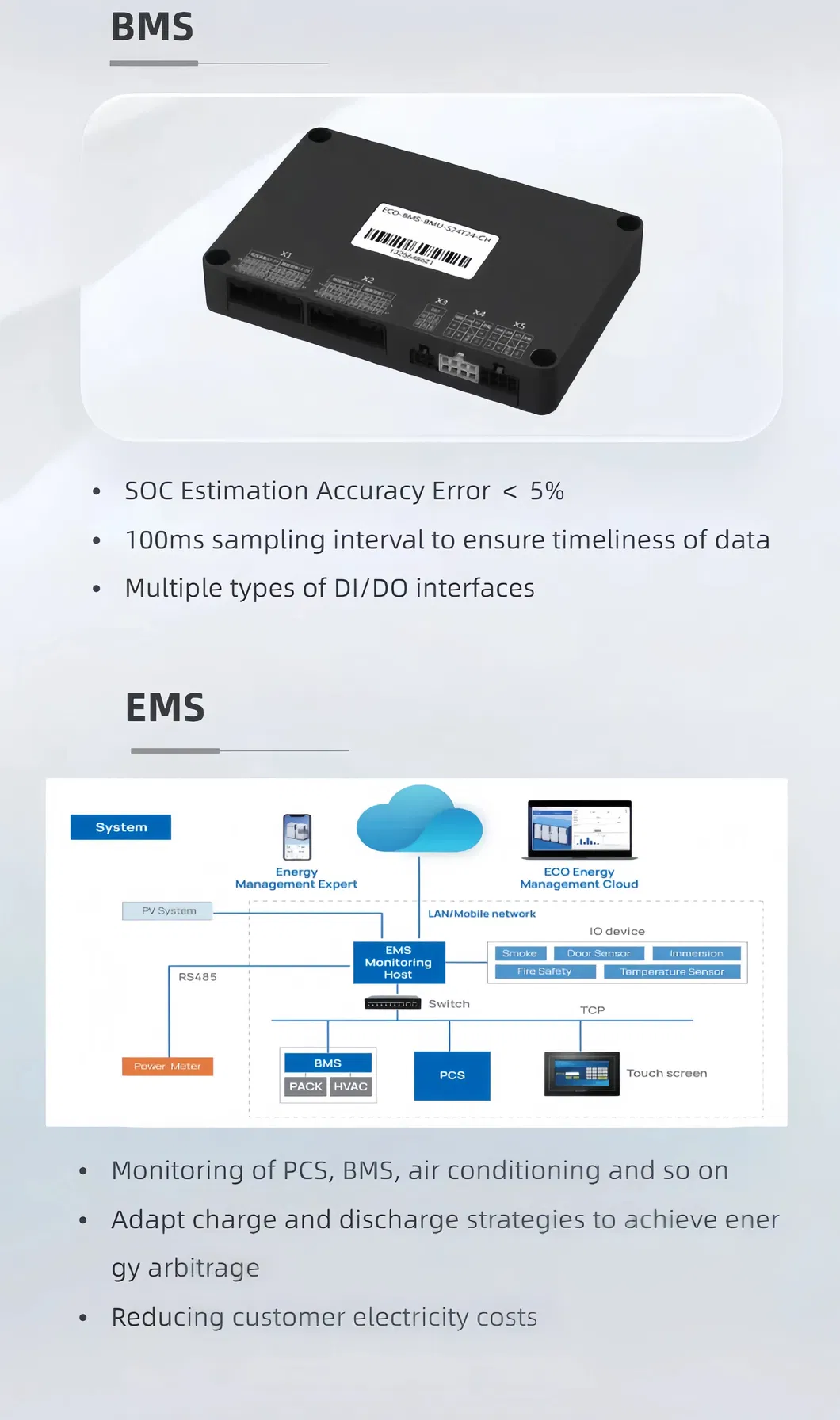

Technical Specs Diagram

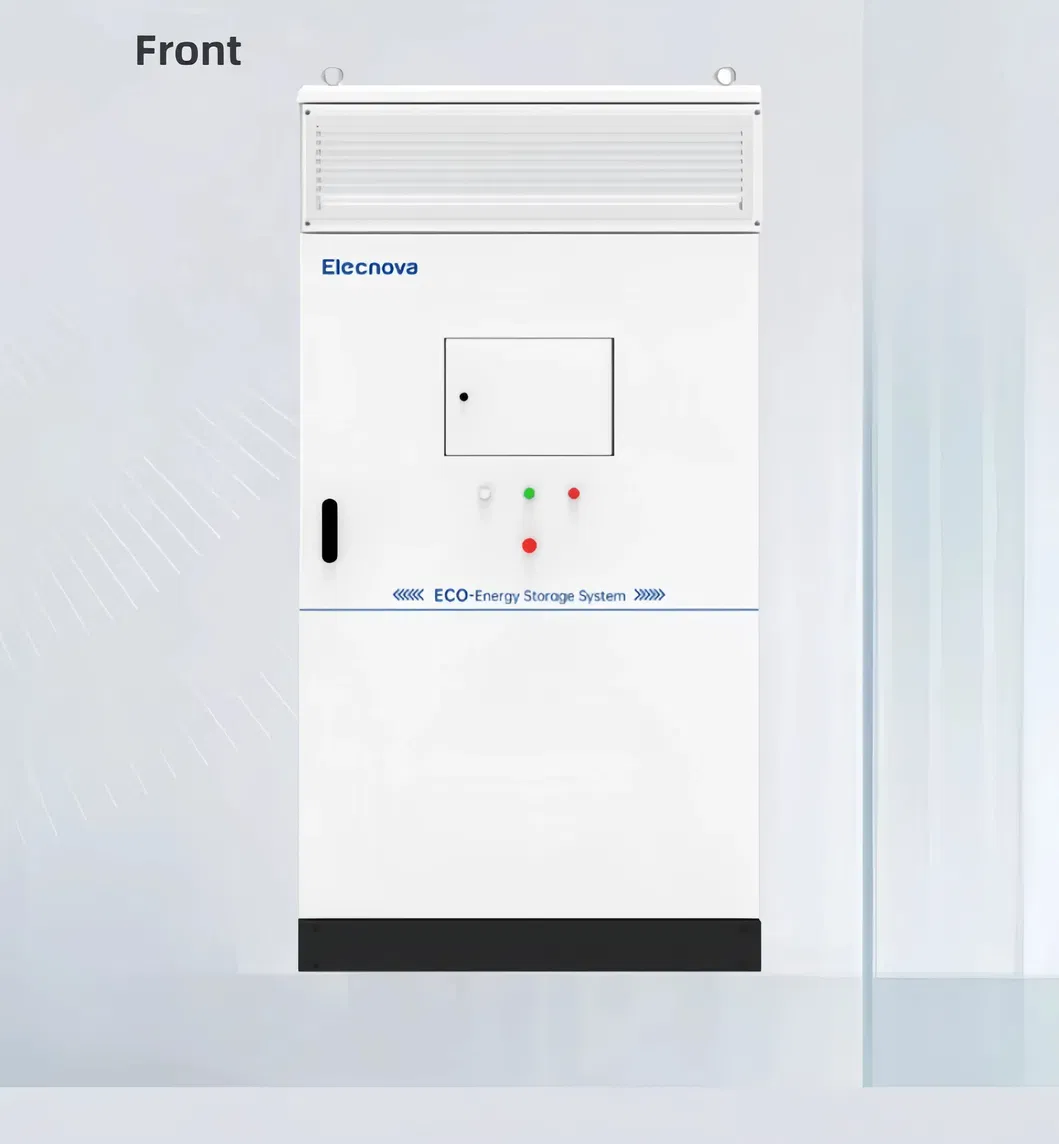

Energy Management

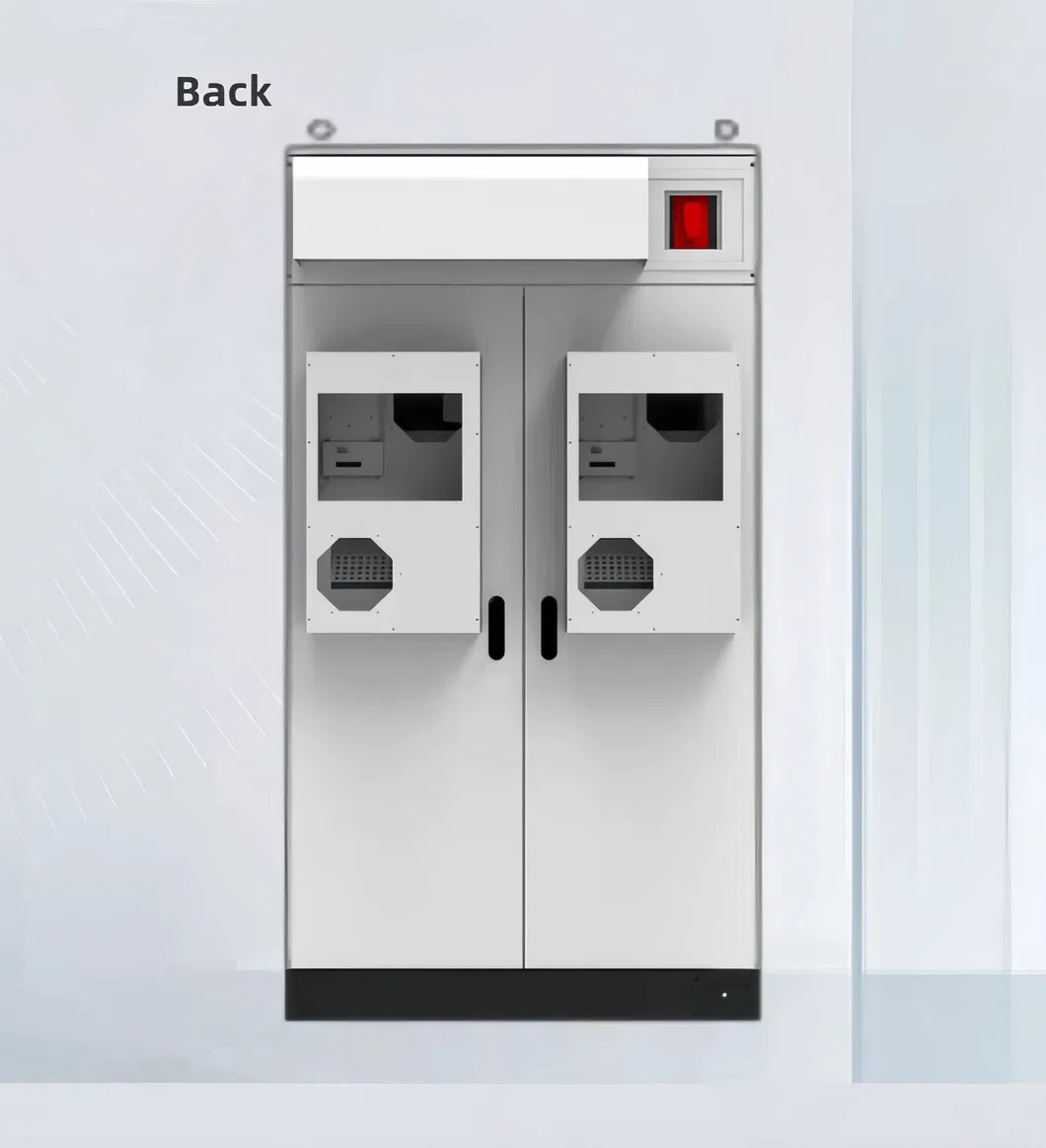

Safety Features

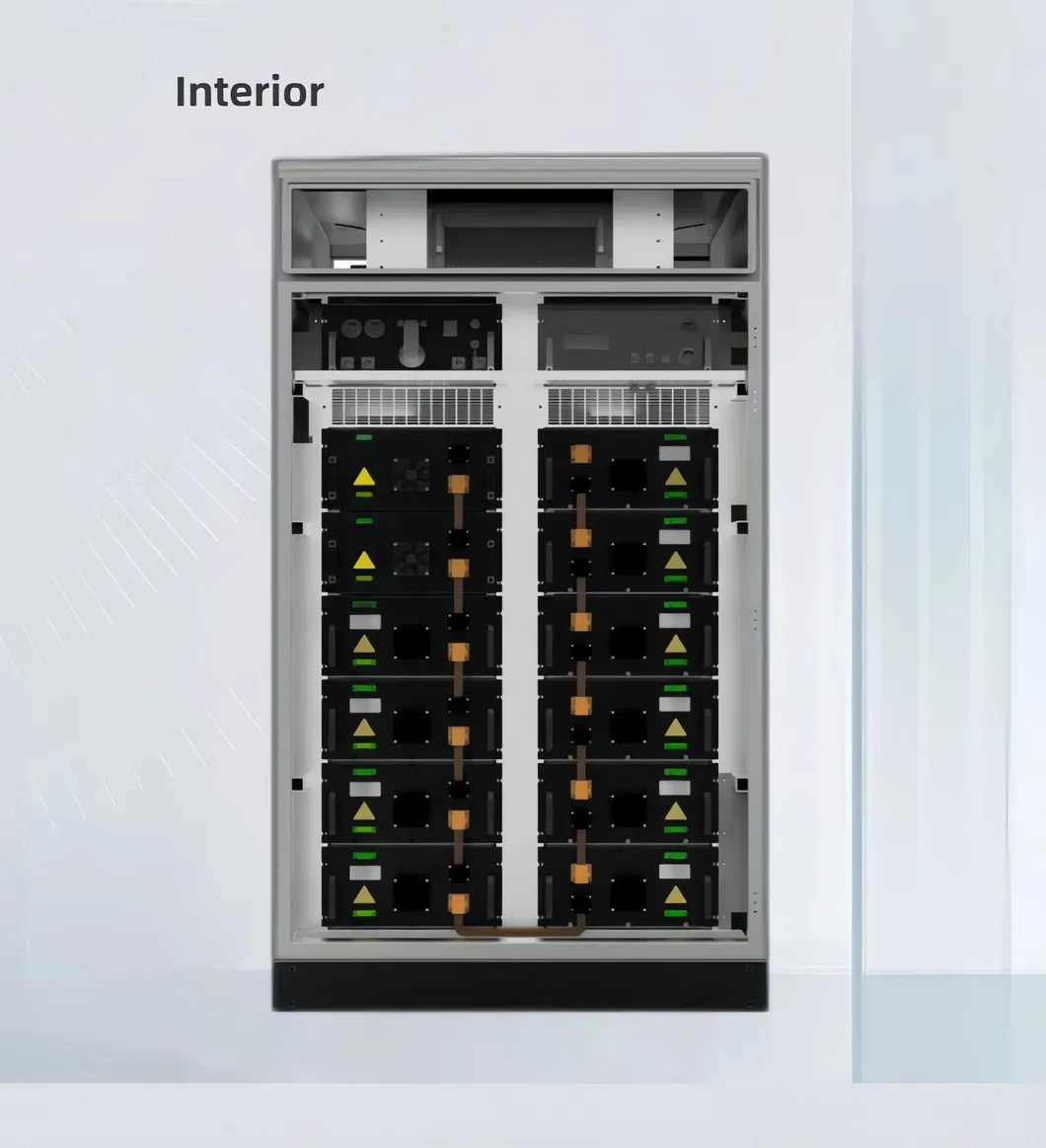

Smart Monitoring

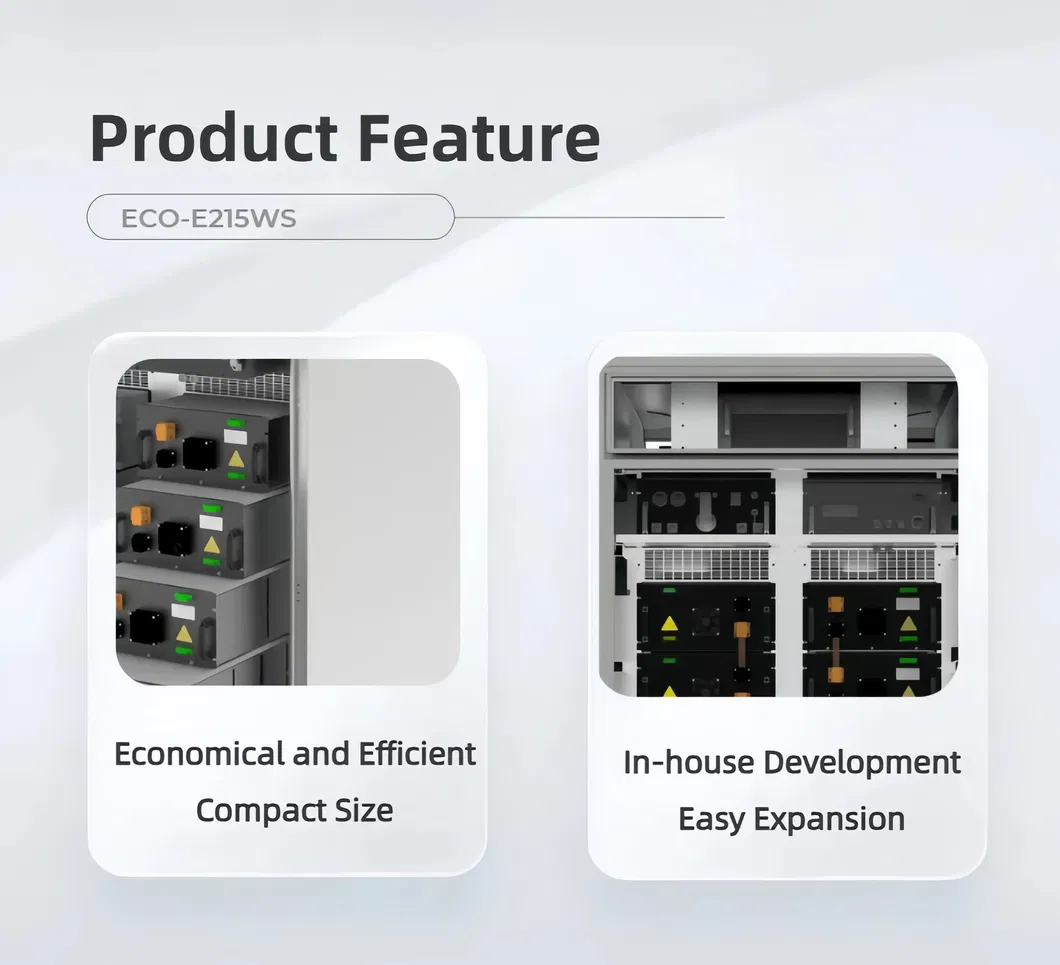

Installation Layout
We are a technology-based enterprise focusing on overall solutions for energy storage systems. Our capability includes the overall supporting capability for system integration of PACK, PCS, and BMS. We aim to meet the diversified energy requirements of segmented markets and customers, with products at the core and quality as the cornerstone, providing high-quality customized products for various energy consumption scenarios on the power generation side, grid side, and user side.

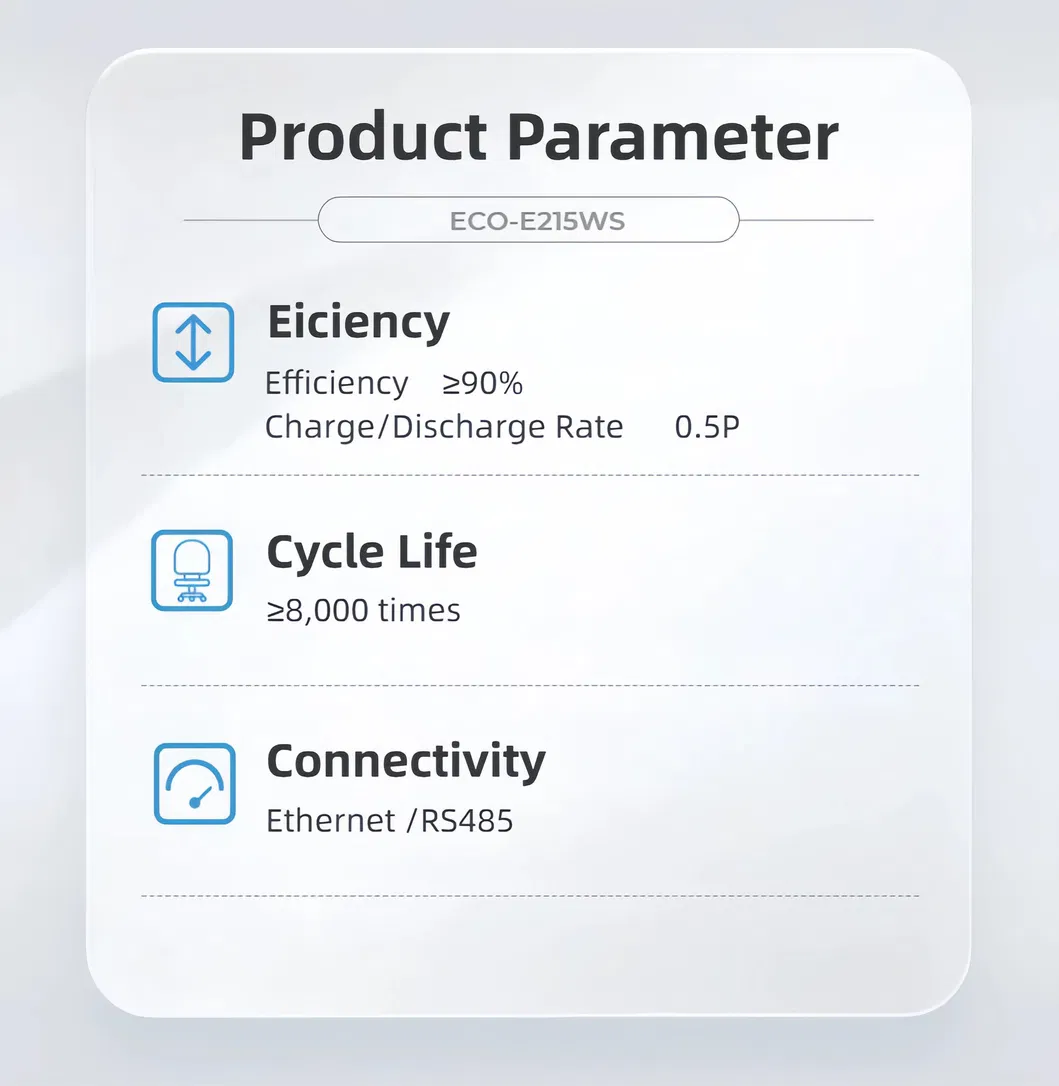

Application Scenario 1
Application Scenario 2

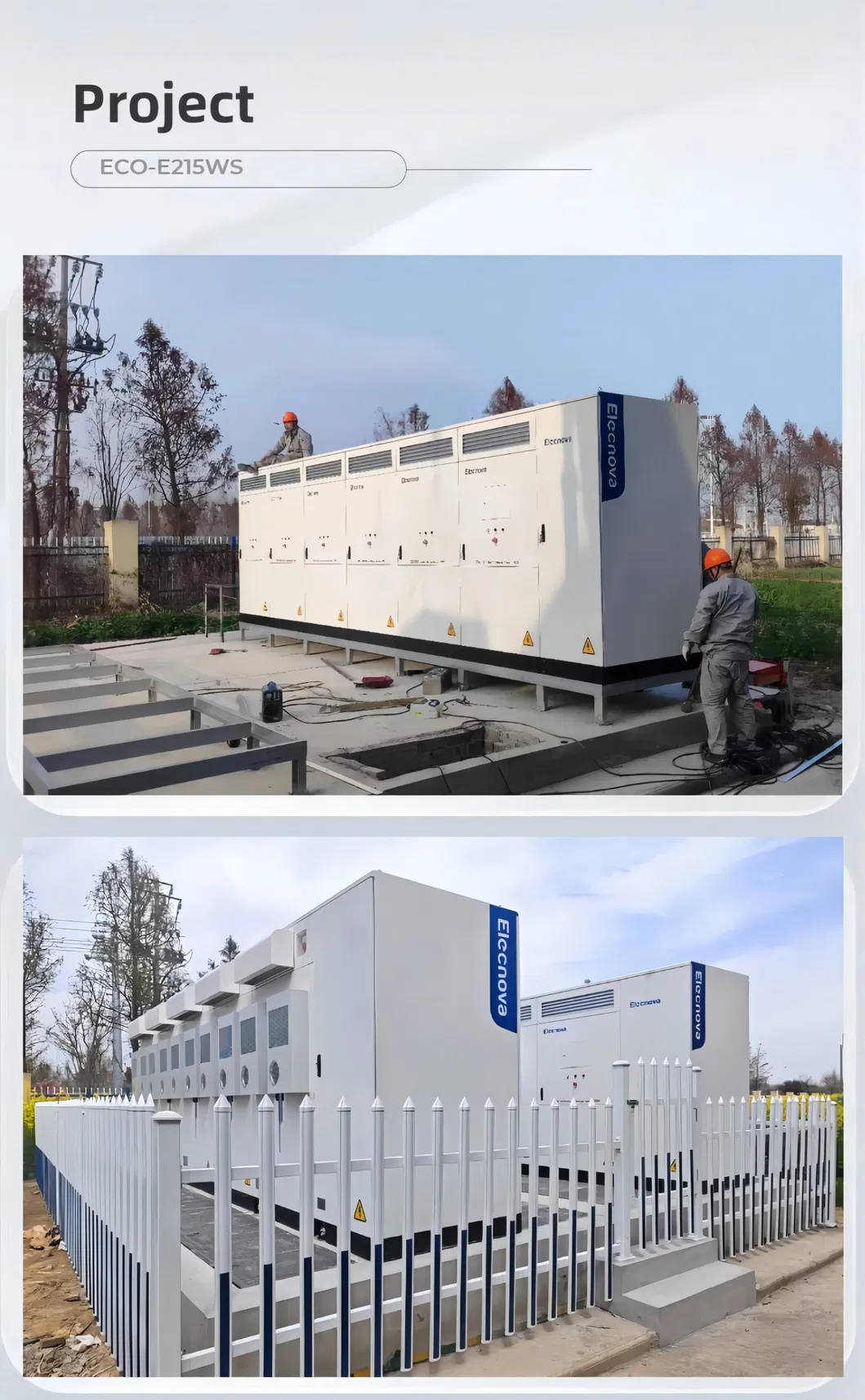

Industrial Implementation

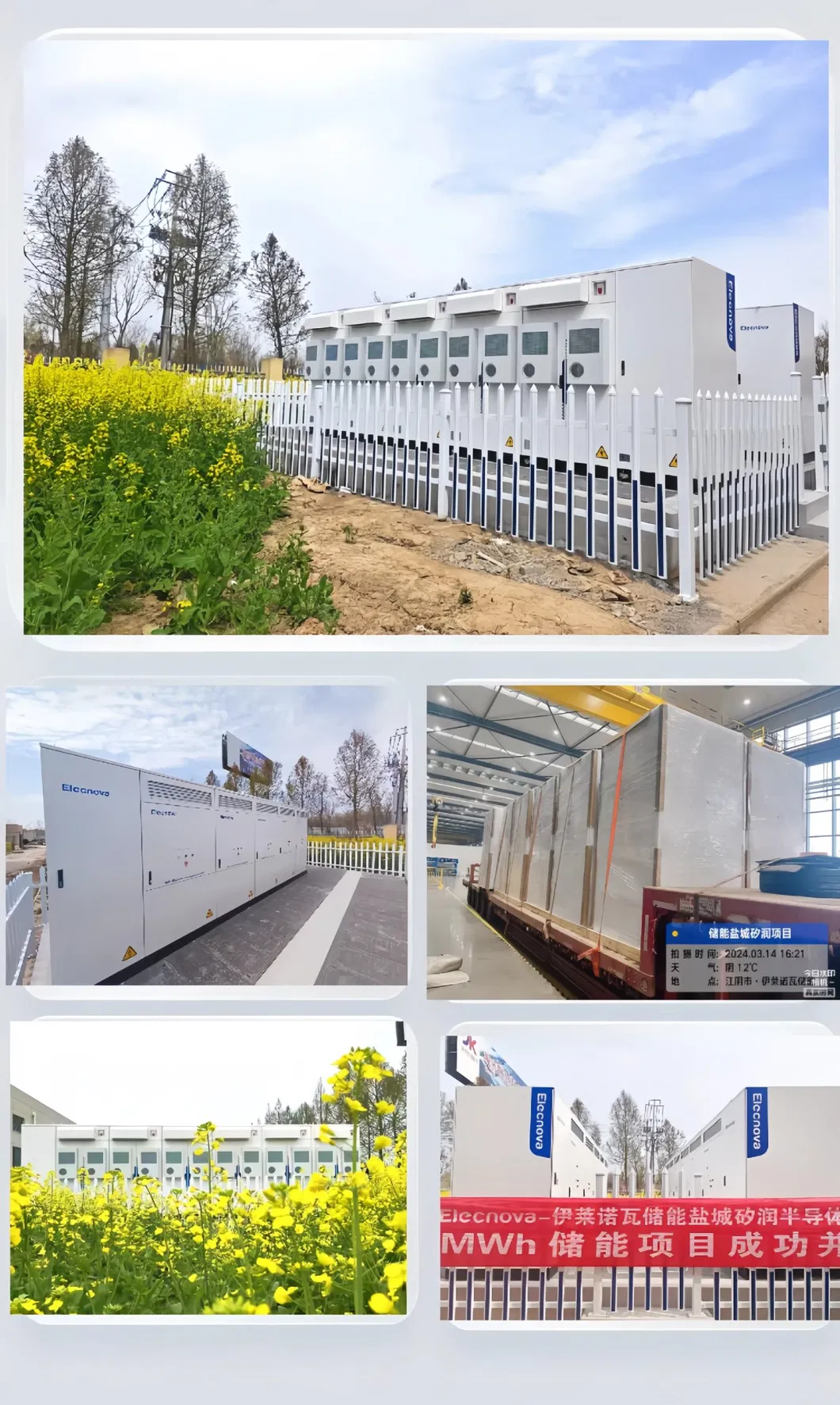

Large Scale Storage
Certification

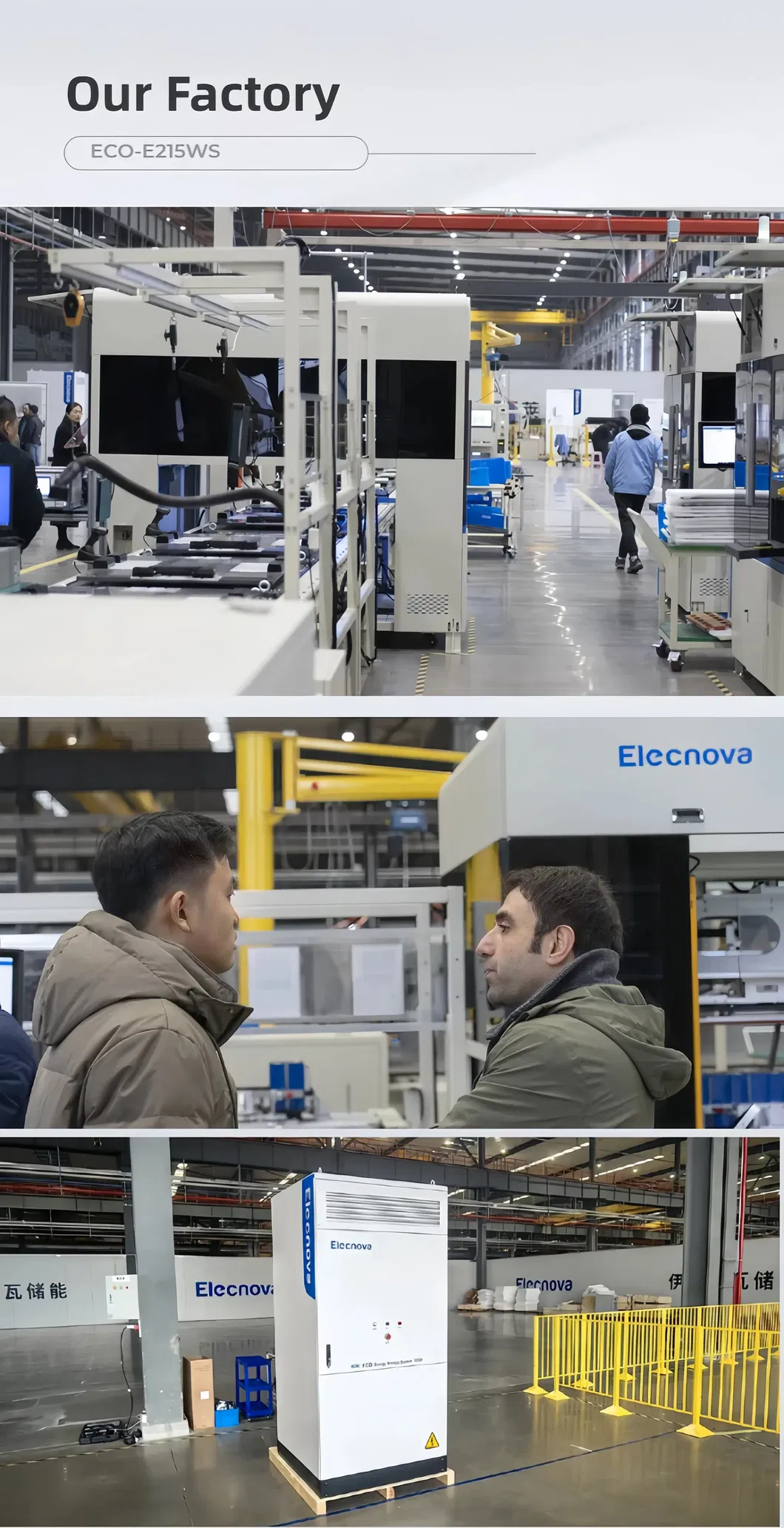

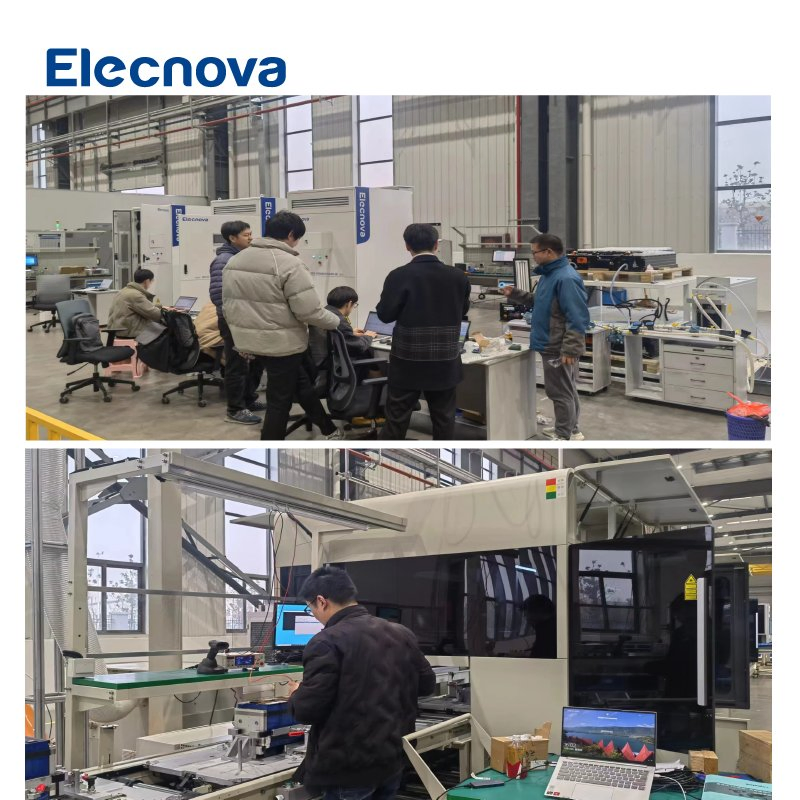

Production Line

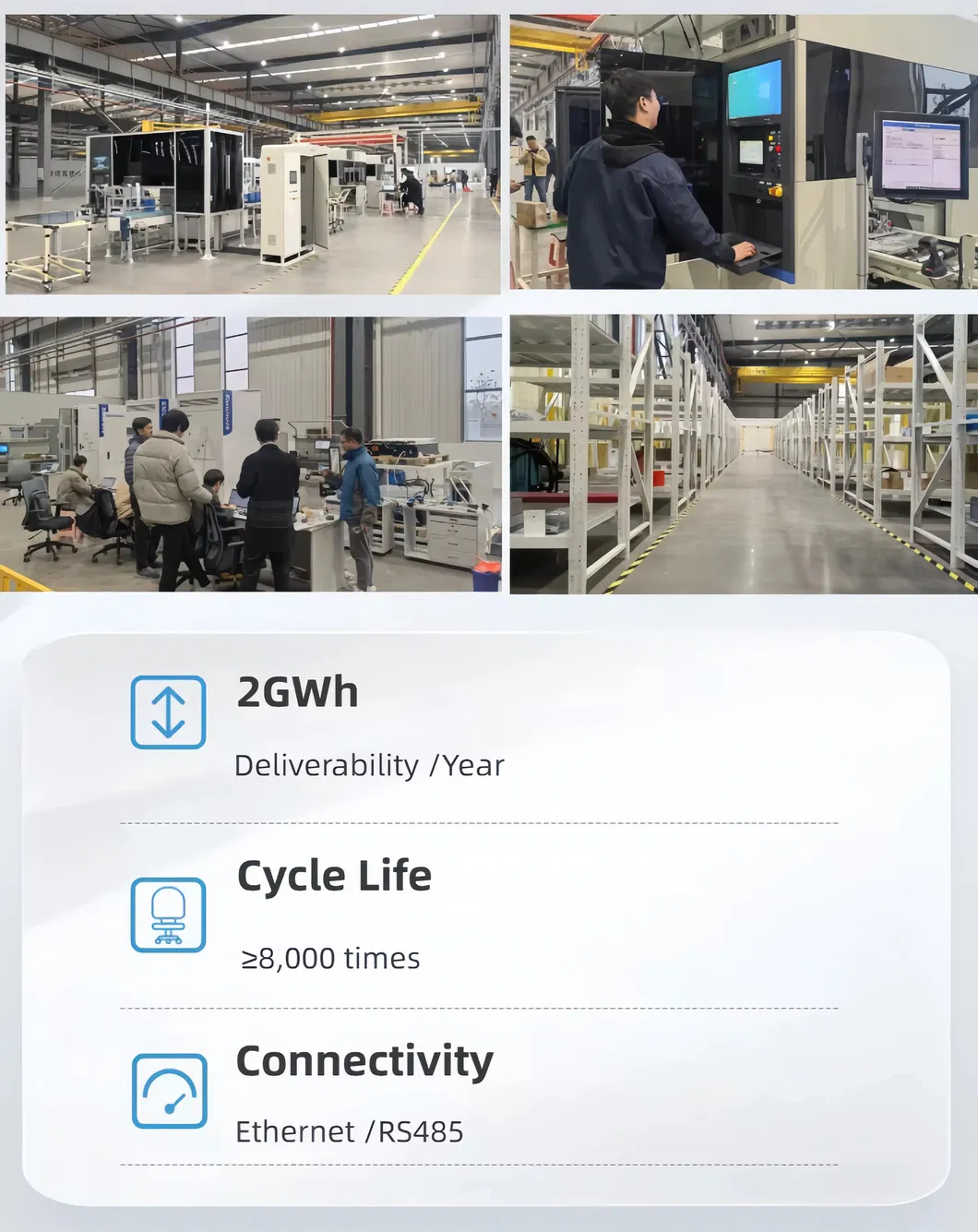

Quality Control
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in the production of PCS, Battery PACK, BMS, EMS, and all-in-one storage cabinets.
Do you provide OEM and ODM services?
Yes, we provide both OEM and ODM services to meet your specific requirements, subject to a minimum order quantity.
What is the expected warranty for the energy storage systems?
Our standard warranty ranges from 5 to 10 years, depending on the specific configuration and project requirements.
How are the battery products shipped?
We utilize professional forwarders experienced in handling battery shipments to ensure safe delivery via sea or air.
Can I request a product sample?
Yes, samples are available. Please provide your contact details and our team will get in touch with you shortly to arrange the details.
How do you handle after-sales service?
We provide comprehensive after-sales support including repair and replacement services to ensure the continuous operation of your energy systems.
