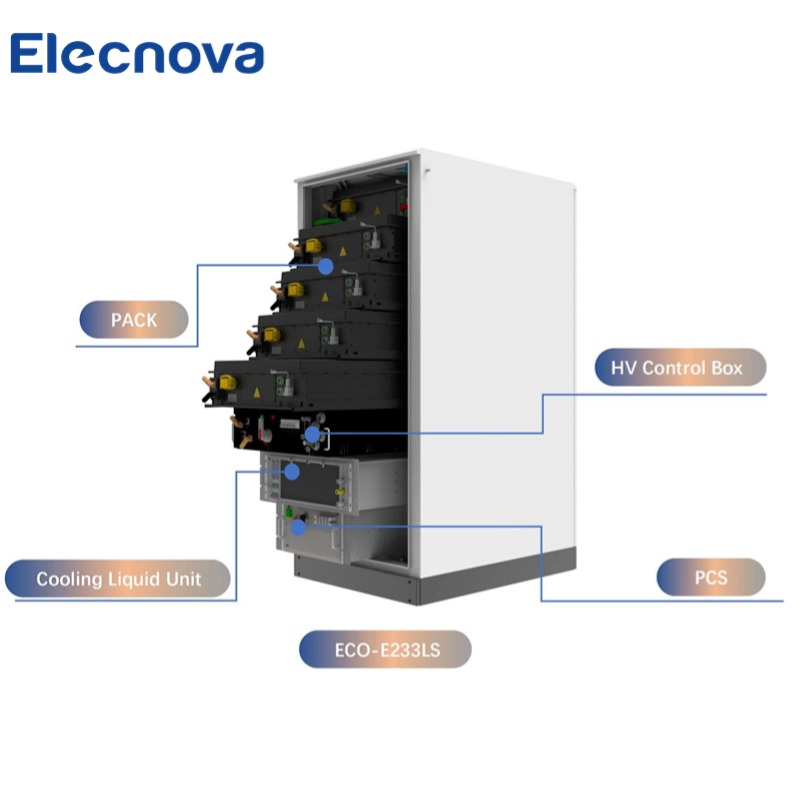

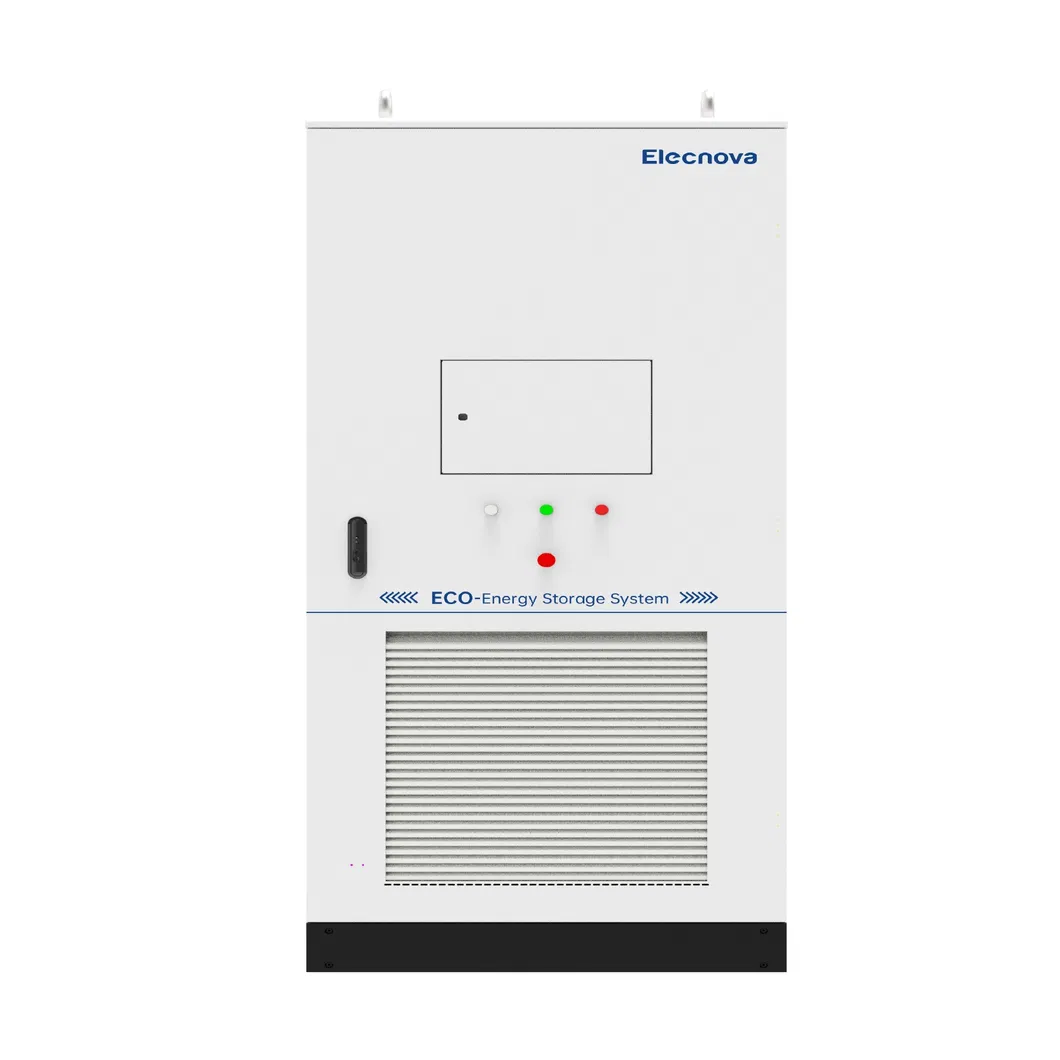

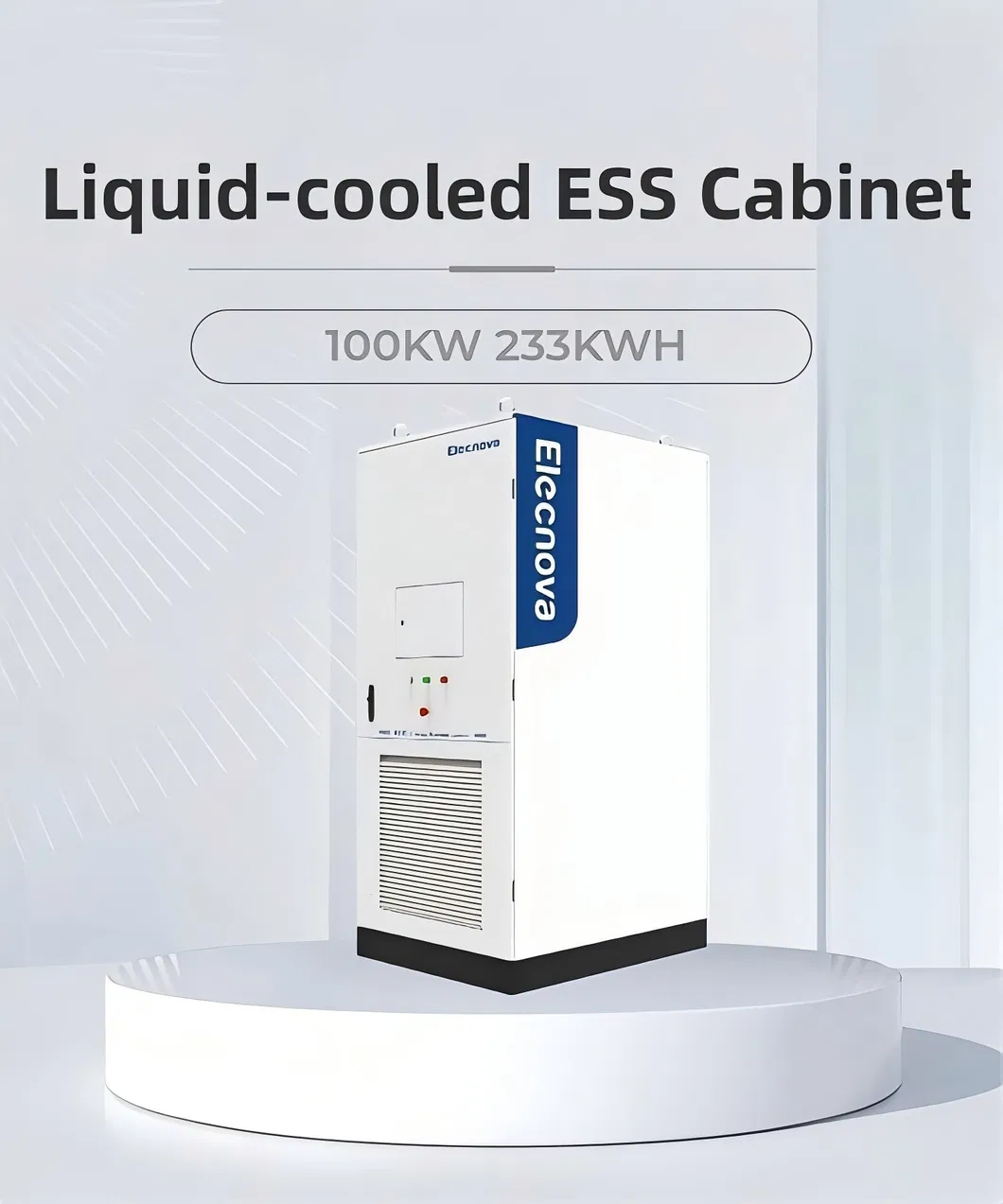

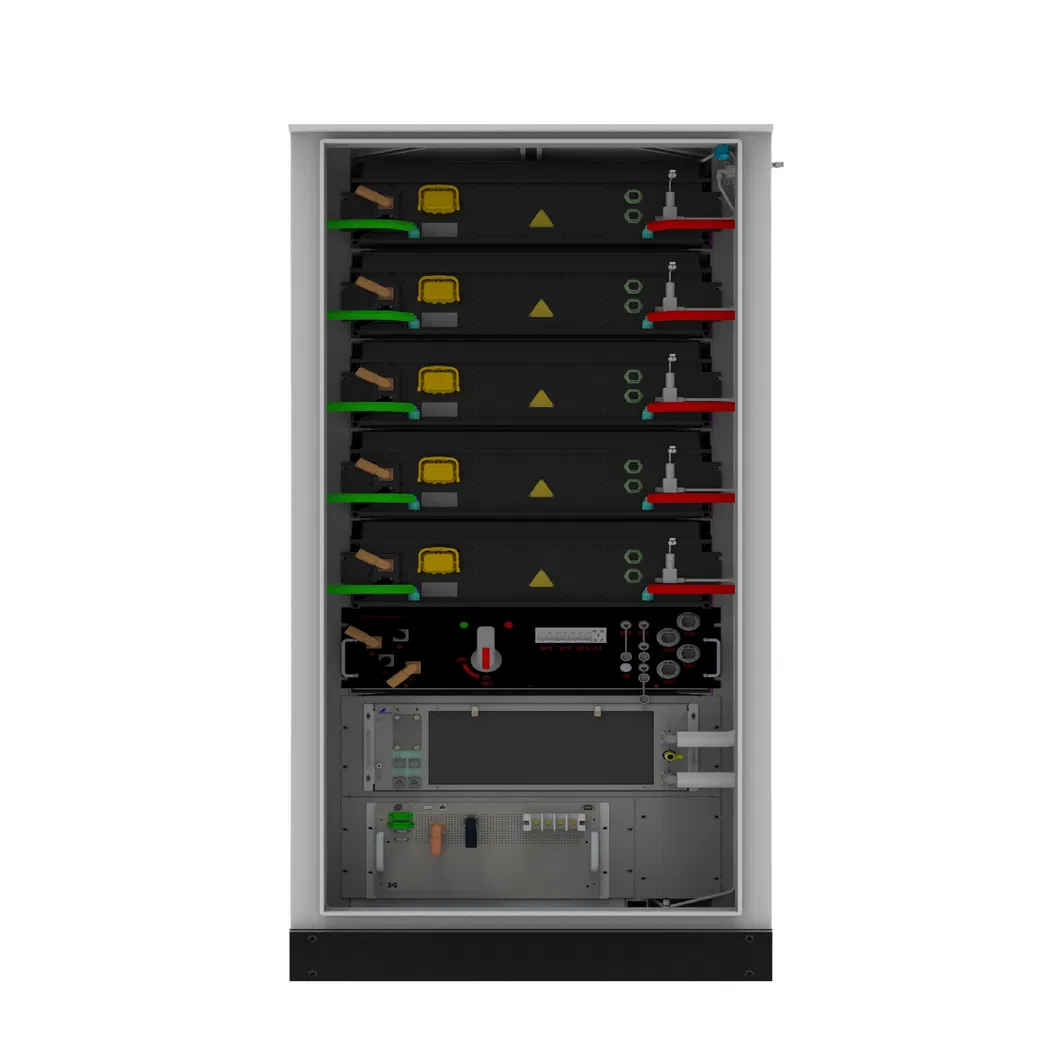

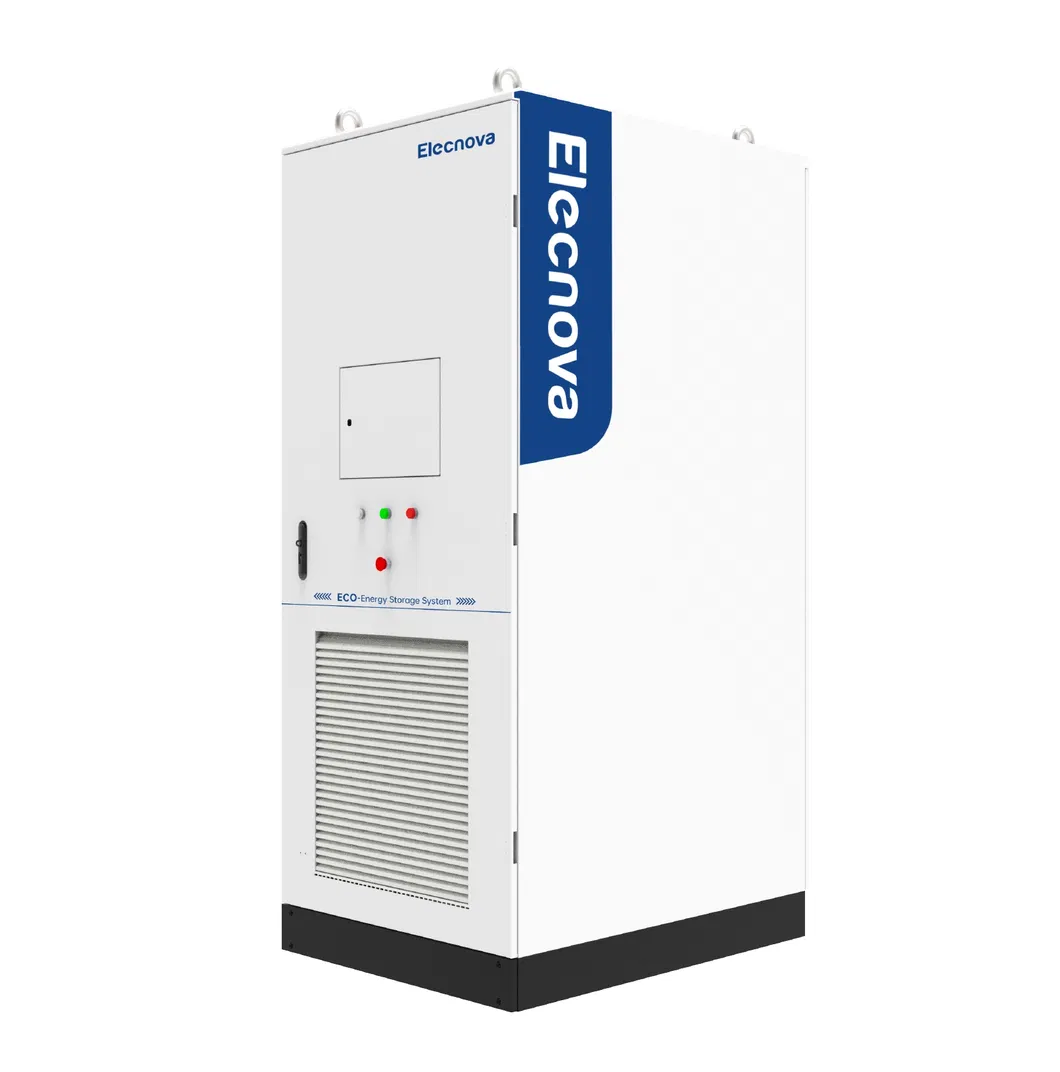

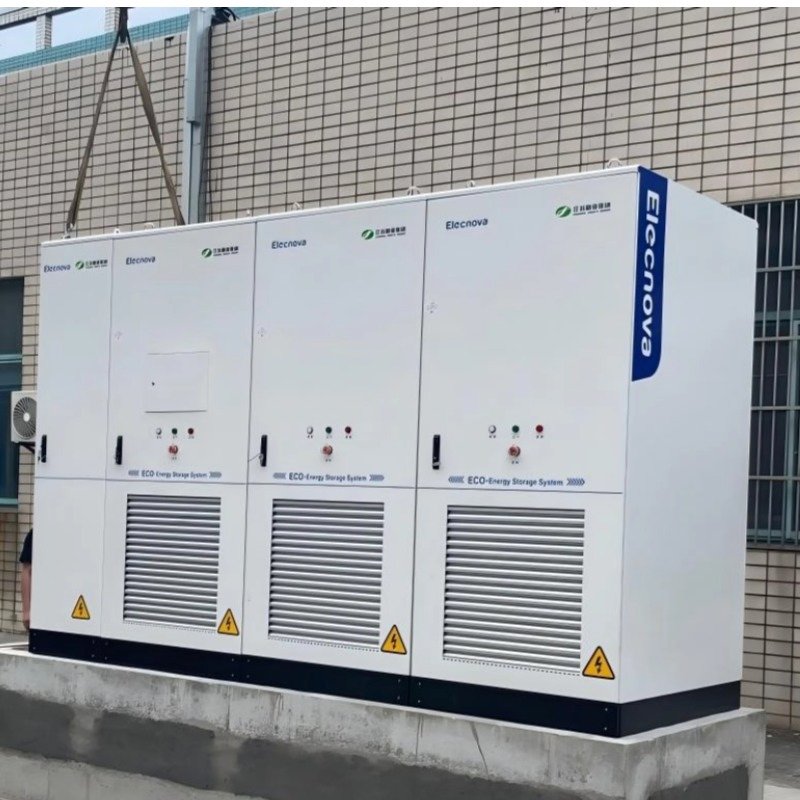

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of energy storage projects.
Conversion efficiency: 99%
IP65, ms-level switching

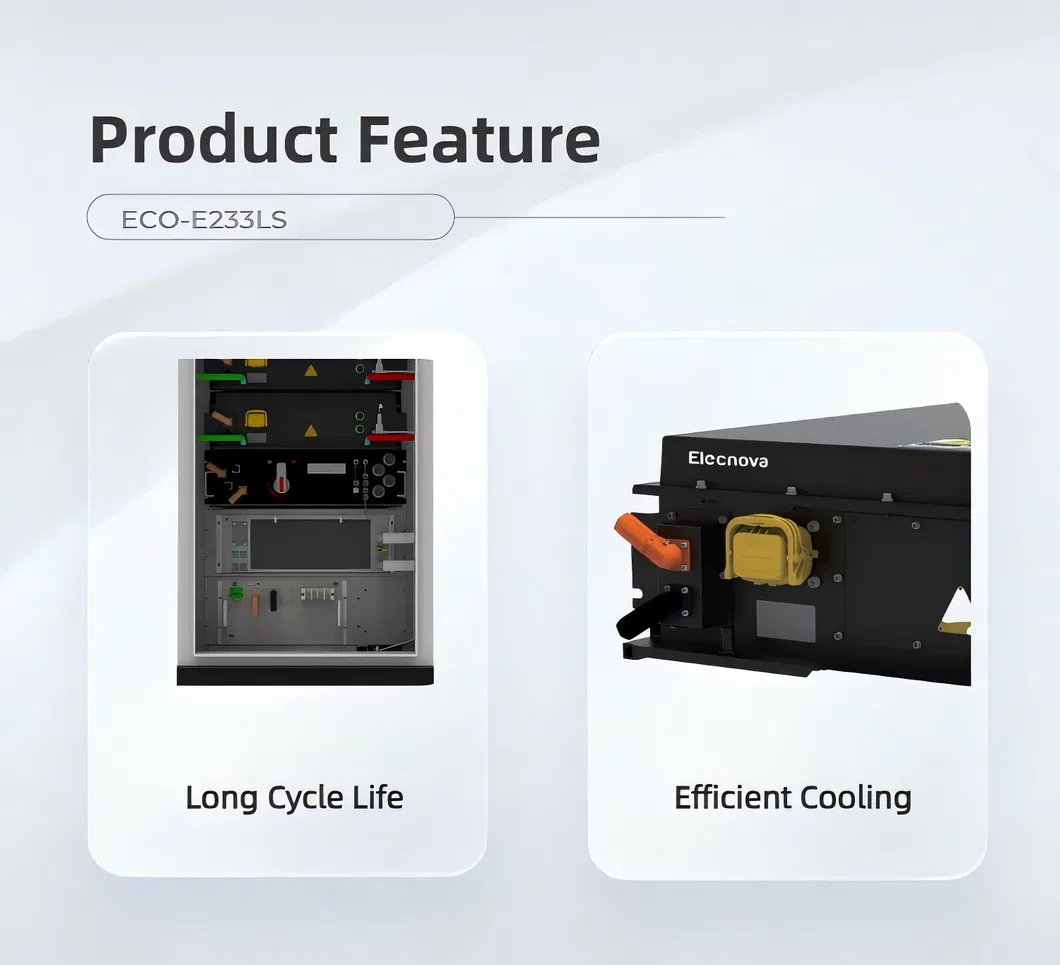

Active thermal management
Over 8,000 times cycle life

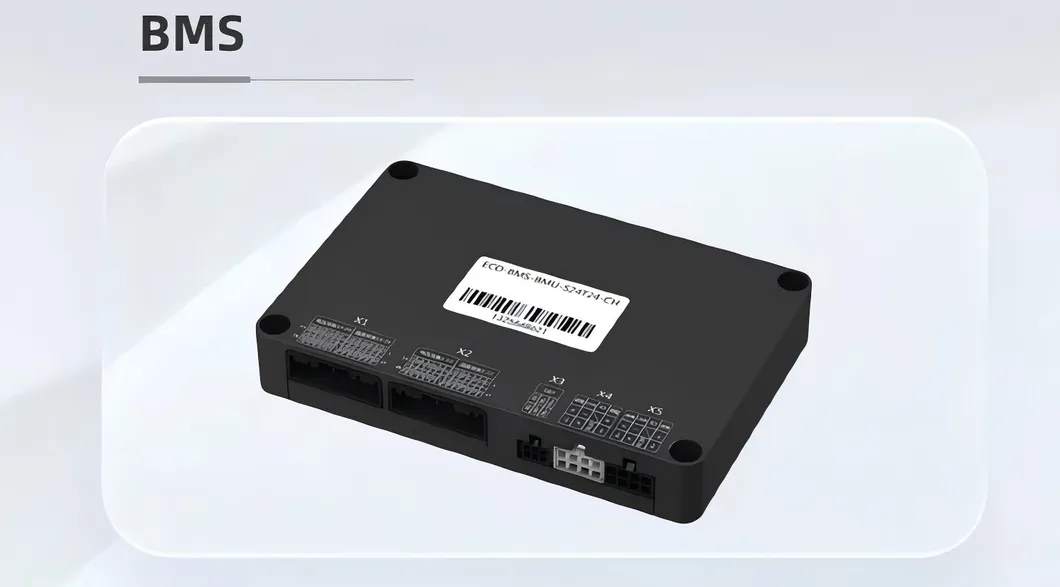

SOC Accuracy Error < 5%
100ms sampling interval

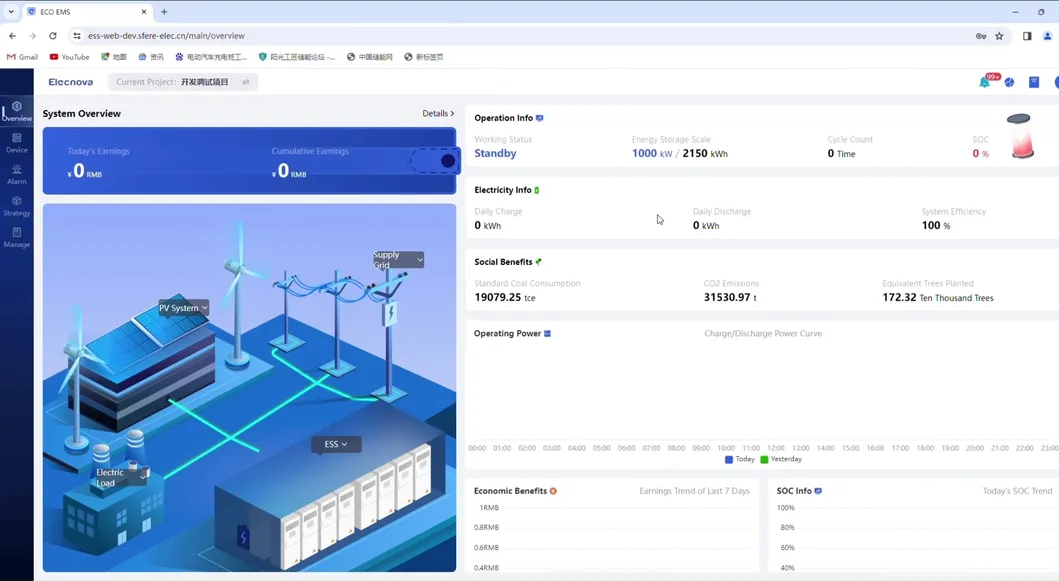

Monitoring of PCS, BMS, AC
Energy arbitrage strategies
| DC Side Specifications | |
|---|---|

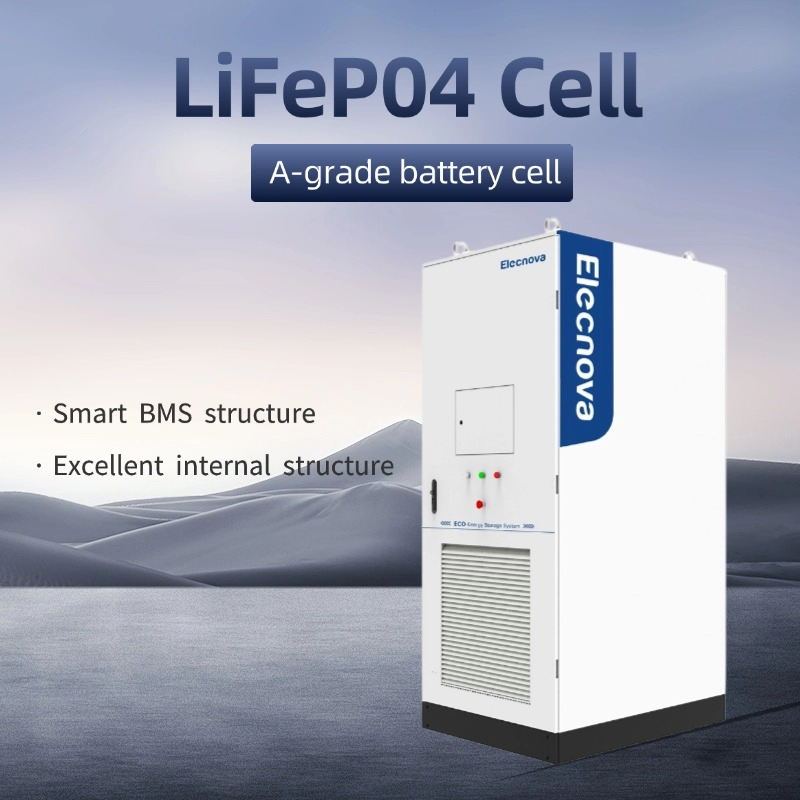

| Cell Type | LFP280Ah |

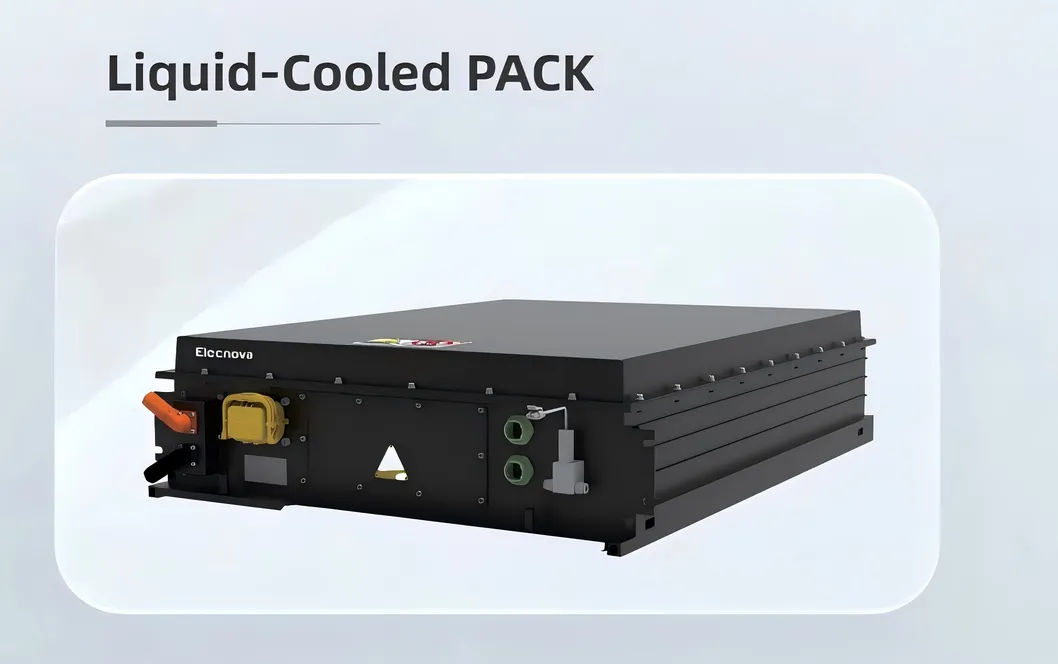

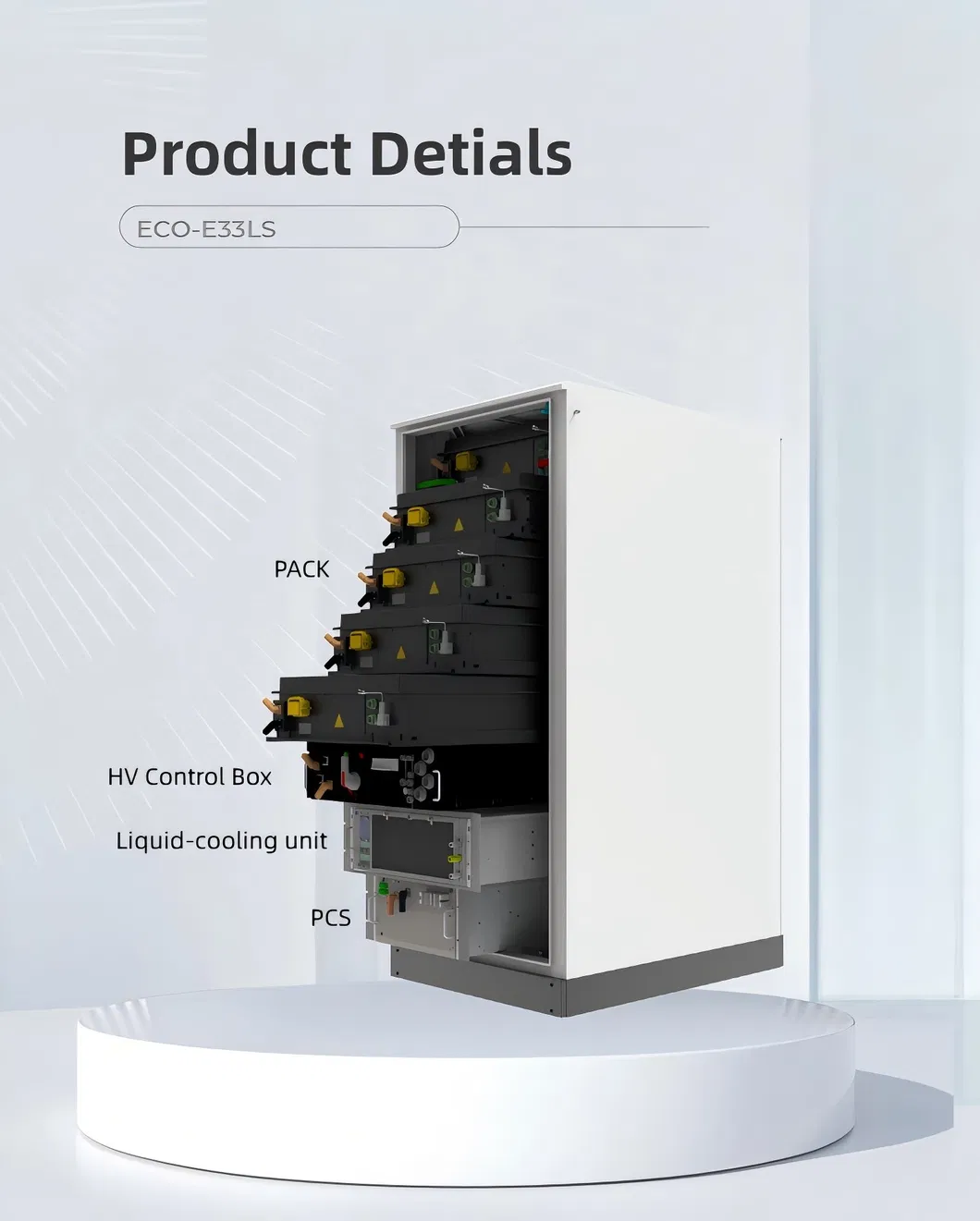

| PACK | 46.592kWh/1P52S |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side Specifications | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| Nominal Voltage | 400Vac/3P+N+PE |
| General Information | |

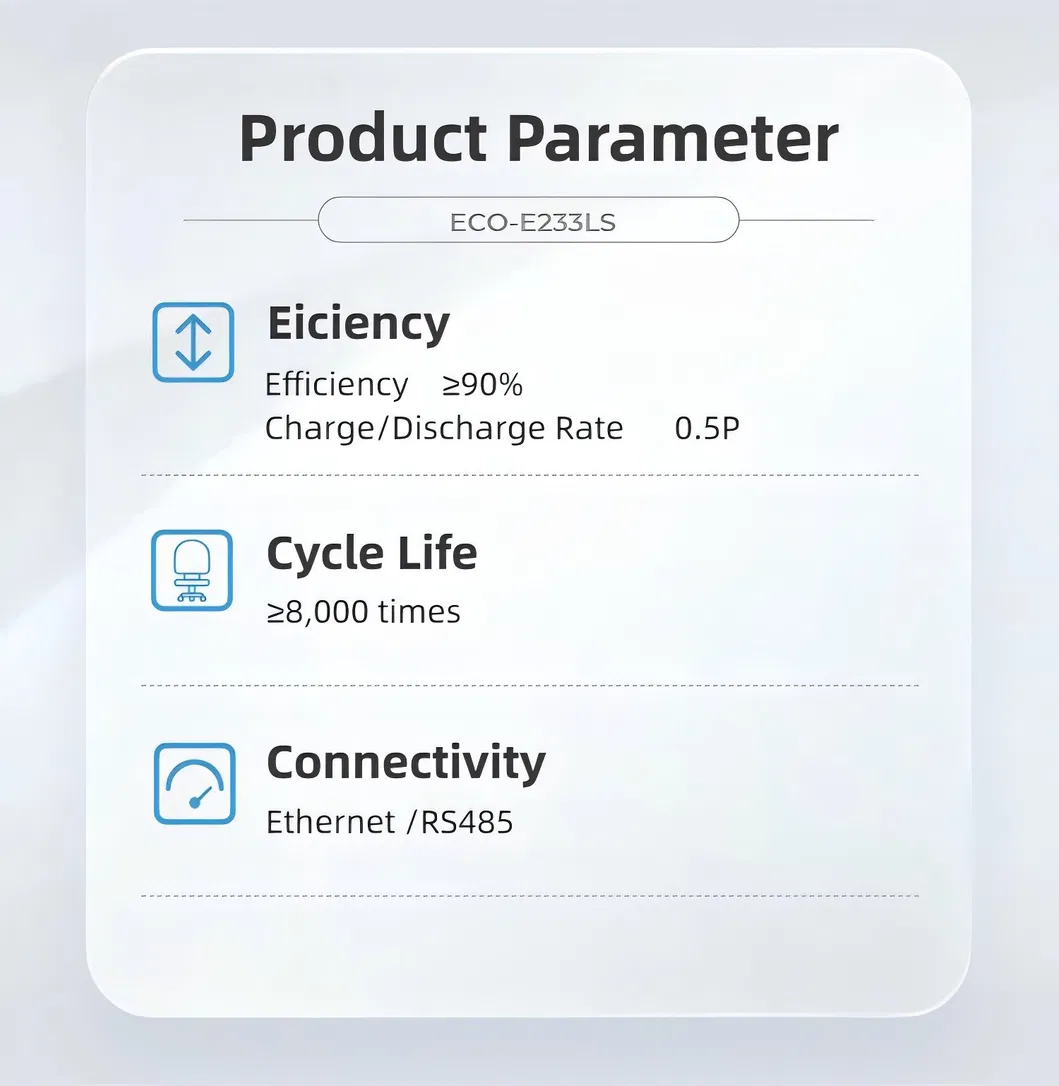

| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Cooling | Active liquid cooling |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |

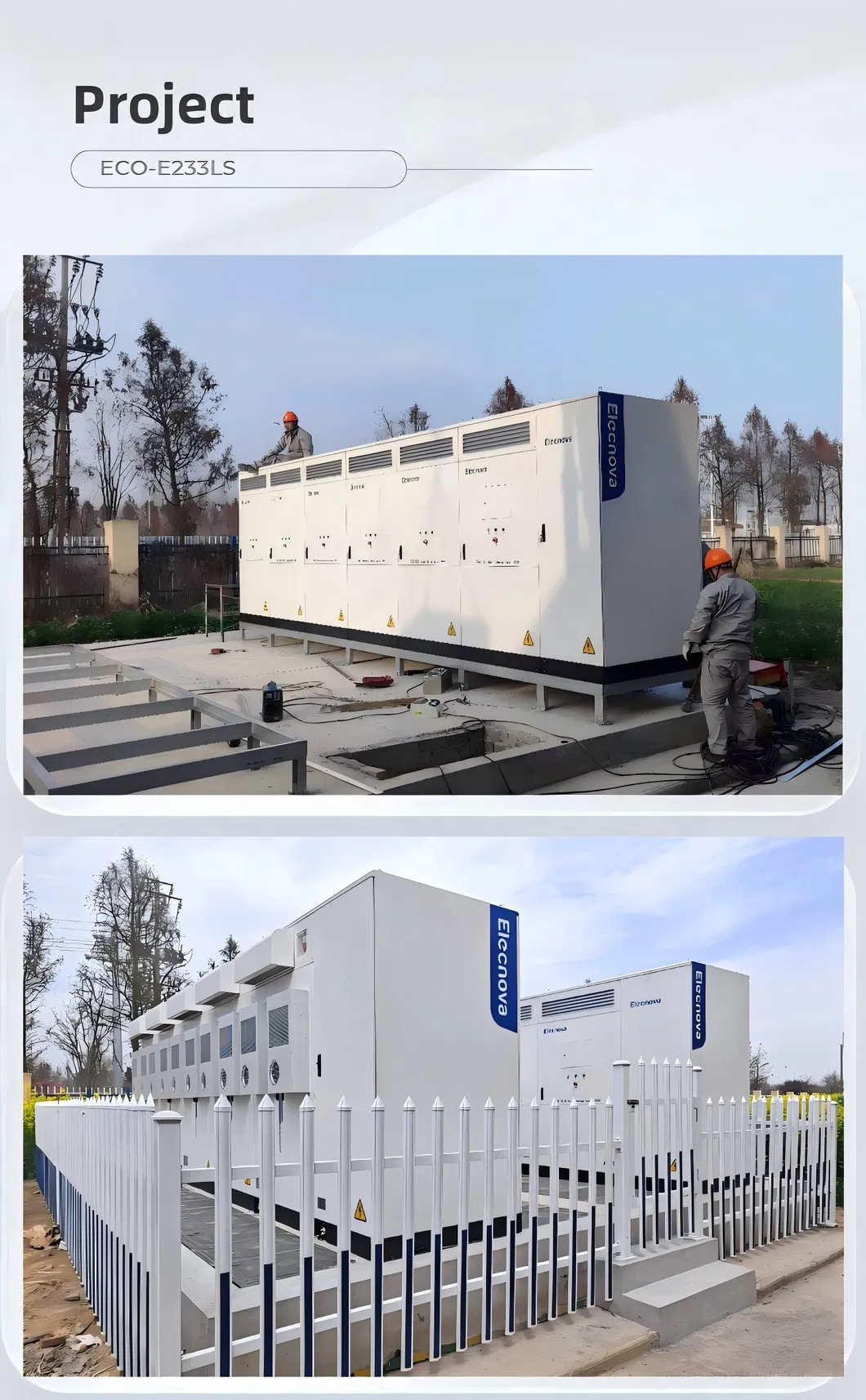

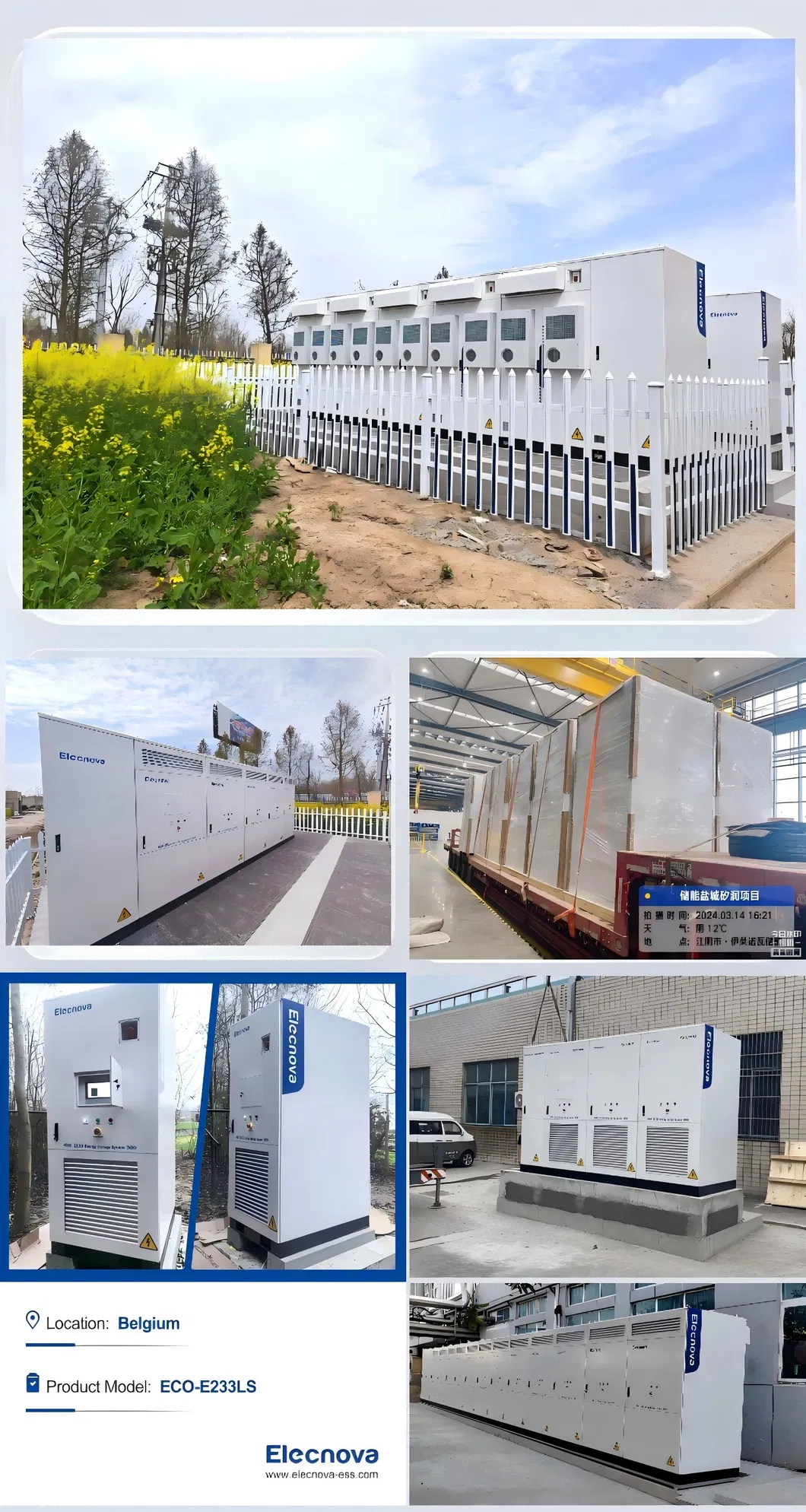

Successful 2.4MWh energy storage project connected to the grid. This project adopts advanced energy storage technology and equipment, featuring high efficiency, stability and safety.

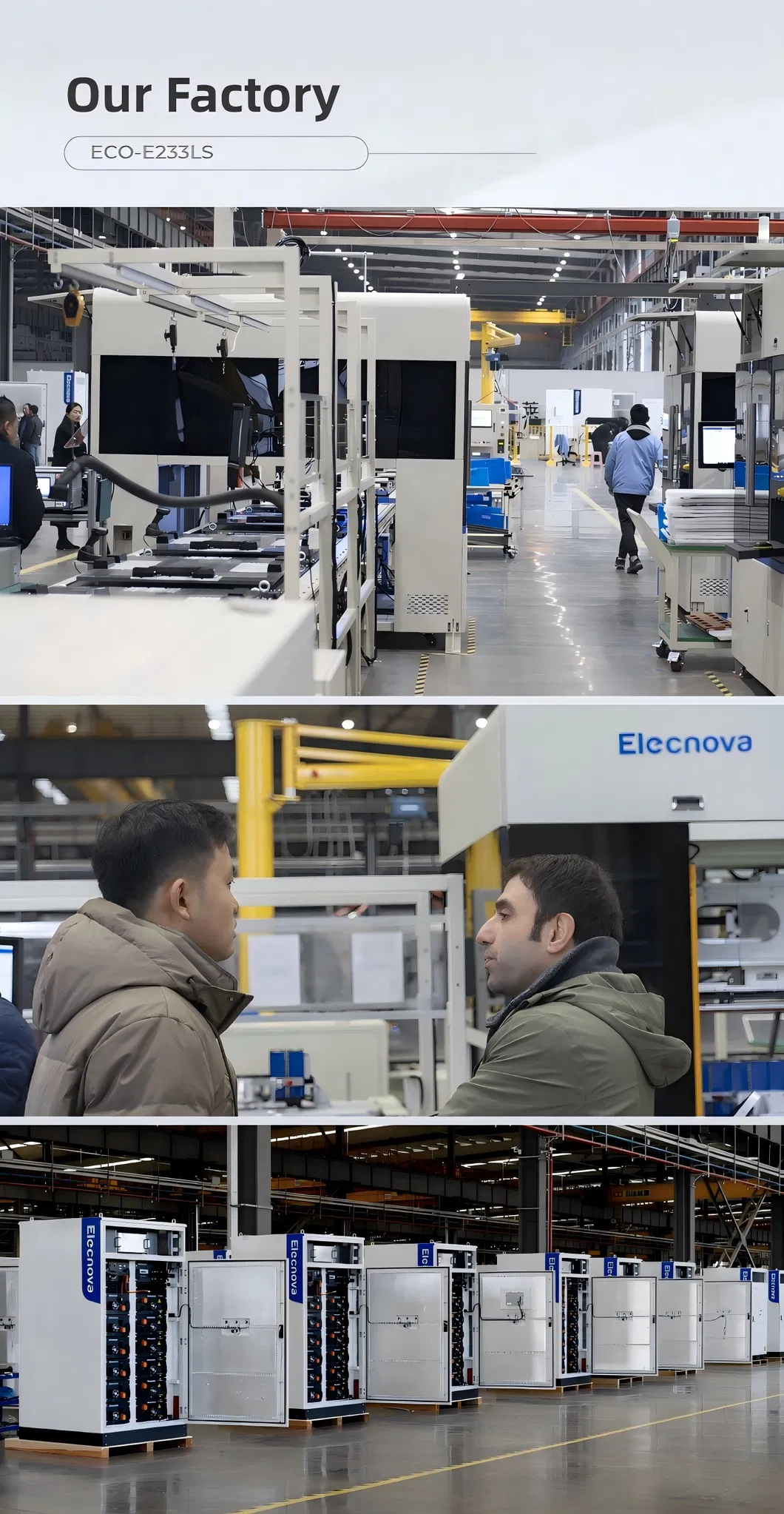

A technology-based enterprise focused on overall solutions for energy storage systems. We possess the overall supporting capability for the system integration of PACK, PCS, and BMS. We aim to meet diversified energy requirements with quality as our cornerstone, providing customized products for power generation, grid, and user-side scenarios.
