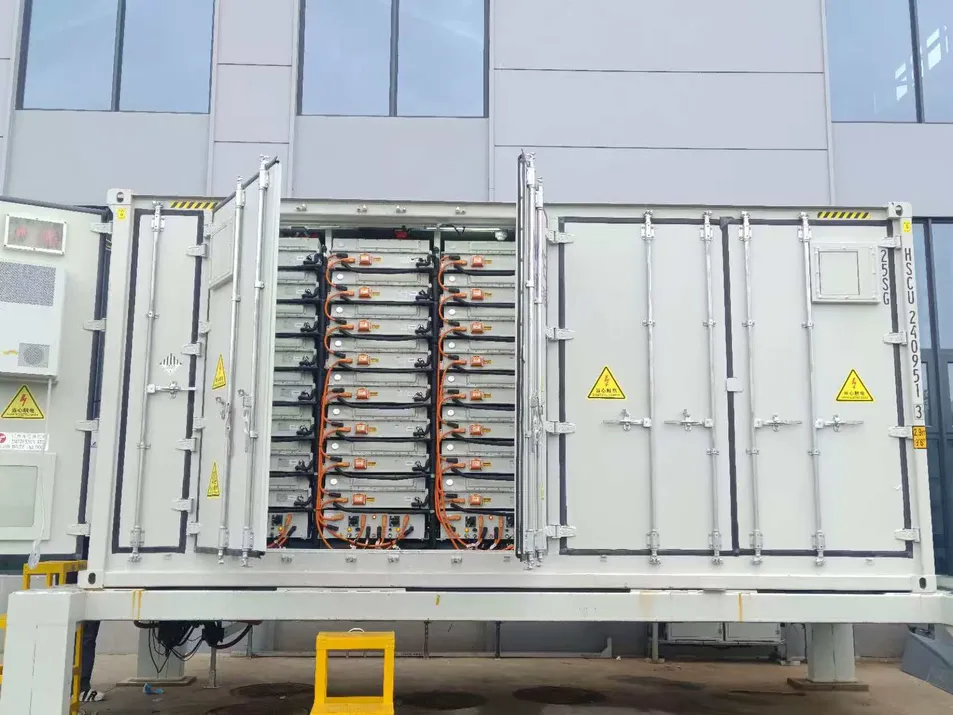

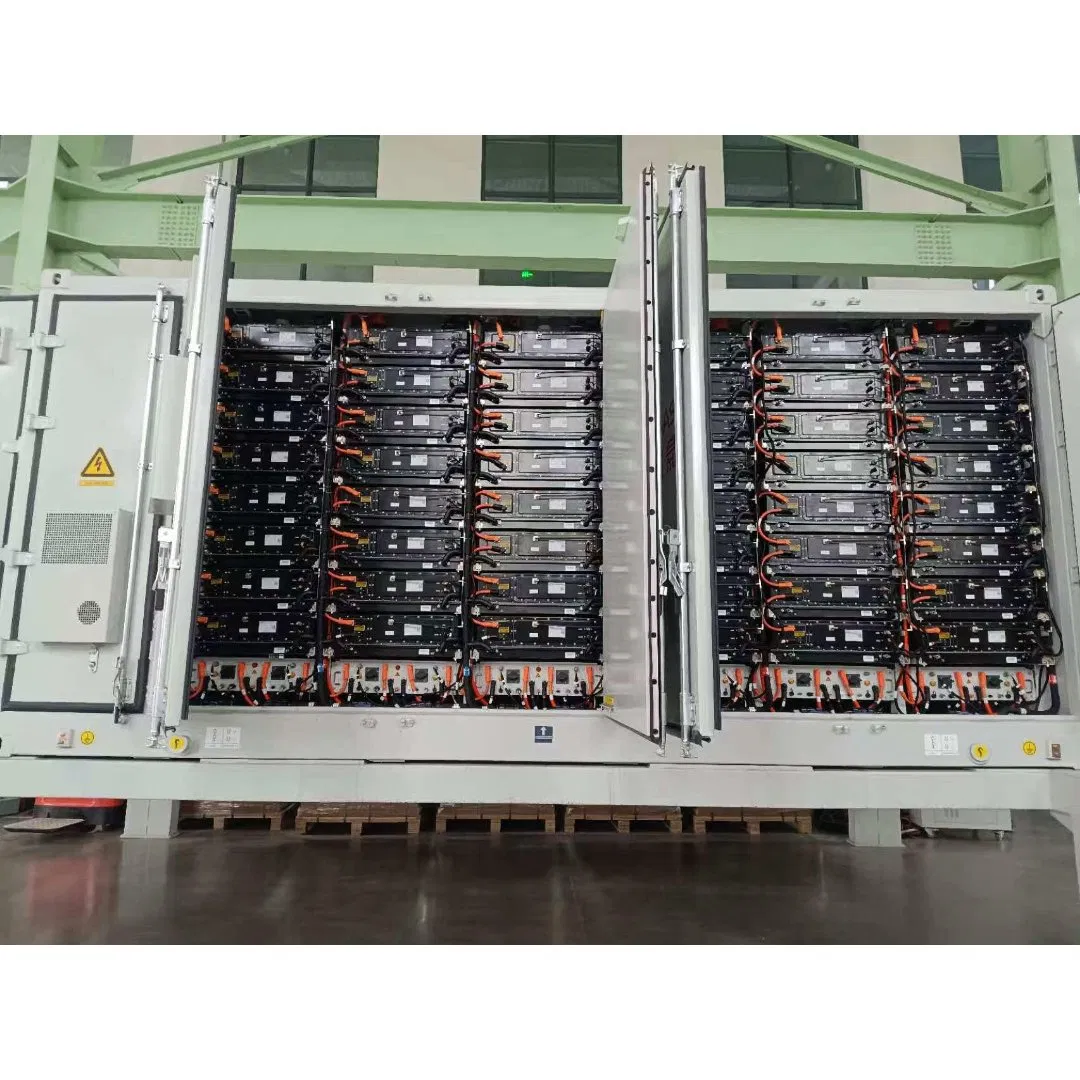

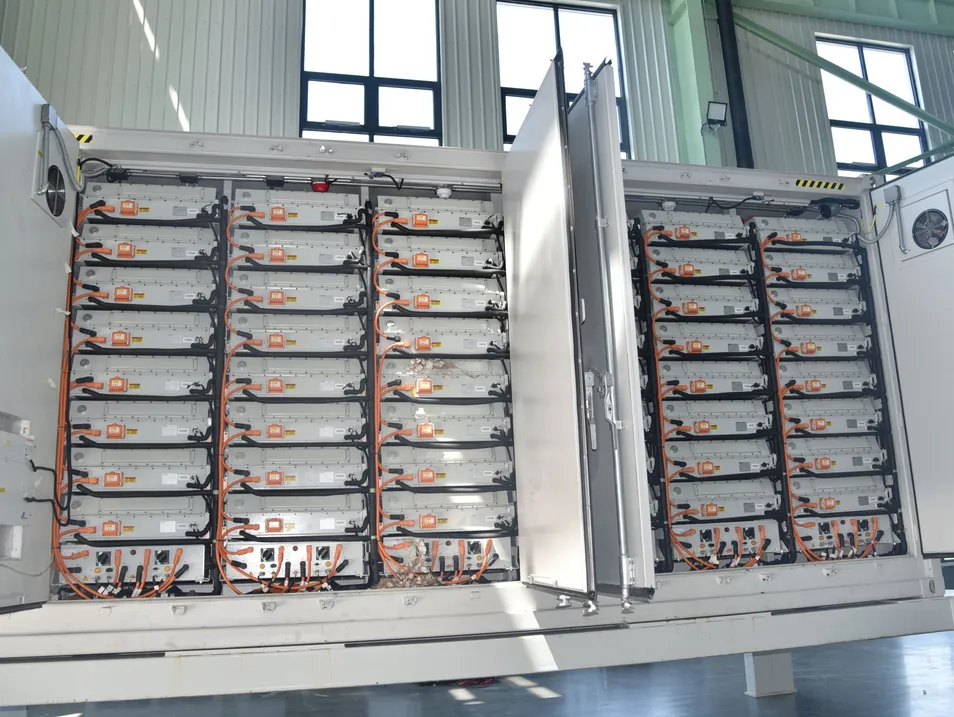

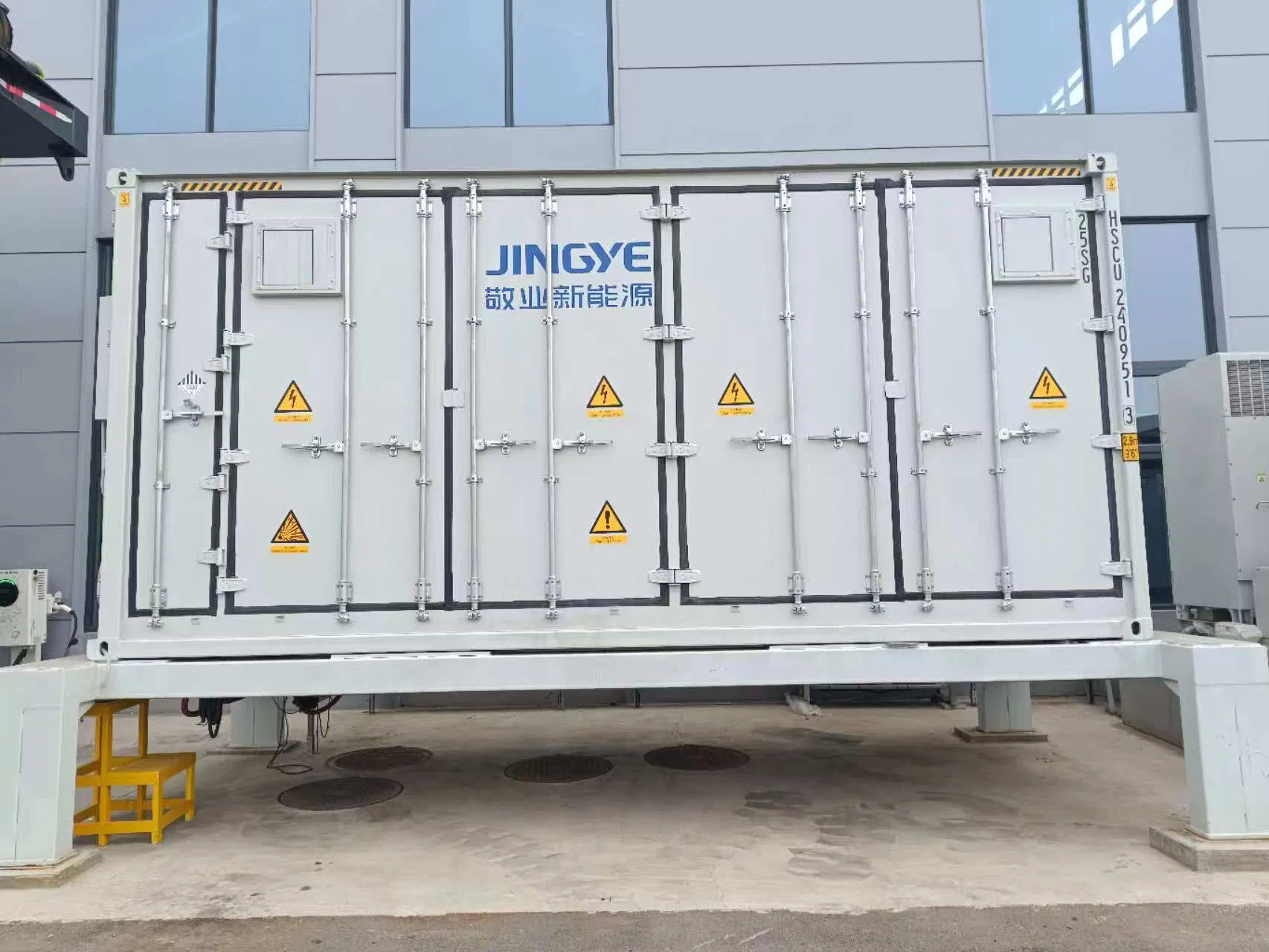

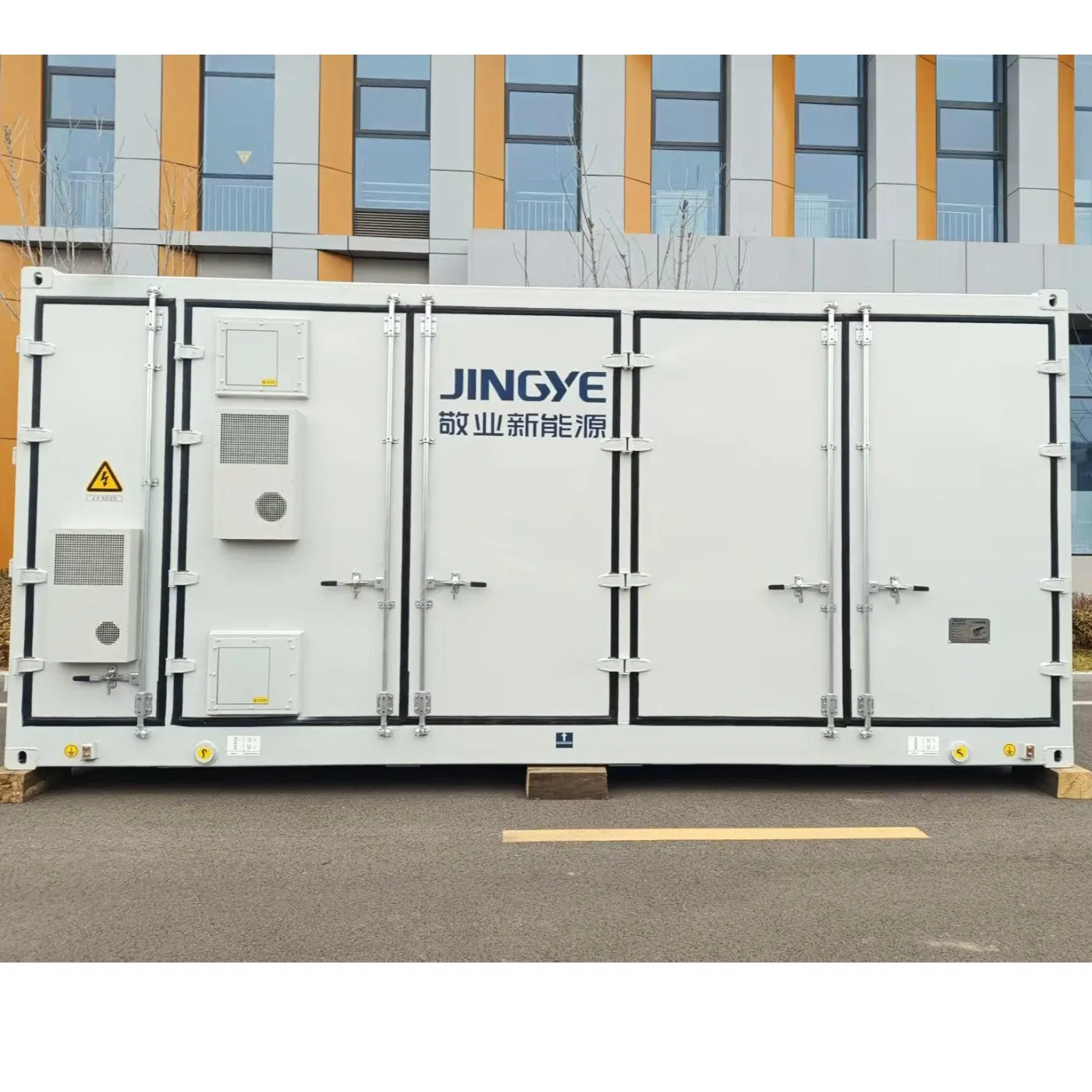

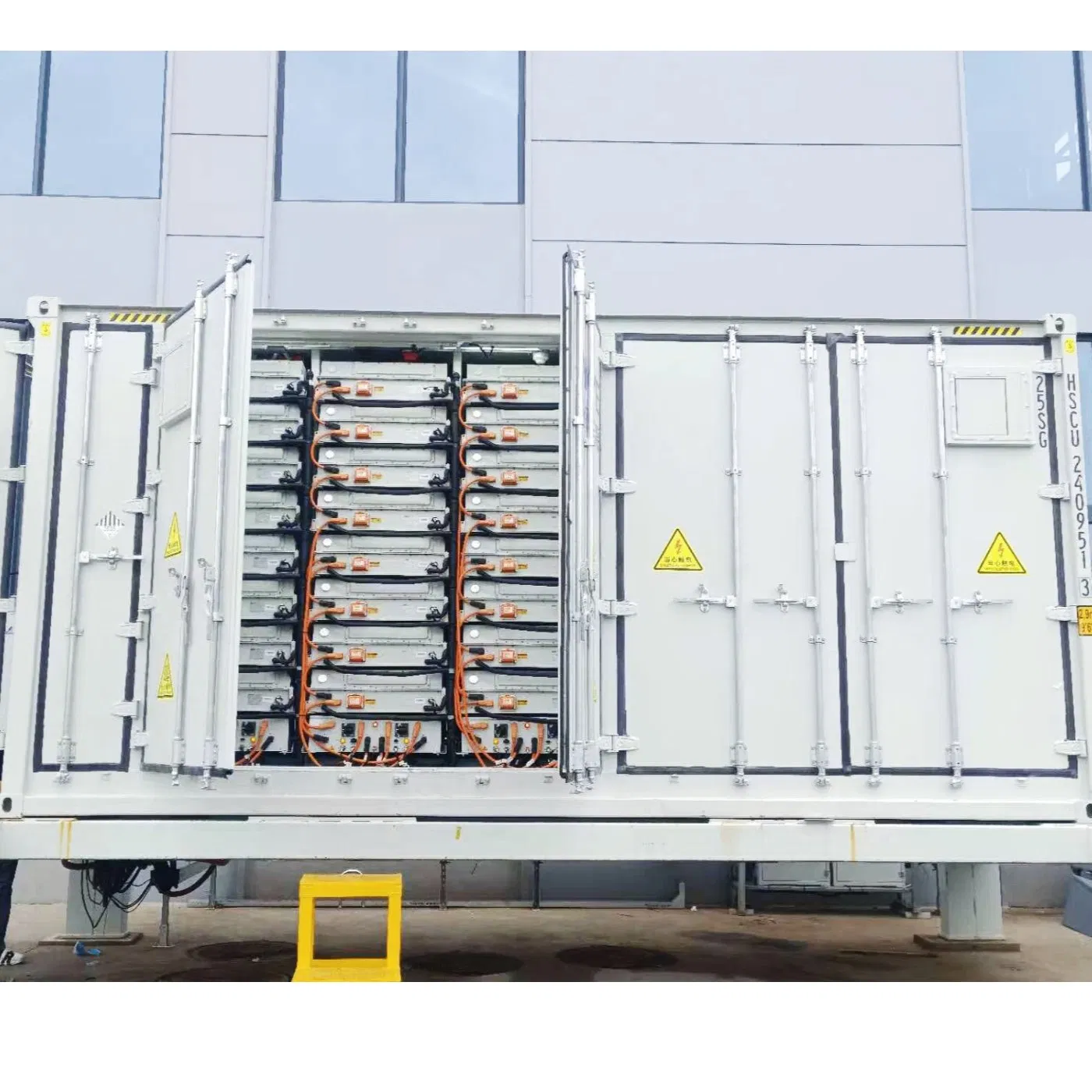

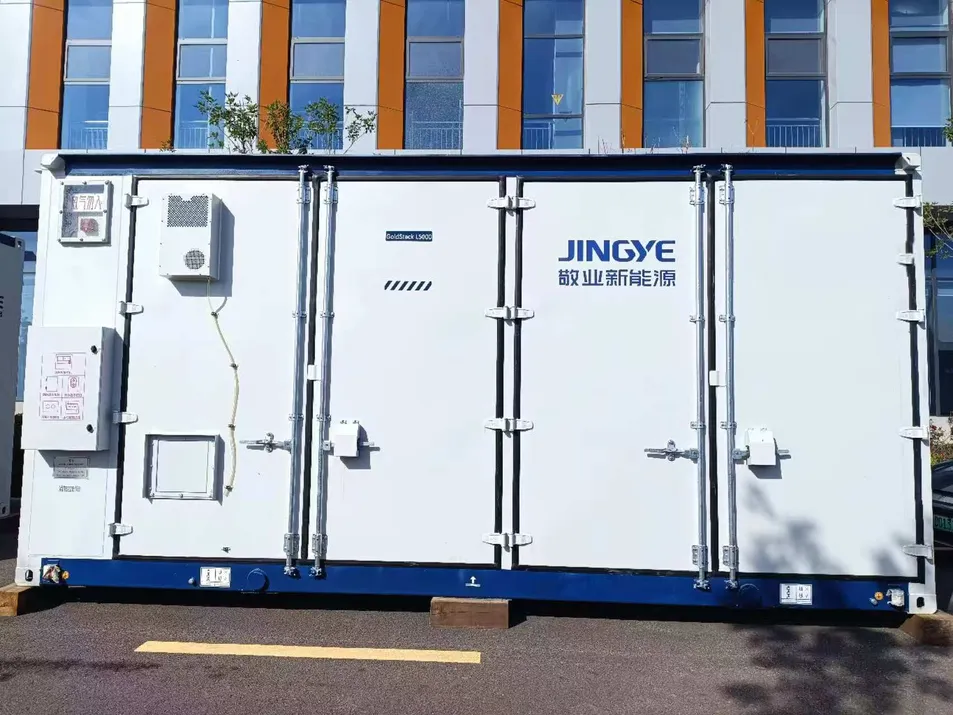

5015KWh Liquid Cooling energy storage system based on domestic high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems. The energy storage system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, temperature control systems, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm).
Utilizes mature, high-efficiency, long-life large-capacity lithium iron phosphate batteries.
High-precision intelligent operation environment control, ensuring a temperature difference of ≤3℃ inside PACK.
Three-level automatic alarm fire extinguishing system for PACK, cluster, and compartment.
| No. | Item | Specification |
|---|---|---|
| 1 | Configuration | 12*(1P104S*4) |
| 2 | Rated Power | 5MWh |
| 3 | Rated Voltage | 1331.2VDC |
| 4 | Voltage Range | 1164.8V - 1497.6VDC |
| 5 | Rated Charging/Discharging Power | ≤ 2.5MW |
| 6 | Auxiliary Power Supply | 400VAC±5% 50Hz / 220VAC |
| 7 | Work Temperature | -30℃ to 60℃ (Discharging) |
| 8 | Dimensions | 6058 x 2438 x 2896mm |
| 9 | Weight | Approx. 43t |
| 10 | IP Rating | IP54 |
| 11 | Communication | Ethernet, CAN, ModbusRTU |

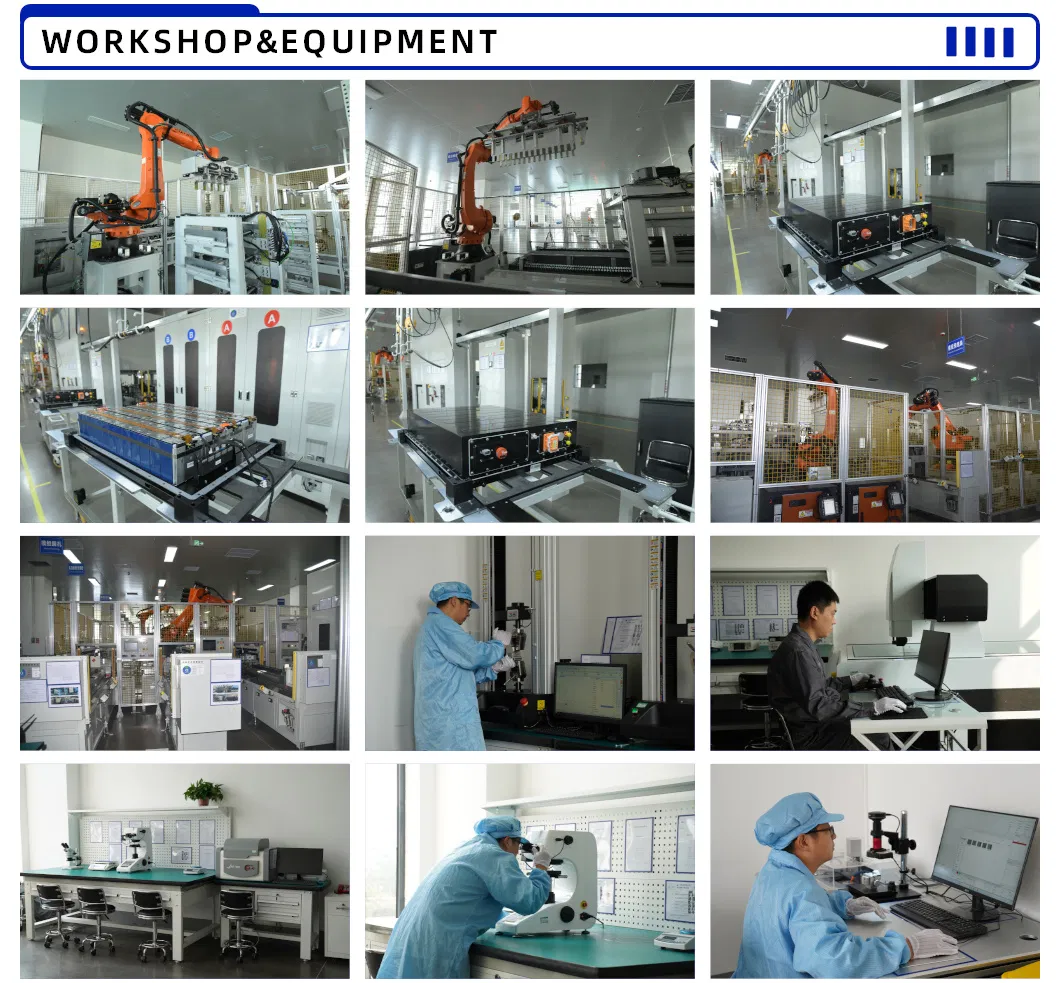

The company possesses advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products are widely utilized in smart grids, renewable energy storage, and industrial fields.
