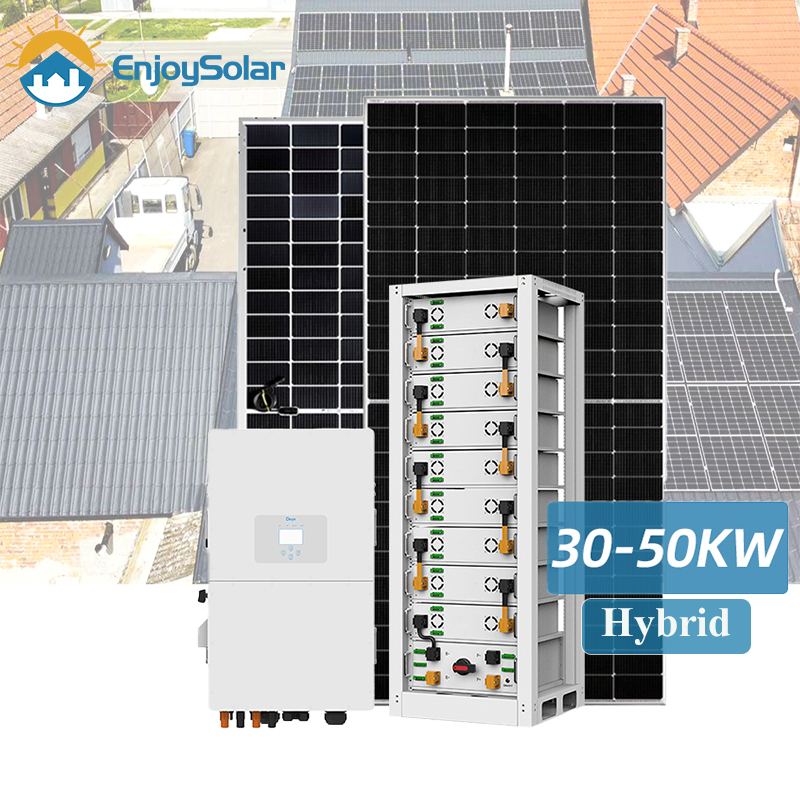

50kw 30kw Enjoy Solar Renewable Energy Storage Solutions 50kw Hybrid Solar Energy System

1 / 5

50kw 30kw Enjoy Solar Renewable Energy Storage Solutions 50kw Hybrid Solar Energy System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.	ES-50K-HY	Condition	New
Certification	ISO, CE, TUV, UL, Cec, Inmetro, VDE	Application	Home, Industrial, Commercial
Product Name	50kw Solar Energy Storage System	Inverter Type	Hybrid
Battery Type	Lead Acid, Lithium Ion, LiFePO4	Solar Panel Type	Mono Perc
Output Voltage	220V Single Phase / 400V 3phase	Monitoring	WiFi/LAN/GPRS
Mount Rack Type	Ground or Rooftop Mount	Storage Capacity	Expandable

📦 Packaging & Delivery

Package Size	120.00cm * 60.00cm * 20.00cm
Package Gross Weight	100.000kg
Packing Type	Carton, Pallet, Wooden Box

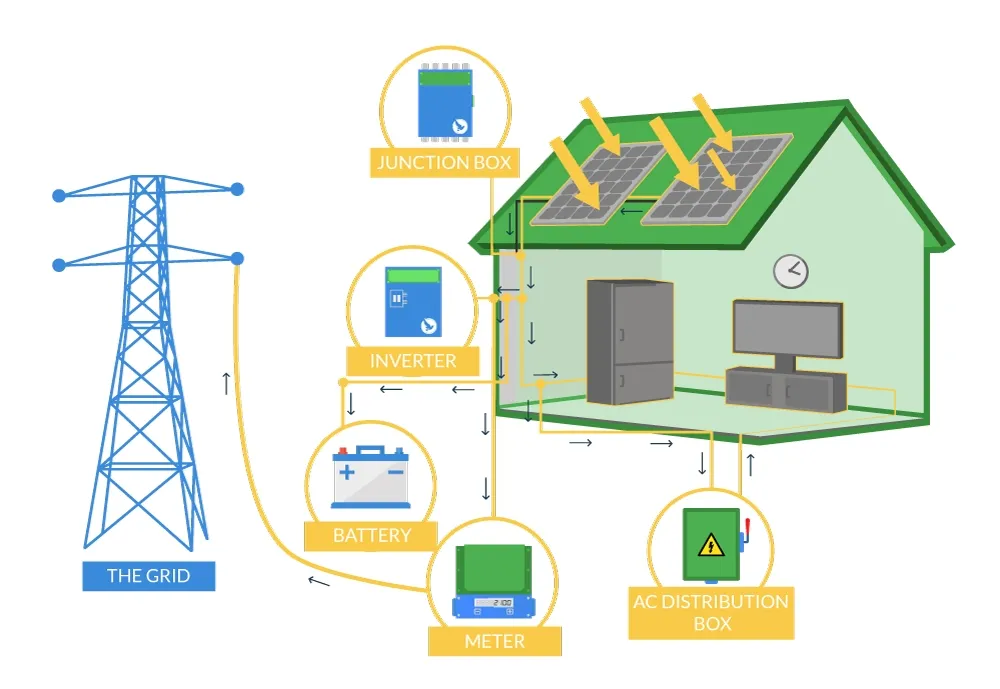

⚙️ How It Works?

📐 Solutions Design

Model	30KW	50KW	100KW
Mono Solar Panel 570W	42PCS	75PCS	150PCS
Hybrid Inverter	50KVA 1PC	50KVA 1PC	100KVA 1PC
LiFePO4 Battery	48.8KWH (Opt.)	100.4KWH (Opt.)	200.7KWH (Opt.)
DC Cable 1*4MM2	600 Meters	800 Meters	1000 Meters
MC4 Connector	10 Pairs	14 Pairs	20 Pairs
Mounting Kits	Customized Roof/Ground Kits

⚡ System Components

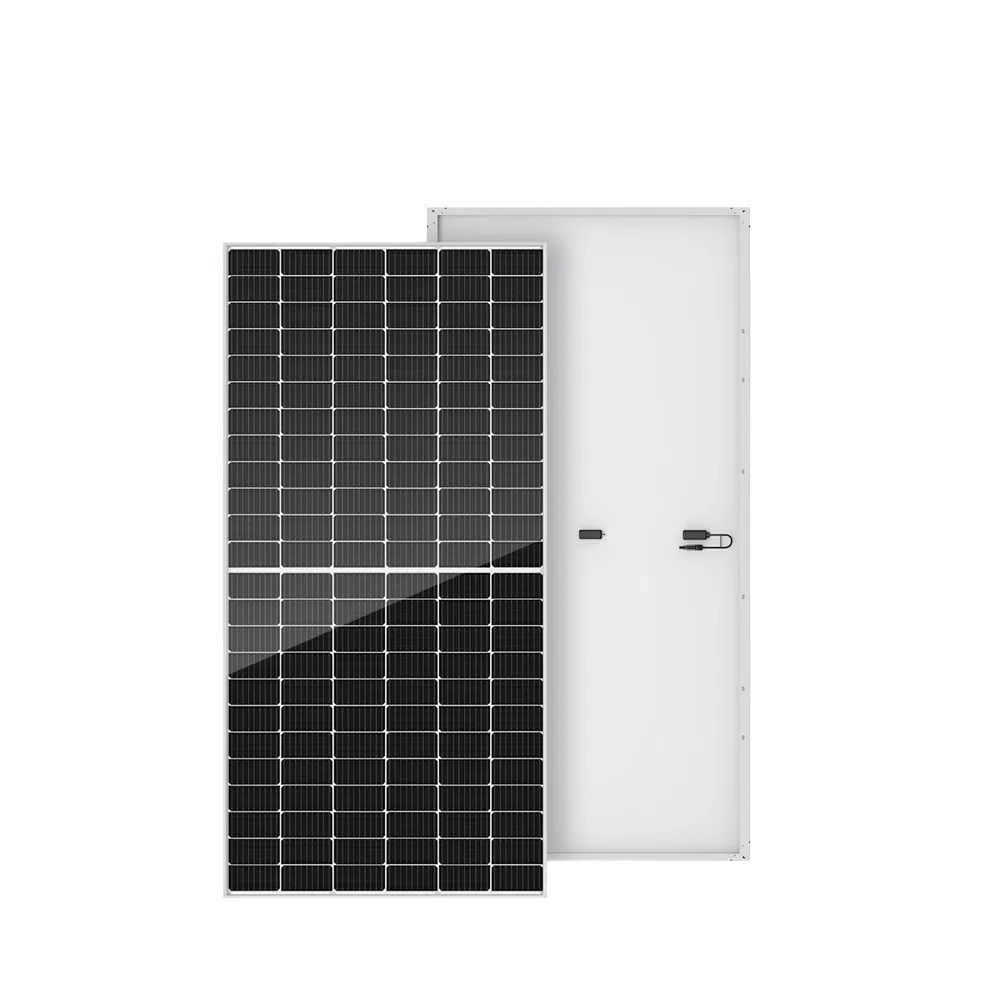

Mono Solar Panel (ES570M-PH)

Elevate your energy experience with high-efficiency Mono Solar Panels. Capture and convert sunlight with maximum energy yield.

Peak Power: 570Wp
Efficiency: 22.07%
Voc: 50.2V | Isc: 14.34A
Dimensions: 2278*1134*35mm

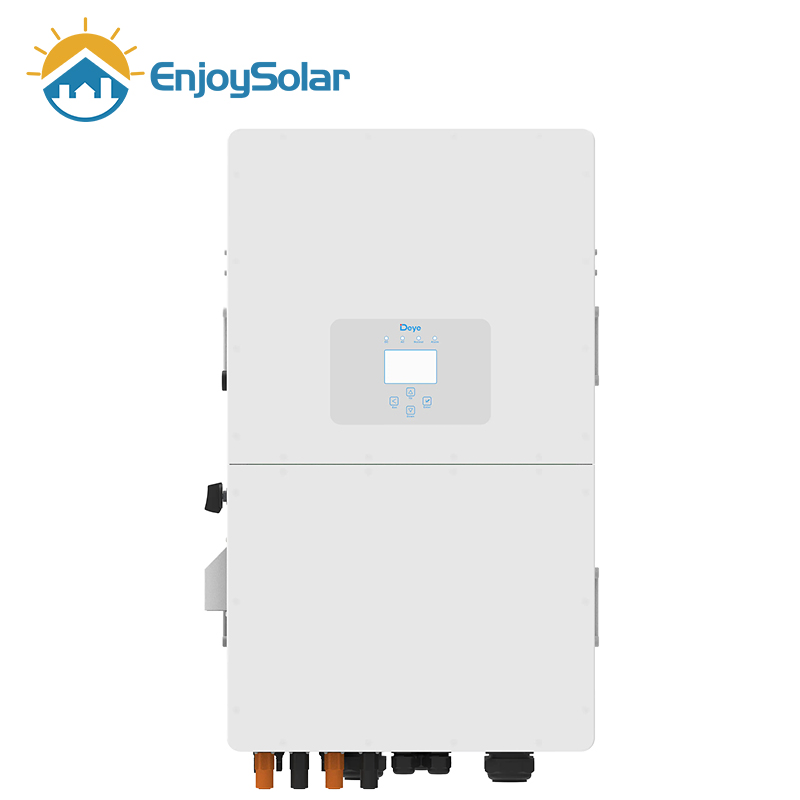

Hybrid Solar Inverter

An all-in-one unit to revolutionize your energy independence for both homeowners and commercial users.

Smart Monitoring & Remote Upgrade
Built-in Anti-feed-in Function
AFCI & Rapid Shutdown Ready
Time-of-use Optimization

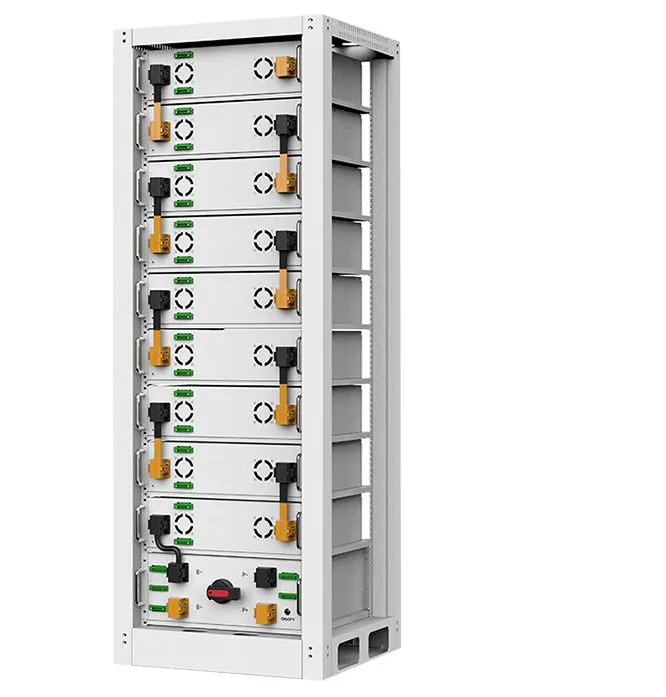

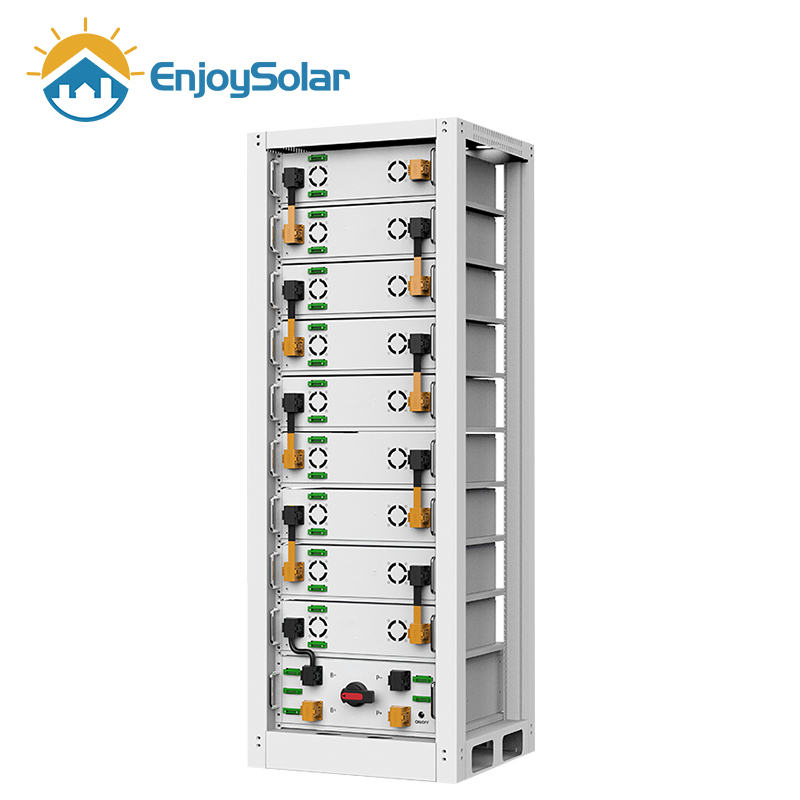

Battery Storage Bank

Durable battery bank built for endurance and high discharge performance.

Cycles: >6000 times (90% DOD)
Types: AGM/GEL/Lithium Ion
High Voltage Support
Maintenance-free Design

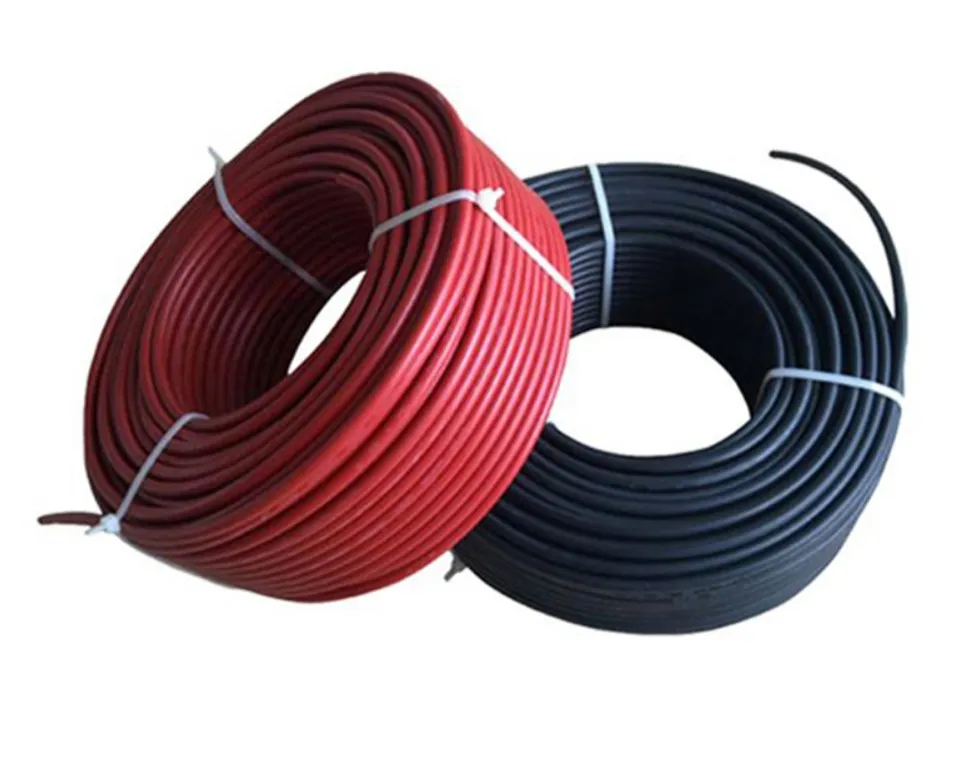

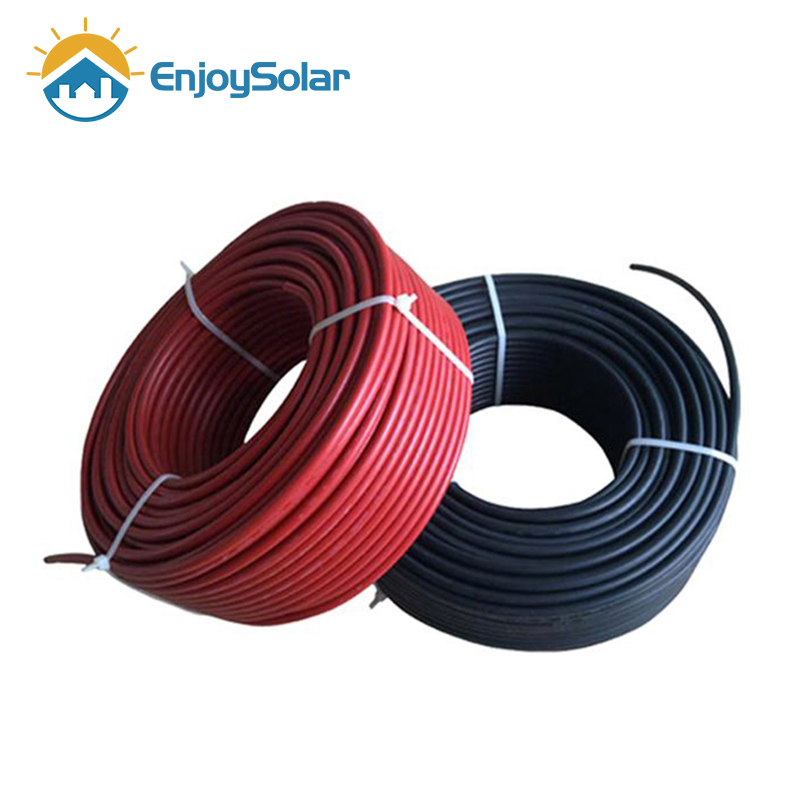

DC Cable & Online Monitoring

Precision cables and cutting-edge monitoring for real-time data and safety.

Cable: 4mm2/6mm2 (TUV rated)
Lifetime: up to 25 Years
Monitoring: One-click dispatch
Traceable logs & Data security

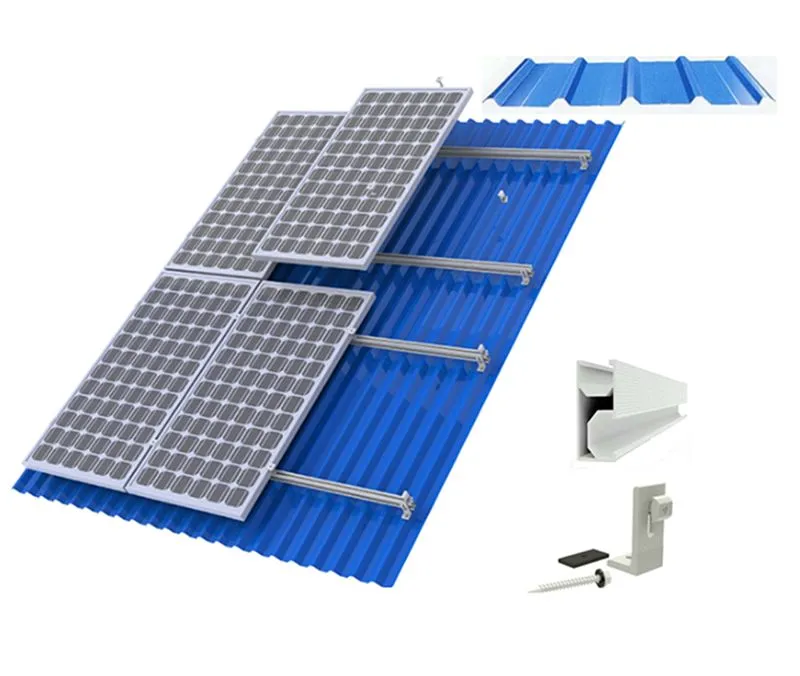

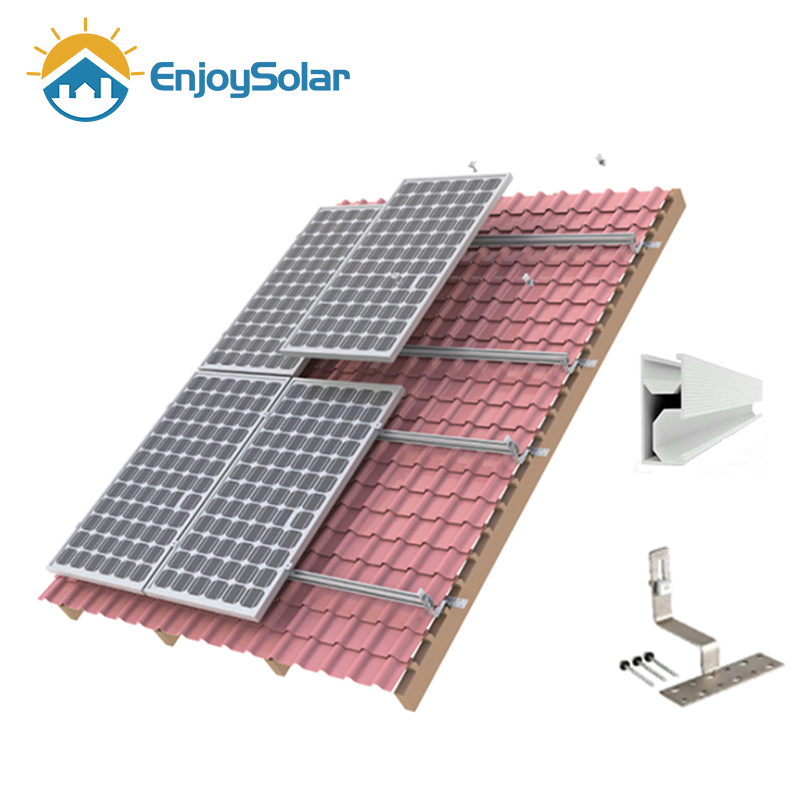

PV Mounting System

Adaptable infrastructure offering unparalleled stability and ease of installation.

Material: AI6005 & SUS304 Bolts
Clamps: 30, 35, 40mm Mid/End
Mounting: Roof, Ground, or Carport

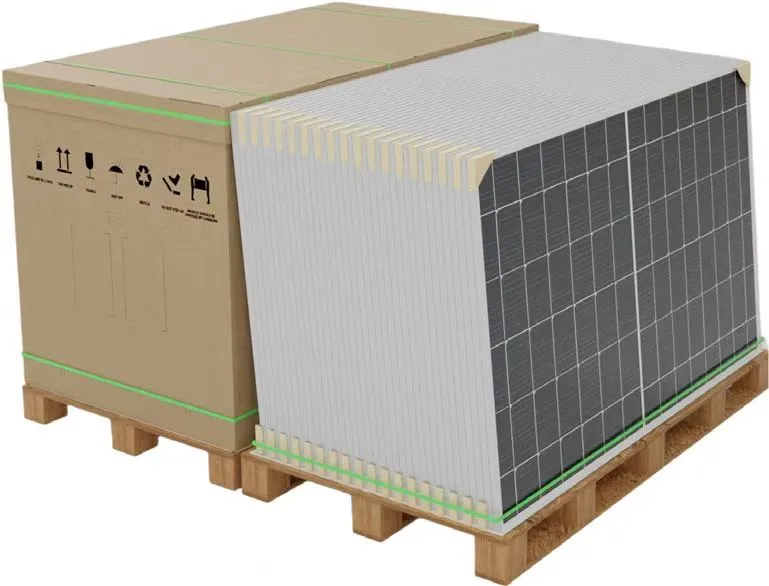

🚢 Packaging & Shipping

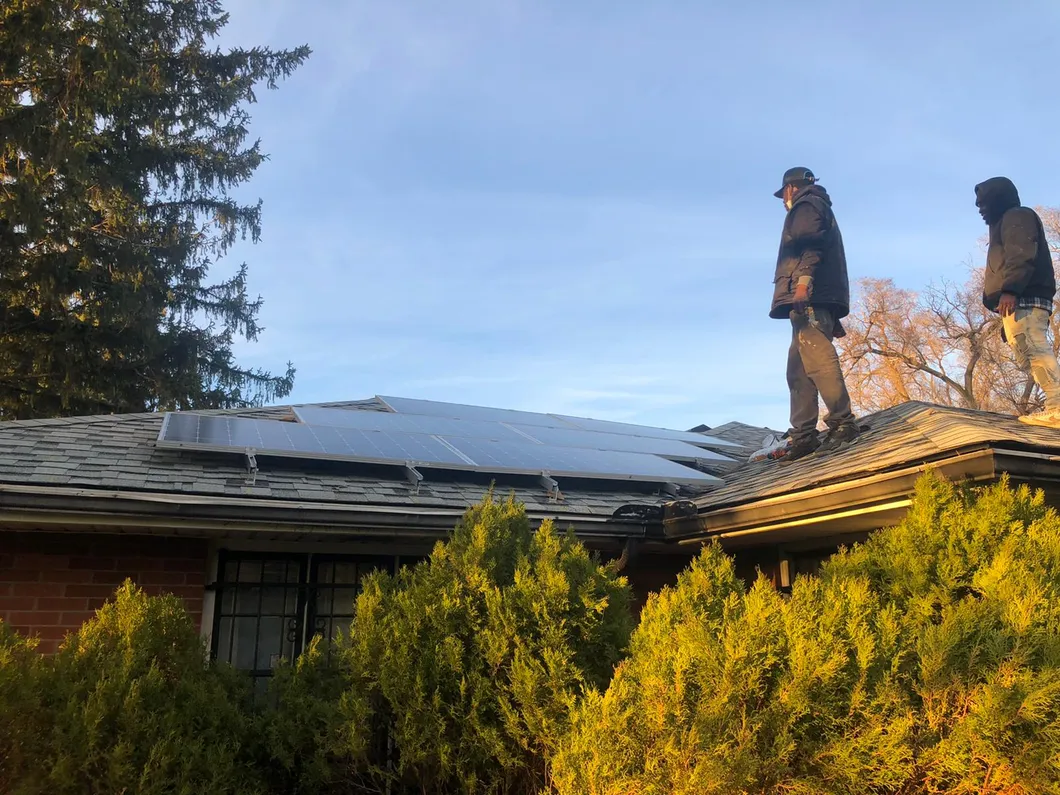

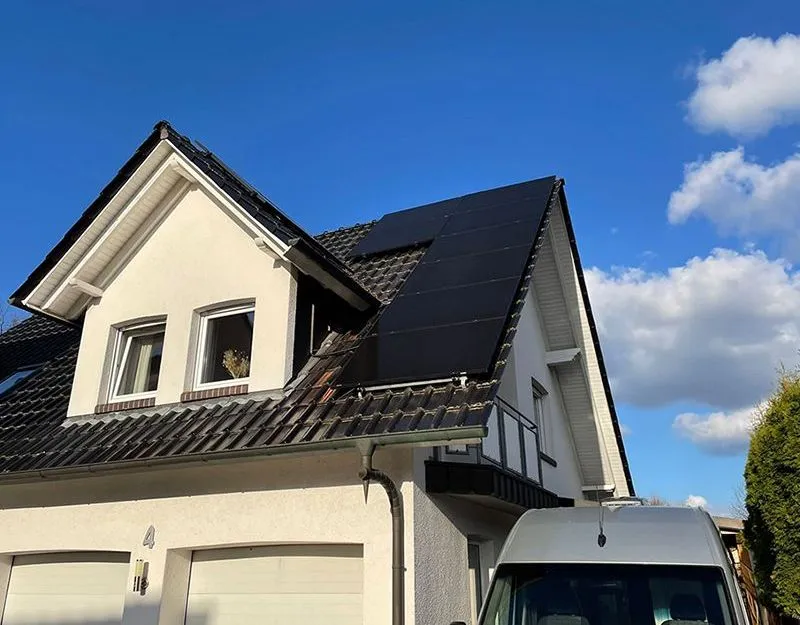

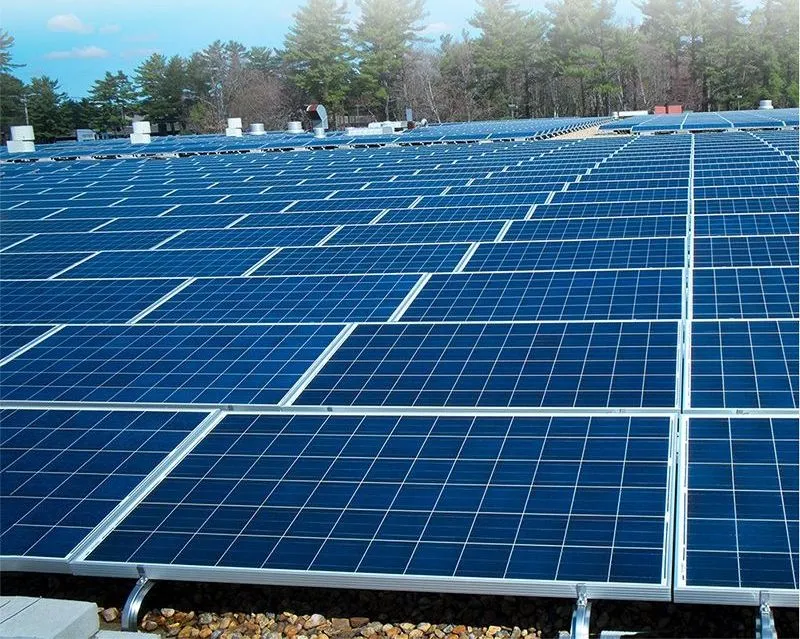

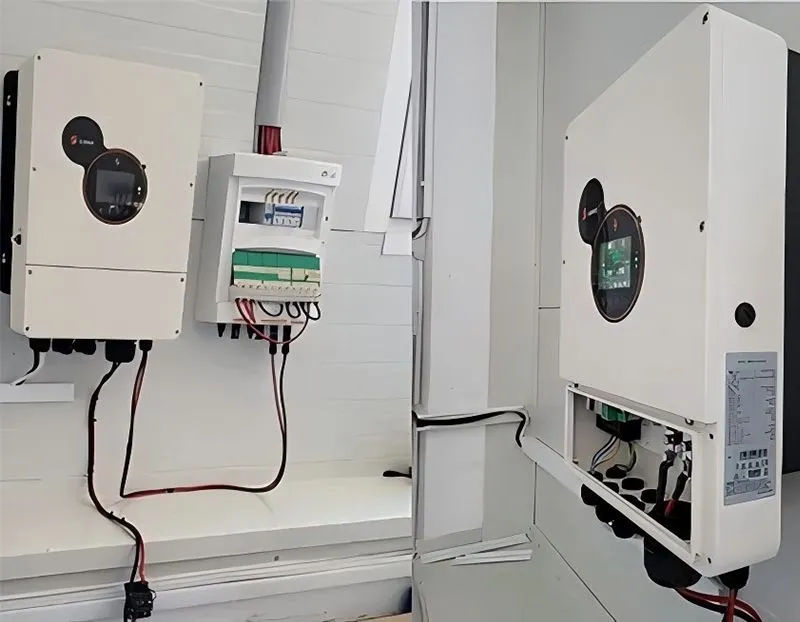

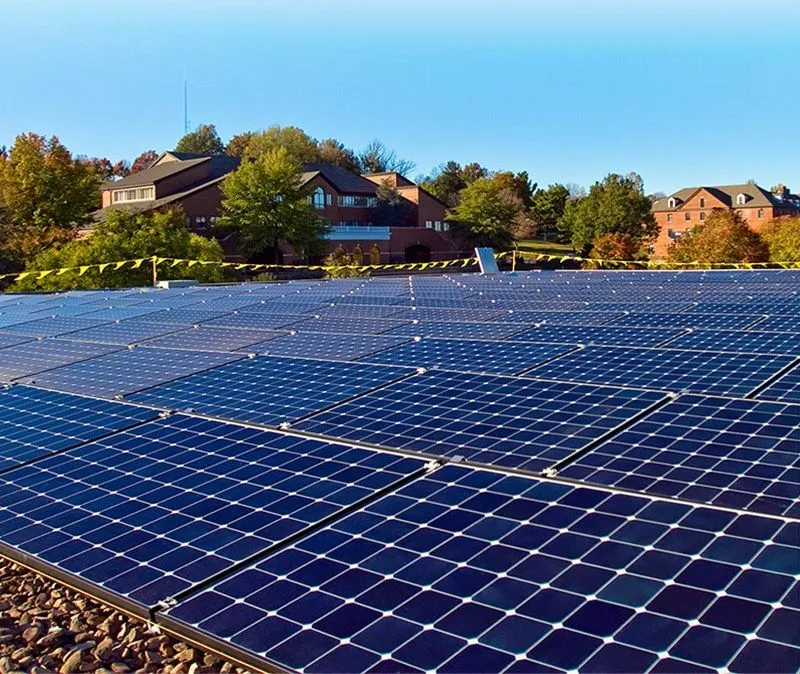

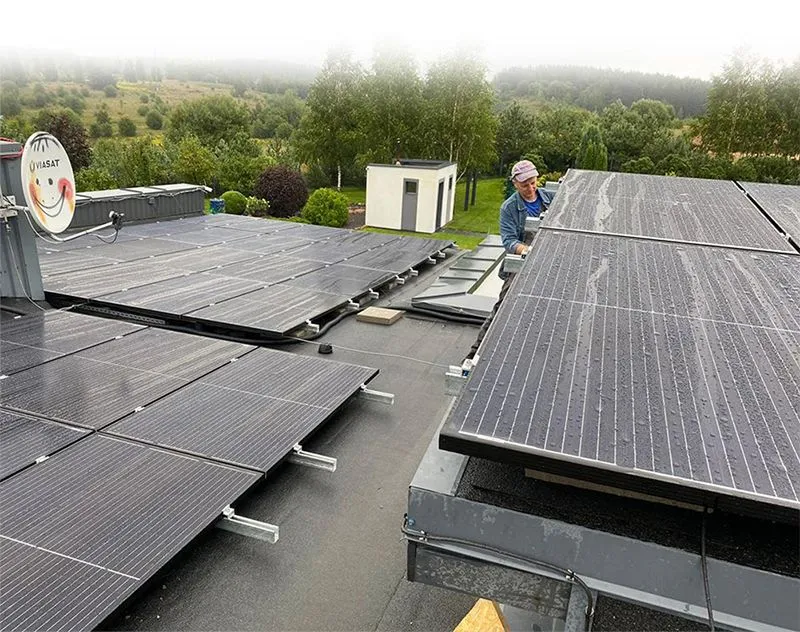

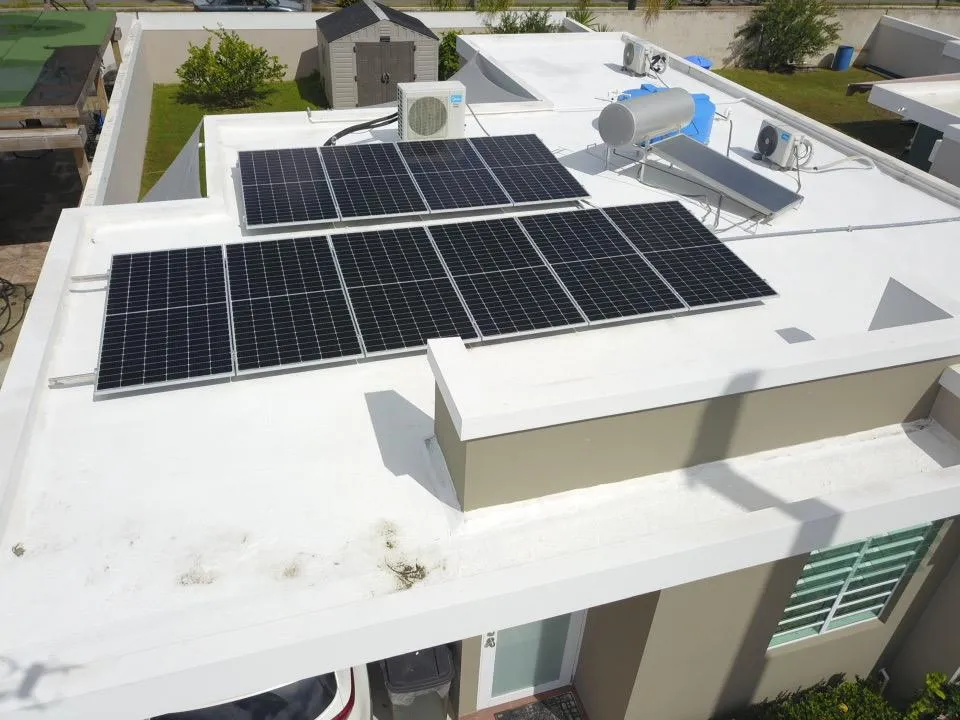

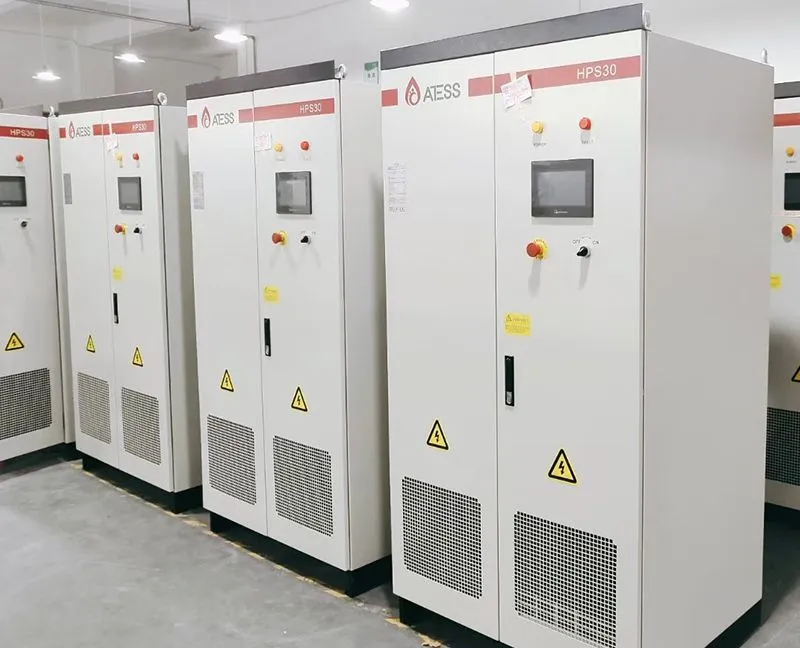

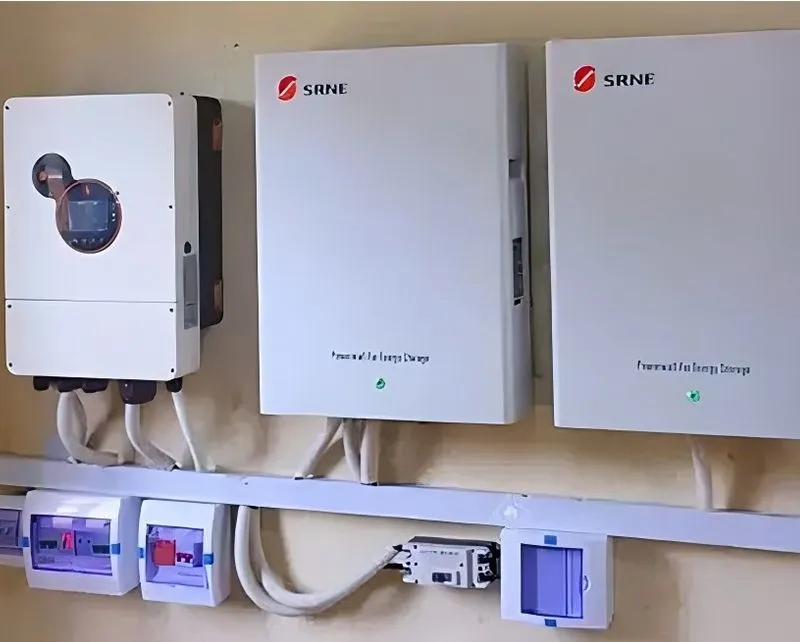

🏢 Projects

❓ Frequently Asked Questions

🔹 What are the primary applications for the 50kw system?

The 50kw Hybrid Solar Energy System is versatile and designed for home, industrial, and commercial applications, providing reliable power for various scale energy needs.

🔹 Can the battery storage capacity be expanded?

Yes, the storage capacity is expandable. Users can choose from different battery sizes (e.g., 48.8KWH to over 200KWH) depending on their specific requirements.

🔹 What types of batteries are compatible with the system?

The system supports Lead Acid, Lithium Ion, and LiFePO4 battery types, offering flexibility based on budget and performance preferences.

🔹 Does the system support remote monitoring?

Yes, it features an advanced Online Monitoring System accessible via WiFi, LAN, or GPRS, supporting real-time data tracking and remote firmware upgrades.

🔹 What is the expected lifespan of the core components?

The solar panels and DC cables are engineered for a lifespan of up to 25 years, while the LiFePO4 batteries offer over 6000 cycles with up to 90% depth of discharge.

🔹 Is the mounting system suitable for all roof types?

We offer customized mounting kits for various scenarios, including rooftop mounts, ground mounts, and carport structures, tailored to the customer's installation area.
