Smart Energy Management System for Home Power Distribution

Customization:	Available
Application:	Power, Electronic
Phase:	Three

📋 Basic Information

Model NO.

YB

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Certification

ISO9001-2000, ISO9001

Rated Voltage

10kv

Low Voltage

0.4kVA

Frequency

50Hz

Capacity

5000PCS/Year

⚙️ Product Parameters

Project	Unit	FKN12-12 Load switch	FZN25-12 Vacuum load switch
Rated voltage	KV	10	10
Maximum working voltage	KV	12	12
Rated frequency	HZ	50	50
Rated current	A	630	630
Thermally stable current	KA/S	20/2	20/4
Dynamic steady current	KA	50	50
Mechanical life	T	2000	10000

🔍 Product Description

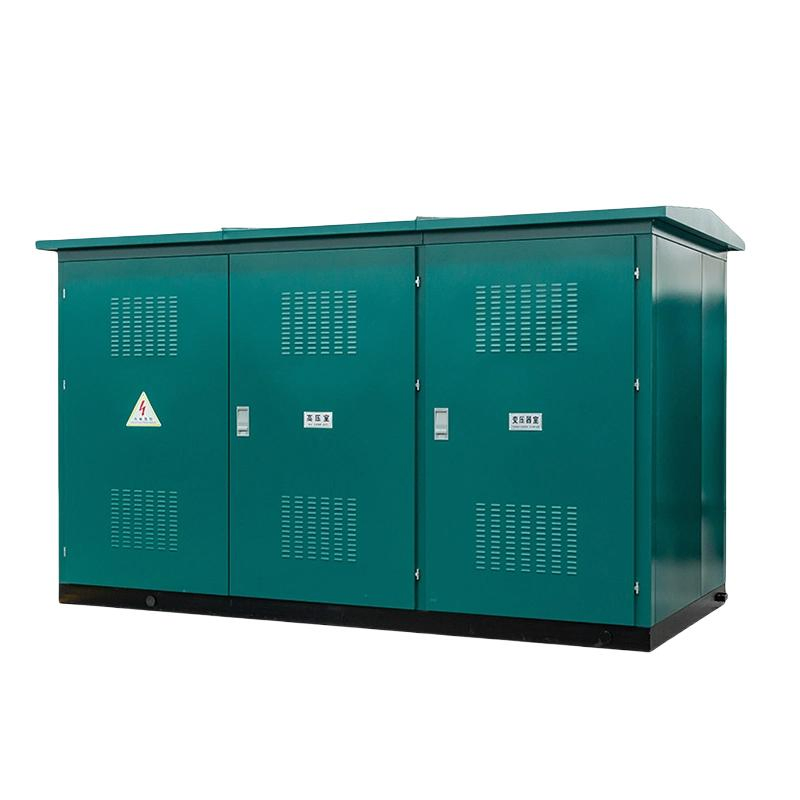

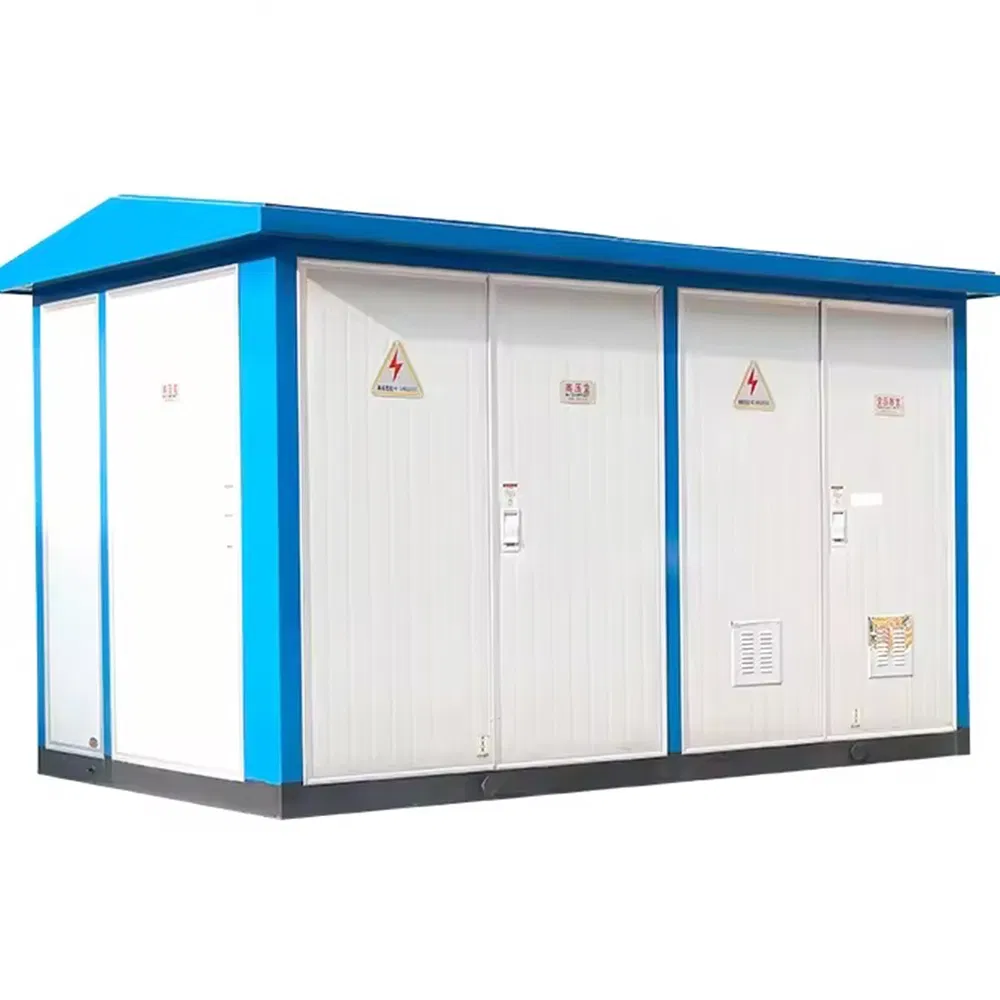

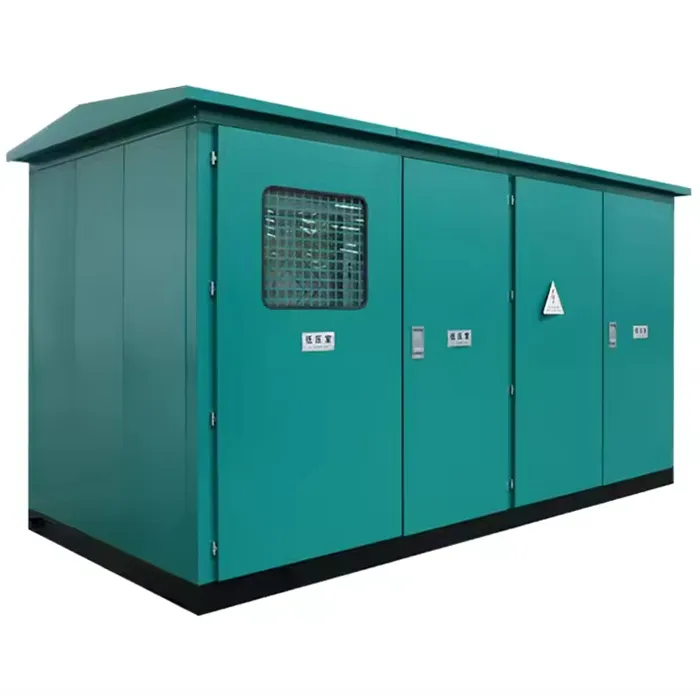

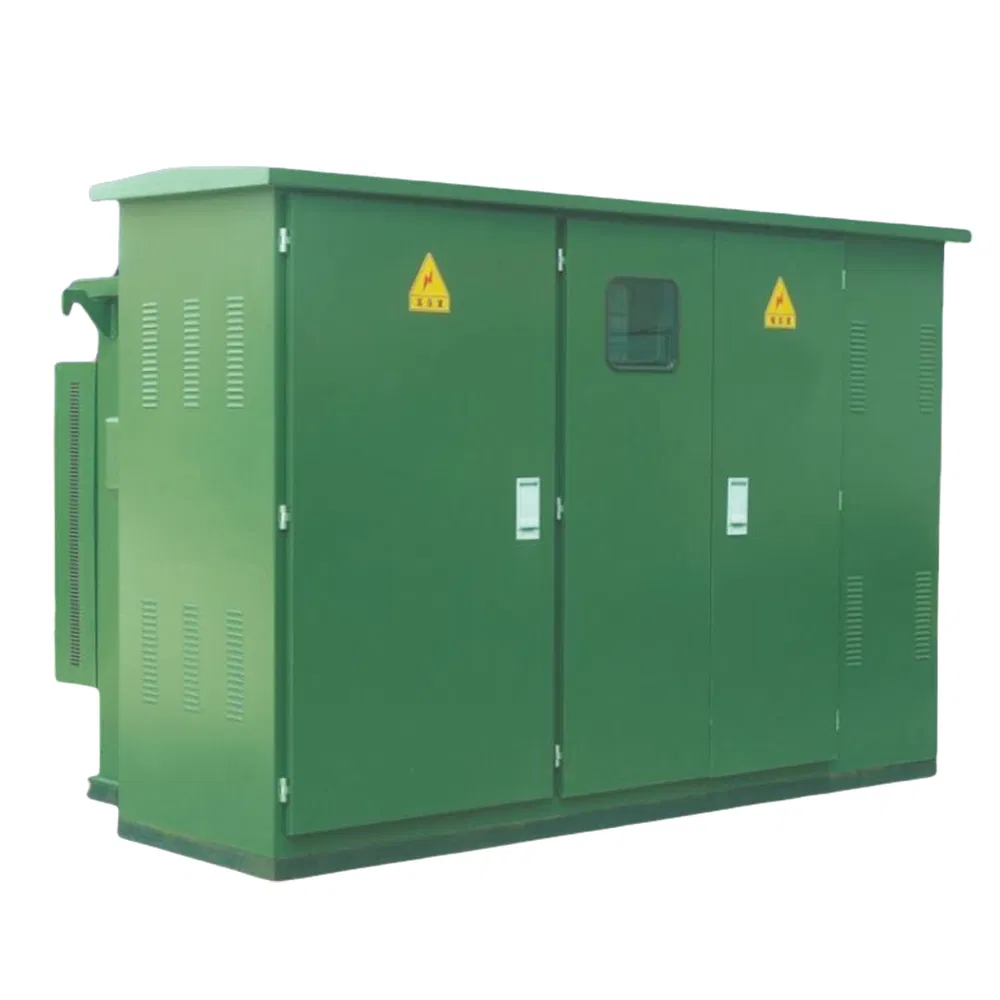

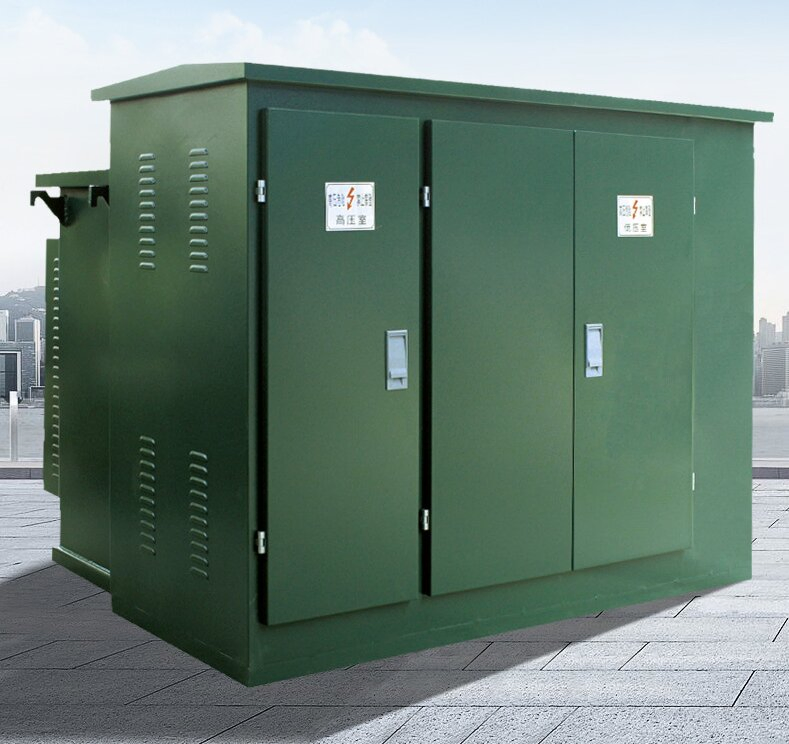

Box-type substation is a compact, efficient and reliable power transformation equipment. It combines high-voltage switchgear, transformers and low-voltage distribution devices in a metal box. It has the advantages of small size, less floor space, and easy installation.

It effectively ensures the stability and security of power supply and is widely used in urban power grid transformation, industrial and mining enterprises, residential areas and other places. It is an indispensable and important component of the power system.

Transformer substation plays the role of voltage conversion equipment. Substation equipment includes open and close circuit switchgear, current collection bus, measurement and control transformers, meters, relay protection devices and lightning protection devices.

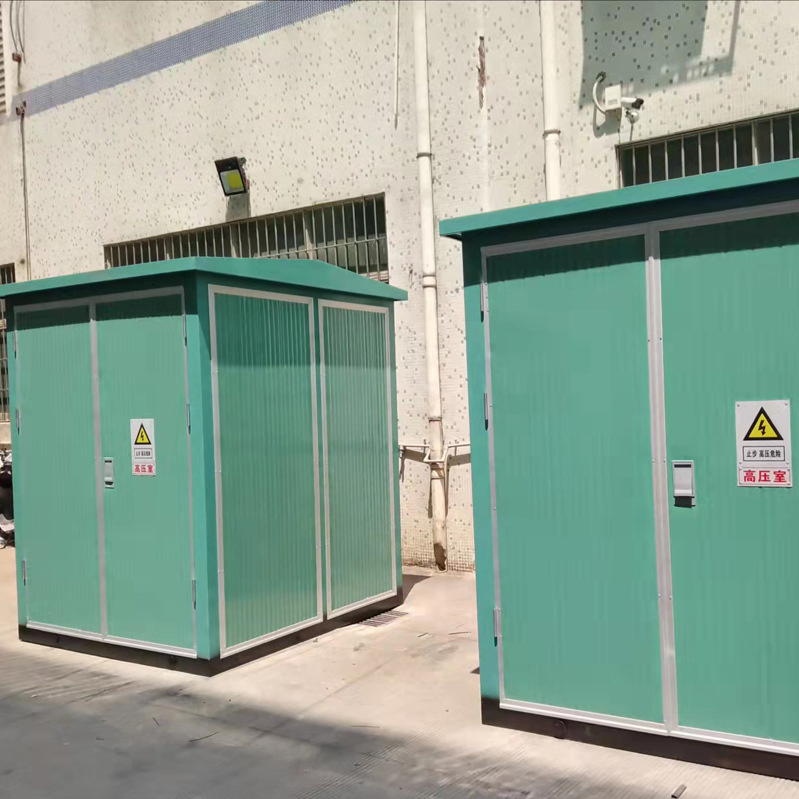

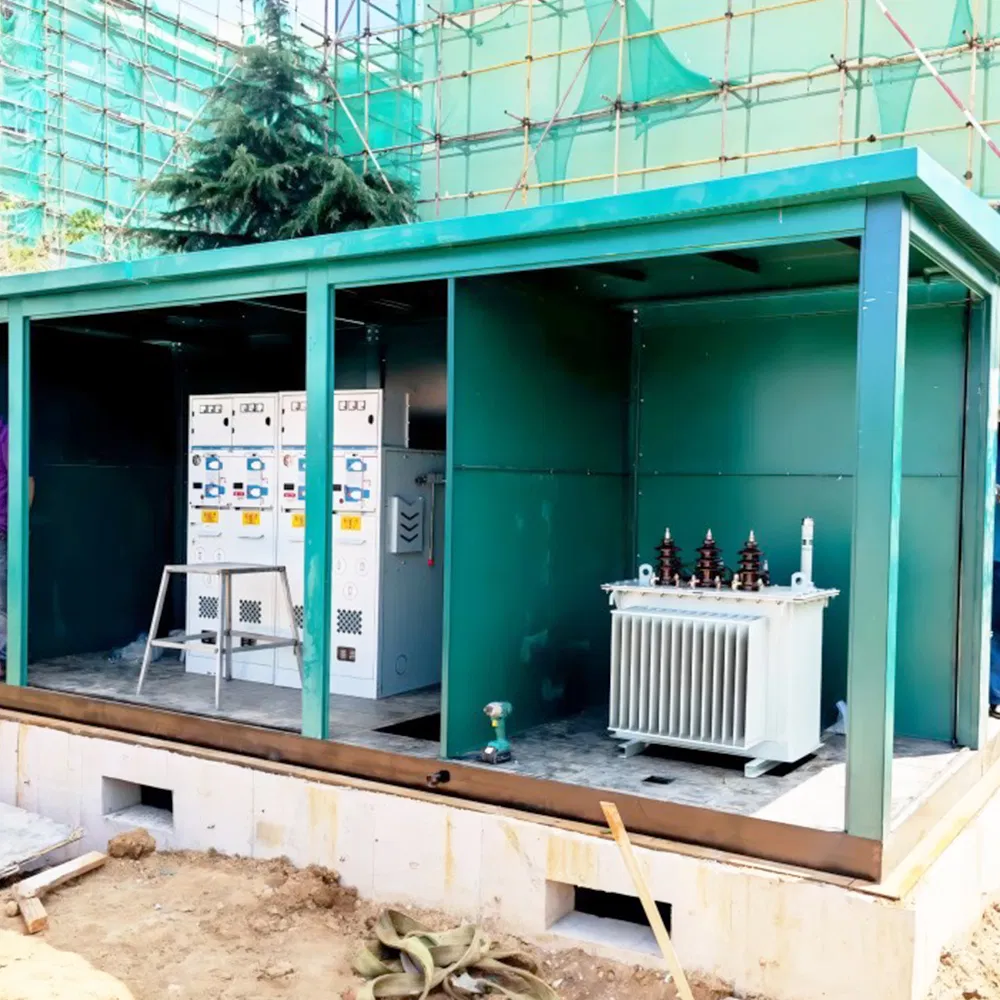

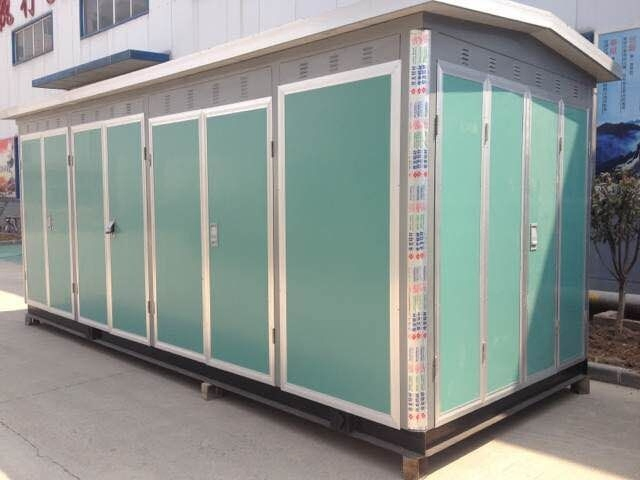

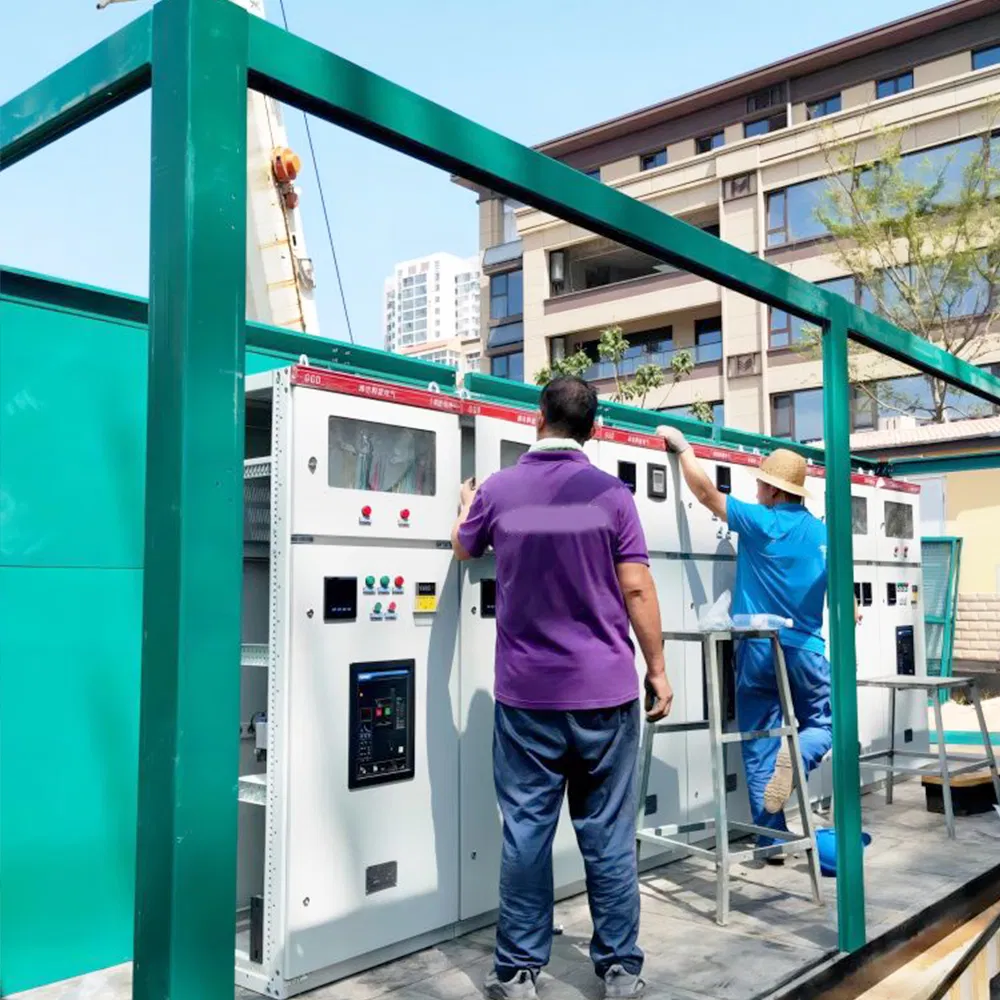

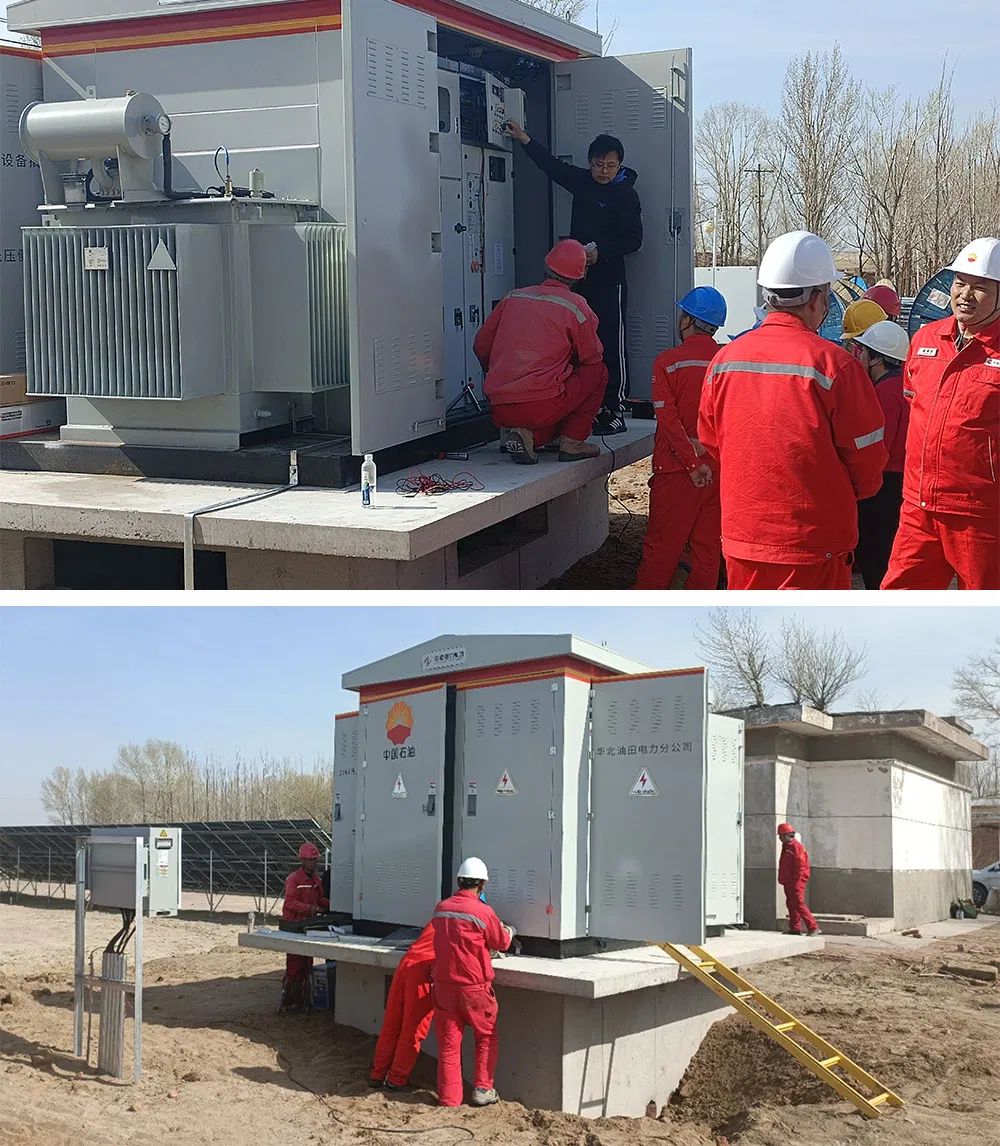

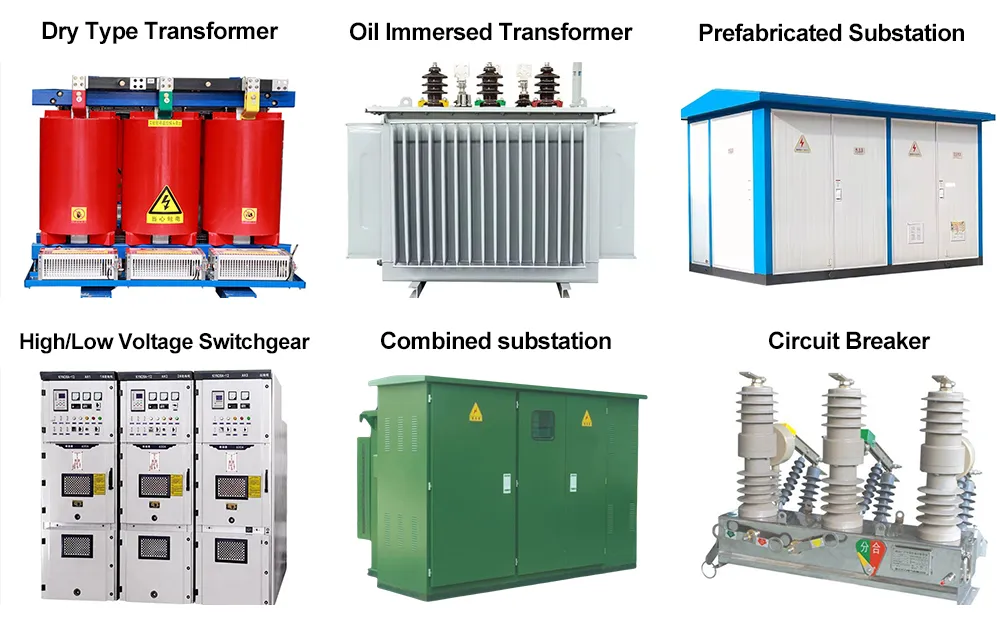

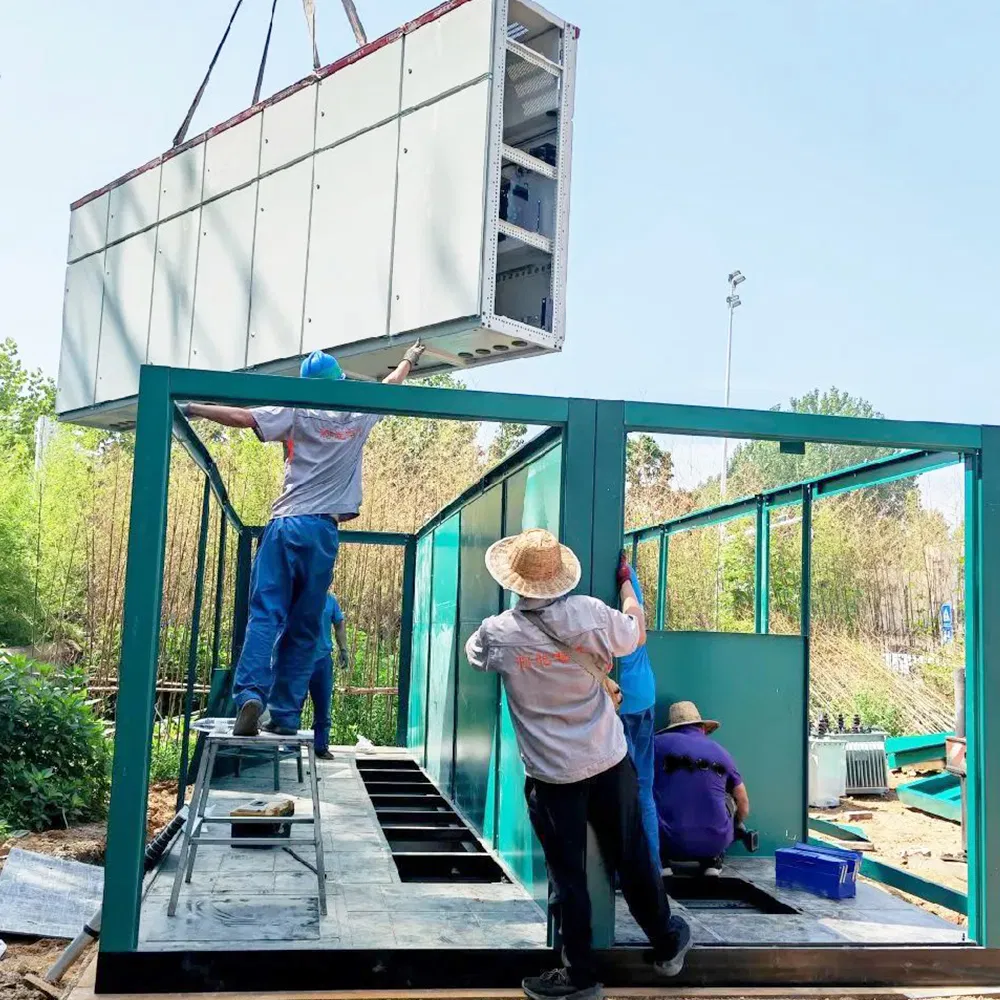

🏗️ Main Product & Installation

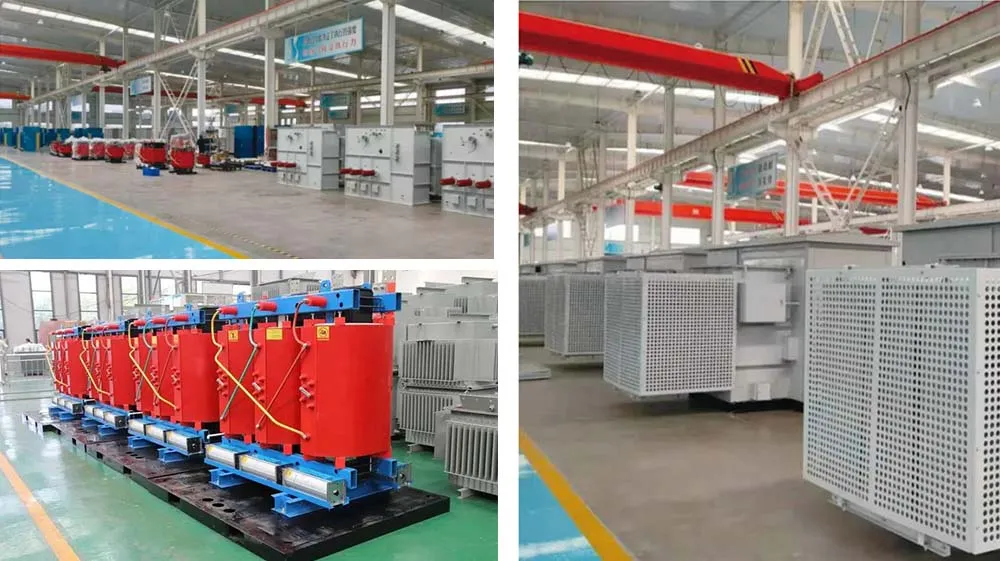

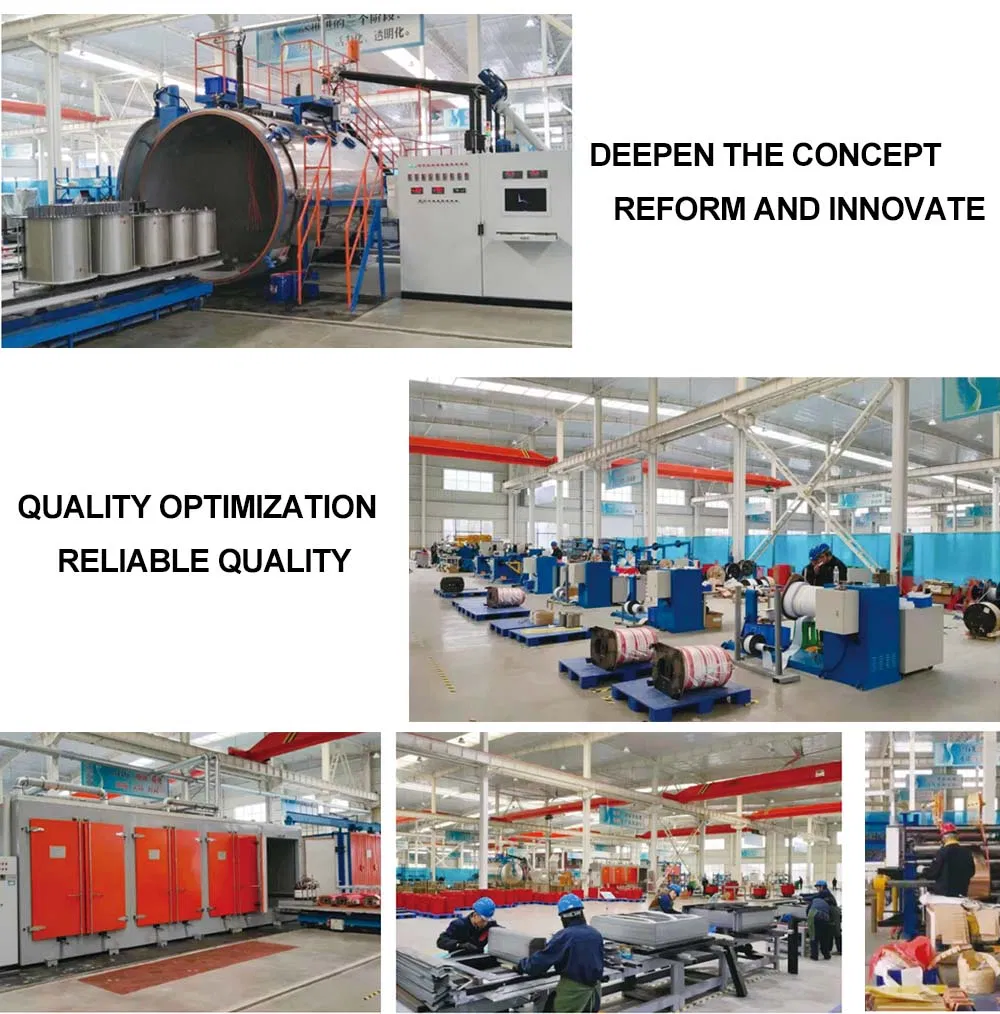

🏭 Workshop & R&D

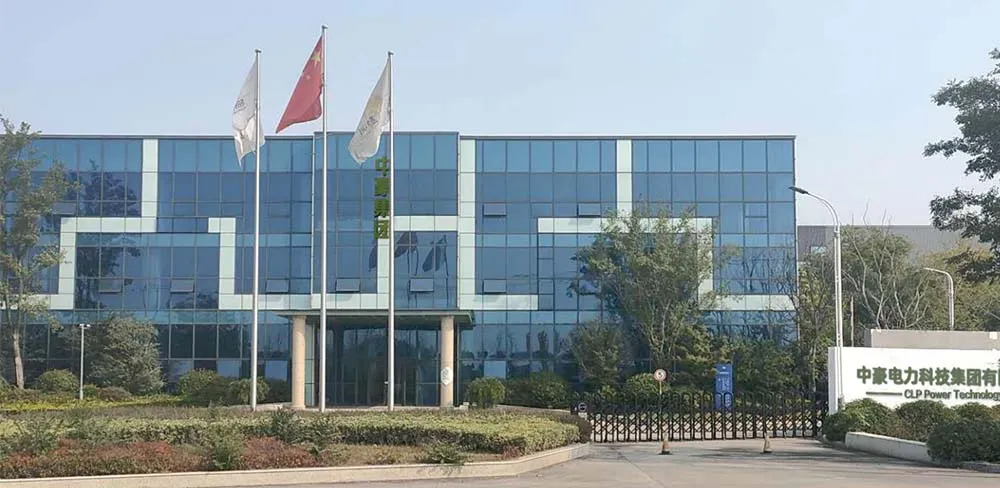

Our intelligent technology enterprise specializes in the research, development, and manufacturing of power transformers, high and low voltage switch cabinets, and box-type substations. The facility spans nearly 100,000 square meters, utilizing advanced production equipment and adhering to ISO9000 quality standards.

🔌 11KV Oil Transformer Features

Manufactured with high-quality materials
Available in various sizes and capacities
Designed for long-term performance and durability
Complies with international industry standards
Reduces energy losses and improves efficiency
Ensures stable and safe electricity distribution

❓ Frequently Asked Questions

What are the primary applications for box-type substations?

Box-type substations are widely used in urban power grid transformation, residential areas, industrial and mining enterprises, and public facilities due to their compact size and ease of installation.

How does a prefabricated transformer save costs?

By integrating high-voltage switchgear, transformers, and low-voltage distribution in one unit, it requires less floor space, shorter production cycles, and significantly lower investment in civil engineering compared to traditional substations.

What cooling methods are used in your transformers?

We offer both dry-type transformers and oil-immersed transformers, designed with efficient cooling systems to ensure stable operation under varying load conditions.

Can these substations withstand harsh environmental conditions?

Yes, the enclosures are designed with high-quality metal materials that provide excellent protection against corrosion, dust, and moisture, making them suitable for outdoor use in various climates.

Are the products certified for international quality standards?

Our manufacturing process adheres strictly to the ISO9001 quality management system, and products are designed using computer-aided technology to meet global safety and efficiency regulations.

Is maintenance difficult for compact box substations?

Our equipment is designed for high reliability and many models are virtually maintenance-free. The modular design also allows for easy access to internal components if service is required.
