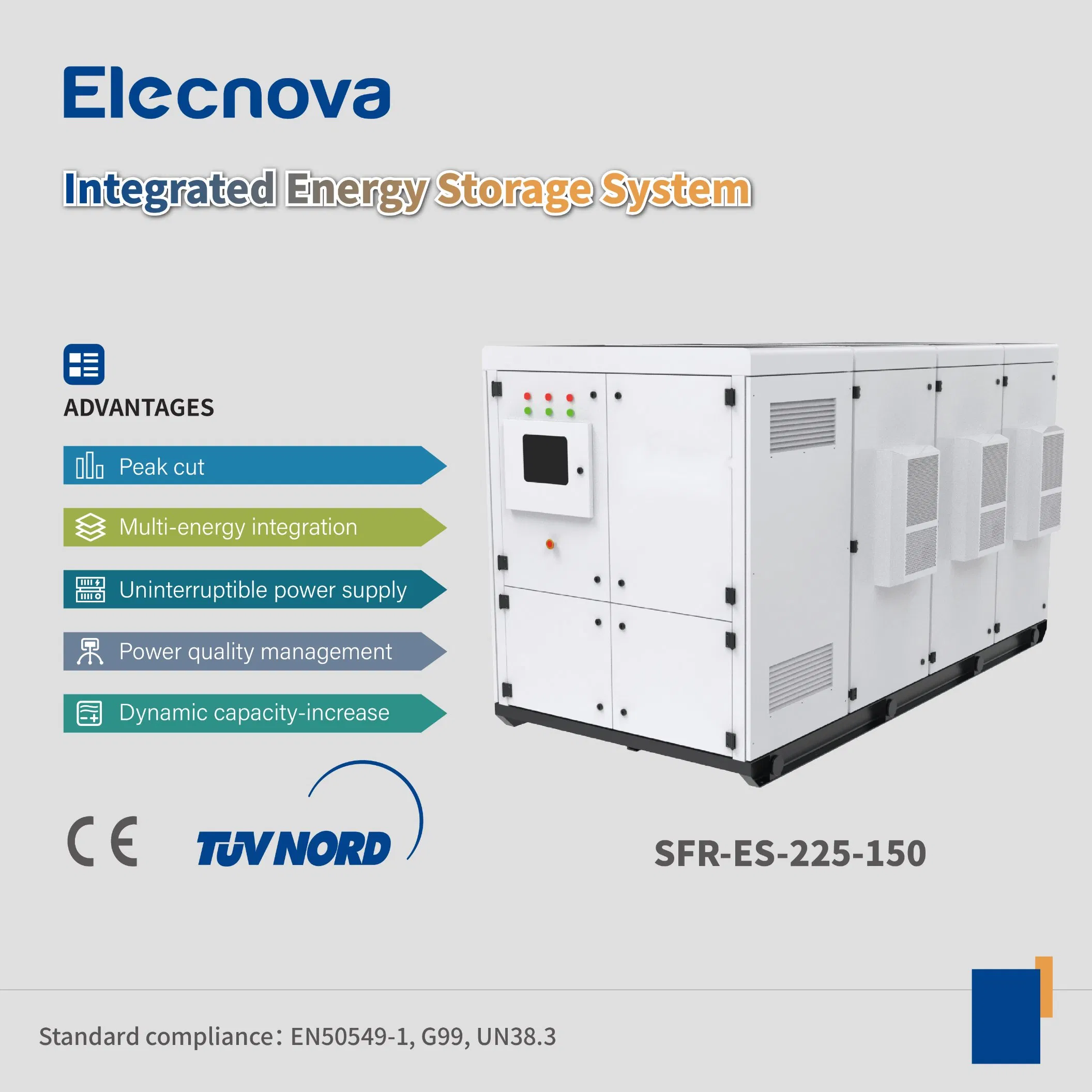

Elecnova 150kw PV Grid-Tied Inverter Ess Lithium Battery Integrated Energy Storage System 150kw 100kw

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO. SFR-ES-225-150 Cycle Life 4000 Cycles
Relative Humidity 0~95%(No Condensing) Max Altitude 4000m (>2000 Derating)
Grid Switching STS Dimensions 1680*3050*1700mm
Origin China Output Frequency 50/60Hz

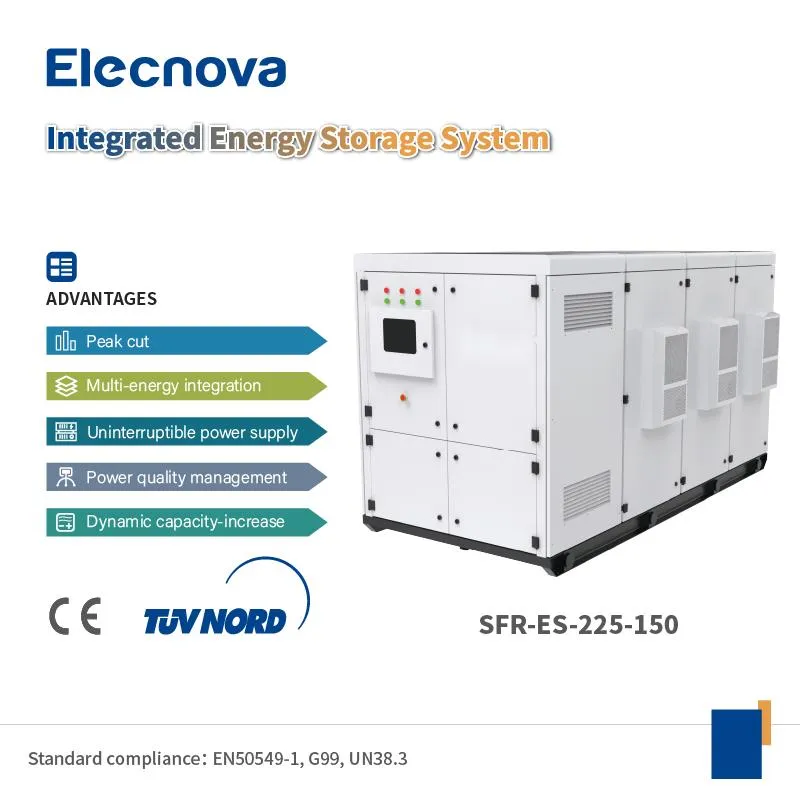

Energy Storage System Integration

Product Parameters

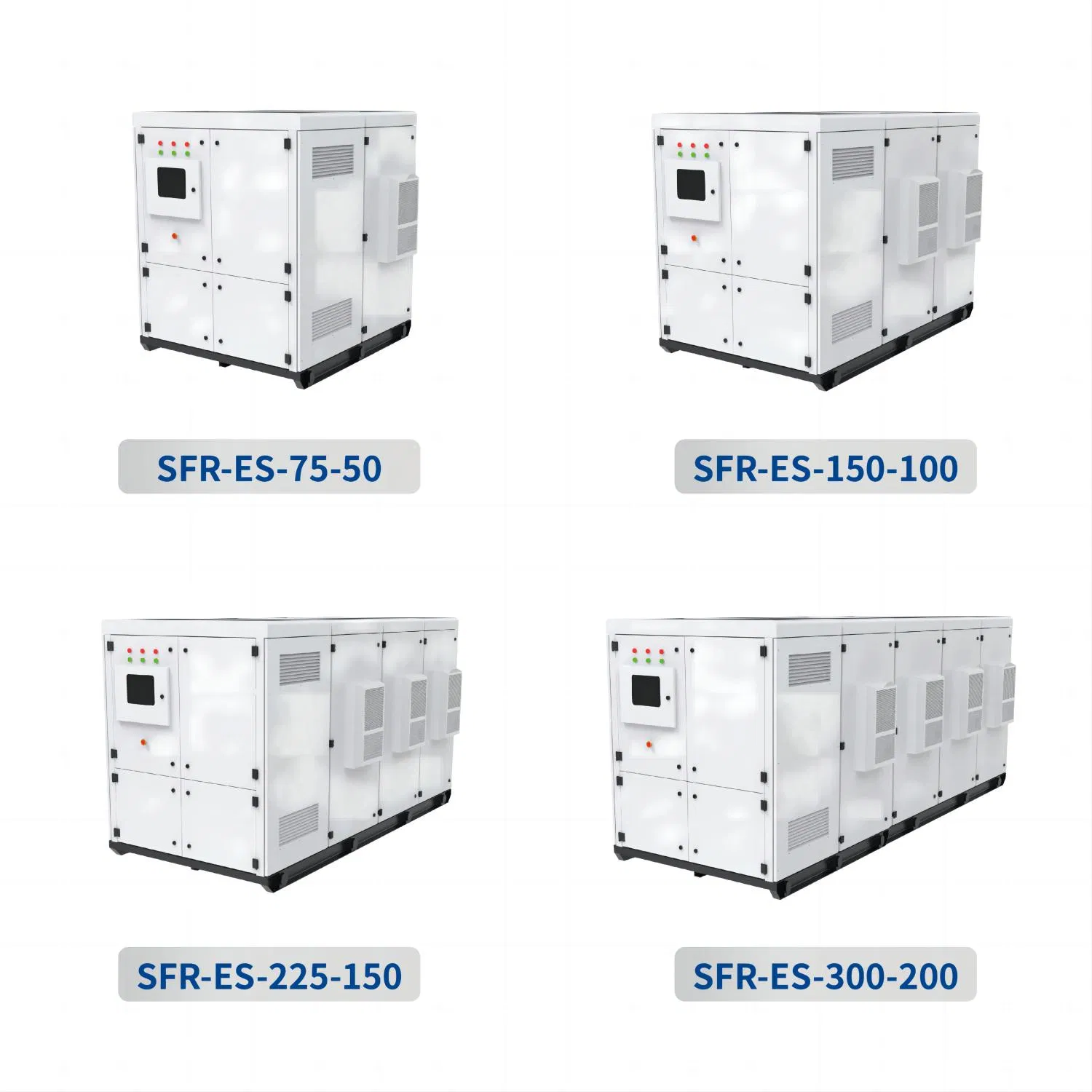

Model SFR-ES-75-50 SFR-ES-150-100 SFR-ES-225-150 SFR-ES-300-200
AC Parameters (Grid Connected)
Rated Output Power (kW) 50 100 150 200
Max Output Power (kW) 55 110 165 220
Rated Grid Voltage (V) 3W+N+PE, 380V
Power Factor >0.99 (Rated voltage)
Battery Specifications
Battery Type Lithium Iron Phosphate (LiFePO4)
Total Capacity (kWh) 76.8 153.6 230.4 307.2
Cycle Life 25°C 0.5C/0.5C 100%DOD EOL80% >4000 times
System Environment
Working Temp. -20 ~ 55°C (>45°C derating)
Protection Level Outdoor IP54

Detailed Photos

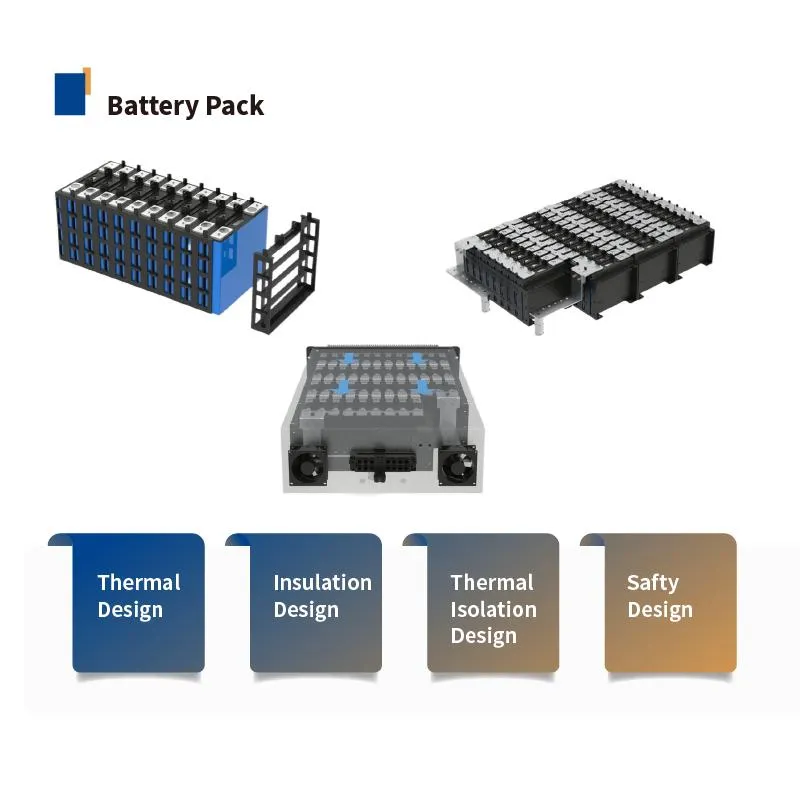

Energy Storage System Detail 1

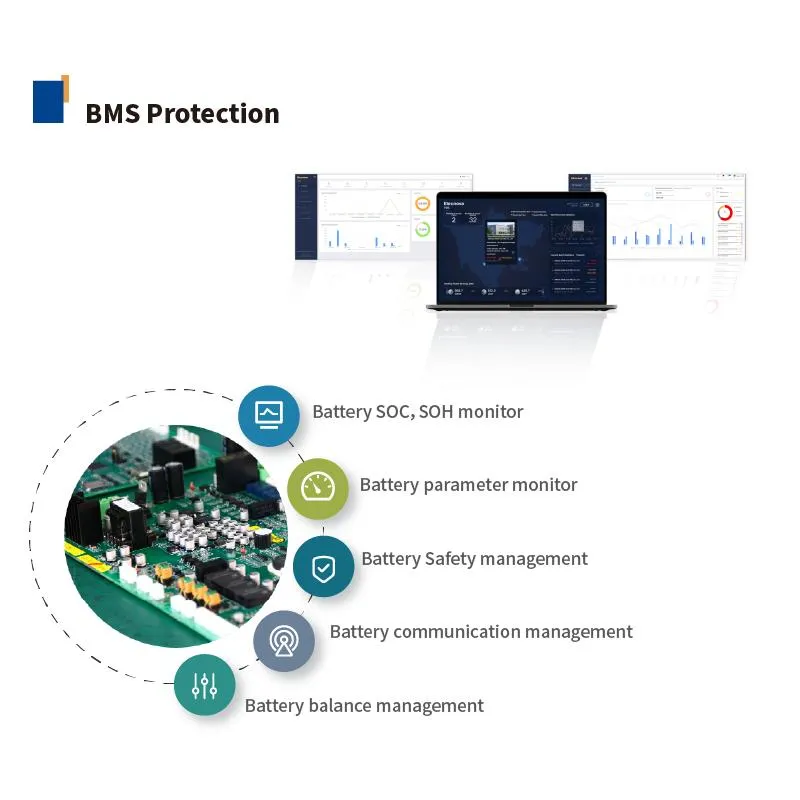

Energy Storage System Detail 2

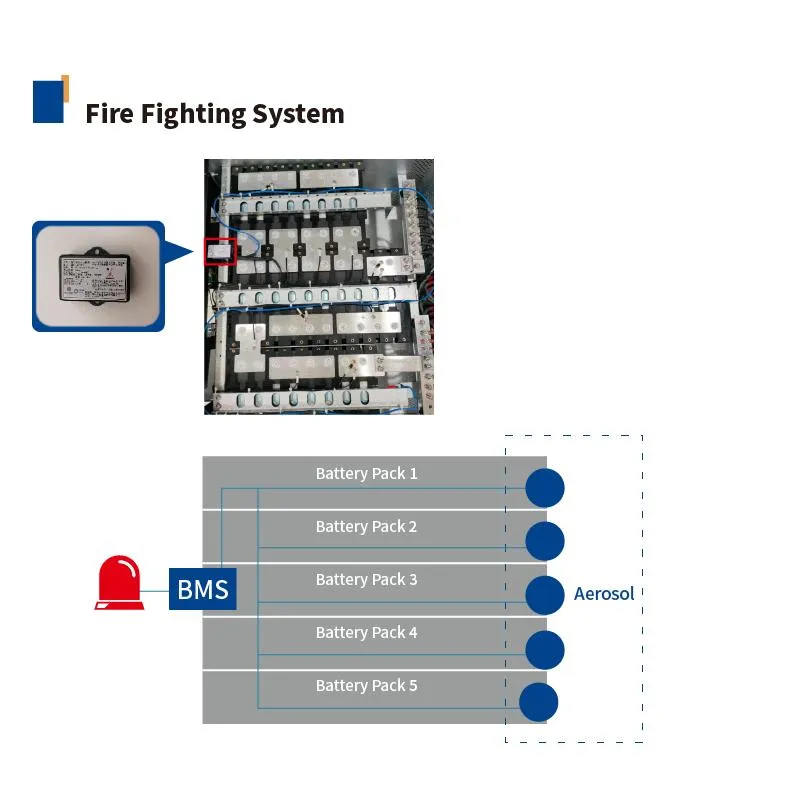

Energy Storage System Detail 3

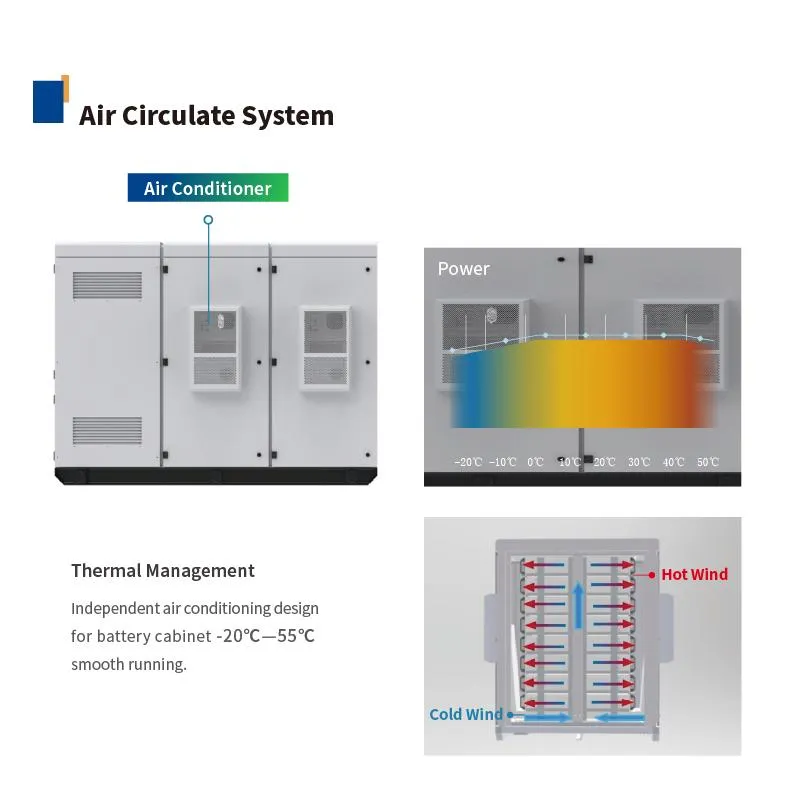

Energy Storage System Detail 4

System Reference

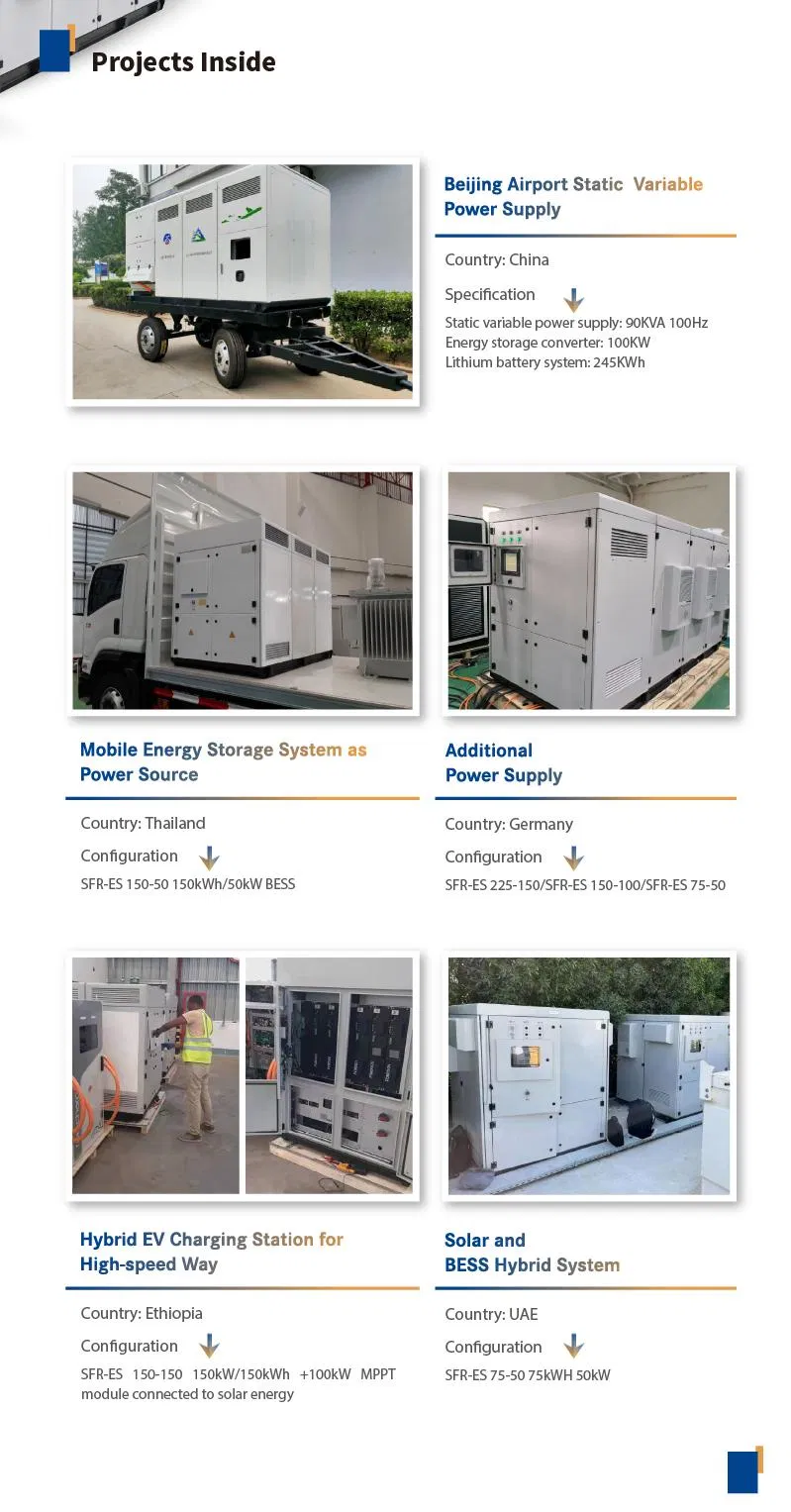

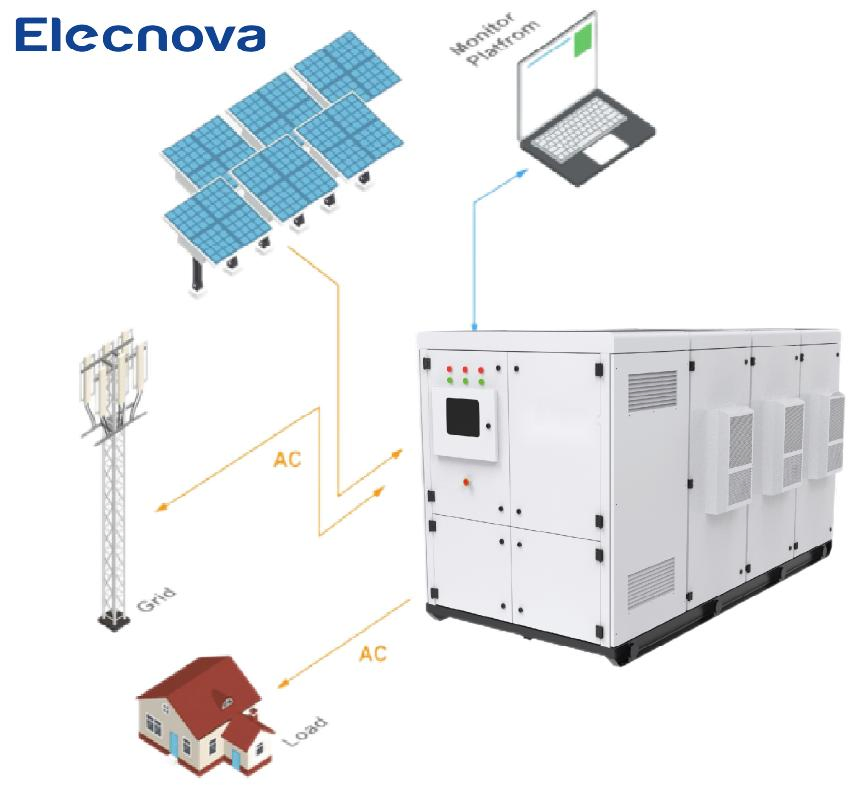

Technical Reference Diagram

Manufacturing Excellence

Facility Overview

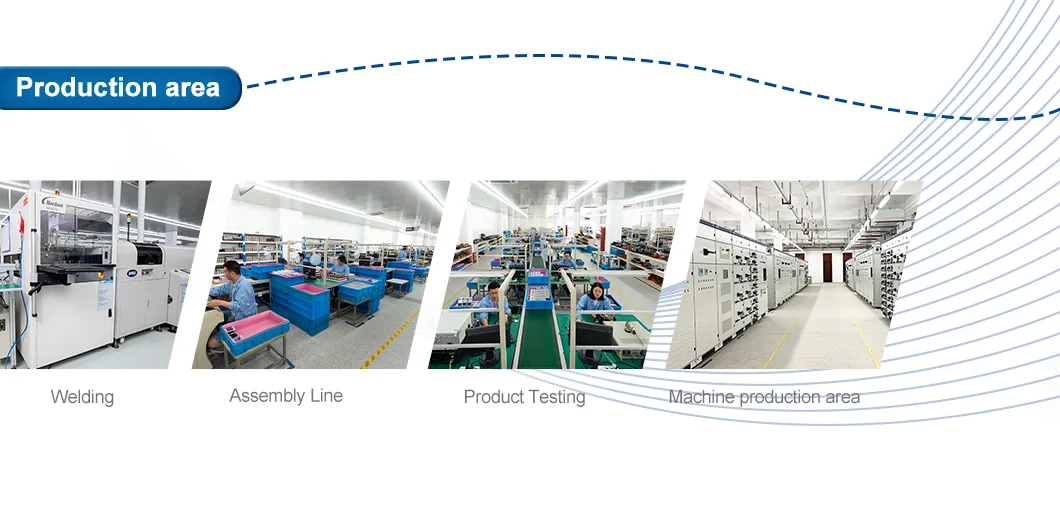

Production Line
Quality Control
Testing Lab

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a professional manufacturer with our own factory facility.
Does your company provide customized manufacturing?
Yes, we provide OEM/ODM services to our customers. Our experienced R&D team develops high-efficiency solutions tailored to specific needs.
How long is the typical delivery time?
For items in stock, delivery is typically within 1 month. Lead times for custom orders vary based on specifications.
Do you provide samples?
Samples can be provided upon request. Customers are responsible for the sample cost and freight charges.
What are the accepted terms of payment?
For orders under $3,000, 100% payment is required before shipment. For orders over $3,000, we require a 30% deposit with the 70% balance paid before shipment.
What is the maintenance requirement for the ESS?
The system features intelligent air cooling and remote monitoring capabilities, requiring minimal manual maintenance under standard operating conditions.
