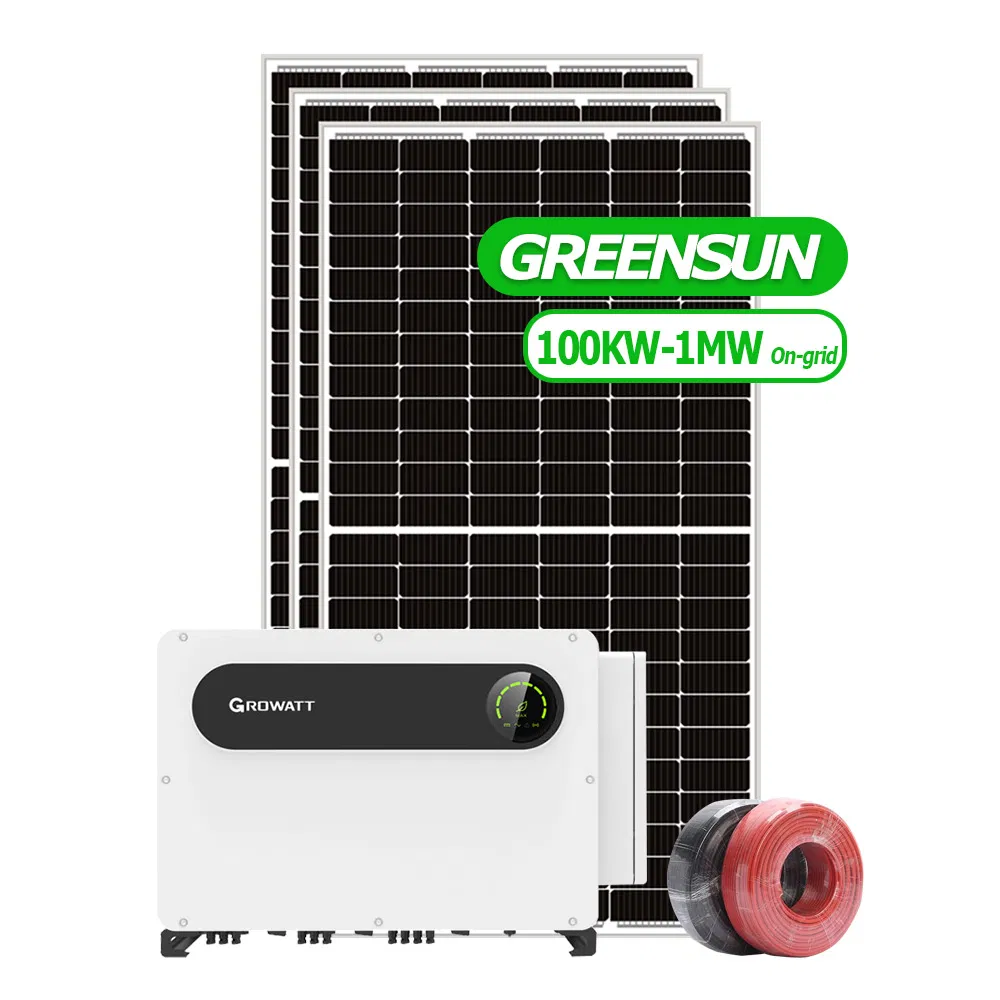

Complete Set 100kw 500kw PV Panel on Grid/Tied Energy Storage System

1 / 5

Complete Set 100kw 500kw PV Panel on Grid/Tied Energy Storage System

Customization:	Available
Condition:	New
Certification:	ISO, CE

Send Inquiry

Product Description

🚀 Basic Information

Model NO.

GS-500KW-ON

Application

Home, Industrial, Commercial

Rated Power

500kw

Grid Type

Grid Tied / On Grid

Voltage

3 Phase 208V/380V/400V/480V

System Life Span

25 Years

Solar Panel Type

Monocrystalline / Polycrystalline

Work Time

24 Hours

System Warranty

25 Years

OEM Service

Acceptable

Mounting System

Roof/Ground

Origin

China

📦 Product Description

Complete Set 100kw 500kw PV Panel On Grid/Tied Energy Storage System

On Grid Solar Power System Specifications
Components	50KW-ON	100KW-ON	500KW-ON	1000KW-ON

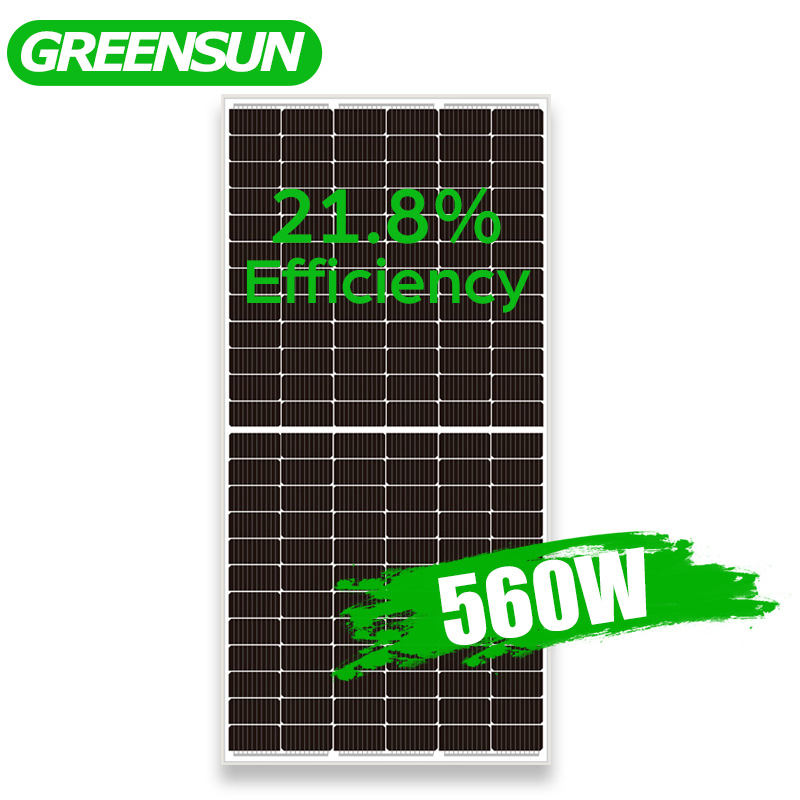

Mono 560W Solar Panel	89 pcs	178 pcs	893 pcs	1786 pcs
On Grid Inverter	50 kw	100kw	5 pcs 100 kw	10 pcs 100kw
PV Cable 4mm2	500m	1000m	5000m	10000m
MC4 connector	48 pairs	92 pairs	450 pairs	900 pairs
Mounting Brackets	Roof/Ground	Roof/Ground	Roof/Ground	Roof/Ground

🔧 System Components

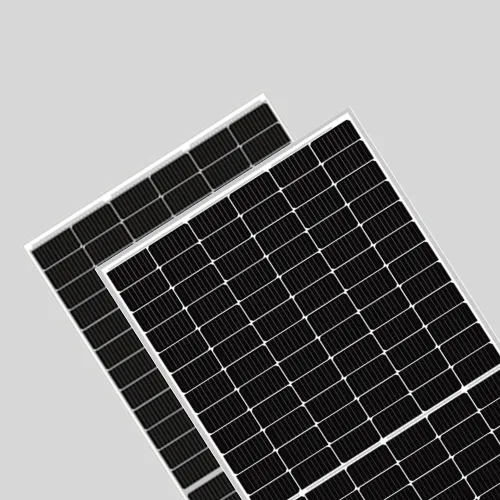

Solar Panel

Poly Solar Panel, Mono Solar Panel, PERC Solar Panel, ETC.
PID free PV module
0-5W positive power tolerance
100% full EL inspection
Superior quality control
25 years warranty

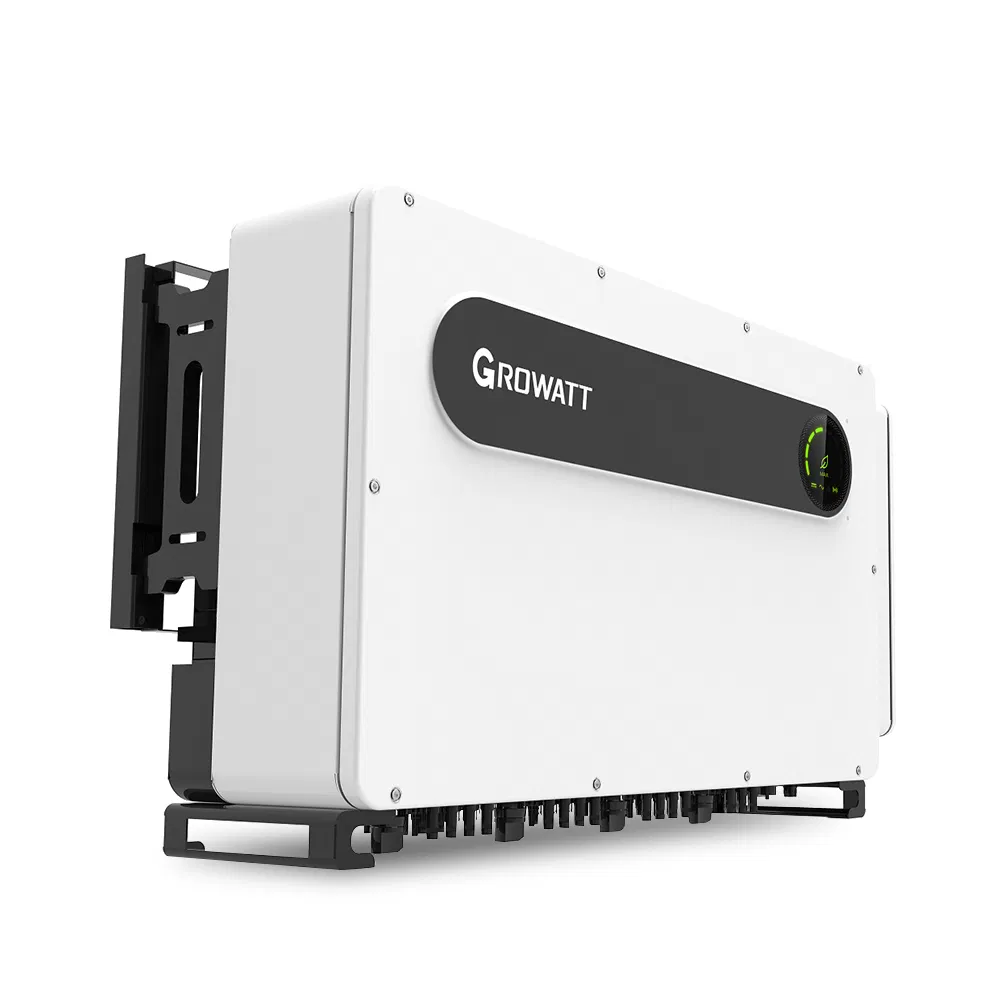

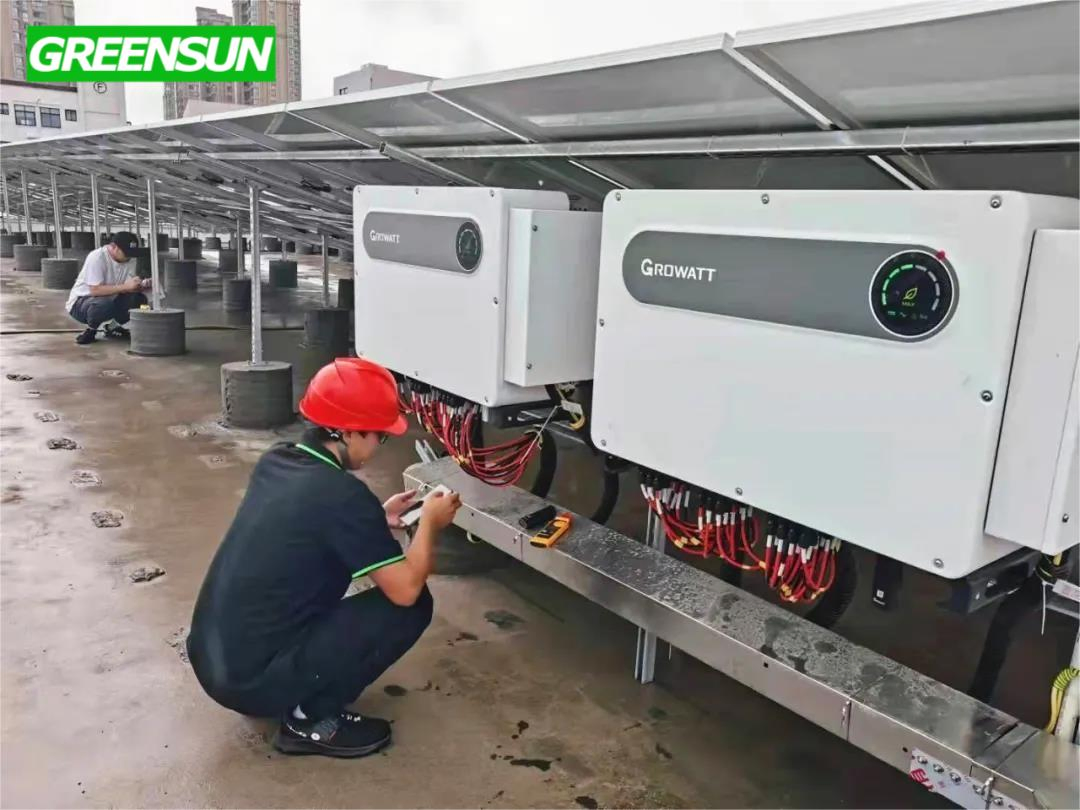

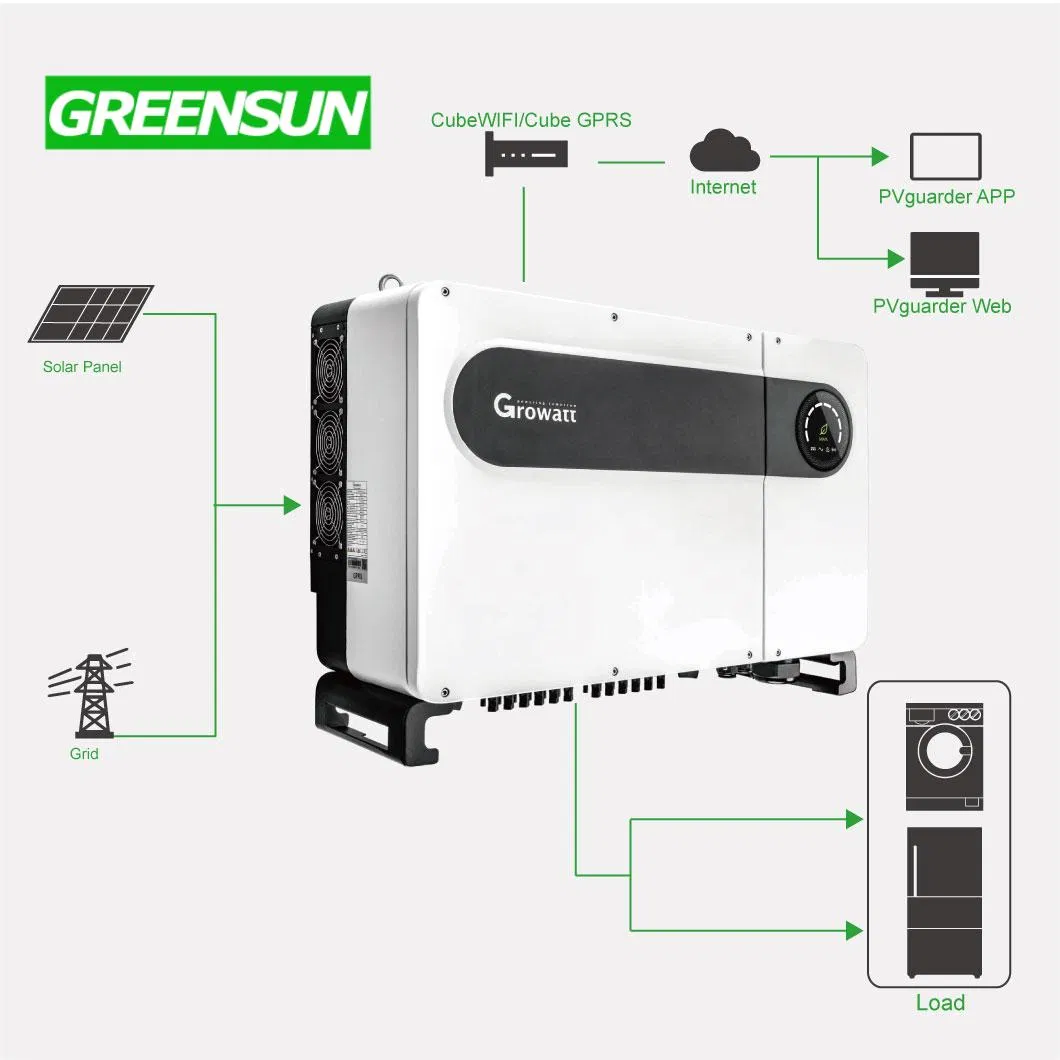

On Grid Inverter (EU/US Standard)

50KW-200KW
Single Phase/Split Phase/3Phase Output
Wifi Monitoring
Touch LCD

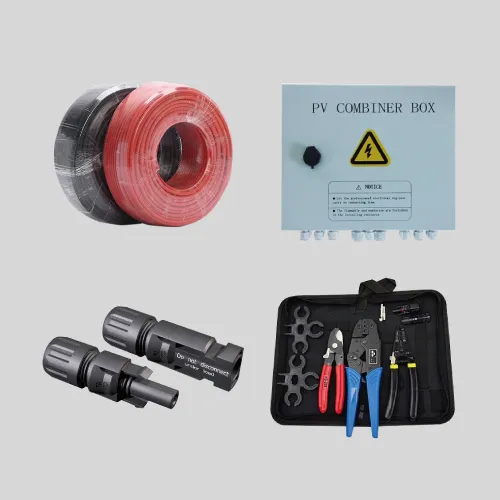

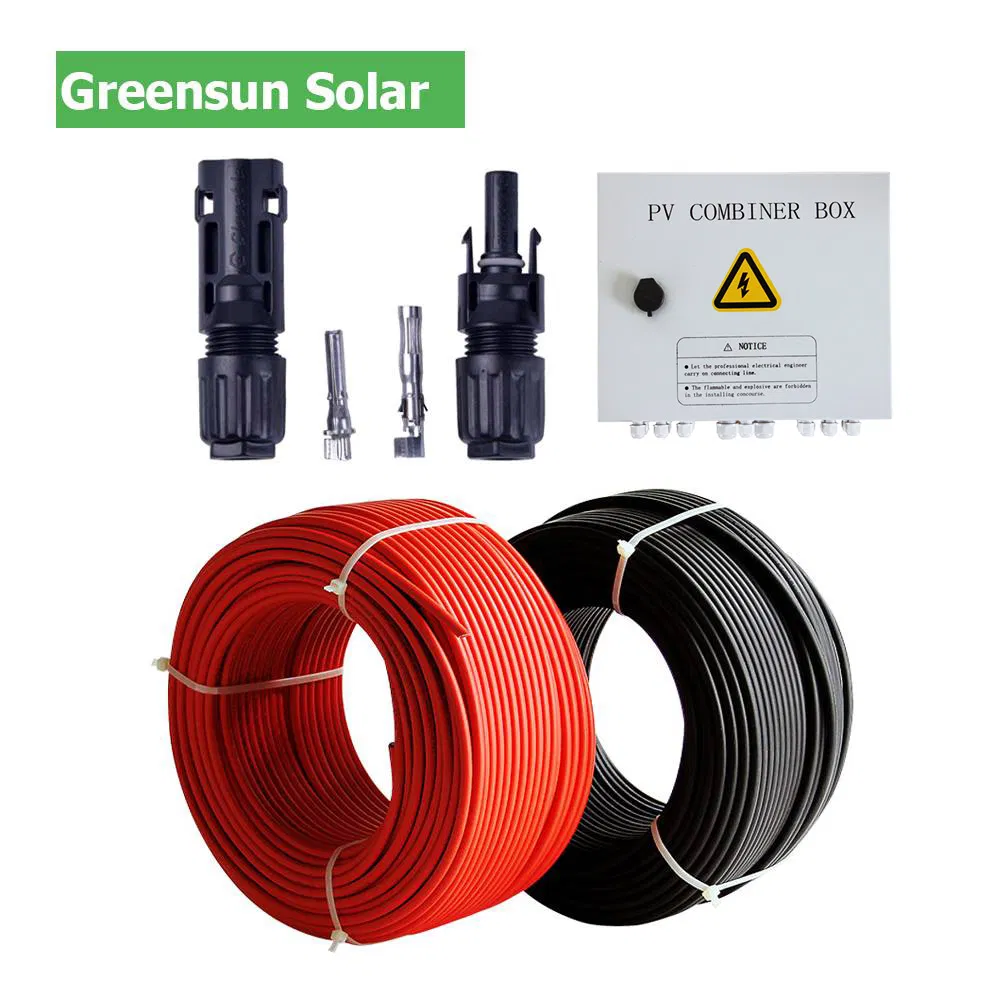

Systems Accessories

PV combiner box (Lightening Arrester, DC Breaker, Fuse, SPD inside, IP65)
MC4 Connector
PV Cable: 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, ETC.
Colors: Black For STD, Red Optional.
Lifetime: 25 Years

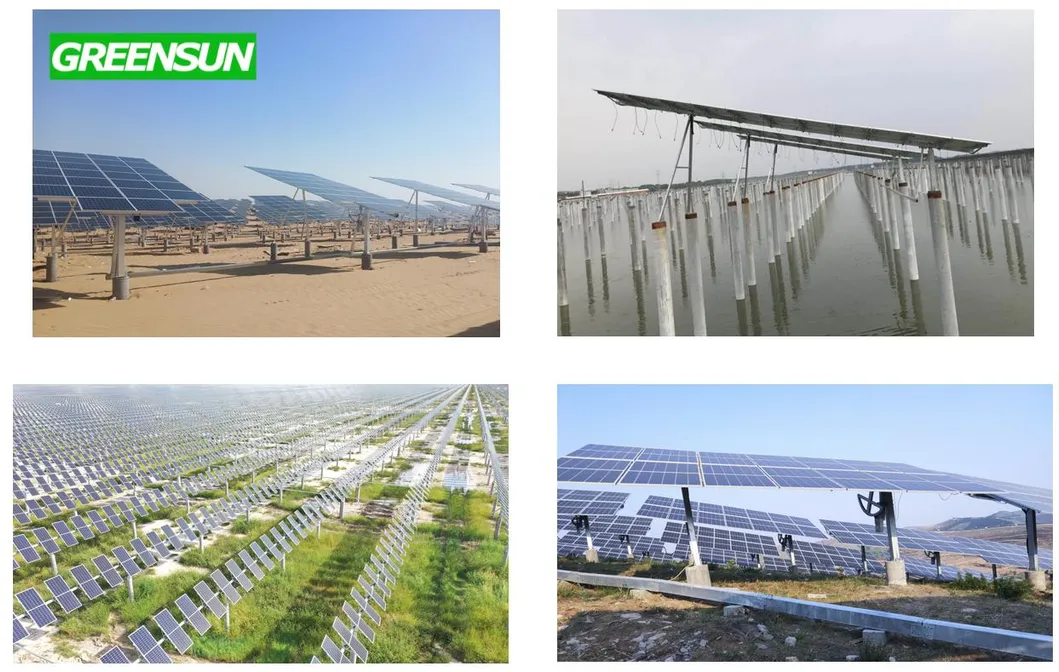

Mounting Brackets

Pitched roof mounting structure
Flat roof mounting structure
Ground mounting structure
Ballast type mounting structure
Car parking lot mounting structure
Lifetime: 25 Years

🏢 Profile & Production

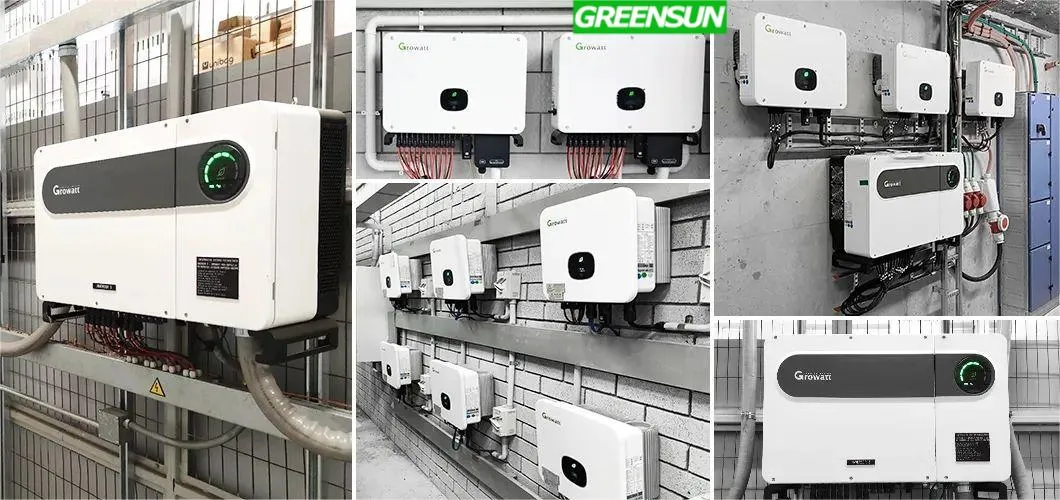

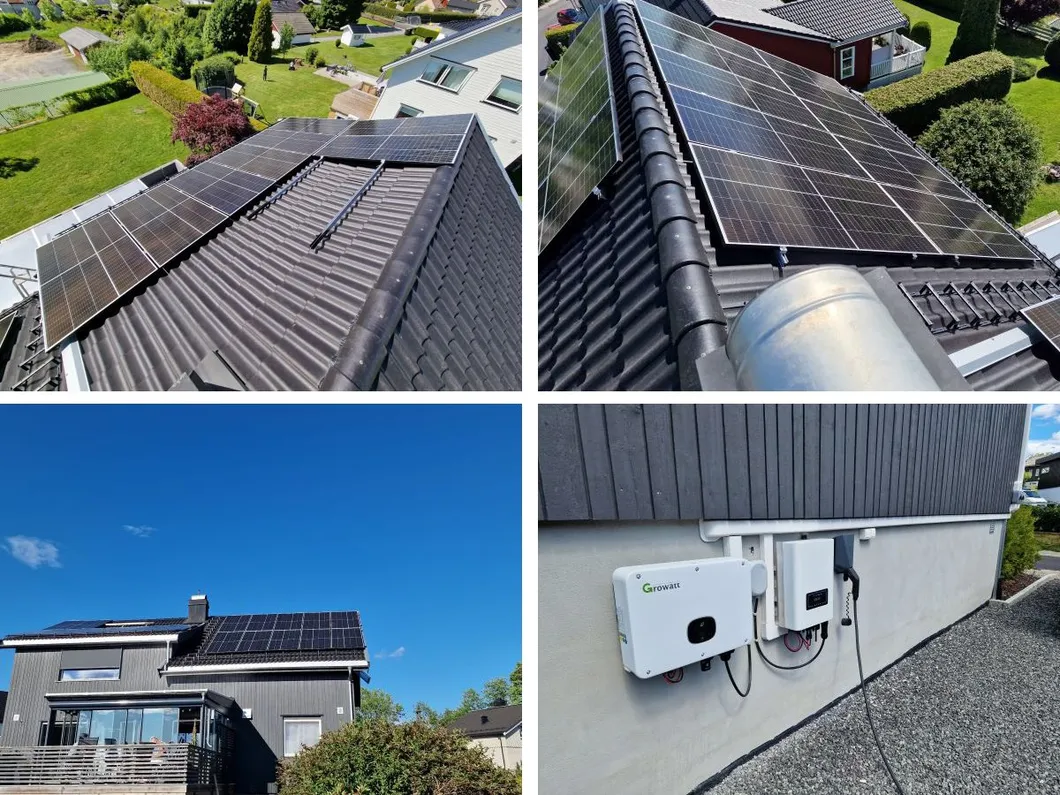

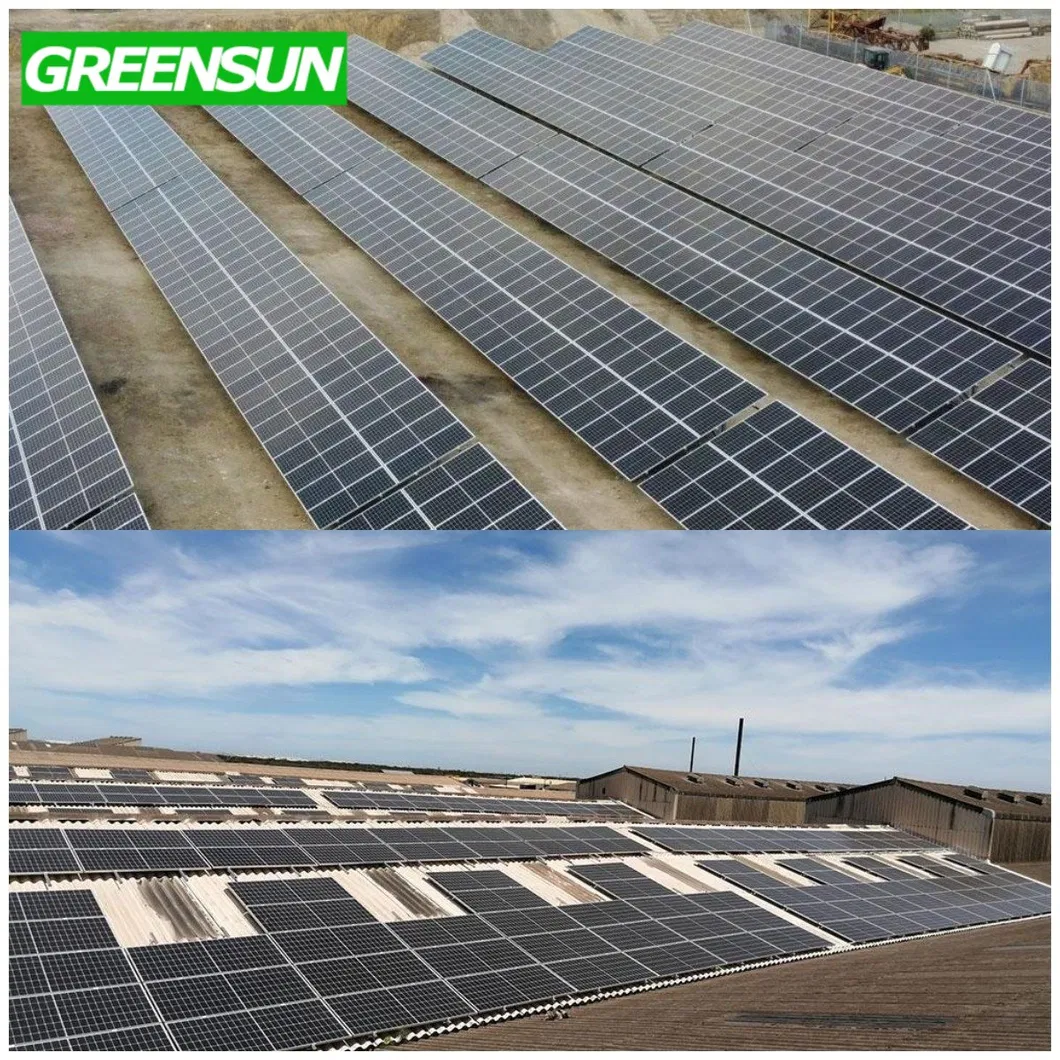

🌟 Our Projects

Frequently Asked Questions

❓ What is an on-grid solar power system?

An on-grid solar system is connected to the local utility grid. It allows you to use solar power when available and switch to the grid automatically when needed, while sending excess energy back to the utility.

❓ Can this 500kw system be used for industrial applications?

Yes, this system is designed for high-capacity requirements, making it ideal for industrial plants, large commercial buildings, and utility-scale projects.

❓ What is the typical lifespan of the solar panels?

The solar panels and mounting structures are designed for a lifespan of approximately 25 years with superior quality control and PID-free technology.

❓ Does the system include remote monitoring?

Yes, the on-grid inverters come with WiFi monitoring capabilities and a touch LCD screen for real-time performance tracking.

❓ Are the mounting brackets compatible with different terrains?

Absolutely. We provide mounting solutions for pitched roofs, flat roofs, ground installations, and even car parking lots.

❓ What is the warranty for the entire system?

The system comes with a comprehensive 25-year warranty, ensuring long-term reliability and performance for your investment.
