Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications
Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications
Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications
Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications
Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications
1 / 5
Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications
Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications
Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications
Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications
Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications

Commercial 20kw Solar Energy Storage System for on off Grid Tied Commercial Applications

Customization: Available
After-sales Service: Yes
Warranty: 5 Years
Send Inquiry

Product Description

Basic Information
Condition
New
Certification
CE
Application
Home
Specification
Normal
Battery Type
Lithium Ion
Mounting Type
Roof/Ground Mounting
Output Voltage
110/120/220/230V
Output Frequency
50-60Hz
Project Design
Yes
Work Time
24 Hours
Solar Panel Type
Monocrystalline Silicon
Controller Type
MPPT
Origin
Anhui, China
Capacity
50000 Sets/Year
Product Description

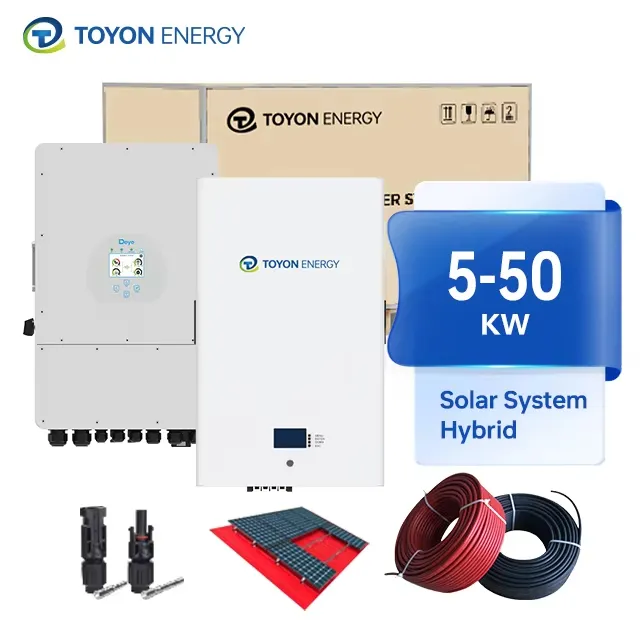

Solar Energy Storage System
System Model TY5KW-HY TY8KW-HY TY10KW-HY TY12KW-HY
PV MODULE SPECIFICATIONS (*half cell mono)
Power (W) 440-700
Vmp (V) 36.33-41.96
Certifications CE / TUV (IEC 61215 & IEC 61730)
INVERTER SPECIFICATIONS
Rated Power (KW) 5 8 10 12
Max DC Power (W) 6000 10400 13000 15600
Max DC Voltage (V) 500 1000
BATTERY BANK SPECIFICATIONS
Number Of Batteries 1 2 3 4
Battery Power (kWh) 4.8 9.6 14.4 19.2

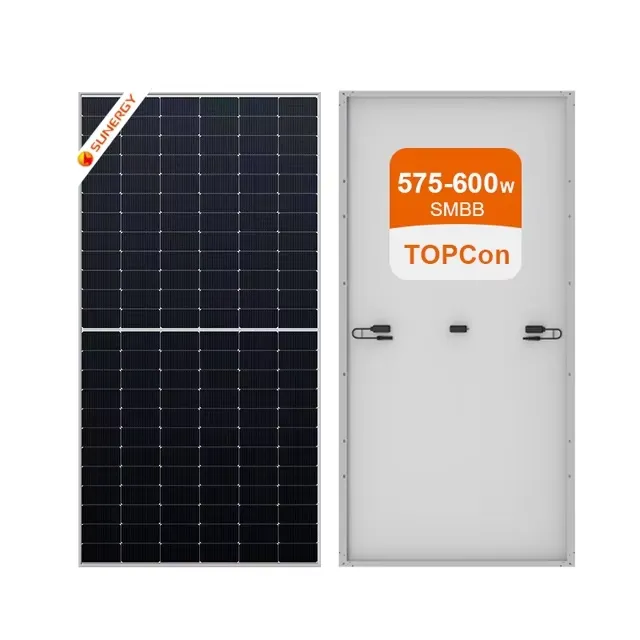

Solar Panel
Half Cut Mono 580W Solar Panel
✓N-type TopCon
✓Peak Power Watt: 580W
✓Maximum Power Voltage: 42.78V
✓Maximum Power Current: 13.56A
✓Open Circuit Voltage: 51.32V
✓Short Circuit Current: 14.33A
✓Dimensions: 2278*1134*35mm
All In One Hybrid Grid Inverter
●Colorful touch LCD, IP65 protection degree.
●AC couple to retrofit existing solar system.
●Max. charging/discharging current of 250A.
●6 time periods for battery charging /discharging.
●Support storing energy from diesel generator.
●Max. 16 pcs parallel for on-grid and off-grid operation.

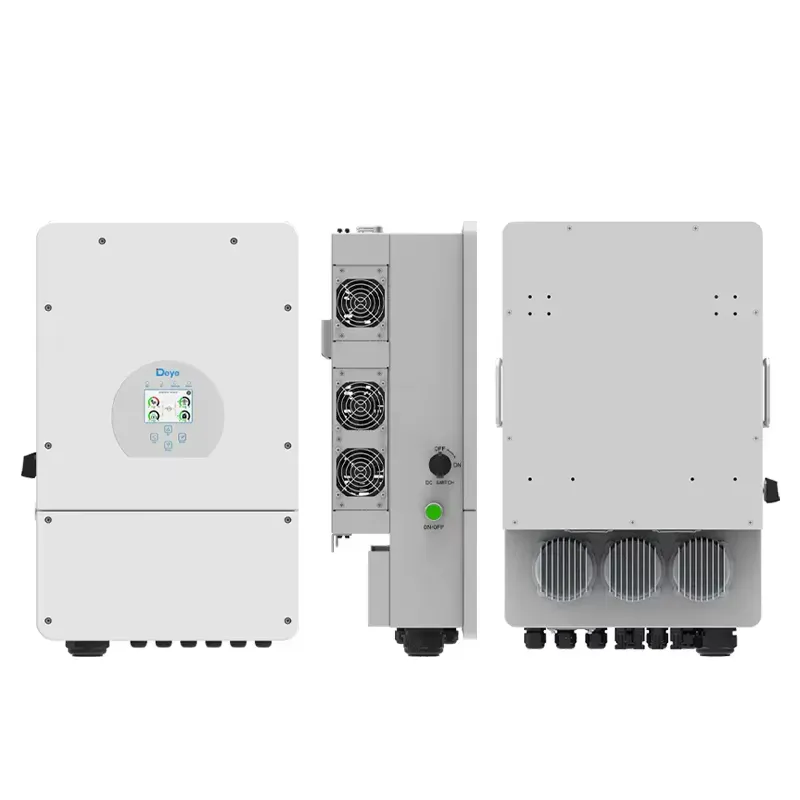

Hybrid Inverter

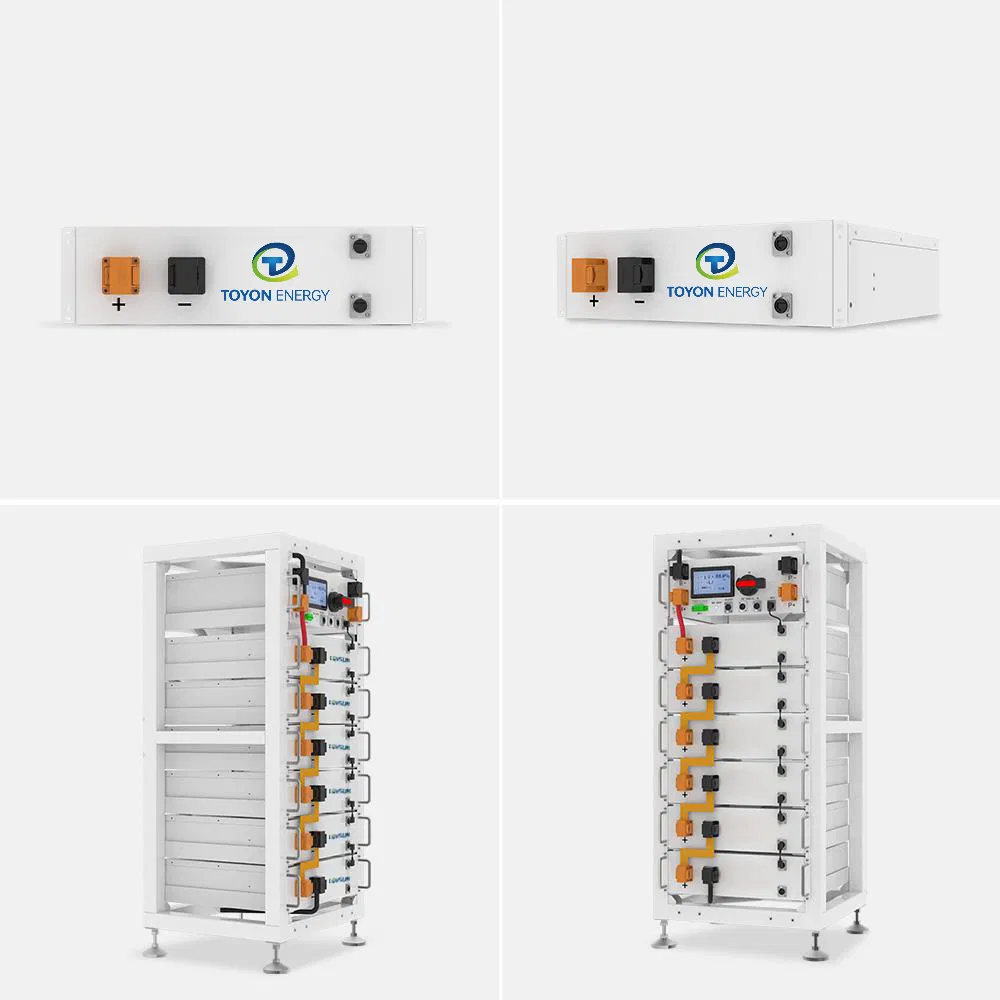

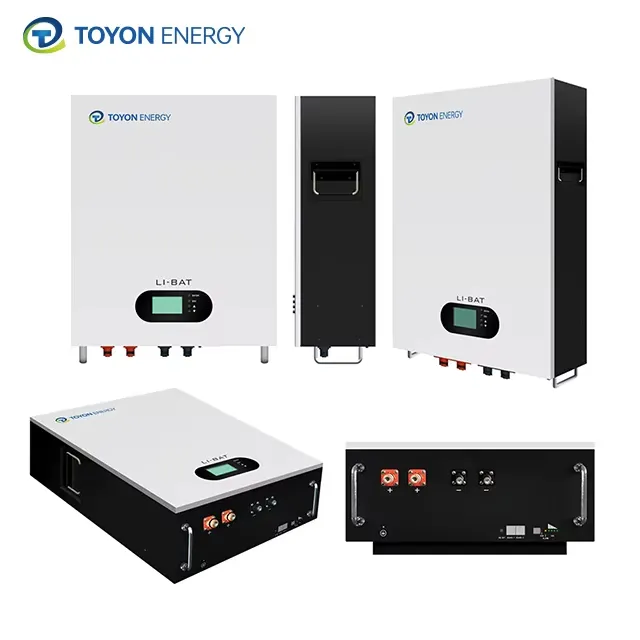

Lithium Battery

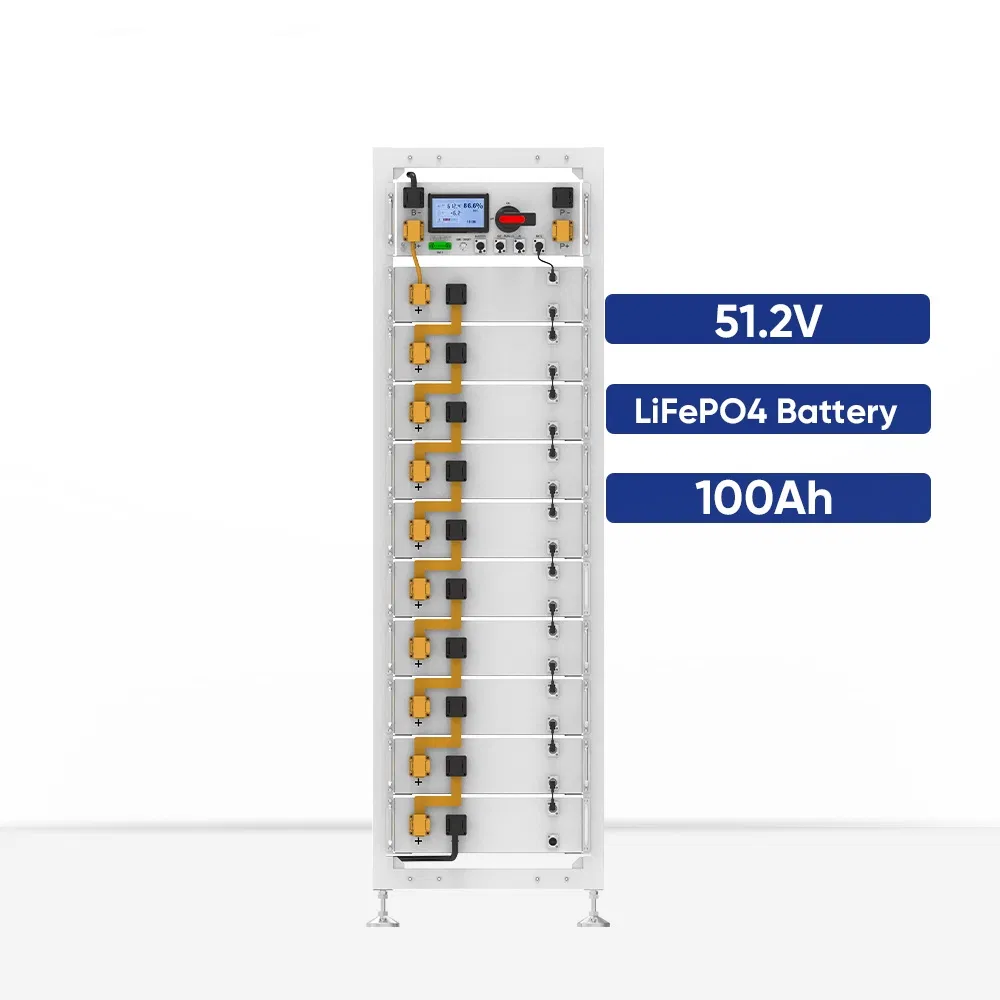

Low Voltage Lithium Battery
◈Rated Voltage: 48V/51.2V (Optional)
◈Rated Capacity: 100Ah/200Ah (Optional)
◈Cycle Life: 5000 cycles @80% DOD 0.5C
◈Material System: LiFePO4
◈Case Type: Wall Mounted

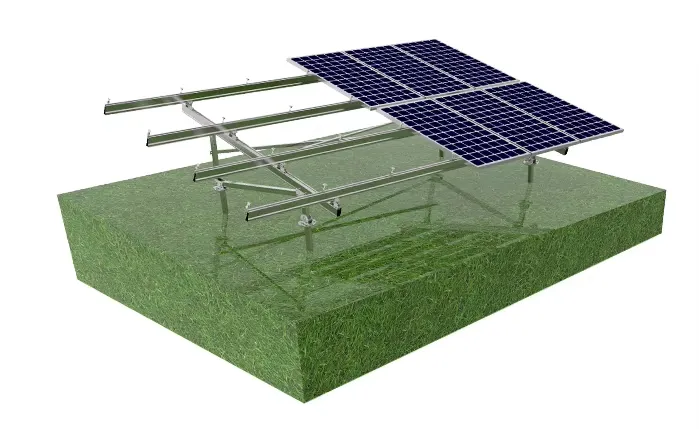

PV Mounting System
Mounting System

Aluminum Alloy/Galvanized Steel - 10 Years Warranty

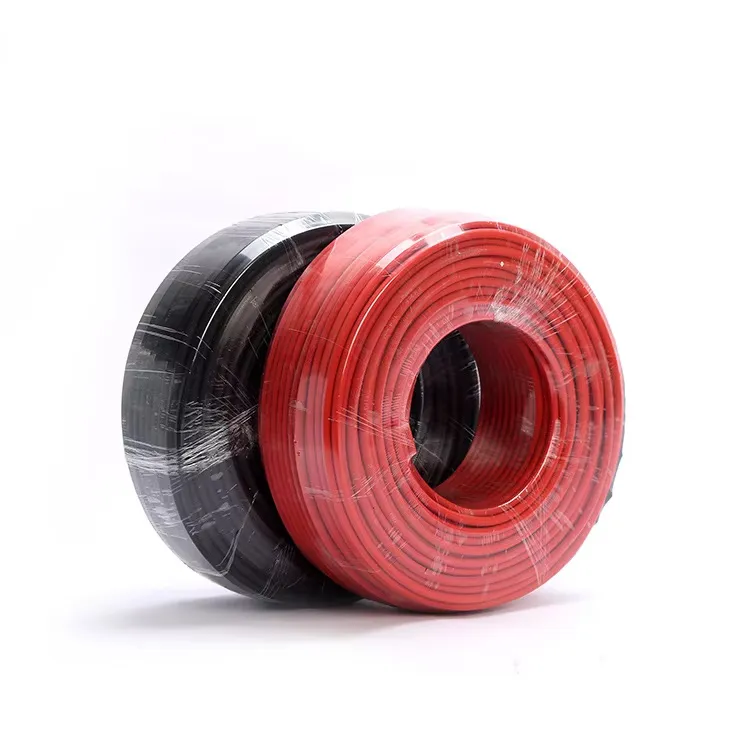

DC Cable & MC4 Connector
Cables and Connectors

Rated Voltage: 1000VDC(TUV) - Lifetime: ≤25 Years

Installation Instructions

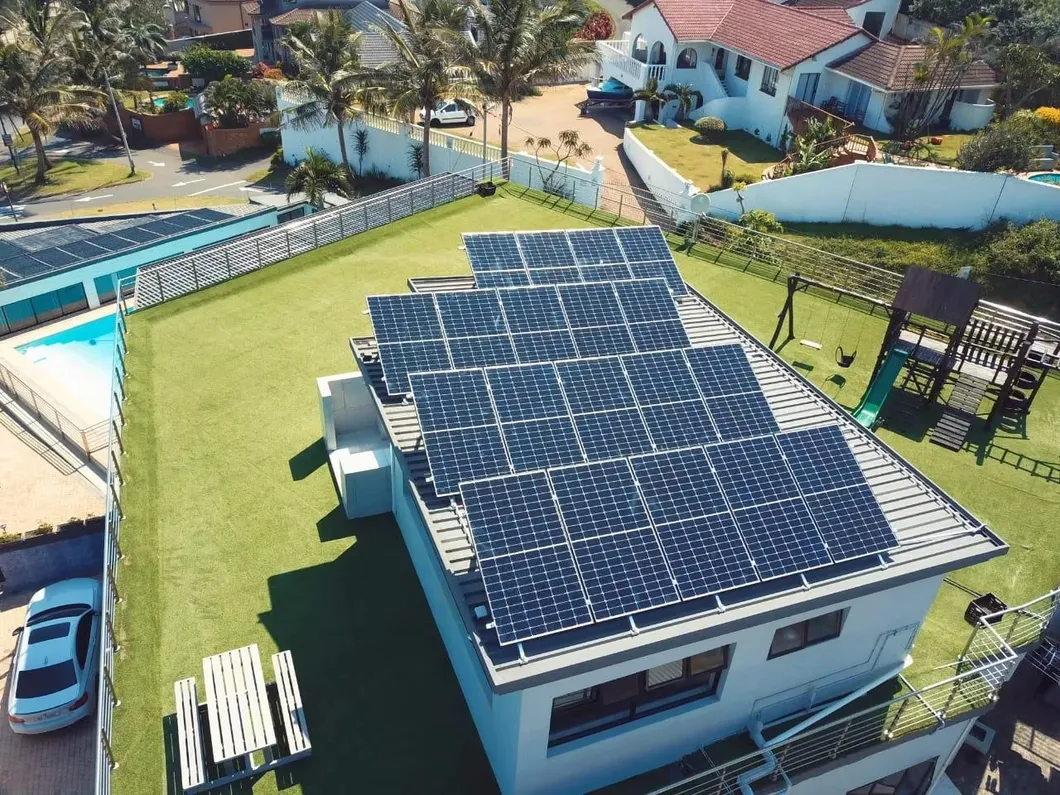

Install 1

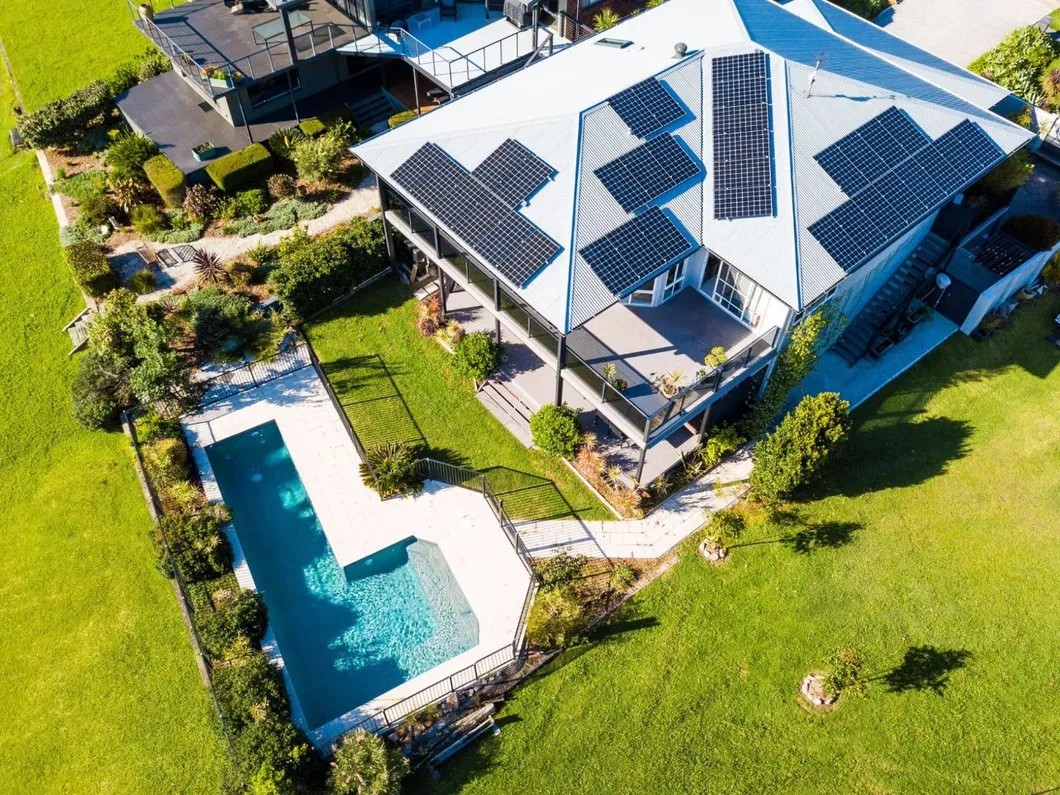

Install 2

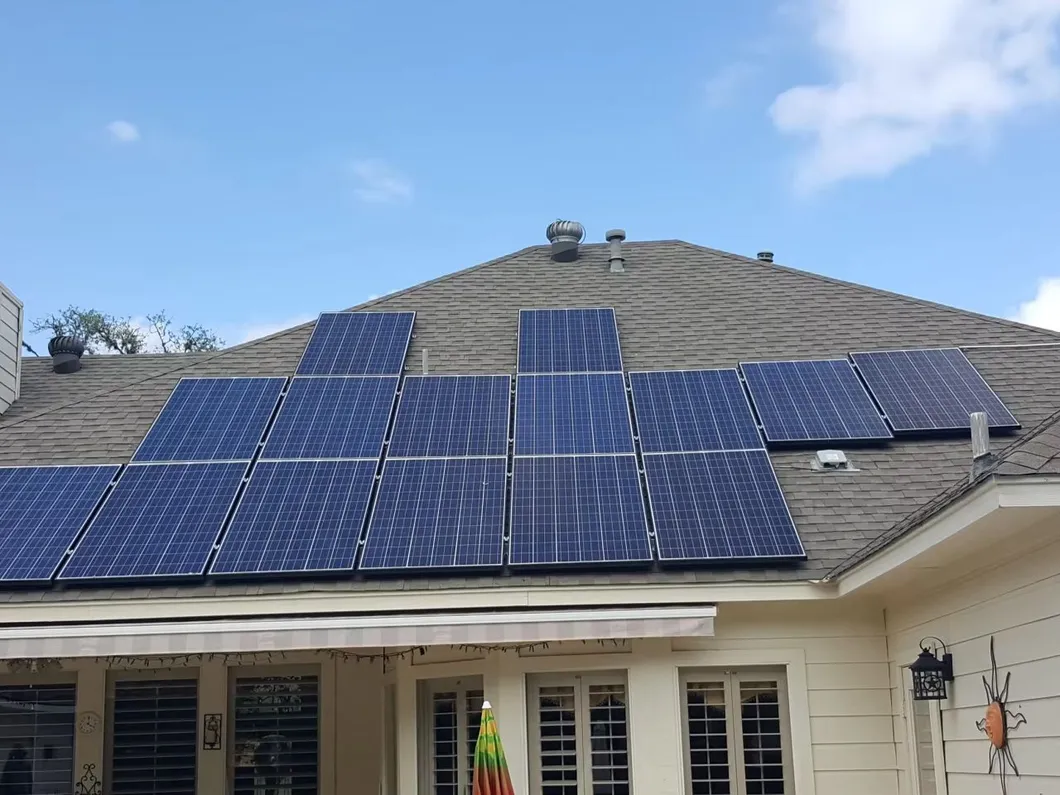

Install 3

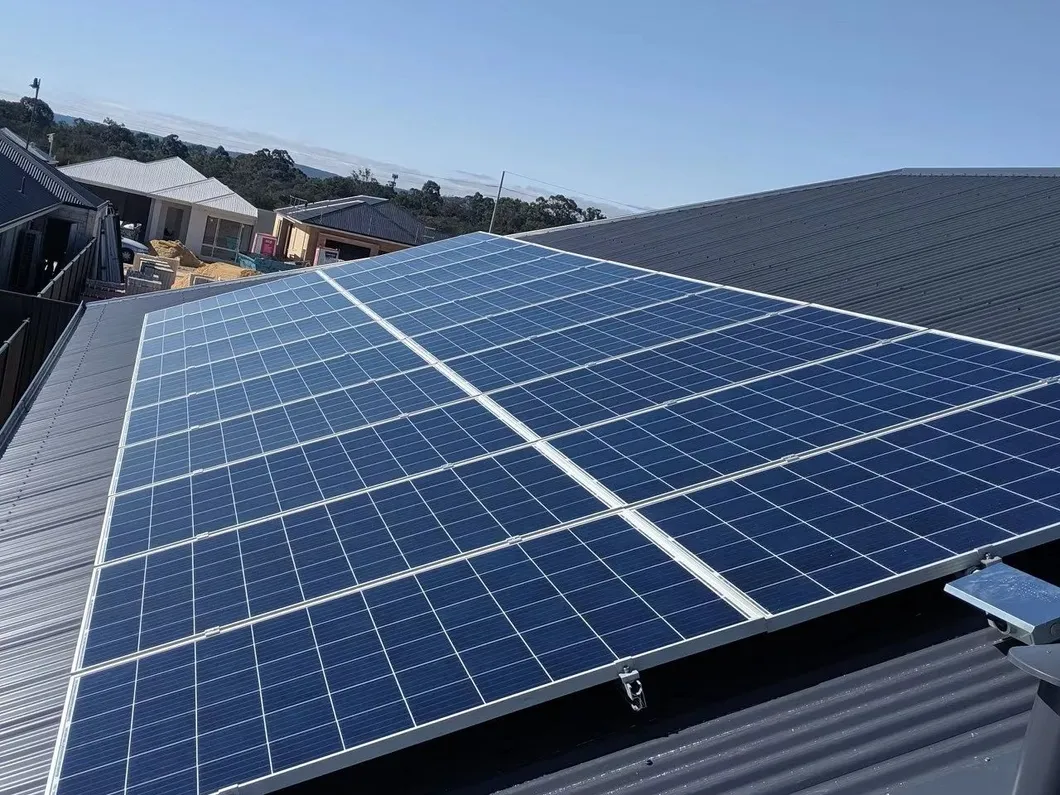

Install 4

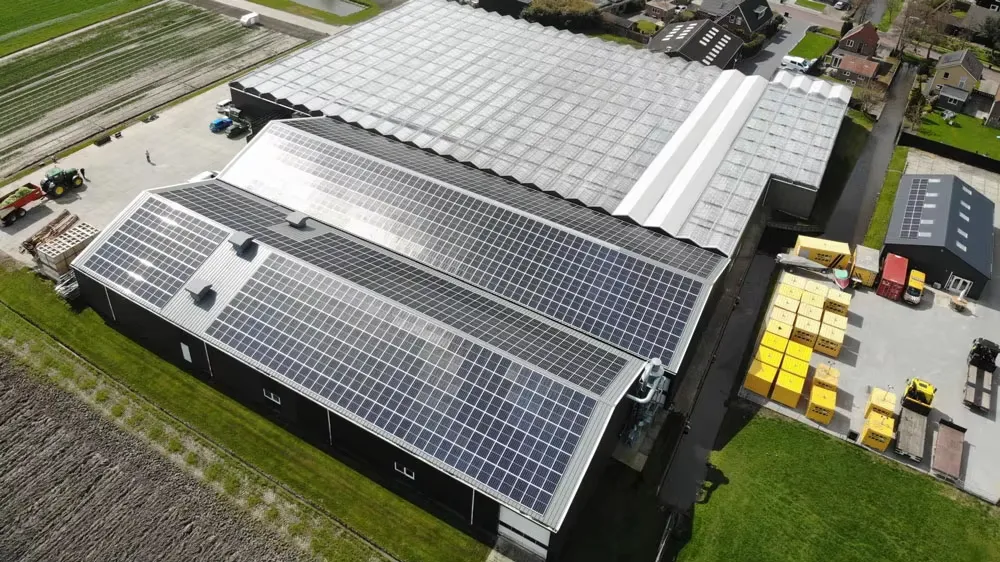

System Diagram
Packaging & Shipping

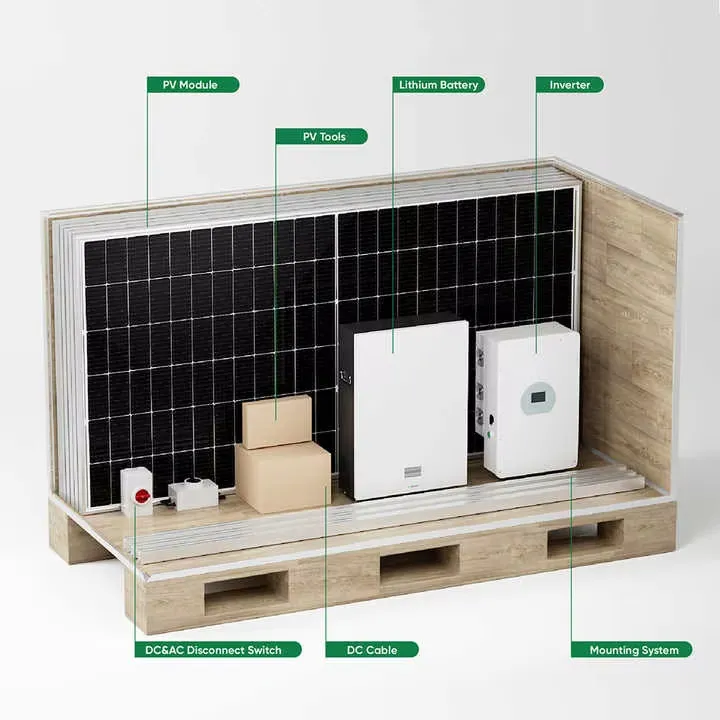

Packaging
Professional Manufacturing
Factory View
Workshop
Why Choose Us
Quality Service

We are a professional factory leader in the PV industry, offering solar photovoltaic all-in-one systems and one-stop services with competitive prices and fast delivery times.

⭐ Higher power generation efficiency
⭐ Competitive factory pricing
⭐ High quality standard production
⭐ Stable supply chain guarantee
⭐ Comprehensive customized services
Frequently Asked Questions
What main products can you provide?
We provide a wide range of solar products, including solar panels, hybrid inverters, power walls, lithium-ion batteries, and complete all-in-one solar system solutions tailored to your needs.
How is your technical support?
We provide lifetime online technical support. Whether it's through video calls or digital communication, our team is available to help solve any technical issues after delivery.
What is the typical lead time for orders?
Common products are usually in stock and can be shipped within 5-15 working days. Large or custom orders are negotiated to ensure timely production and delivery.
Do you offer OEM and customization services?
Yes, as a professional manufacturer, we offer comprehensive OEM services, including custom branding, tailored system design, and on-site installation support.
How do you guarantee product quality?
We conduct strict quality control including pre-production sample approval and a thorough final inspection before shipment. We also provide 24-hour after-sales service to resolve any quality concerns.
What are your accepted payment and delivery terms?
We accept various delivery terms including FOB, CIF, EXW, and DDP. Payment can be made via T/T, L/C, or PayPal to suit your convenience.
