| Basic parameters | MYD48100-3U | MYD48100-4U | MYD48200-4U |
| Nominal Voltage(V) | 48 | 48 | 48 |
| Nominal Capacity(Wh) | 5120 | 5120 | 10240 |

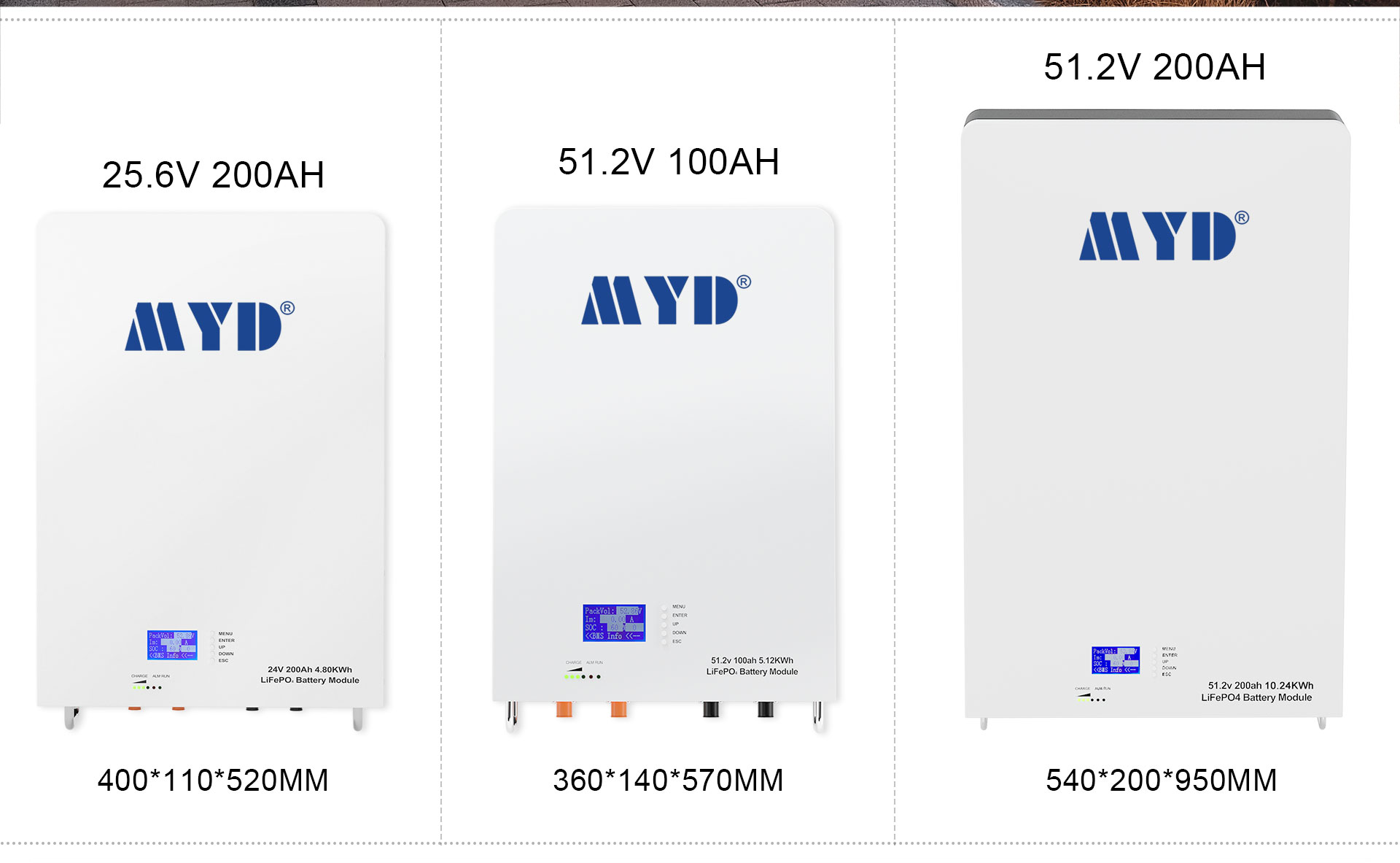

| Dimension (mm) | Customizable | Customizable | Customizable |
| Weight (Kg) | 40 | 46.8 | 84 |
| Discharge Voltage (V) | 45 ~ 54 | 45 ~ 54 | 45 ~ 54 |
| Charge Voltage (V) | 52.5 ~ 54 | 52.5 ~ 54 | 52.5 ~ 54 |
| Max Discharge Current (A) | 100 | 100 | 120 |
| Max Charge Current (A) | 100 | 100 | 120 |
| Communication | RS232, RS485, CAN | RS232, RS485, CAN | RS232, RS485, CAN |
| Charging Temperature | 0°C~50°C | 0°C~50°C | 0°C~50°C |
| Discharging Temperature | -20°C~55°C | -10°C~50°C | -10°C~50°C |
| Certification | IEC / CE / UN38.3 | IEC / CE / UN38.3 | IEC / CE / UN38.3 |
| Design life | 20+ Years(25°C) | 10+ Years(25°C) | 10+ Years(25°C) |
| Cycle Life | >6000 ( 80% ) | >4500 ( 90% ) | >4500 ( 90% ) |
