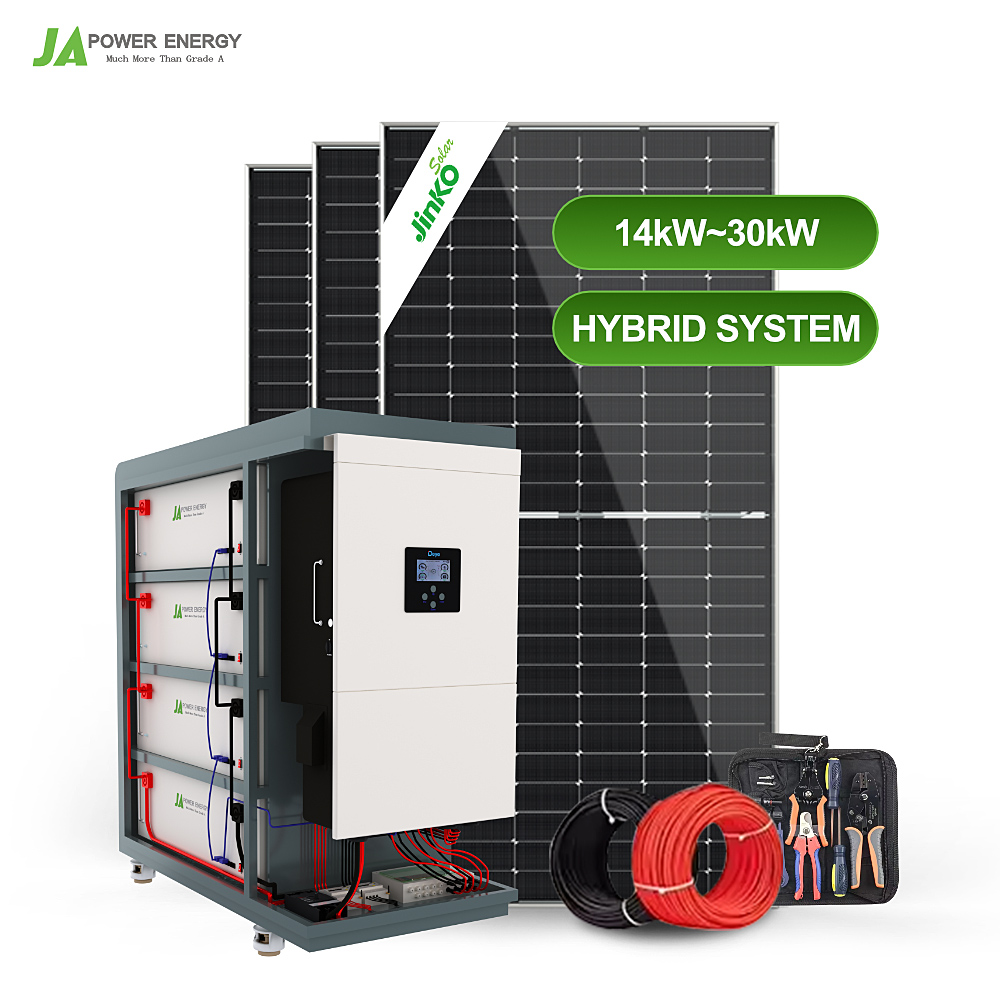

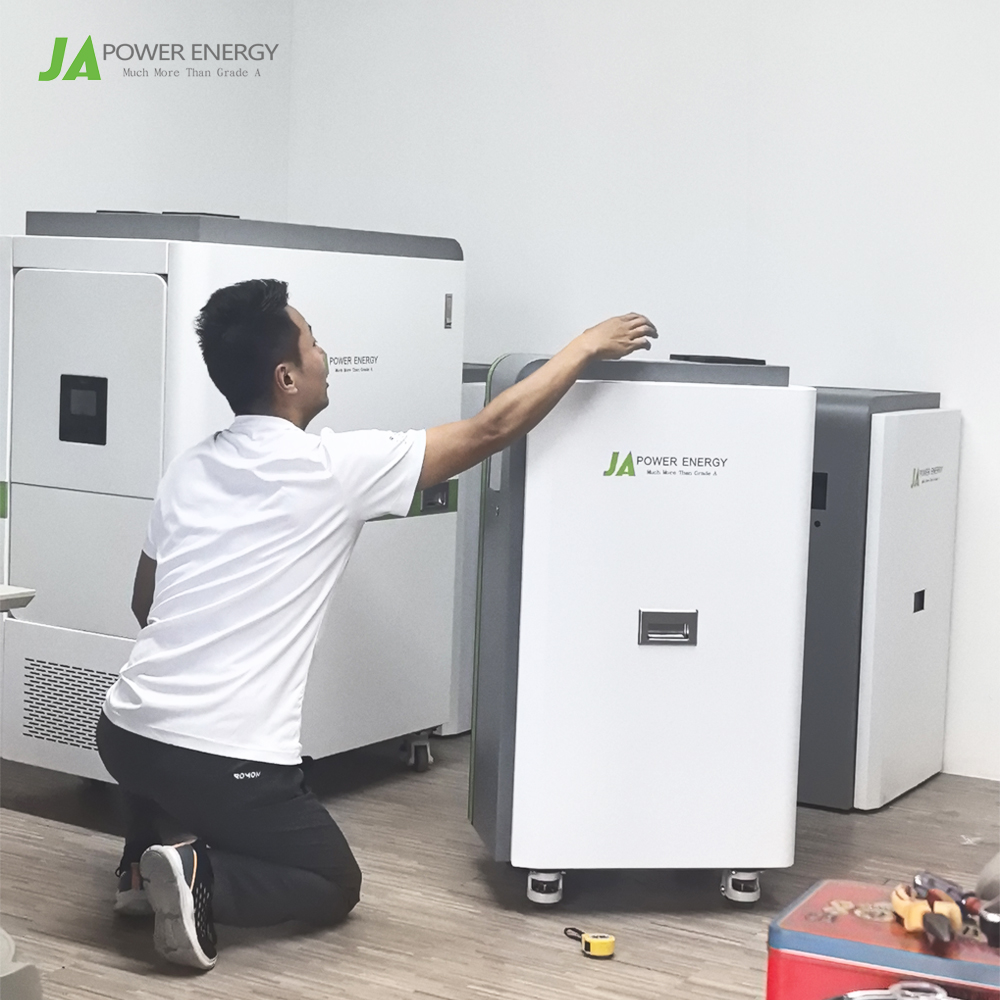

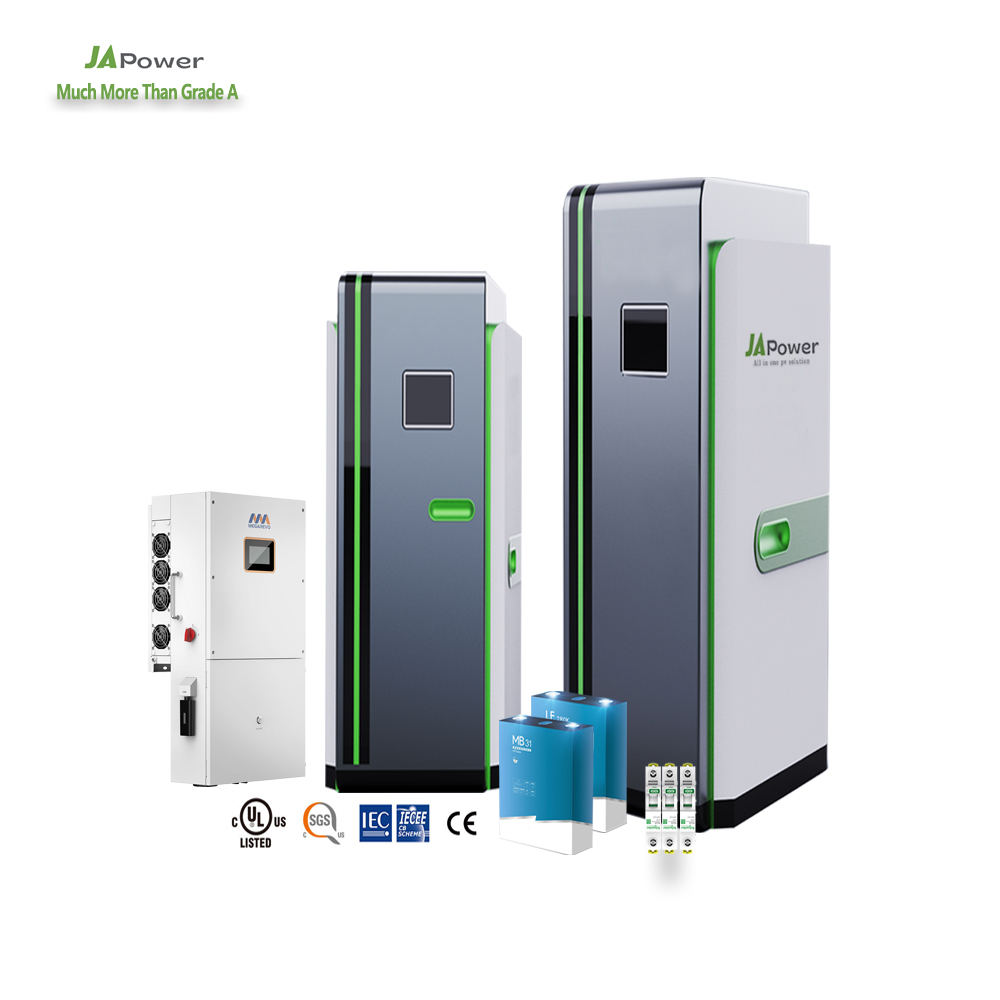

12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet
12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet
12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet
12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet
12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet
1 / 5
12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet
12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet
12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet
12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet
12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet

12kw 20kw Household Energy Storage Systems All in One Inverter and Lithium Battery Low Voltage Solar Battery Cabinet

Send Inquiry

Product Description

Main Products

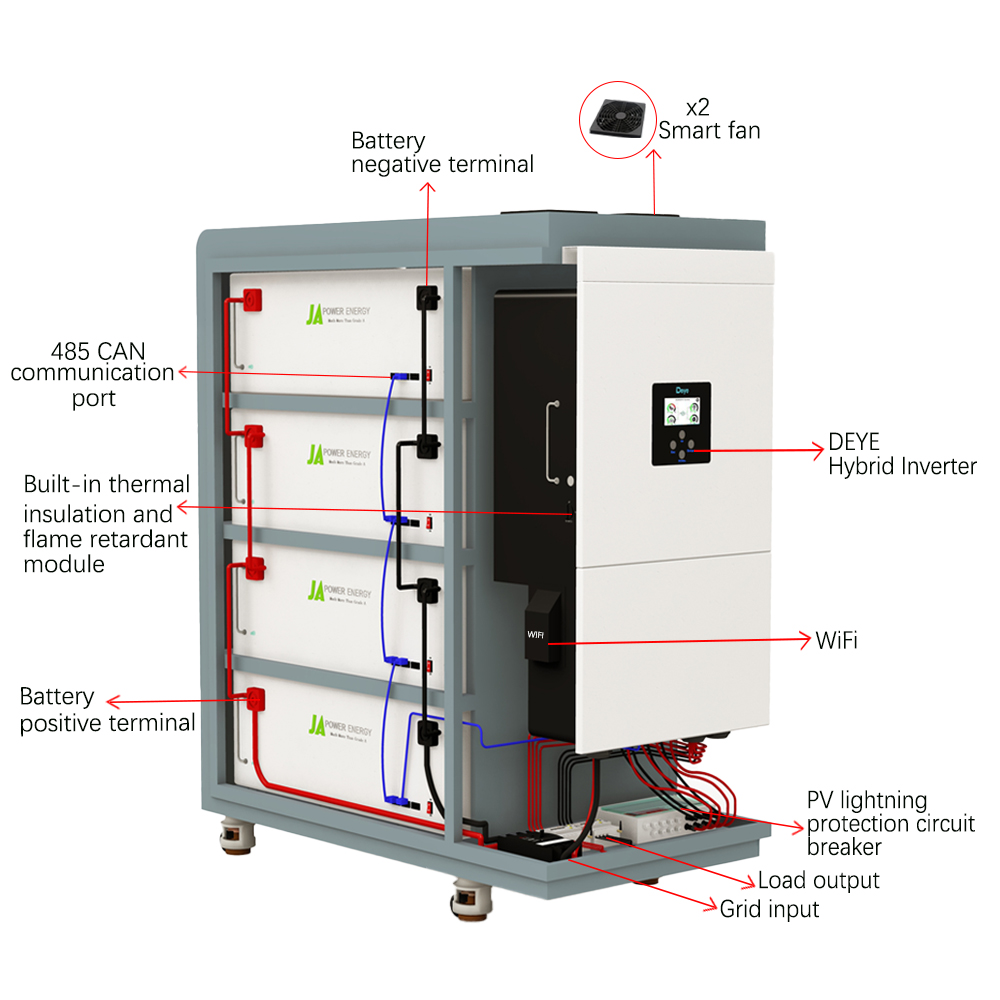

Core Components

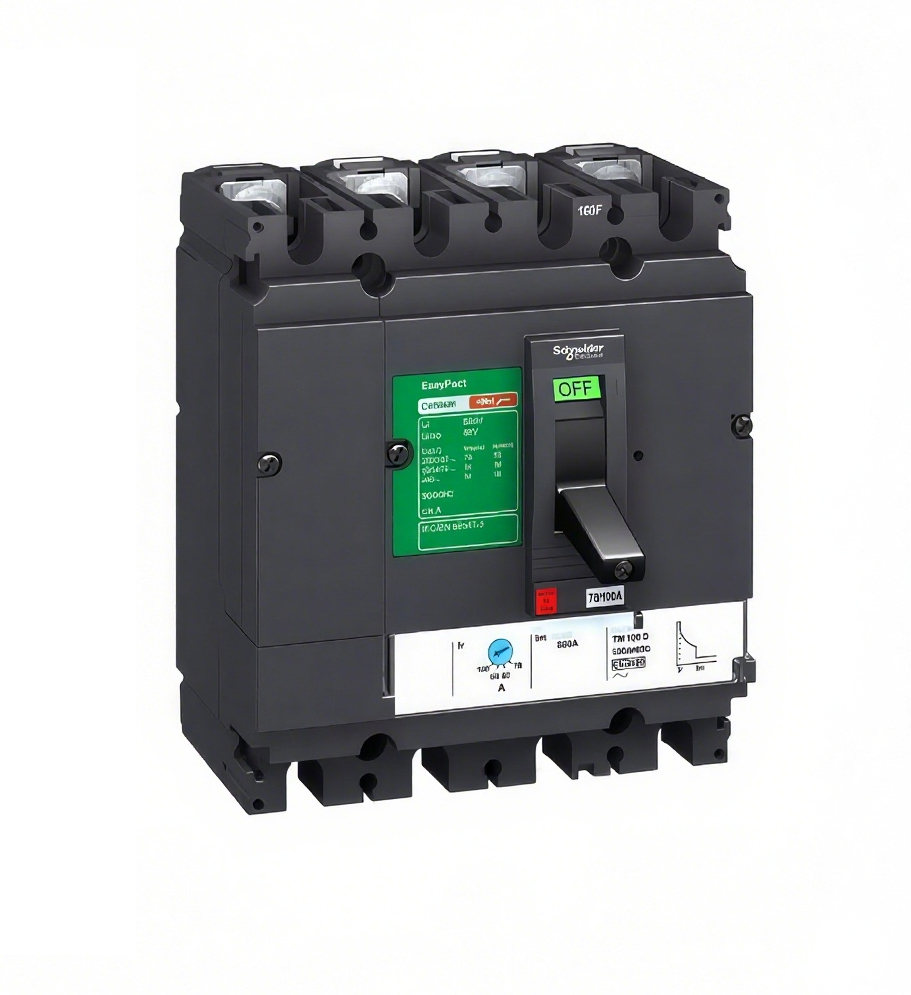

Schneider 300A DC Molded Case Circuit Breaker Integrated high-performance protection for DC circuits.

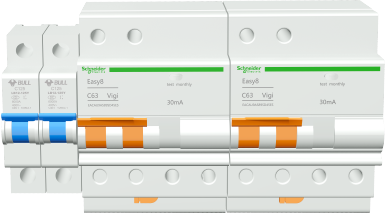

Schneider Grid Input & Output Ports Standardized connection interface for reliable power distribution.
PV Lightning Protection Dedicated circuit breaker designed for solar surge protection.
Key Features
1 Battery cells: Equipped with REPT high-quality battery cells.
2 Technology Integration: Integrated technology EMS, hybrid inverter and BMS integrated technology, power redundancy design, support black start function, off-grid operation.
3 Safety protection: Comprehensive protection: Combustible gas, smoke and temperature detection, active exhaust system, Fire alarm.
4 App Smart Monitoring: Smart APP monitors data in real time and supports remote control.
Technical Specifications
Model ESS-EU12K43kWh ESS-EU-16K57kWh ESS-EU-20K64kWh ESS-EU-20K80kWh
Nominal Output Power (W) 12000 16000 20000 20000
AC Output Frequency/Voltage 50/60Hz; 3L/N/PE 220/380, 230/400Vac

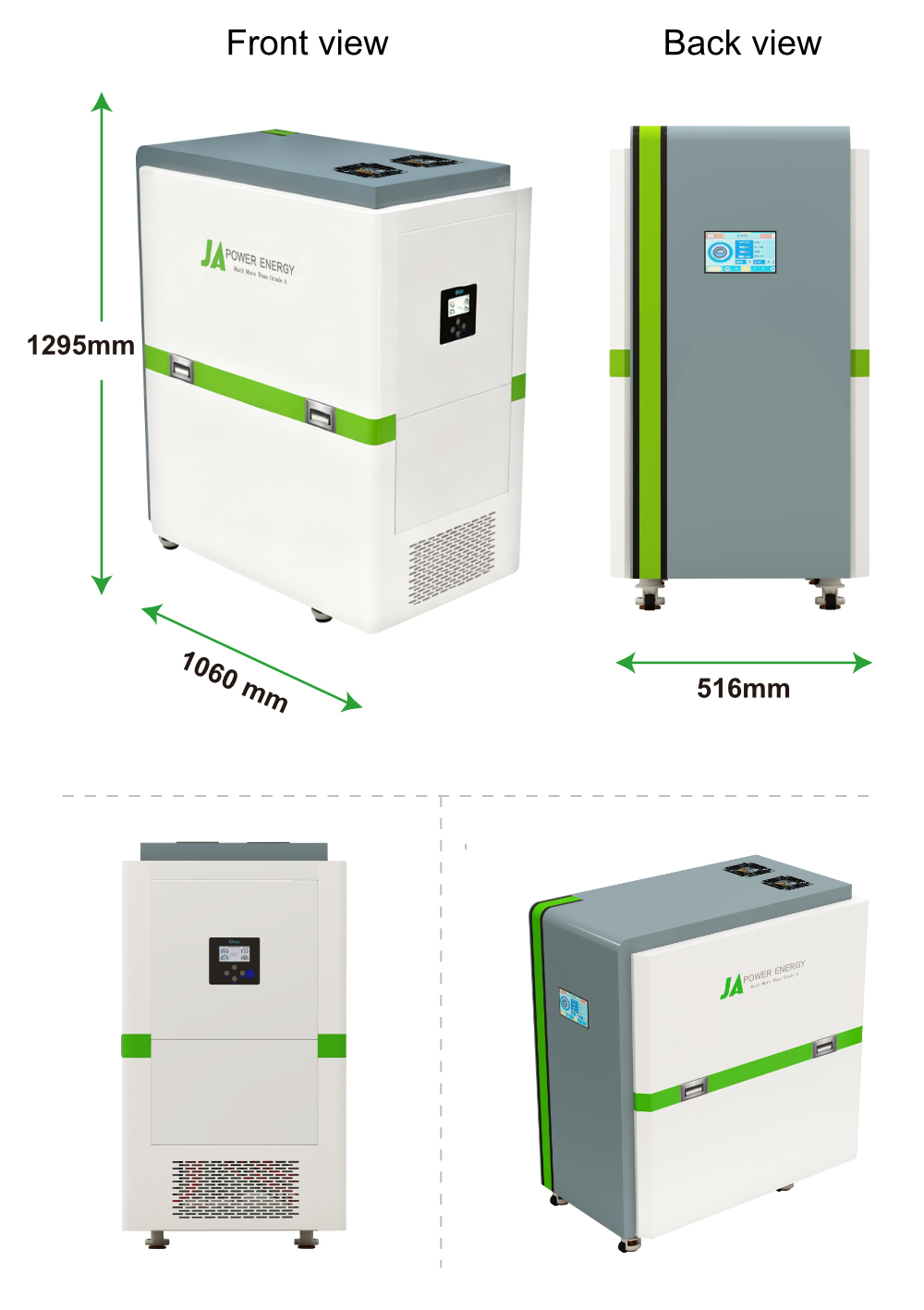

Dimension (WxDxH, mm) 1060*516*1100 1060*516*1295 1060*516*1578
Weight Approx (kg) 472 590 700
Battery Chemistry LiFePO4
IP Rating IP21 ~ IP65
Warranty 10 years / 15 years
Inverter Technical Details
Max. PV Input Power (W) 18000 25600 32000
MPPT Voltage Range (Vdc) 200-650 160-650
Max. Efficiency 97.6%
Battery Technical Details
Battery Capacity (Ah) 280 314
Battery Energy (kWh) 43.00 57.32 64.28 80.35
Cycle Life >8000 (@25°C, 0.5C/0.5C, 70%EOL)
Frequently Asked Questions
What type of battery cells are used in this system?
The system is equipped with REPT high-quality LiFePO4 battery cells, ensuring high safety and long cycle life.
Does the system support off-grid operation?

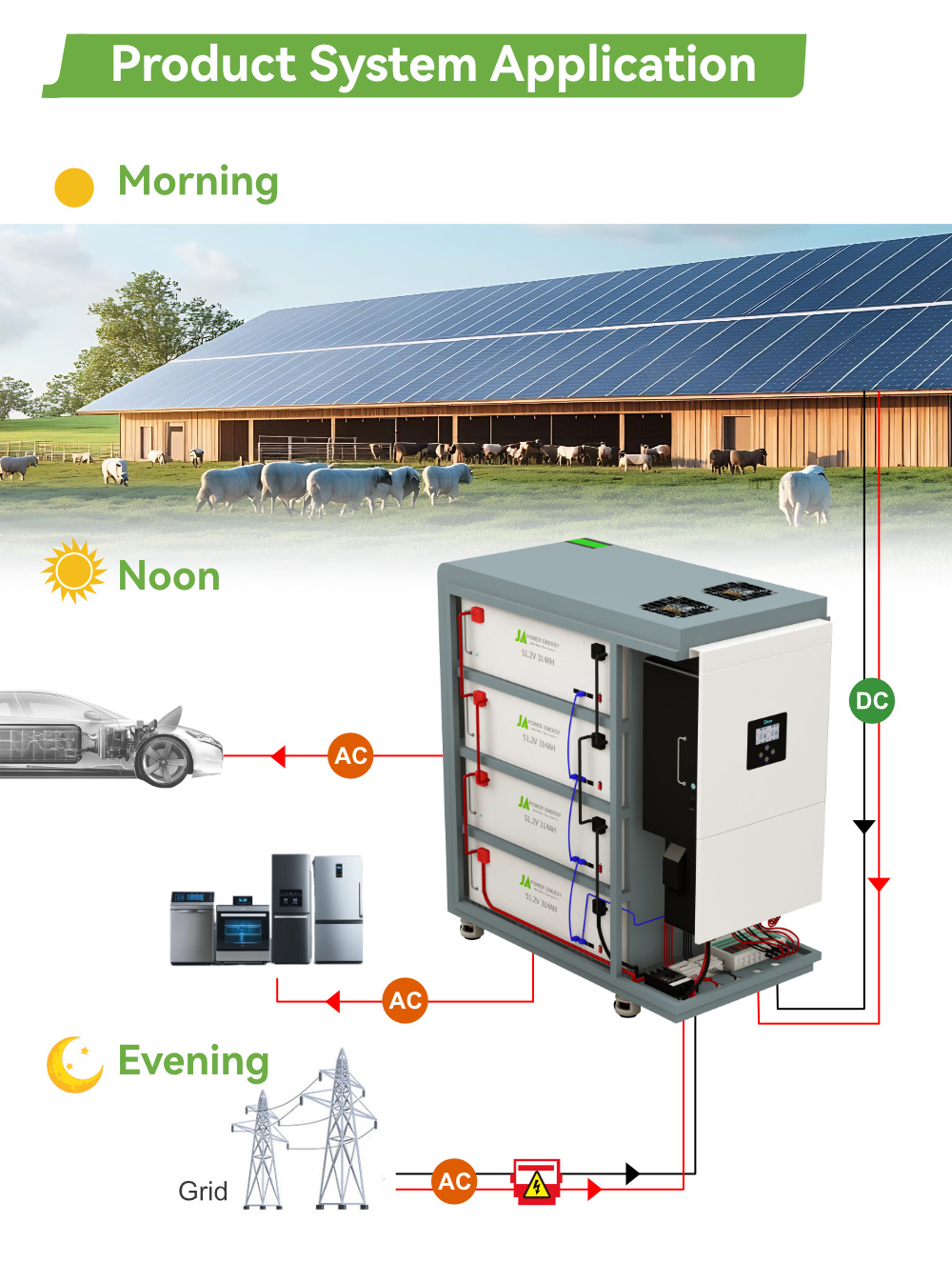

Yes, the integrated technology supports black start functions and full off-grid operation capability.
What safety protections are integrated into the unit?
The unit includes comprehensive protection features such as combustible gas, smoke, and temperature detection, along with an active exhaust system and fire alarm.
How can I monitor the system performance?
The system features a Smart APP that allows you to monitor data in real-time and supports remote control functions.
What is the expected lifespan and warranty?
The system offers a cycle life of over 8000 cycles and comes with a warranty of 10 to 15 years.
What certifications does the energy storage system have?
The system is fully certified with UN38.3, IEC62619, CE, CEI 0-21, VDE-AR-N 4105, and IEC 62109 standards.
