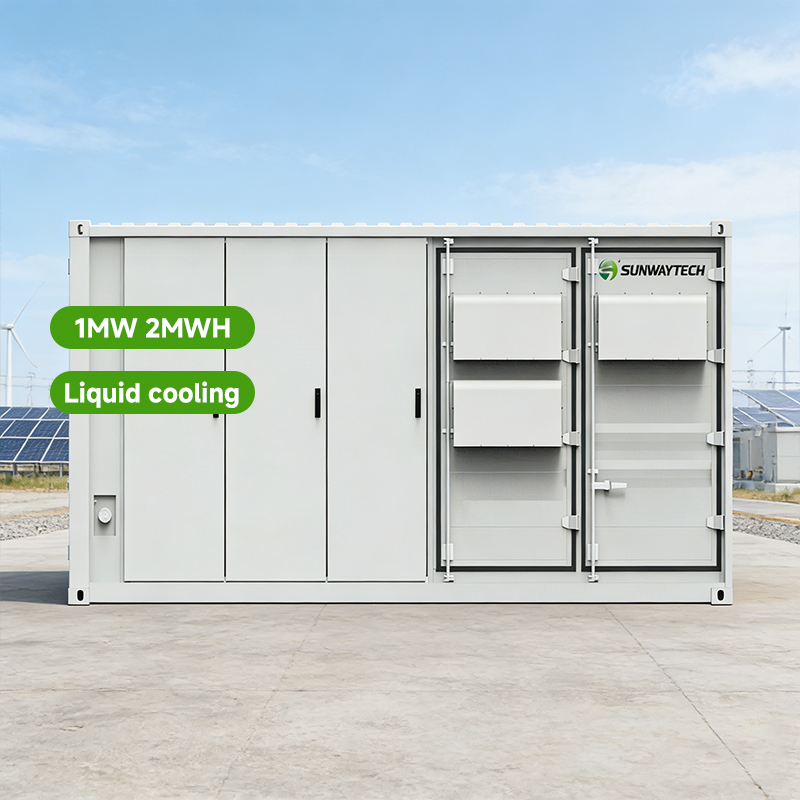

500Kwh 1Mwh 2Mwh Industrial 20FT Solar Container Energy Storage System Sunway BESS 1MW Liquid Cooling Solar System

1 / 5

500Kwh 1Mwh 2Mwh Industrial 20FT Solar Container Energy Storage System Sunway BESS 1MW Liquid Cooling Solar System

Send Inquiry

Product Description

Our 1MW 2MWH containerized integrated energy storage system is a cutting-edge solution for grid stabilization, industrial & commercial peak shaving, renewable energy integration, and microgrid applications. With a highly integrated design, advanced LFP battery technology, and intelligent management system, it offers high efficiency, long life, and reliable operation.

🚀 Core Advantages

High Integration All-in-one container with battery, BMS, PCS, EMS and cooling system.

Cost Saving 70% less space, 30% lower project cost.

LFP Battery Safe and stable with >6000 cycles.

High Safety LFP battery with multi-level protection.

High Efficiency 1MW power, 2MWh capacity, ≥95% AC-AC efficiency.

Scalable Modular design allows parallel expansion.

Consult for professional consultation and exclusive discounts!

📊 Product Parameters

DC Side Parameters
Operating Voltage Range	580~1000V
Maximum DC Current	200A*8
Compatible Batteries	Lithium-ion/Lead-acid/Photovoltaic modules
Charging Method	Follows BMS commands/Three-stage/MPPT
Operating Mode	Constant current, constant power, MPPT, AC voltage source, DC voltage source
AC Side Parameters (Grid-Connected)
Rated/Maximum AC Power	1000/1100 kW
Rated AC Current	180 A * 8
Rated AC Voltage	400 V, 3W + PE
Rated AC Frequency	50/60 Hz ± 5 Hz
Total Harmonic Distortion (THDi)	<3% (rated power)
Power Factor	-1 leading to +1 lagging
Battery Side Parameters
Battery Rated Capacity	261kWh*8
Battery Rated Voltage	832V
Battery Voltage Range	728~936V
Number of Battery String Groups	8P52S5S
Compatible Batteries	LFP
Cell Capacity	314 Ah
General Parameters
Protection Rating	IP54
Operating Temperature	-25°C~60°C (derating above 45°C)
Relative Humidity	0~95% (No condensation)
Fire Suppression System	Perfluorohexane/Heptafluoropropane pipe-type system
Battery Compartment Cooling	Liquid cooling
Electrical Compartment Cooling	Intelligent air cooling
Dimensions (W×D×H)	605824382896mm
Weight (approx.)	25.5t

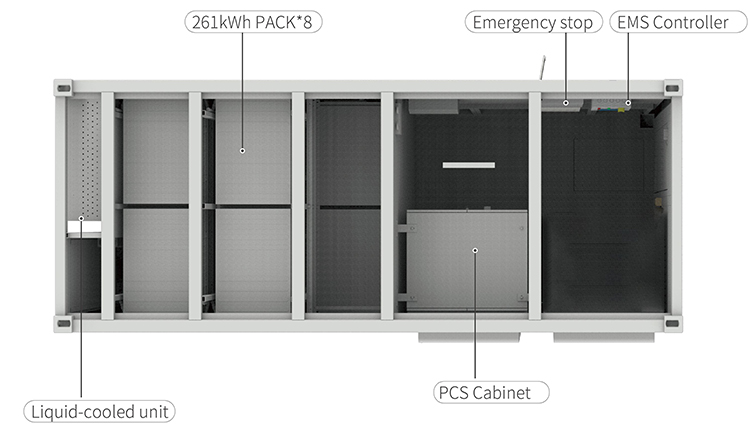

🔍 Product Details

⭐ Why Choose Us

Customization Support customized capacity, voltage, and various application scenarios.

Fast Delivery Short lead time with global shipping capabilities.

Professional Service Lifelong technical support and 24-hour response time.

Competitive Price Factory direct sales offering cost-effective energy solutions.

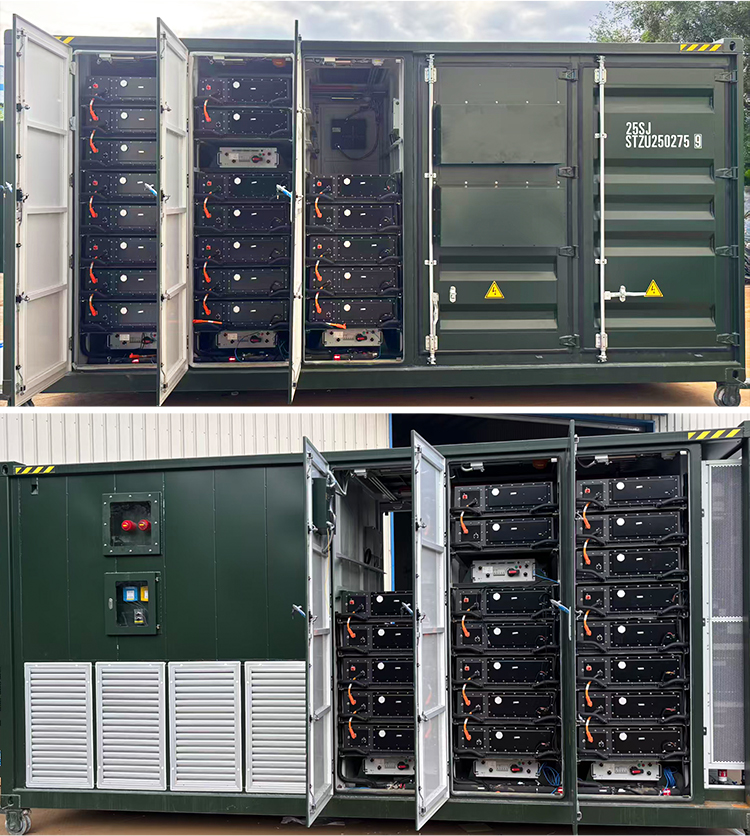

🏗️ Project Case

📦 Packaging & Shipping

Packaging advantage: Wooden box packaging enables high-strength stacking, simple operation and high cost-effectiveness. Extra large and extra long sizes can be easily assembled. Can be loaded and unloaded from the front. Can be transported flat or in kits to the assembly site.

📜 Certifications

❓ Frequently Asked Questions

What is the lifespan of the battery system?

The system utilizes advanced LFP (Lithium Iron Phosphate) technology, offering a cycle life of more than 6,000 cycles, ensuring long-term reliable operation.

Does the system support customization?

Yes, we support customization for capacity, voltage, and specific application scenarios to meet your unique energy needs.

How is the system cooled?

The system features a dual cooling approach: liquid cooling for the battery compartment to ensure temperature uniformity, and intelligent air cooling for the electrical compartment.

What are the main safety features?

Safety is our priority. The system includes multi-level protection via the BMS and a specialized perfluorohexane/heptafluoropropane pipe-type fire suppression system.

What is the AC-AC round-trip efficiency?

The 1MW 2MWH containerized system achieves a high AC-AC efficiency of ≥95%, minimizing energy loss during storage and discharge.

What is the protection rating for outdoor use?

The entire containerized system is rated IP54, making it suitable for various outdoor environments with operating temperatures from -25°C to 60°C.
