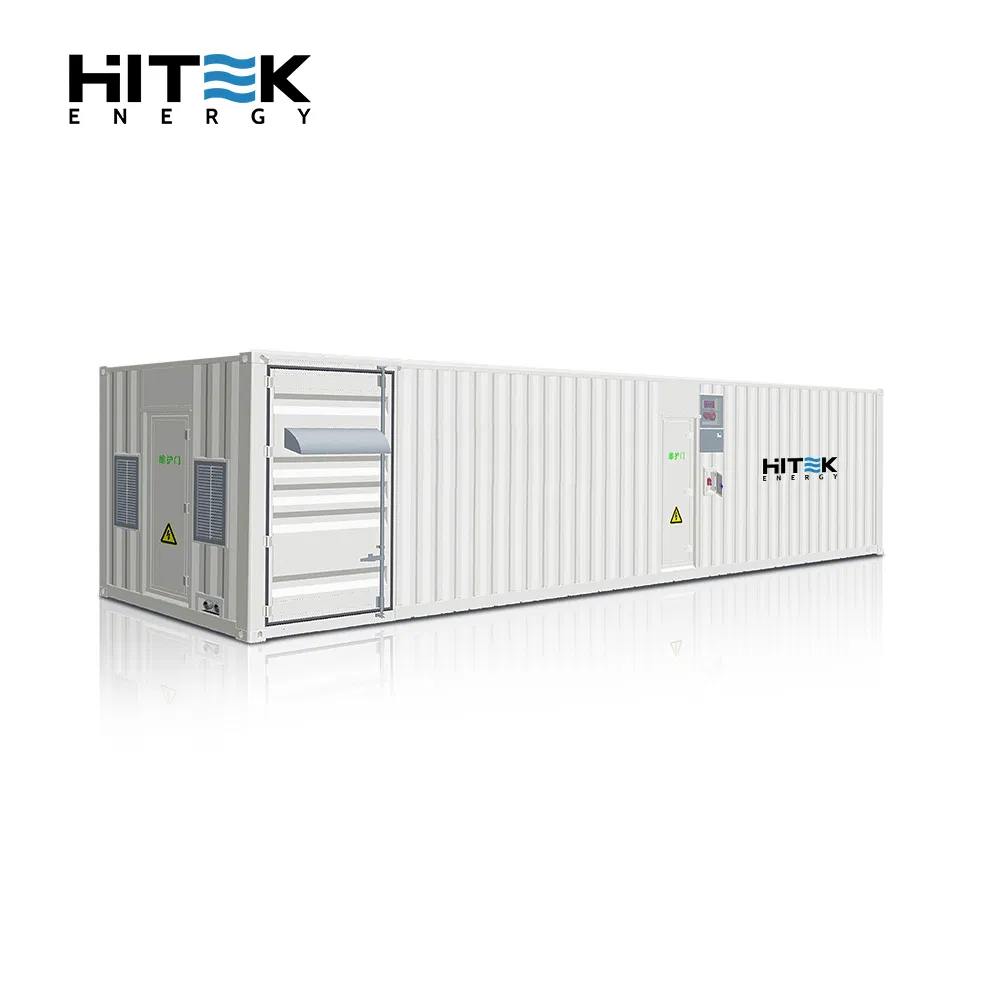

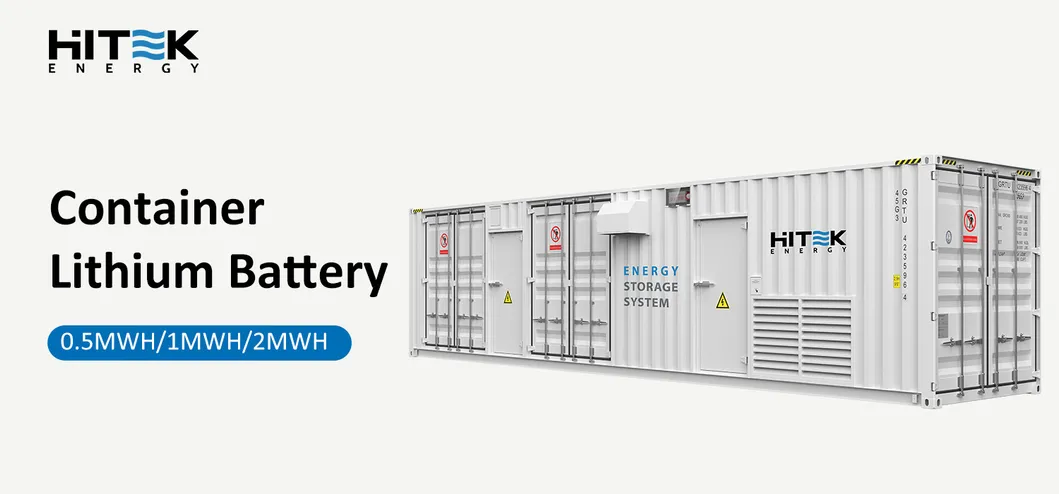

Hitek Energy 15years Lifespan 40FT Ess Battery Container 3mwh 2mwh 1mwh for EV Charging with 500kw 1MW Solar Distributed Energy Storage Container System

1 / 5

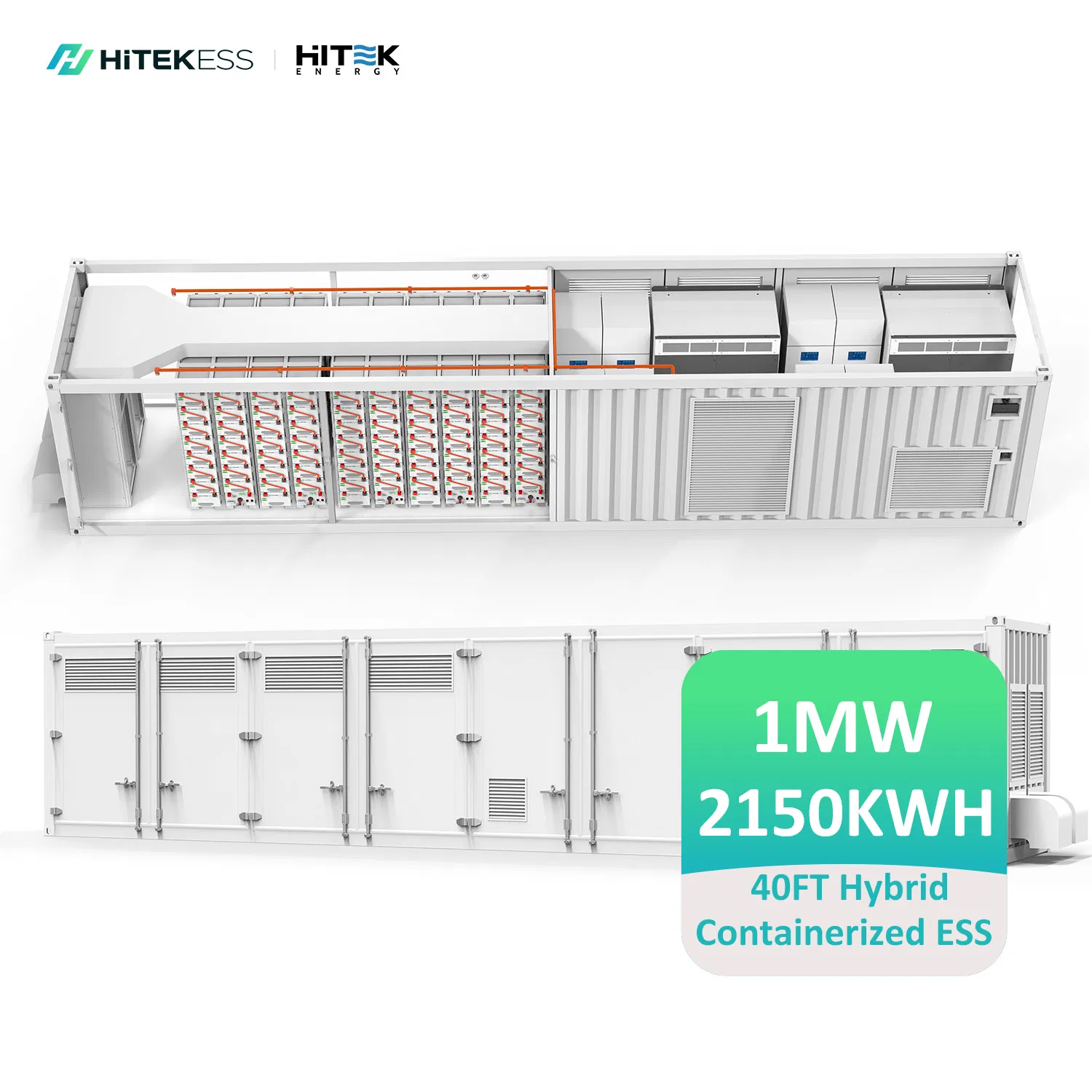

Hitek Energy 15years Lifespan 40FT Ess Battery Container 3mwh 2mwh 1mwh for EV Charging with 500kw 1MW Solar Distributed Energy Storage Container System

Customization:	Available
Container Size:	12192mm(L)2438mm( W)2591mm(H)
Weight:	22 Ton

Send Inquiry

Product Description

Basic Information

Model NO.

HT-500/2000-EC

Nominal Voltage

380/400/415/480V 3 Phase

Warranty

5 Years

Nominal Capacity

250kwh, 500kwh, 1mwh, 2mwh

Cycle Life

6000+ Cycles

System Application

Ess Solar Storage Container

Battery Type

LiFePO4/Lithium Battery

BMS

Integrated Battery Management System

20FT Container

Outdoor Installation, IP54

Origin

China

Product Description

Working Modes: Ongrid mode (Zero Export, Load First, Battery First, Economy Mode, Peak Shaving); Offgrid Mode; Generator Connection.

BMS Features: Battery status monitoring (Record & Storage, Operation Control, Insulation Detection, Dynamic Balancing, Protection Alarms).

PCS Features: Wide Range of DC Input Voltage, Indoor/Outdoor Installation, Short Conversion Time from Charge to Discharge.

Safety & Environment: Integrated Fire Protection System and Air Conditioning System.

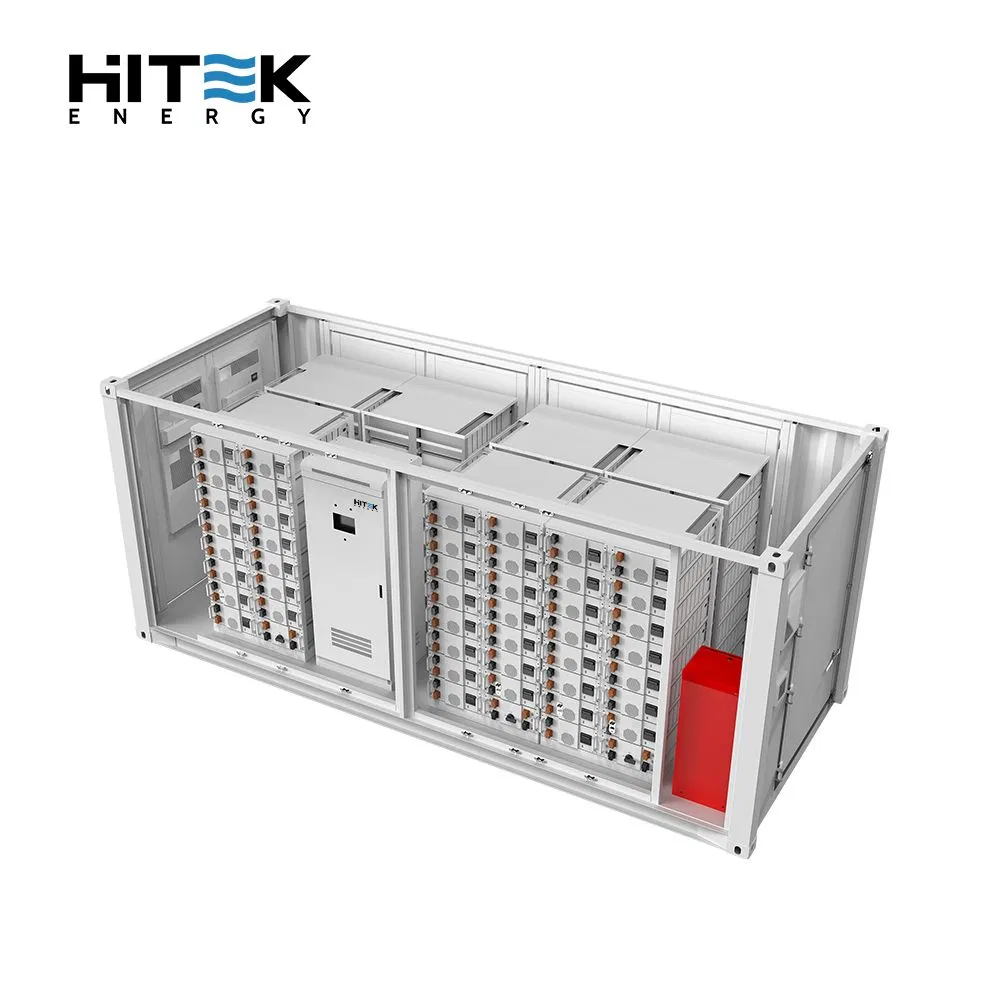

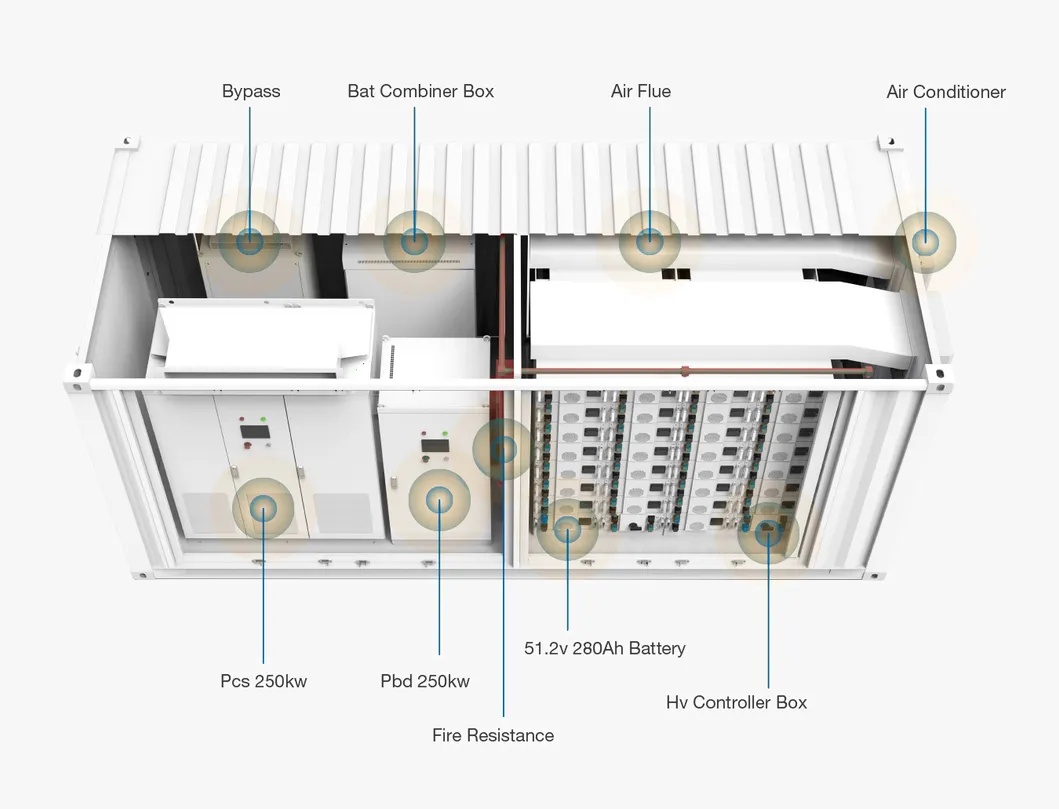

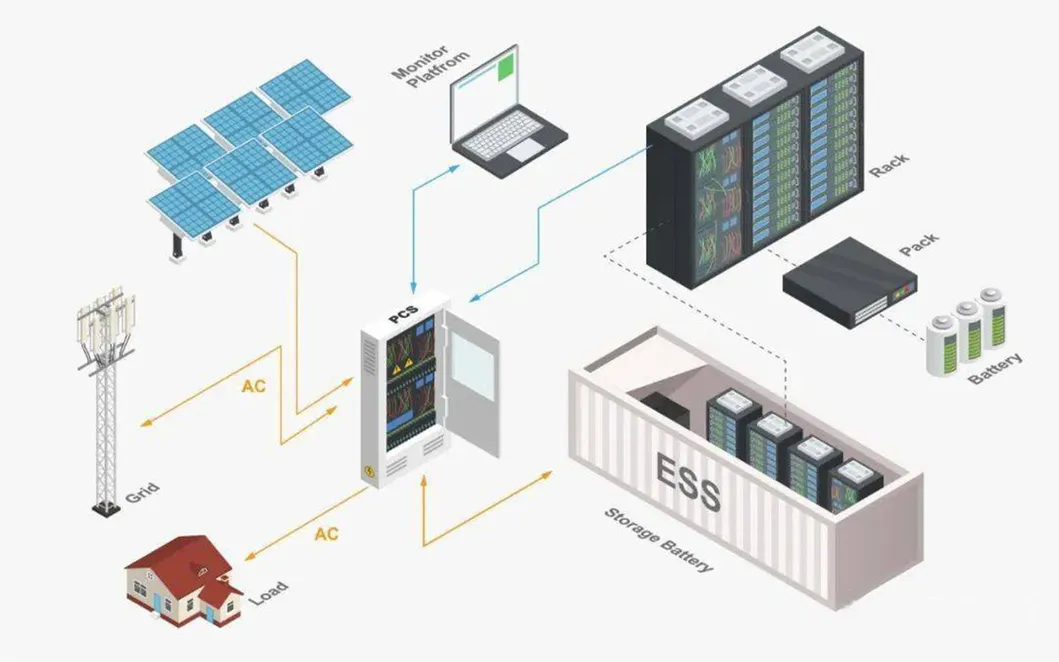

System Configuration

Item	Description	Qty	Remarks
PV Solar Panel	HT560M-72H	960	Total of 537.6KW

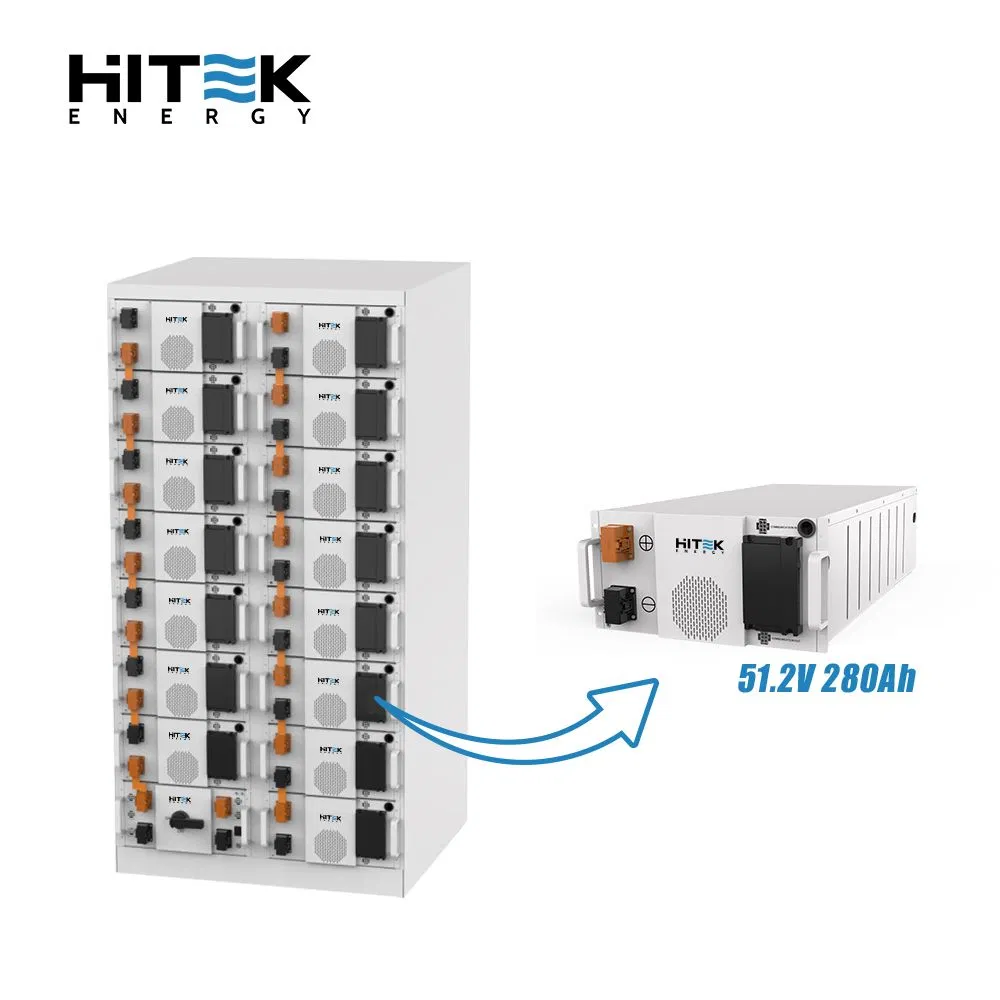

Battery Backup	280Ah Lithium Module	150	51.2V 280AH (14.3kWh per module)
Combiner Box	1500V-1500A	1	For multiple battery racks
PCS500	500KW Inverter	1	Bidirectional battery inverter
EnerLog	Datalogger	1	Monitoring system
20FT Container	IP54 Rated	1	Includes lighting, fire-resistance, AC

Product Parameters

PERC Mono Solar Panel

Model: HT560M-72
Peak Power: 560Wp
Voc: 49.84V | Isc: 14.14A
Vmp: 41.08V | Imp: 13.64A
Dimensions: 2279*1134*35mm

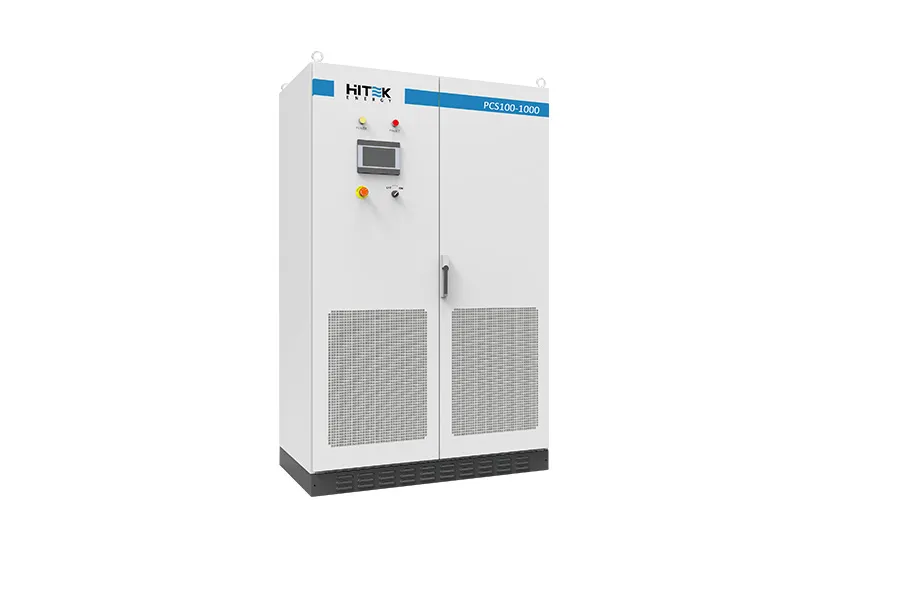

Bidirectional Inverter (PCS)

Range: 100-1000KW. Can be used alone or with solar chargers. Features flexible configuration, programmable working modes, and touchscreen LCD.

Bypass Cabinet

Designed for seamless transfer between on-grid and off-grid modes automatically, ensuring continuous power supply.

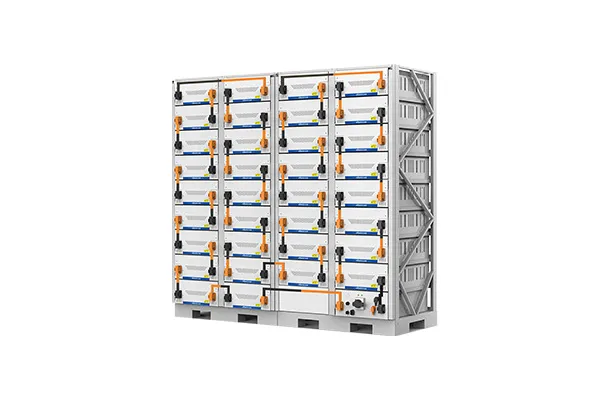

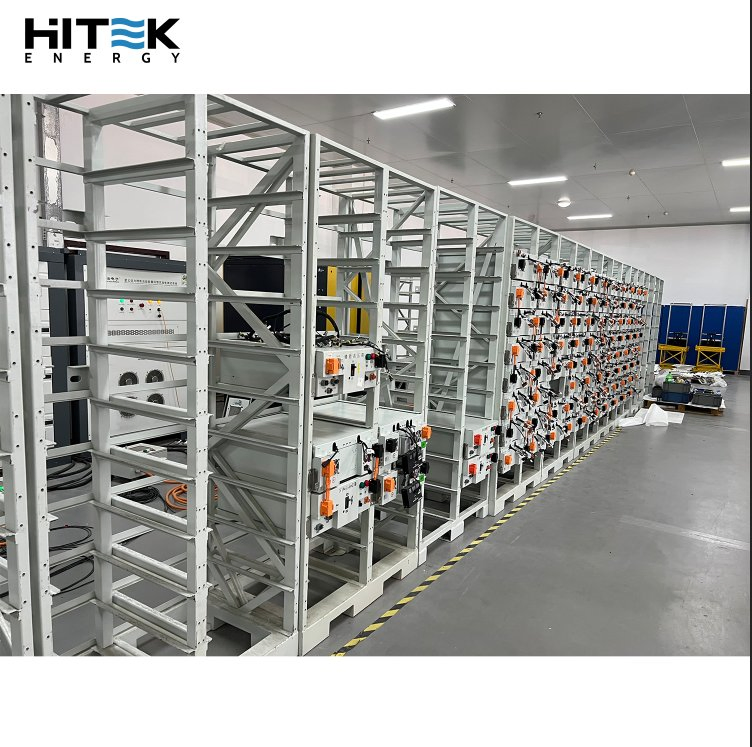

Storage Battery Bank

Standard modules consisting of 150 single cells. Nominal voltage 51.2V, total capacity 1720kWh @ 80% DOD.

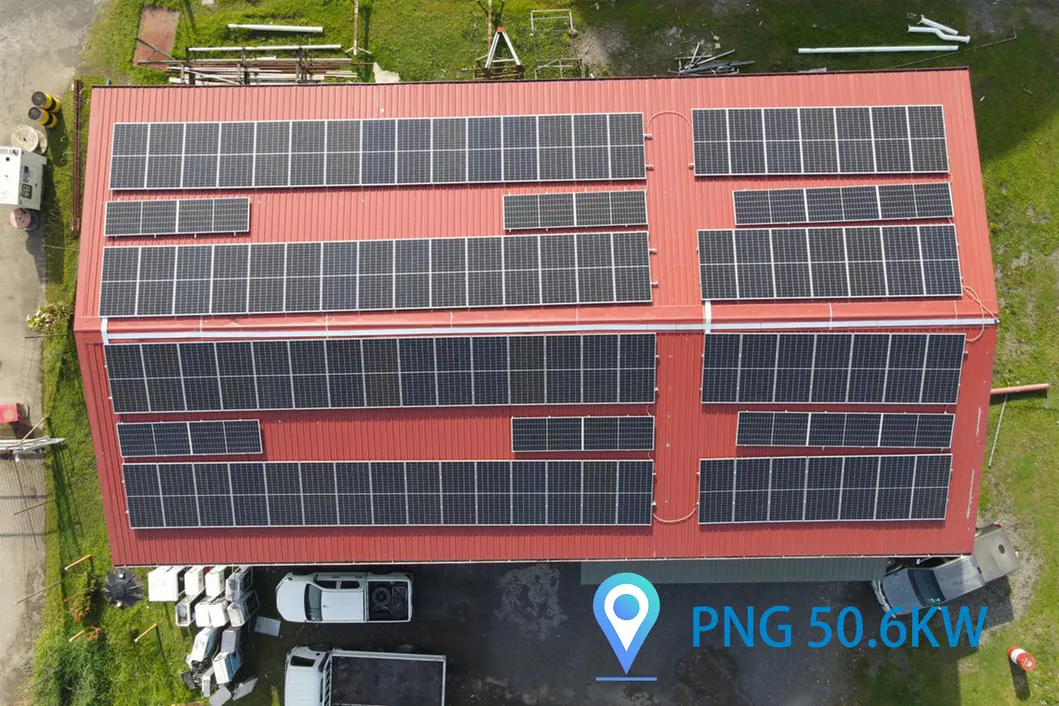

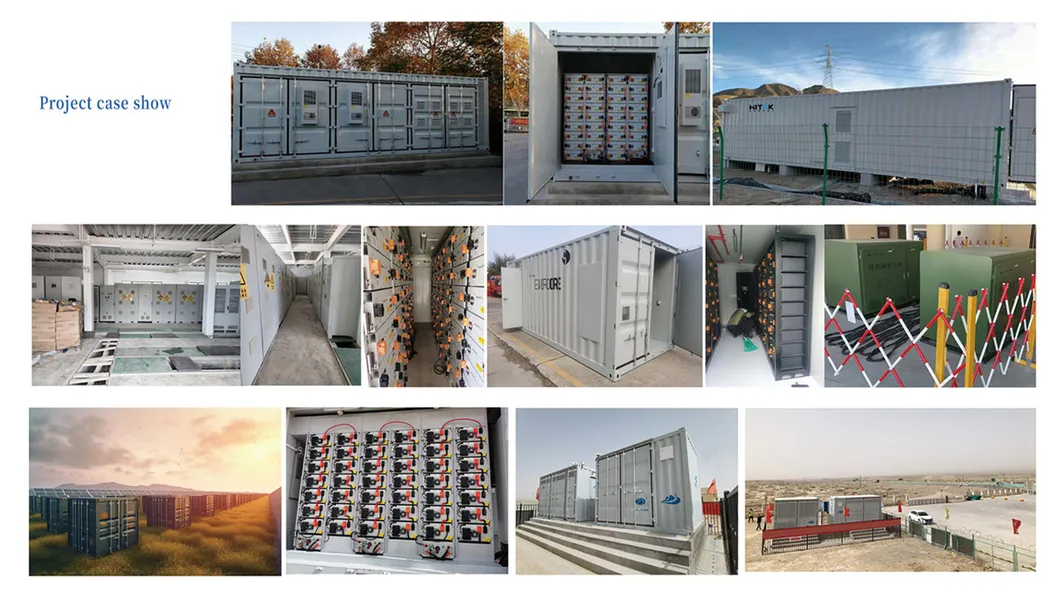

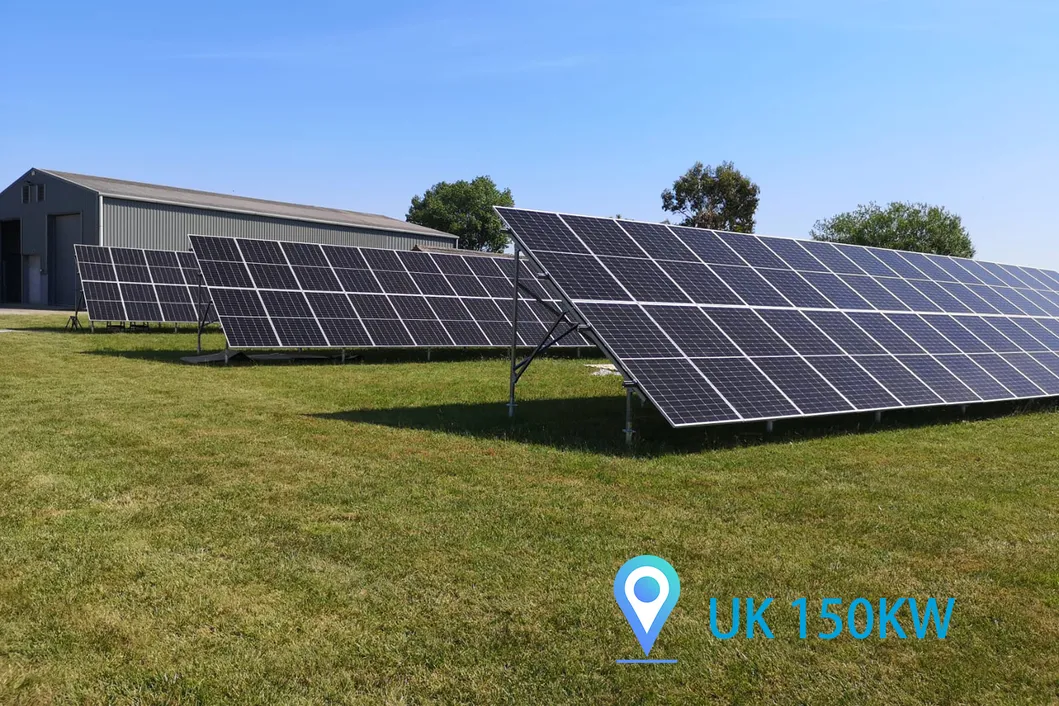

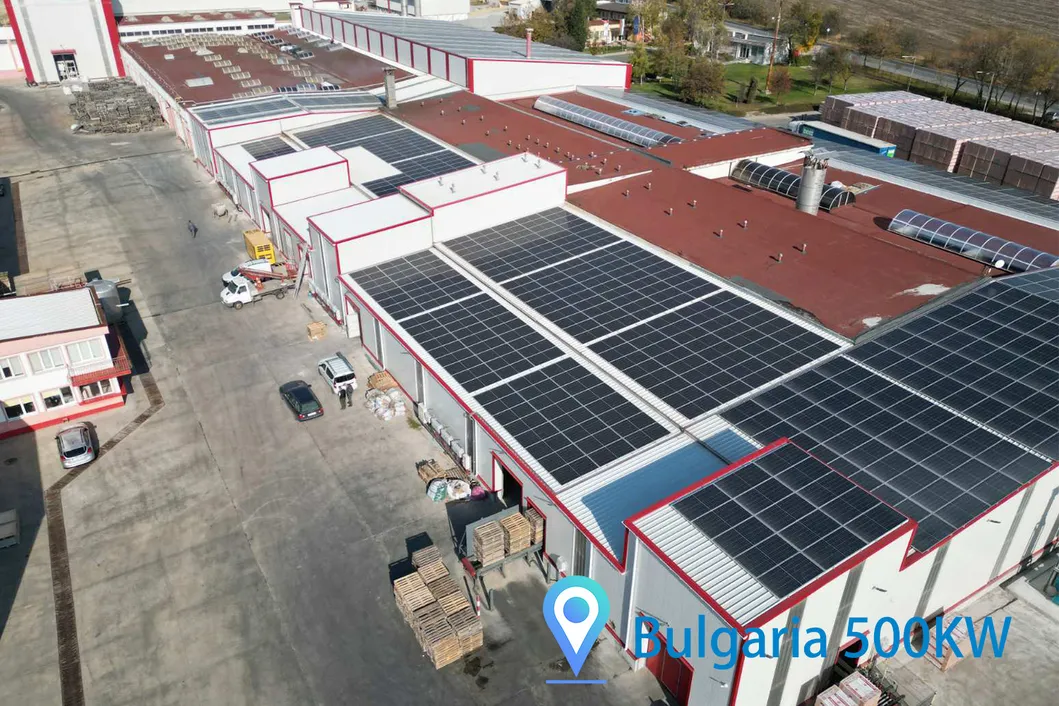

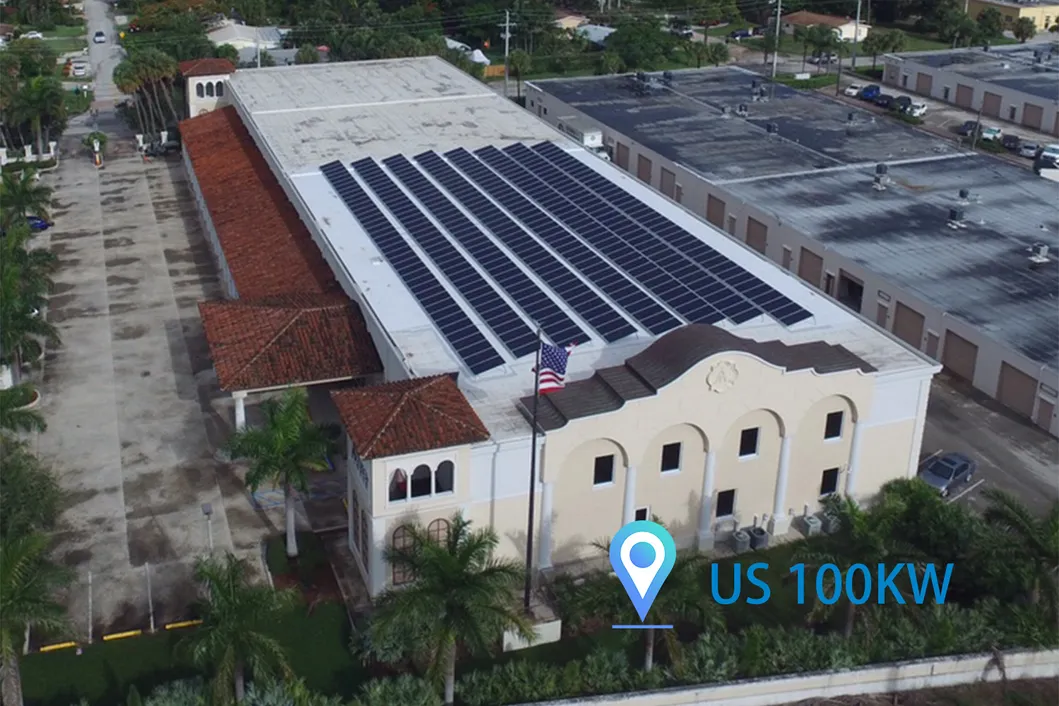

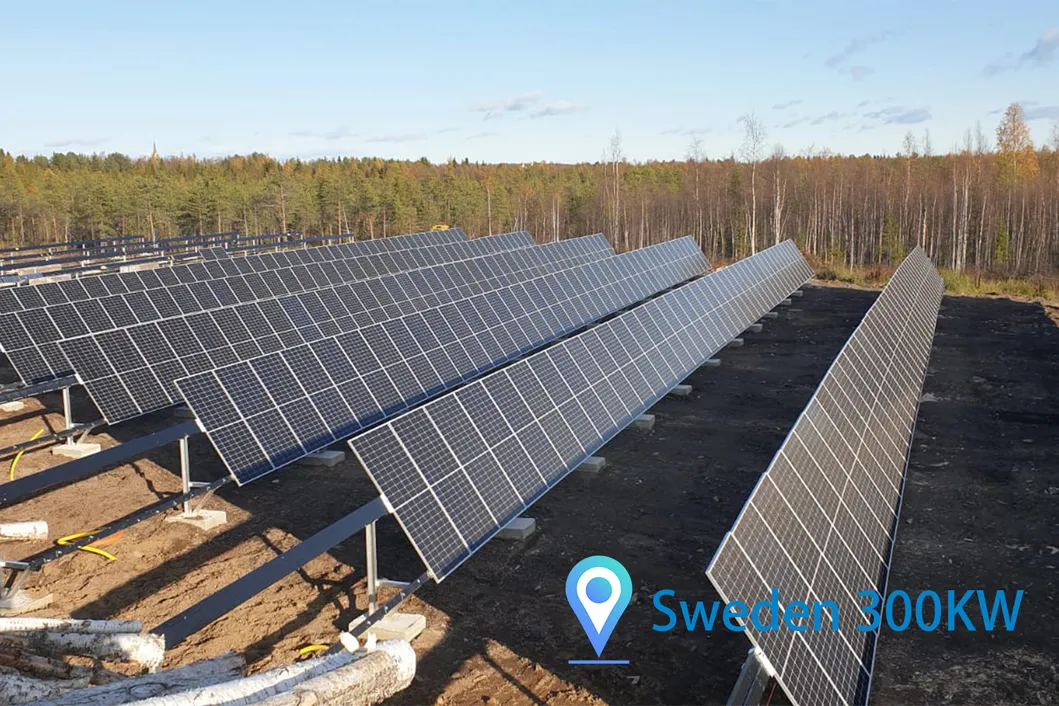

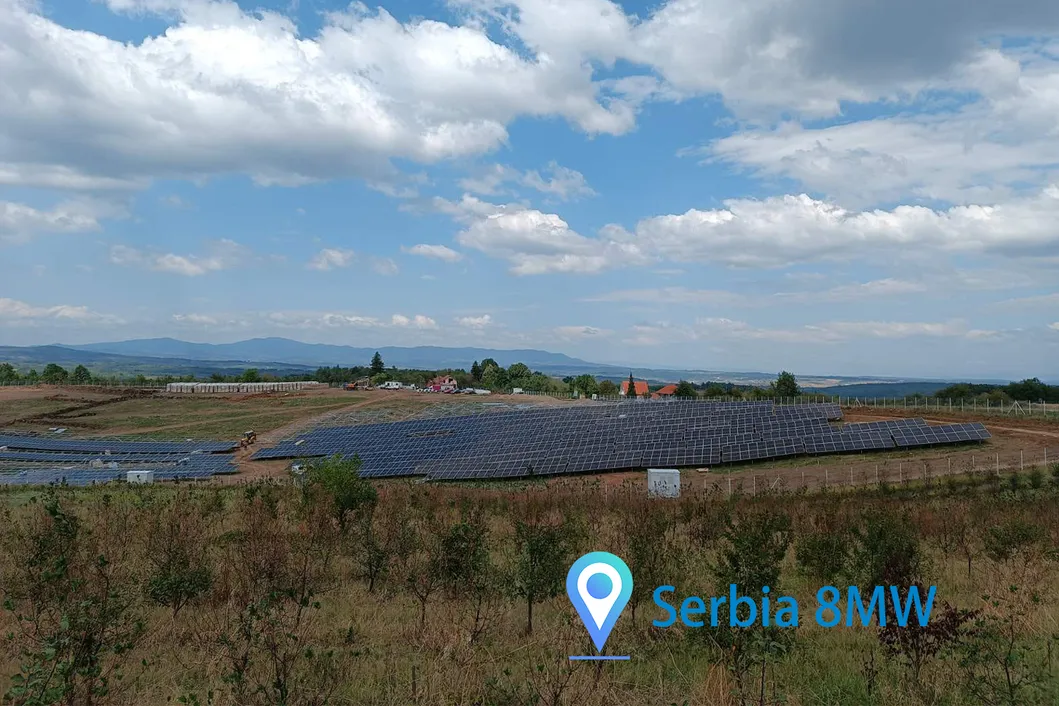

Global Projects

About Our Solutions

Founded in 2018, we are dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses, and factories.

We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to unique power requirements with reliable approved equipment.

Let's work together for a better, brighter and greener future.

Frequently Asked Questions

What is the cycle life of the battery system?

The system features high-quality LiFePO4 batteries with a cycle life of over 6000 cycles at 80% DOD.

Can the containerized ESS be used outdoors?

Yes, the system is housed in a standard 20FT or 40FT container with an IP54 rating, specifically designed for outdoor industrial environments.

Does the system include fire protection?

Yes, each energy storage container is equipped with an integrated fire suppression system and air conditioning for thermal management and safety.

What working modes are supported?

The system supports On-grid (Zero Export, Load First, Peak Shaving), Off-grid, and Generator Connection modes.

What is the warranty period?

We provide a comprehensive 5-year warranty for the energy storage container system.

Is the system monitoring available remotely?

Yes, the integrated EnerLog monitoring datalogger allows for real-time tracking and management of system performance.
