The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

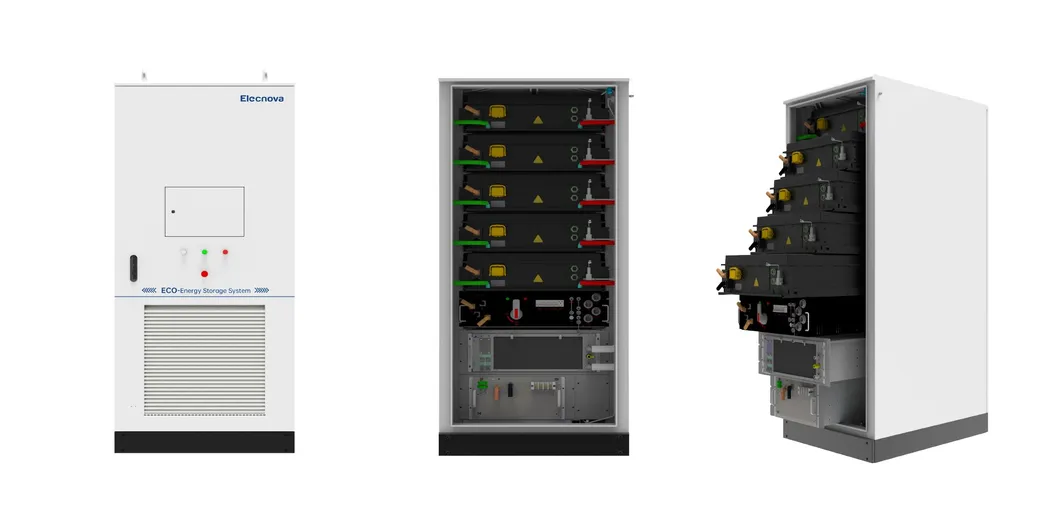

3D Structure Diagram

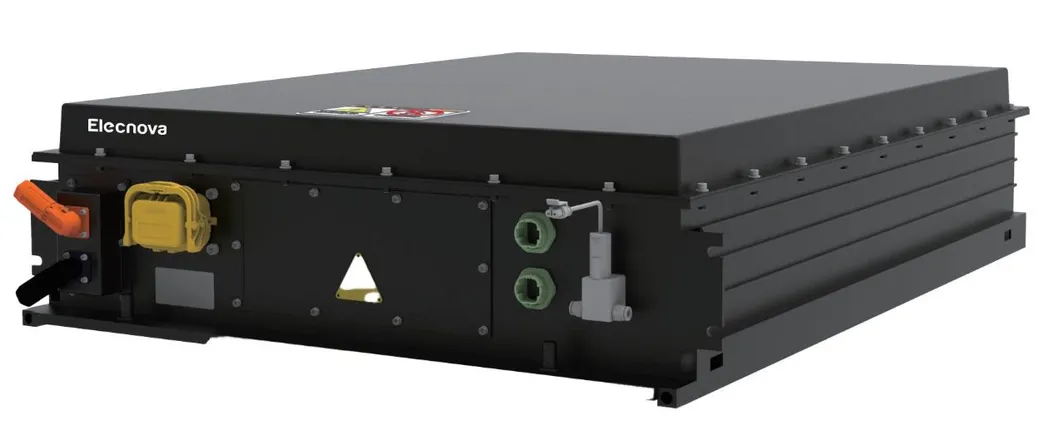

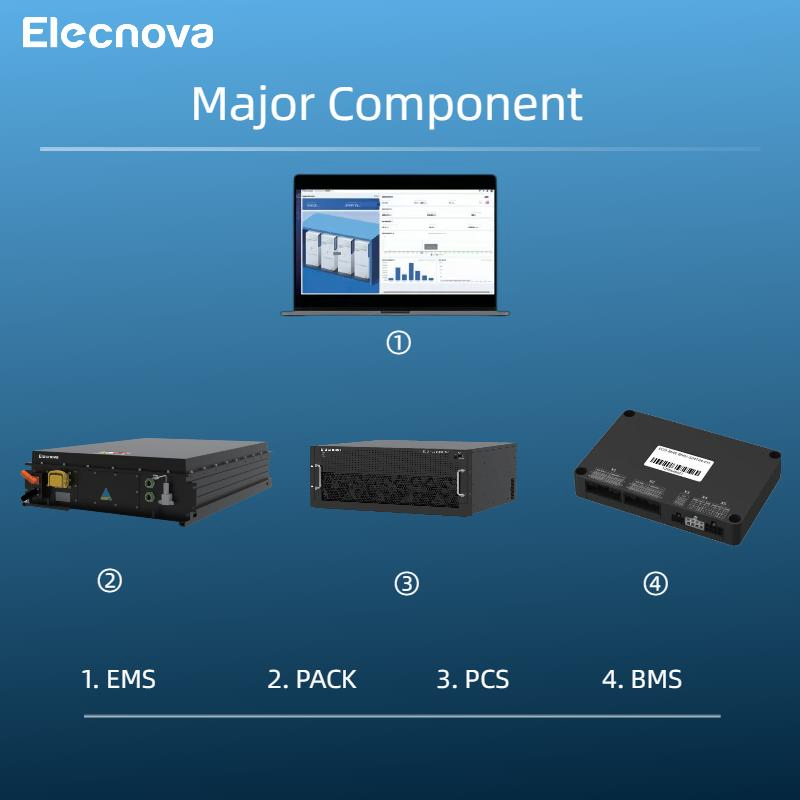

Liquid-Cooled PACK
Consists of LFP cells (1P52S) with built-in BMU and liquid cooling plate.

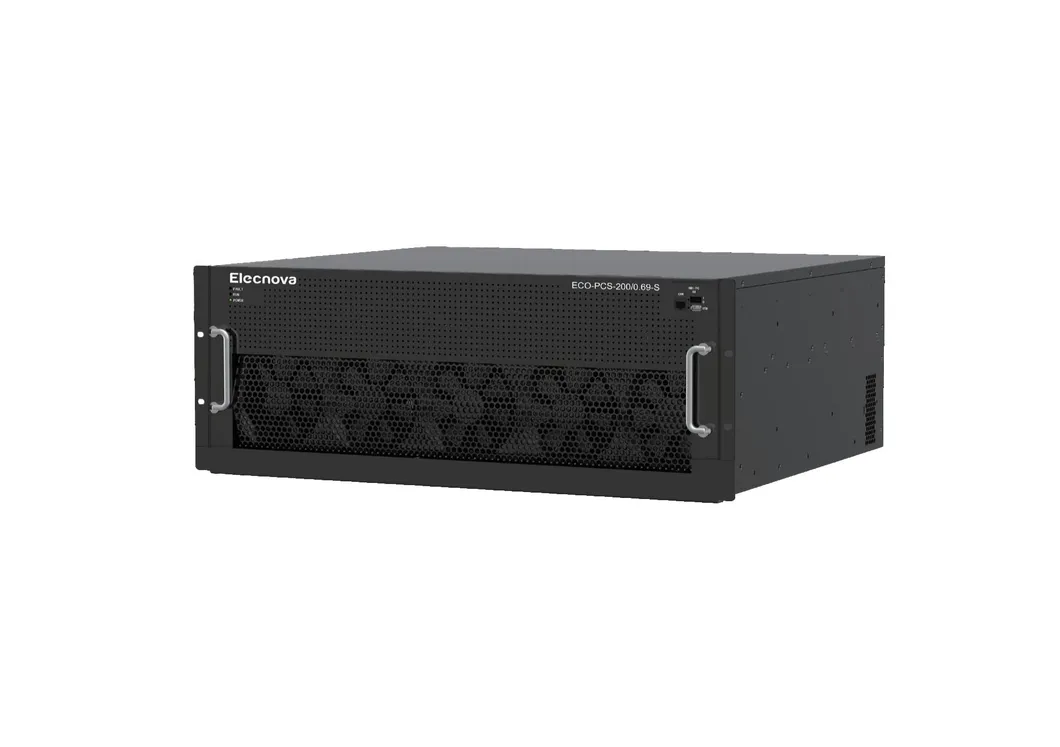

PCS (Power Conversion System)
Bidirectional energy conversion modular inverter for C&I ESS scenarios.
BMS Architecture
Three-level monitoring (BMU+BCU+BAU) for real-time safety and fault diagnosis.

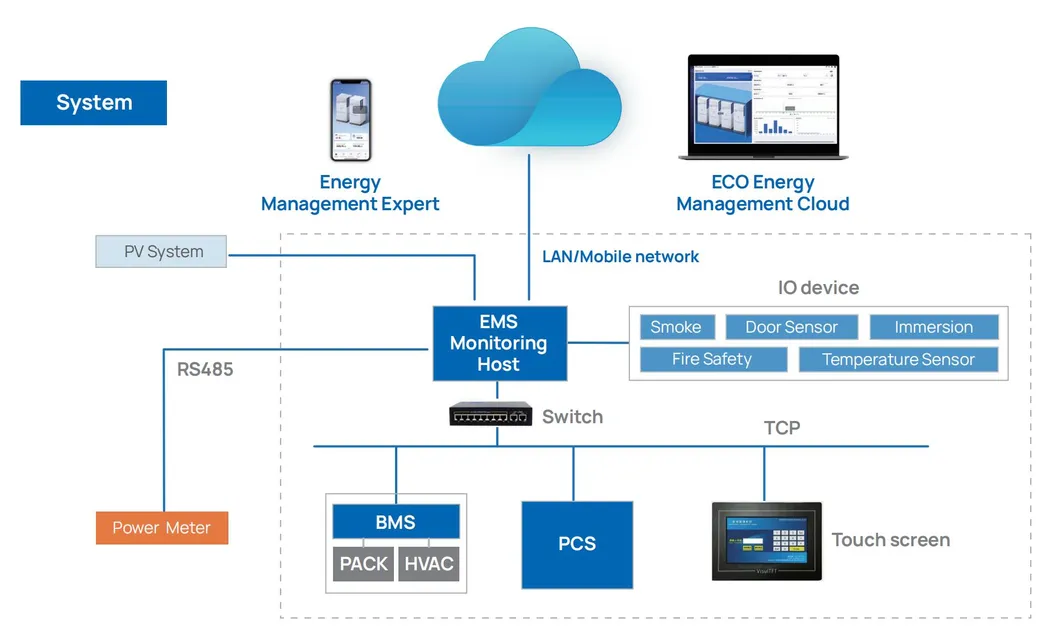

EMS Control
Smart energy management system to optimize operations and ROI.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP 280Ah |
| PACK Capacity | 46.592kWh |
| Total Battery System | 233.96kWh |
| Voltage Range | 728 ~ 936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side Specifications | |
| Rated / Max Power | 100kW / 110kW |
| Nominal Voltage | 400Vac (3P+N+PE) |
| THDi | <3% |
| Frequency | 50/60 Hz |
| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Switching Time | <100ms |
| Operating Temp | -25ºC ~ 55ºC |
| Fire Safety | NOVEC1230 / Aerosol |
| Total Weight | 2,500kg |
Our ESS solutions are widely utilized in Industrial Parks, Factories, Microgrids, EV Charging Stations, Data Centers, and Commercial Complexes.
