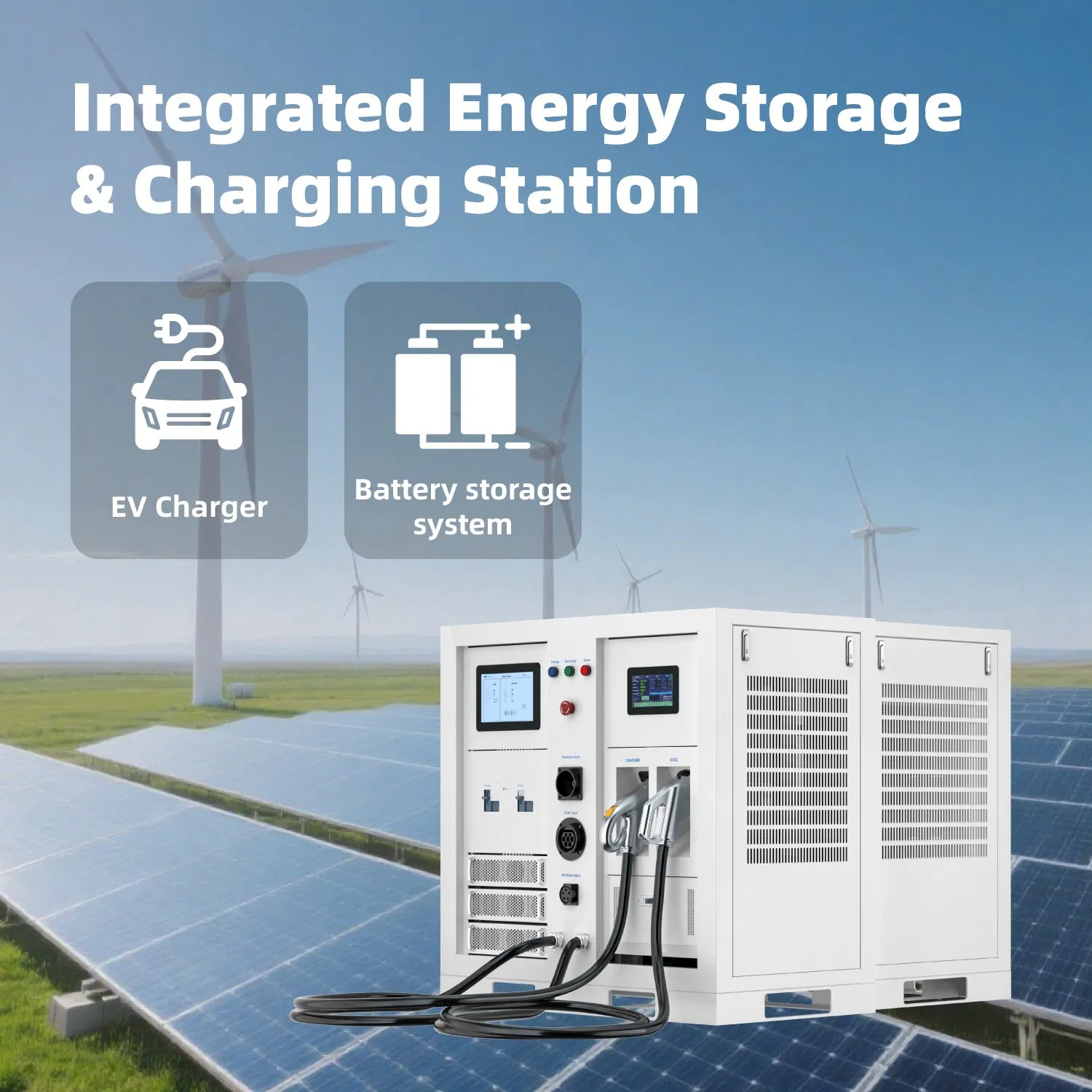

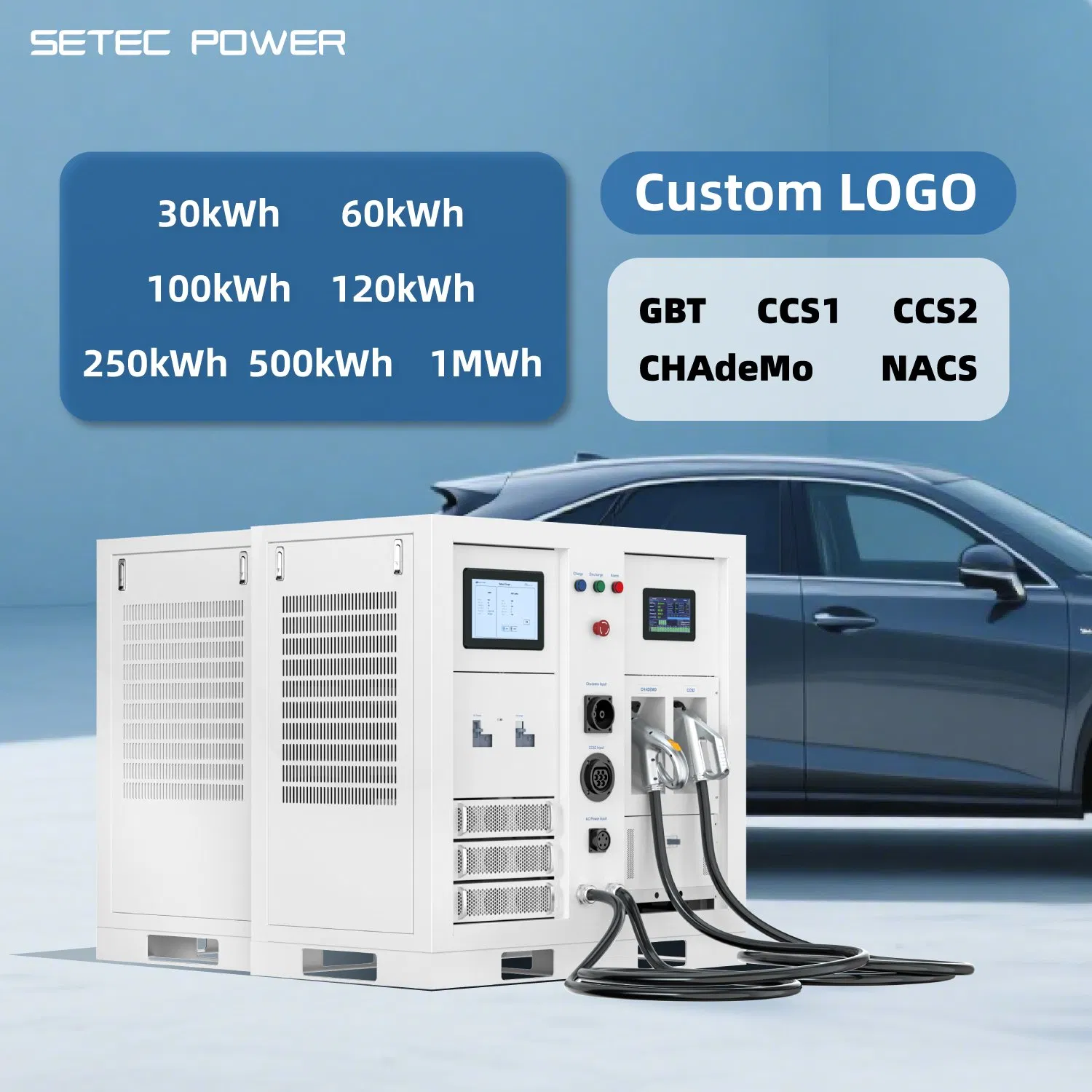

SETEC POWER 30kWh-1MWh Energy Storage System with EV Charging solution Large Capacity Battery Storage System

Customization: Available
Nominal Voltage: 410V
Warranty: 2 years

Product Description

Overview
Energy Storage System
30kWh-1Mwh CCS CHAdeMO NACS Solar Energy Battery Storage System PowerOnTheGo Classic

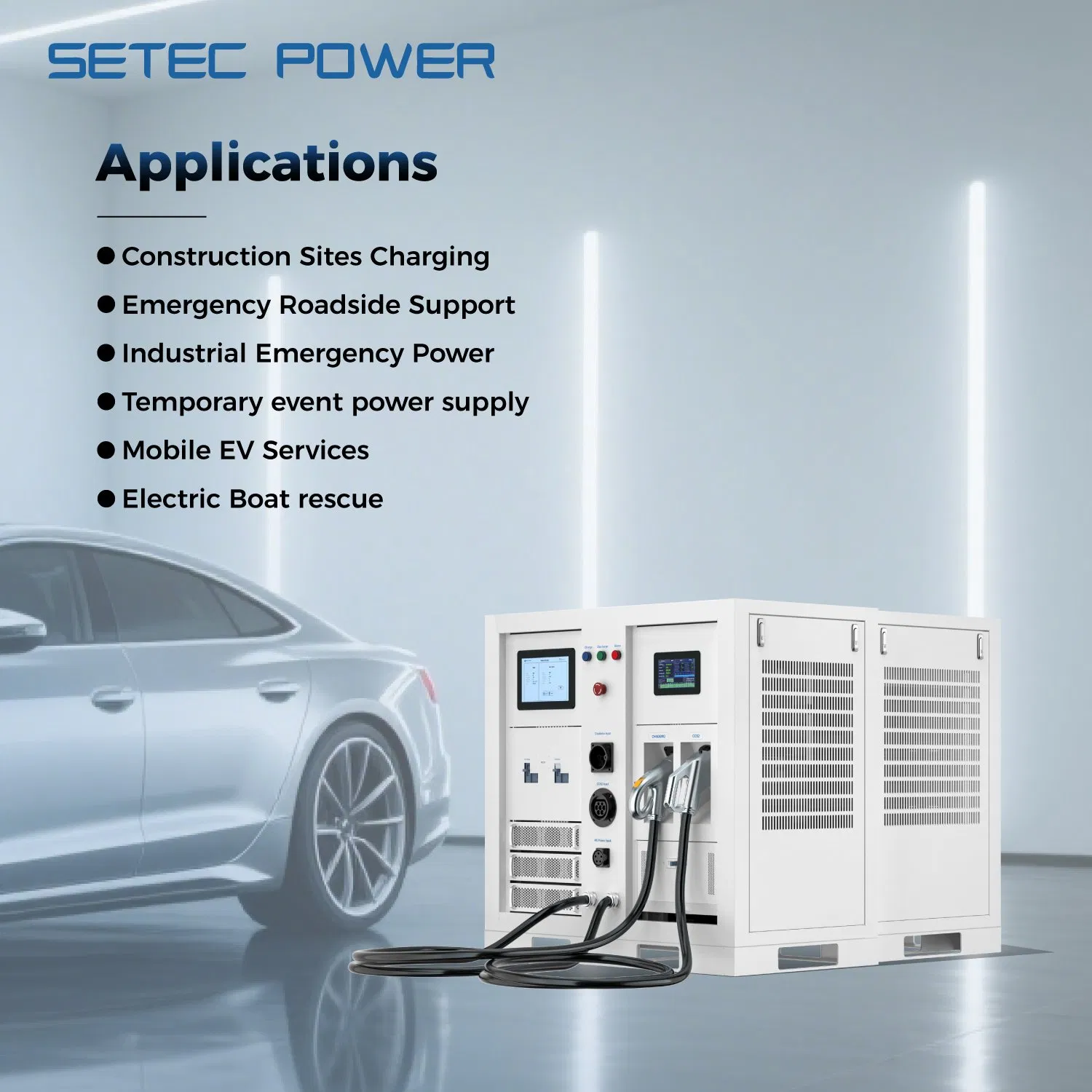

Very suitable for roadside assistance, backup power supply, site vehicle charging, etc.
Nominal Capacity
120kWh
Cycle Life
6000
Input Models
DC/AC Charge
Output Voltage
410V
Output Power
120kW
Battery Type
LFP
Network
Ethernet / WIFI / 4G
Communication
OCPP 1.6 / OCPP 2.0 / TCP
Touch-Display
10" Daylight Readable
Payment Method
RFID / OCPP
📋 Product Parameters
Category Detail Specification

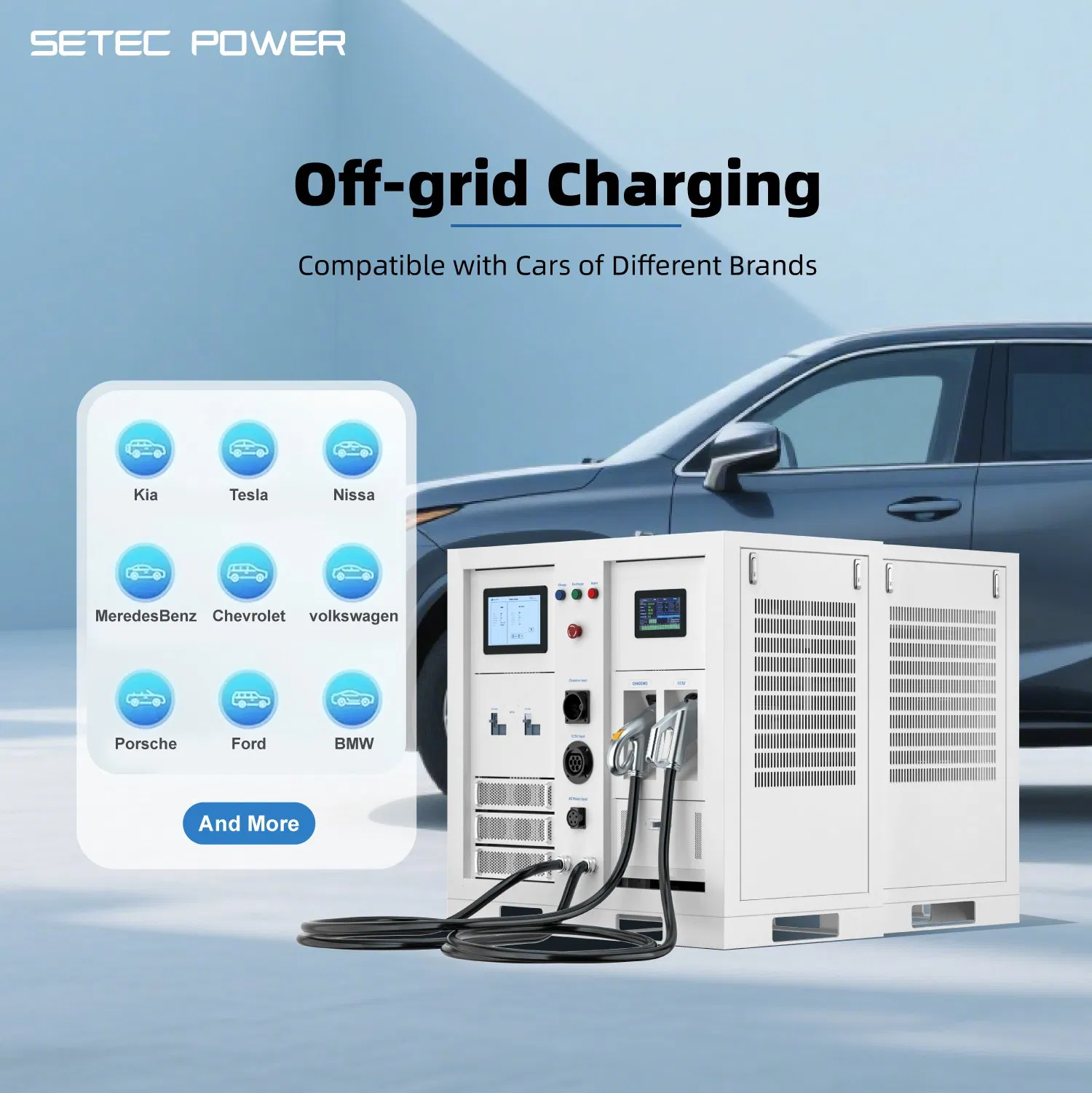

Optional Output Adapters CCS1 / CCS2 / CHAdeMO / GB/T / NACS
Electrical Specification Input Models DC (CCS1/CCS2/CHAdeMO/GB/T/NACS) & AC (480/380Vac 3-Phase)
Output Voltage: 410V | Power: 120kW
Battery Type & Life LFP | 6000 Cycles

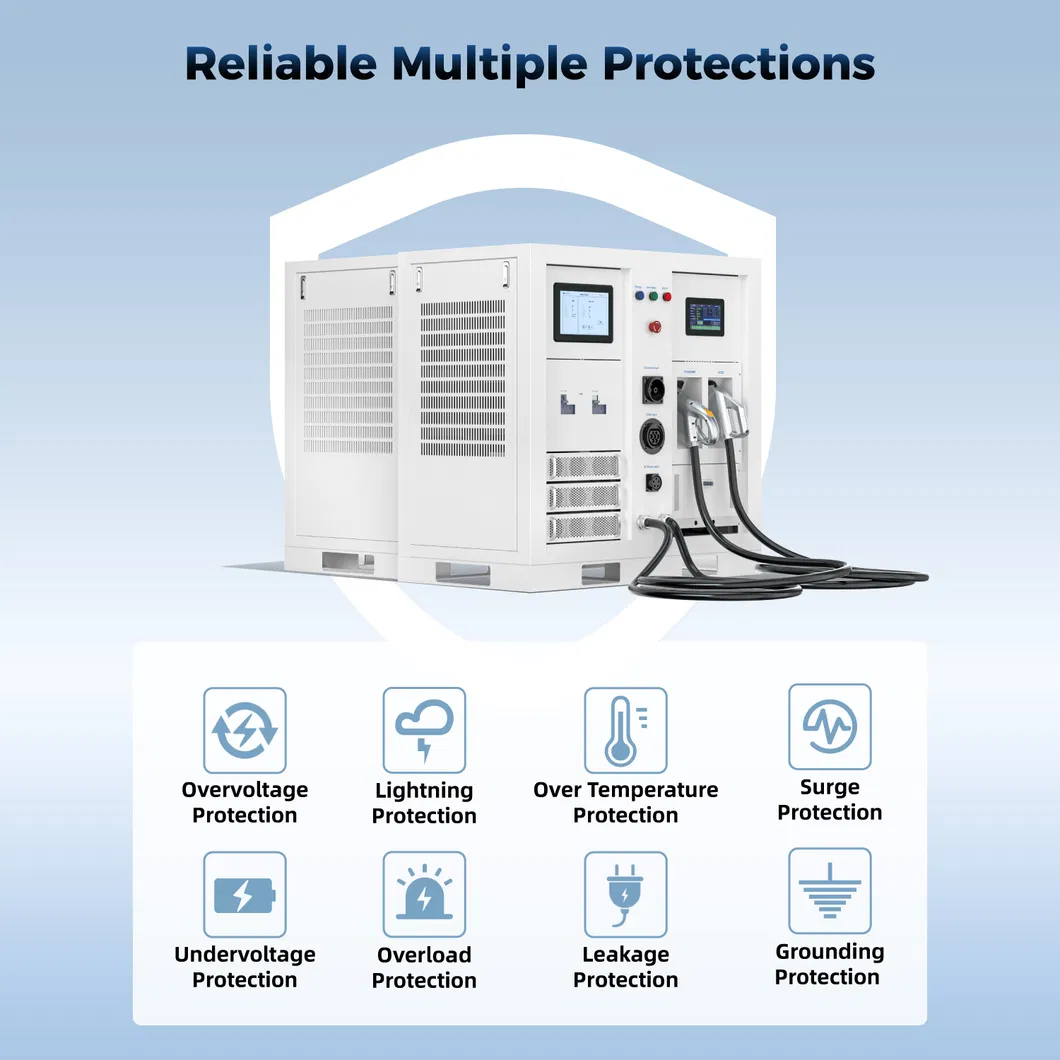

Security Battery Protection Over Charge/Discharge, Over Current, Temp, Short Circuit
Device Protection Voltage, Overload, Surge, Communication Failure

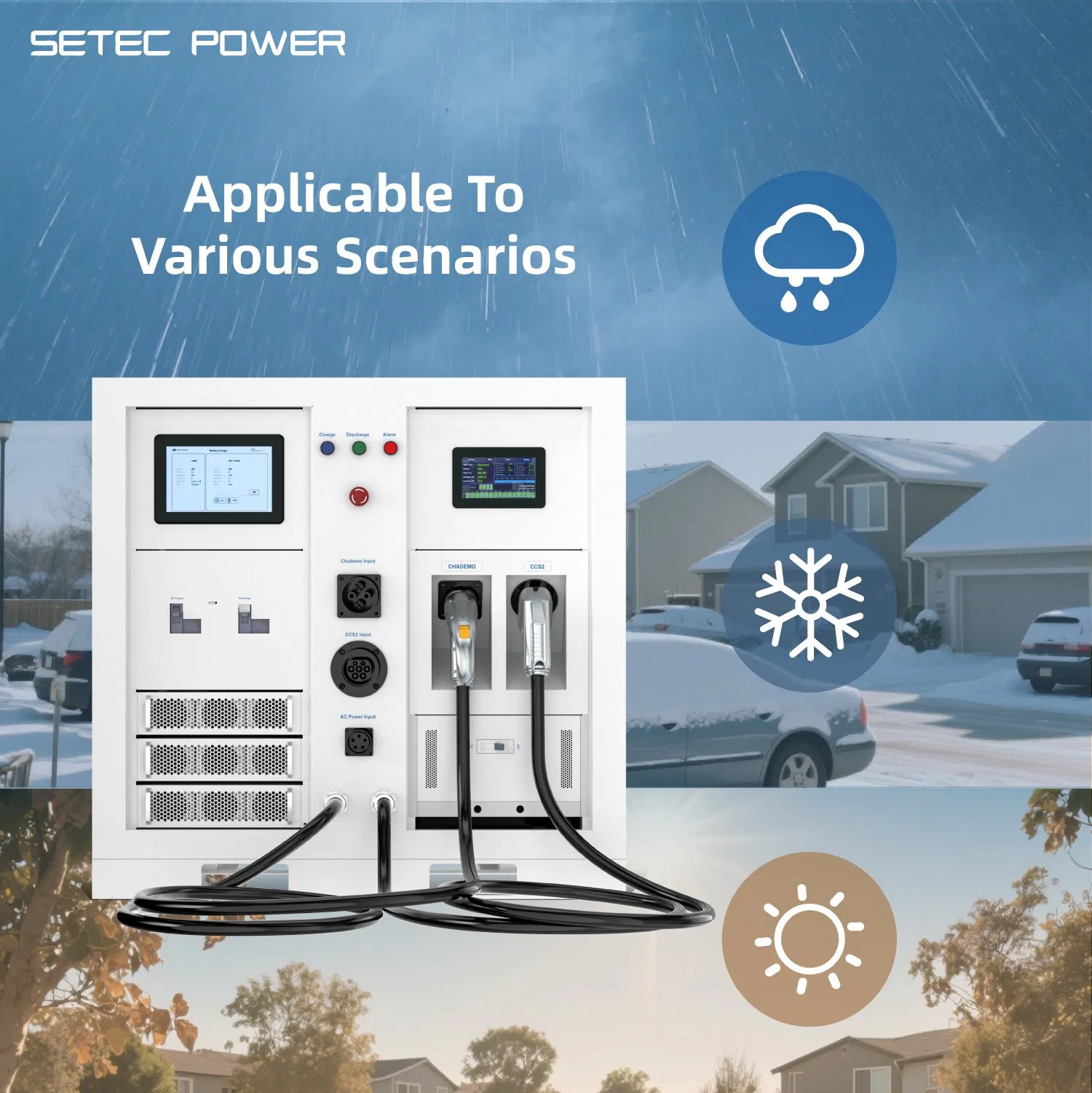

Environment Conditions Temp: -20ºC to +50ºC | Humidity: 5%-95% | Altitude: <2000m
Product Packaging Size: 500x200x200cm | Gross Weight: 4000kg
🔍 Product Description

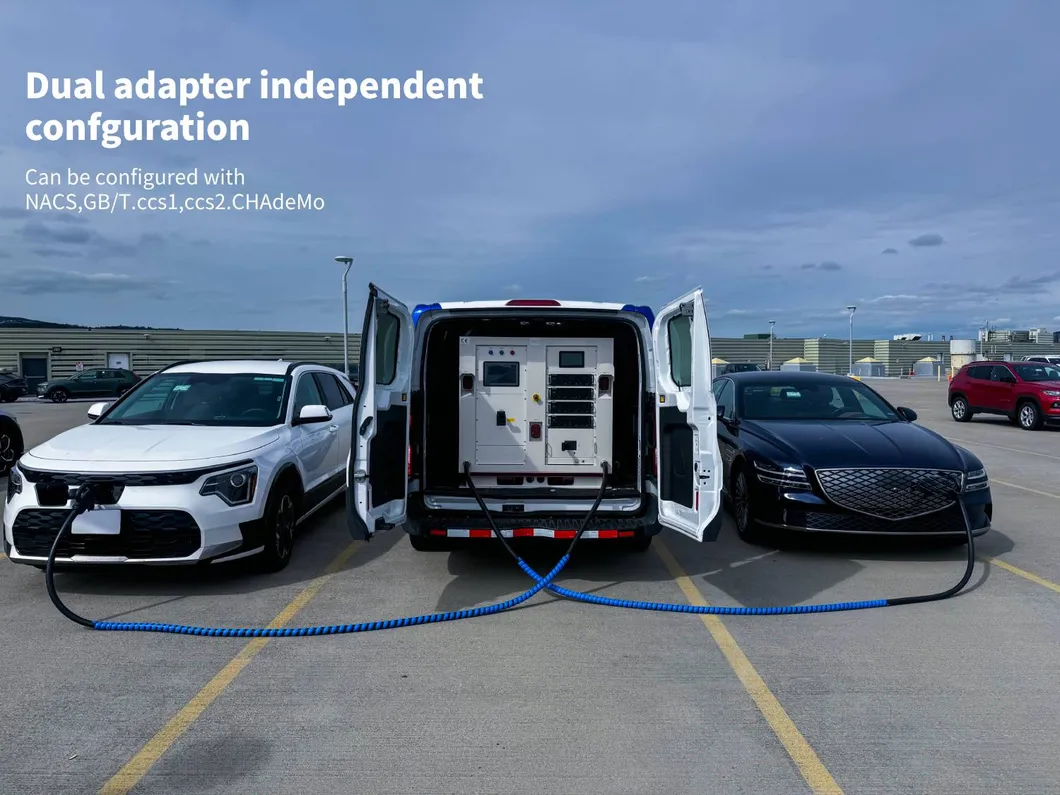

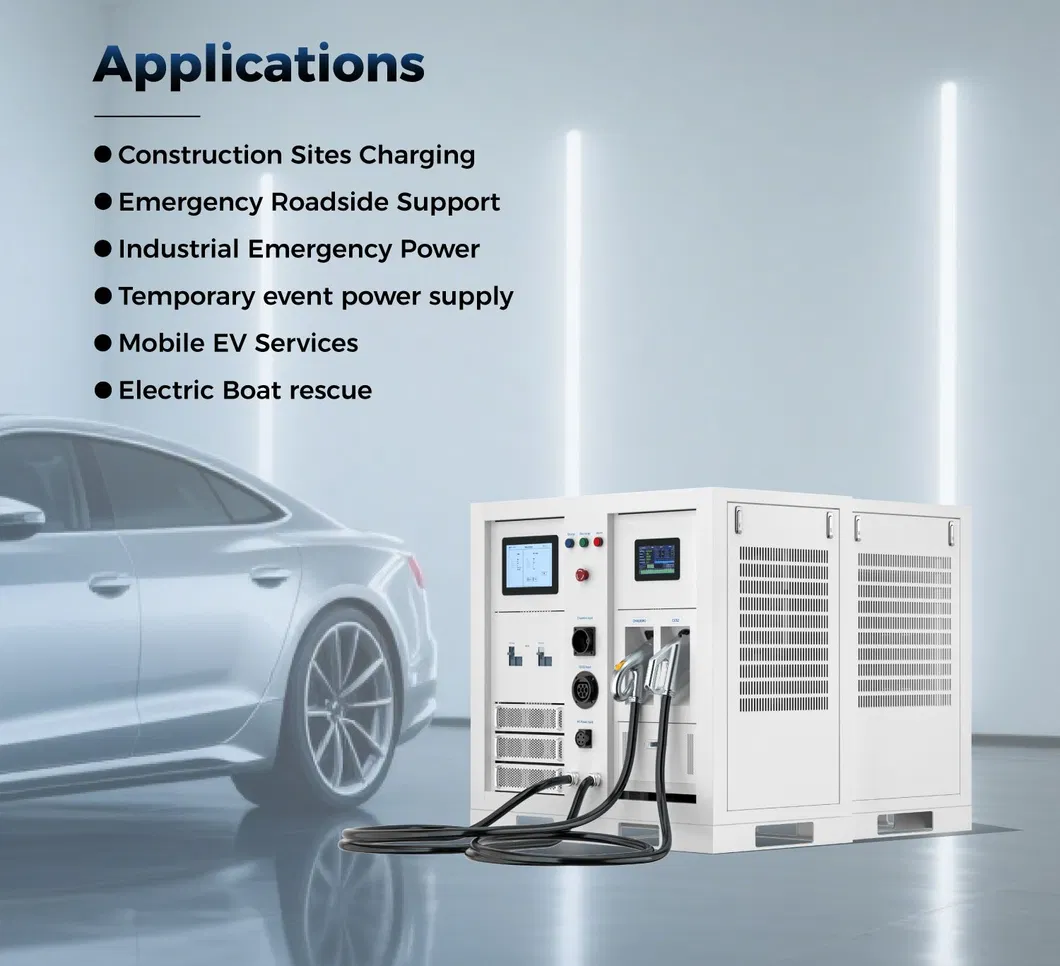

System Detail 1 System Detail 2 System Detail 3

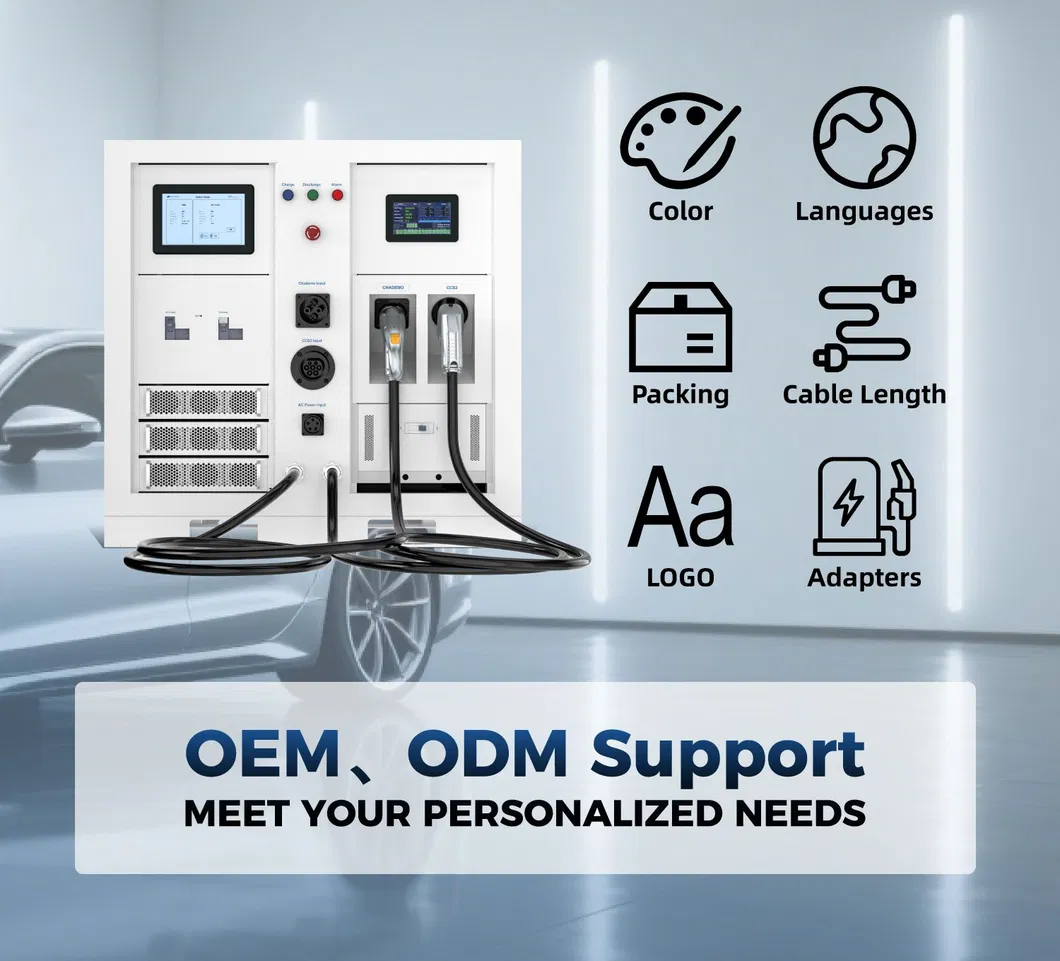

Internal Component Operational View
🤝 Partners & Cases

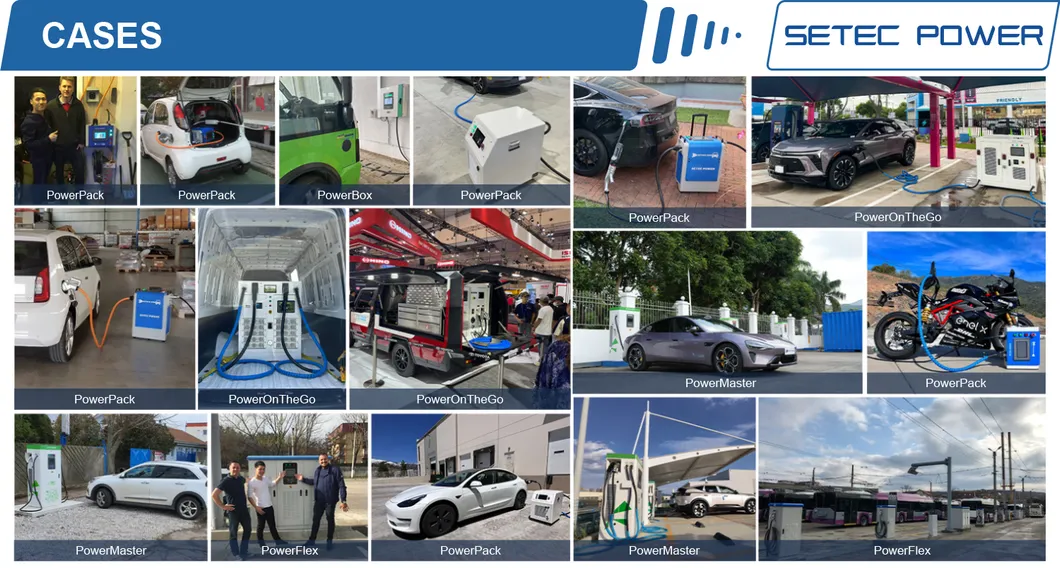

Global Partners Project Case Study
🏢 Profile & Excellence

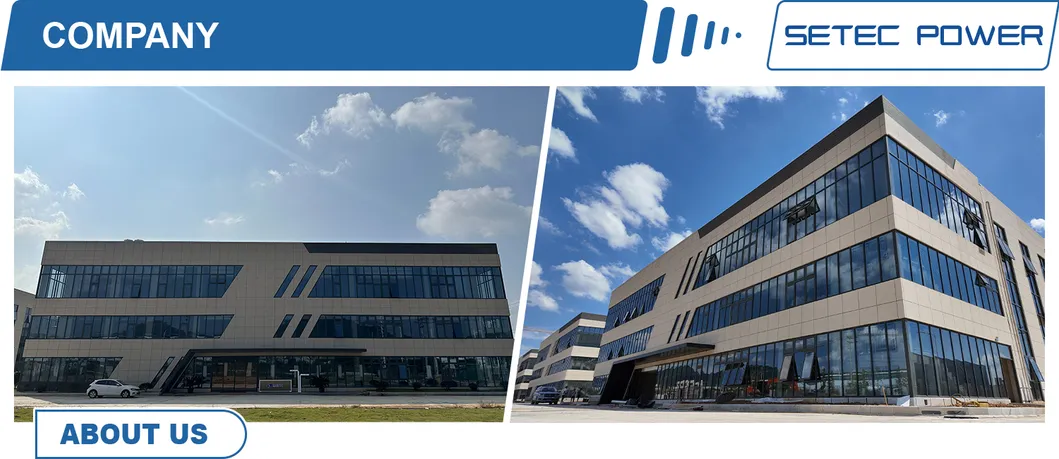

Facility Overview

Established in 2004, the company is one of the earliest enterprises dedicated to the research and development of electric vehicle charging stations and customized solutions for their construction and operation. With over 80,000 square meters of production and R&D facilities, the focus remains on the entire process of research, development, design, and production.

The equipment has obtained numerous system certifications such as UL, CNAS, ISO14001, and ISO9001. Currently, products are exported to over 120 countries and regions including Europe, North America, the Middle East, Asia, and Africa, providing reliable charging services globally.

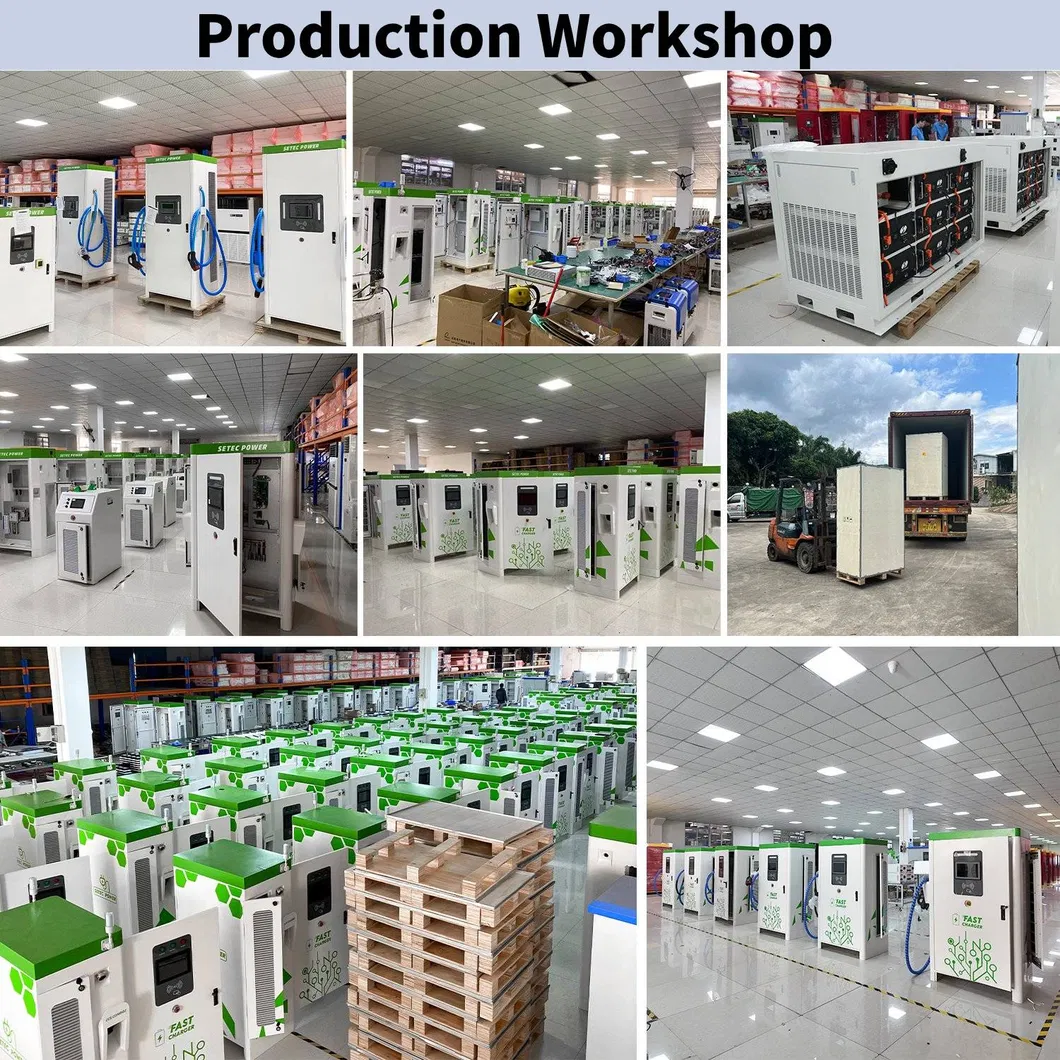

Production Line
🏆 Certificates & Exhibition
Product Certificates Global Exhibitions
Frequently Asked Questions
1 What is the expected lifespan of the battery system?
The system utilizes high-quality LFP (Lithium Iron Phosphate) batteries with a cycle life of approximately 6000 cycles.
2 Which EV charging standards are compatible?
The system supports multiple international standards including CCS1, CCS2, CHAdeMO, GB/T, and NACS.
3 Can the system operate in extreme weather conditions?
Yes, it is designed to operate in temperatures ranging from -20°C to +50°C and humidity levels between 5% and 95%.
4 What communication and networking protocols are supported?
The system supports Ethernet, WIFI, and 4G connectivity, with OCPP 1.6, OCPP 2.0, and TCP communication protocols.
5 What safety protections are built into the device?
The system includes comprehensive protection against over/under voltage, overload, short circuits, surges, and temperature extremes for both the battery and the device.
6 Is the charging cable length adjustable?
The standard cable length provided is 5 meters, but specifications can be customized based on specific project requirements.
