Professional LiFePO4 battery manufacturer with over 16 years of industry experience.
Providing high-quality solutions with comprehensive OED/ODM services to meet global energy needs.
| Model | LF-ESS-261 |
| Cell type | LFP 3.2V/314Ah |
| Battery PACK configuration | 52S/52.2kWh |
| Battery system configuration | (52S)5S |
| Battery voltage range | 702~936V |
| Battery system capacity | 261kWh |
| Temperature detection | battery cell + aluminum bar |
| DC side system efficiency | > 95% |
| Charge-discharge rate | 0.5C |
| Allowable discharge temperature | -28℃ ~ 56℃ |
| Allowable charging temperature | 1℃ ~ 56℃ |
| Allowable relative humidity | < 95%（no condensation） |
| DC input protection | Load switch + Fuse |
| Fire protection system | Perfluorohexanone + water firefighting |

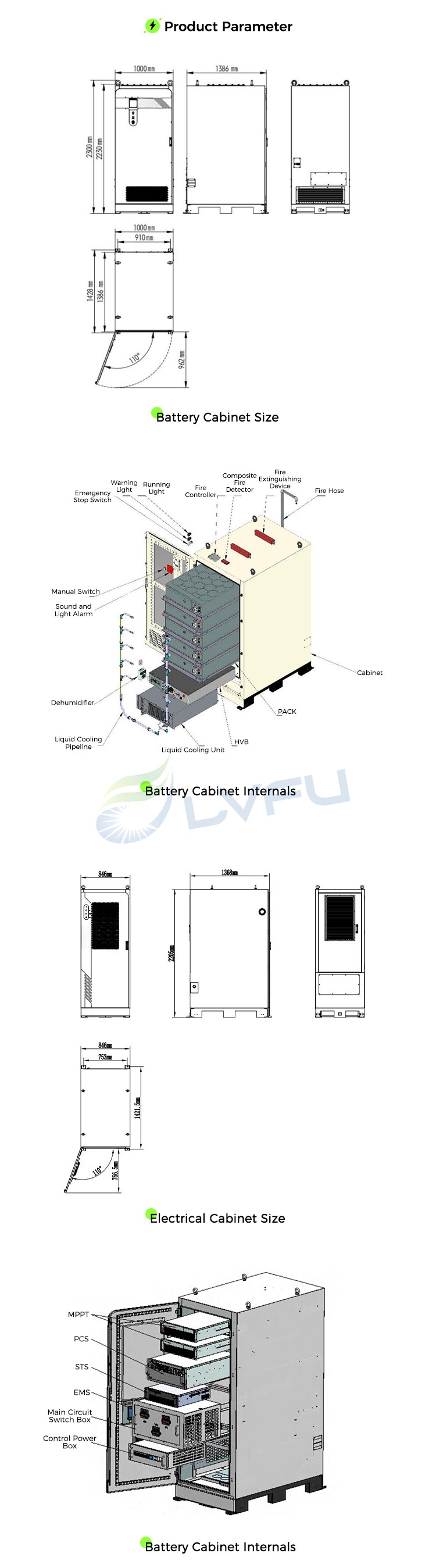

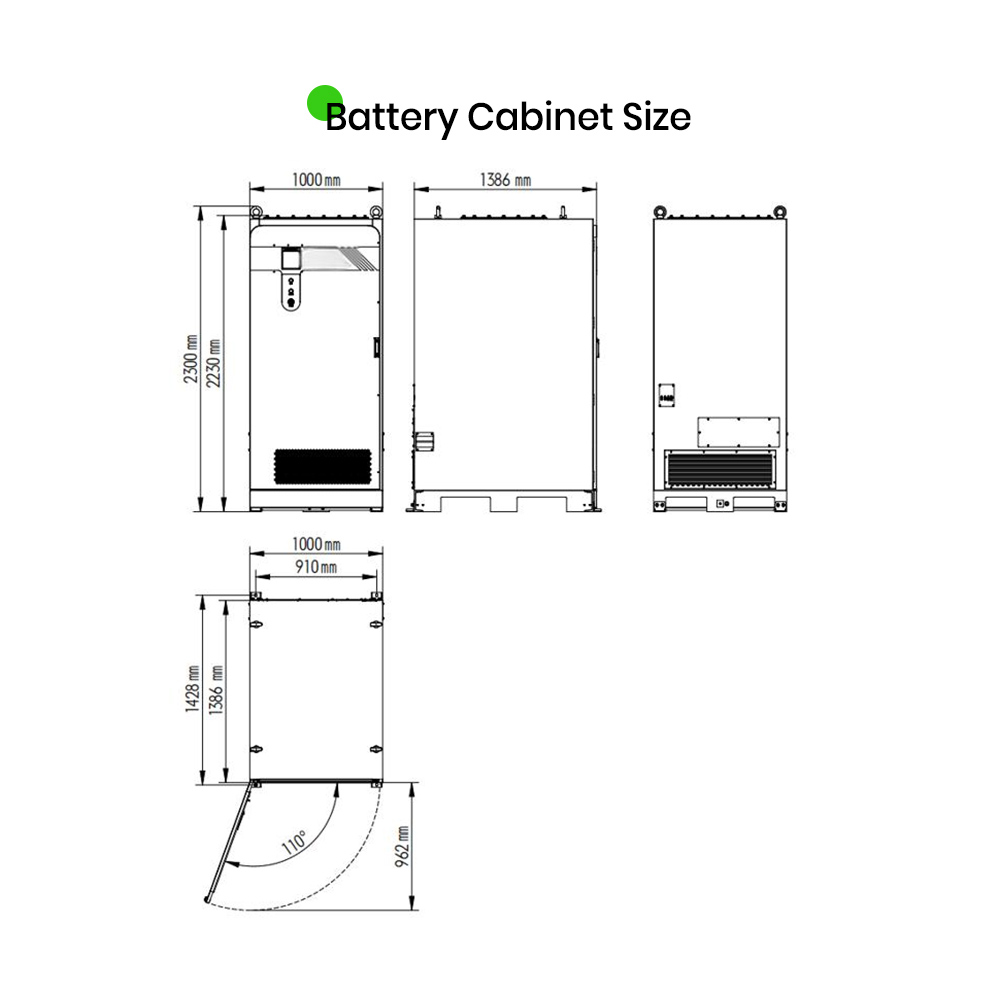

| Dimensions | W1000*D1386*H2230 |
| Weight | 2376±50kg |
| Protection class | Battery compartment IP55; Liquid cooling chamber IPX4 |
| Cooling method | Liquid cooling |
| Max. altitude | ≤4000m |
| Communication interface | RS485/Ethernet |
| Communication protocol | IEC61850/MODBUS-RTU/ MODBUS -TCP |

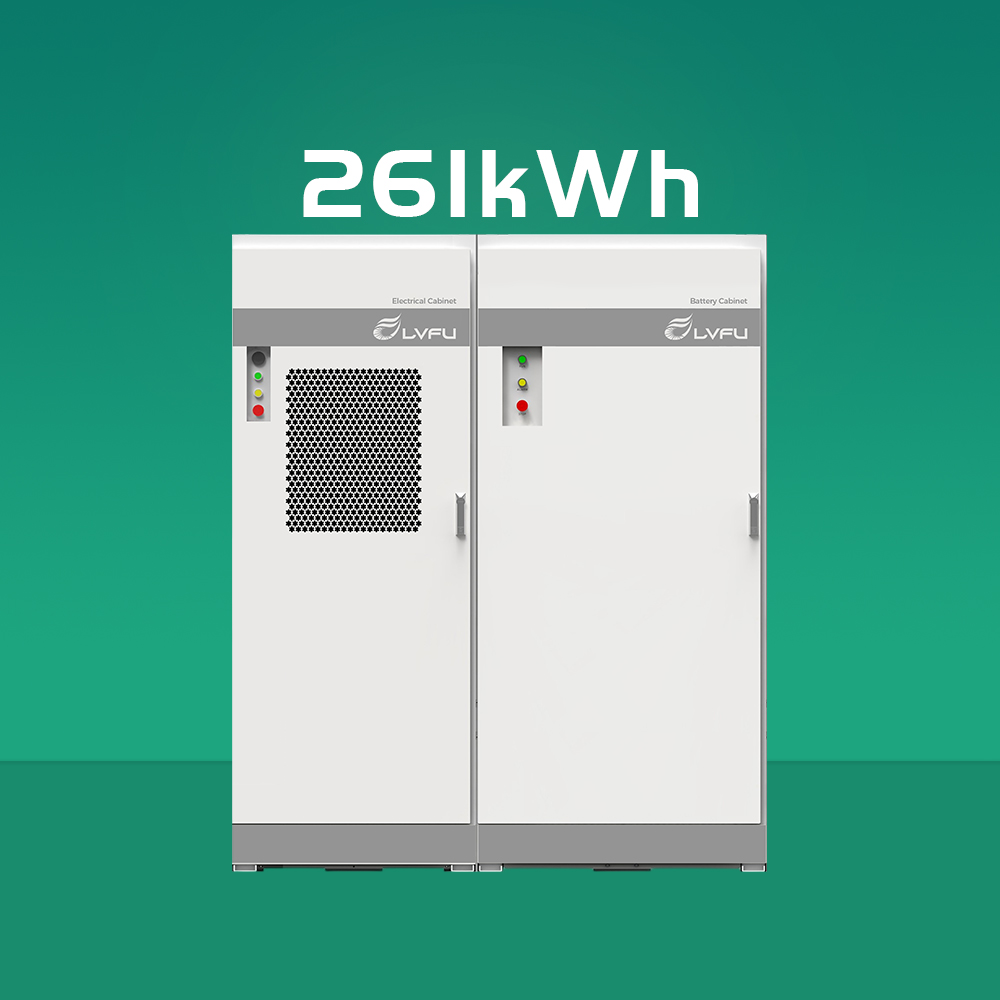

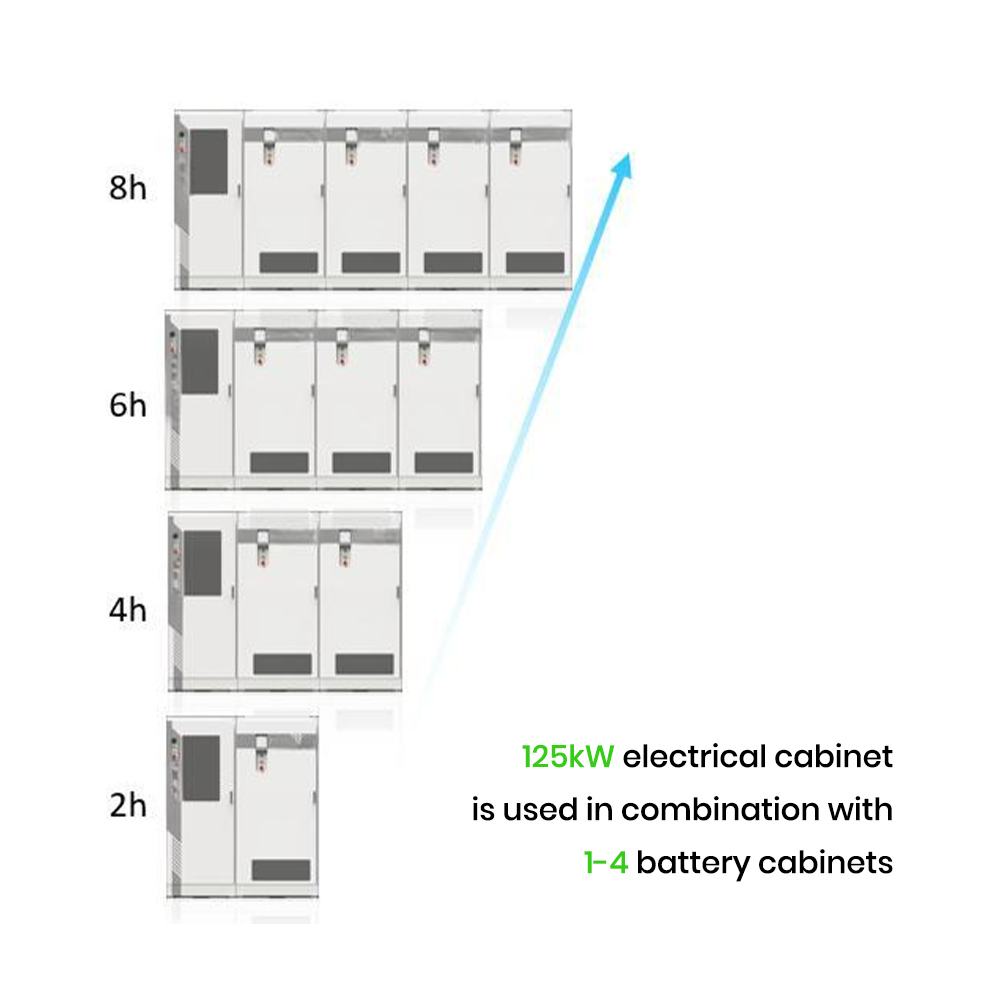

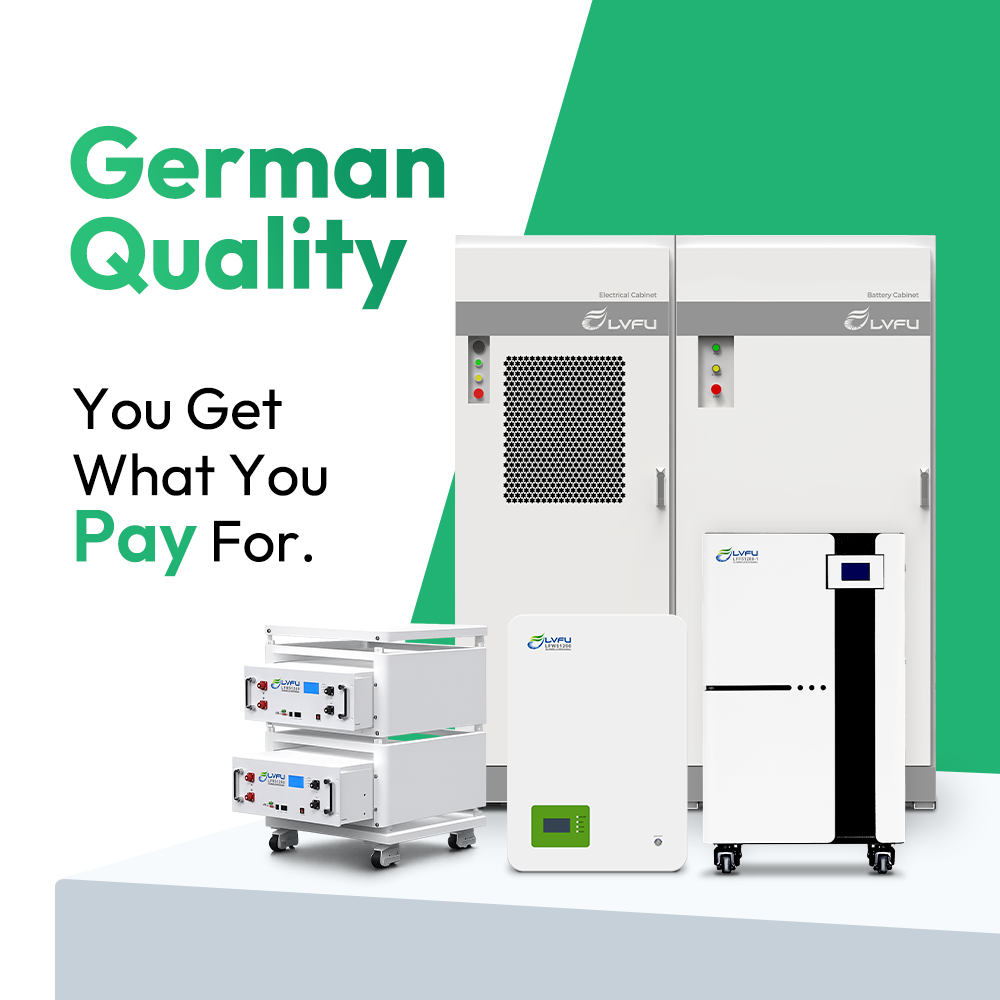

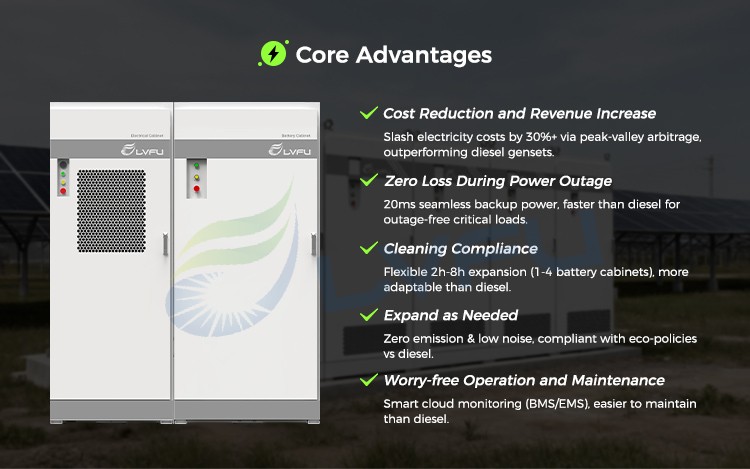

ESS Battery 125Kw 261Kwh Lithium Ion All-In-One Solution

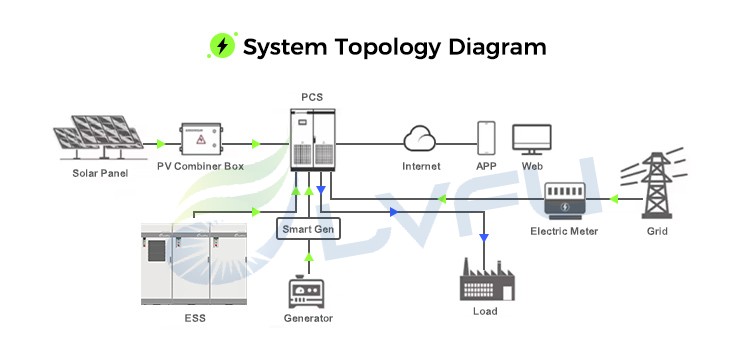

Designed for Industrial & Commercial Solar Energy Storage projects, including Microgrid BESS configurations with PCS integration.

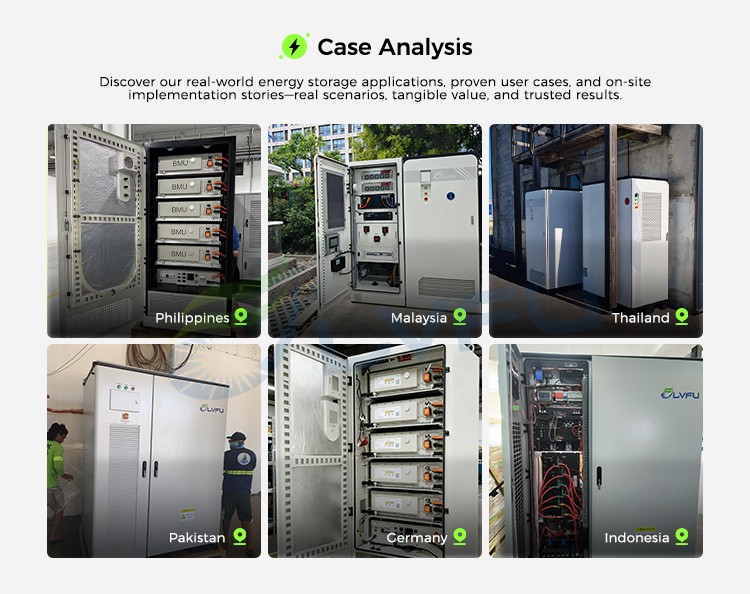

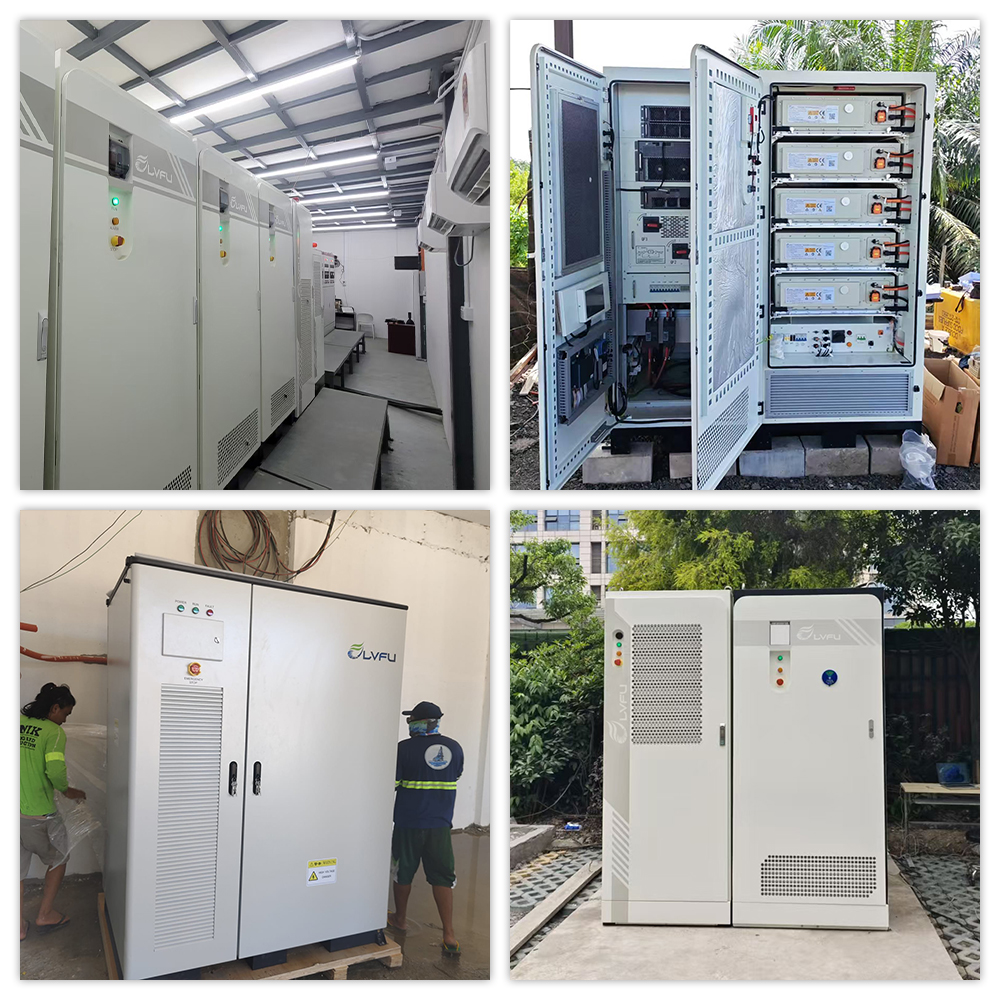

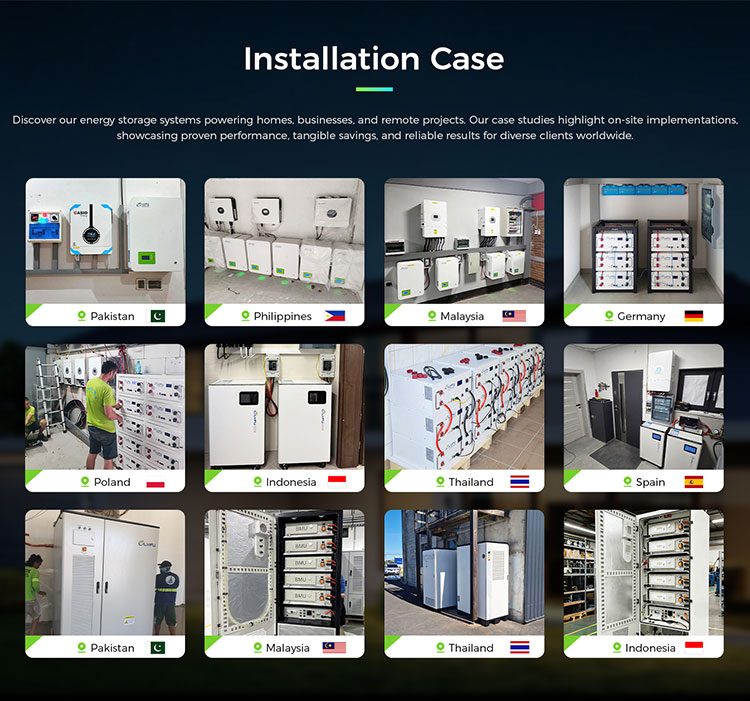

Our products and projects are spread across more than 30 countries and regions including the European Union, Southeast Asia, and the Middle East. More than 300,000 sets of off-grid system equipment have been installed and operated, benefiting more than 3 million people.
48V Lithium Battery: A Globally Trusted Home Energy Storage Solution
Available in 100Ah, 200Ah, and 300Ah capacities, our batteries are deployed globally in residential and commercial scenarios. From home backup power to small-scale commercial systems, our scalable solutions (5kWh to 20kWh) deliver reliability and significant cost savings.
