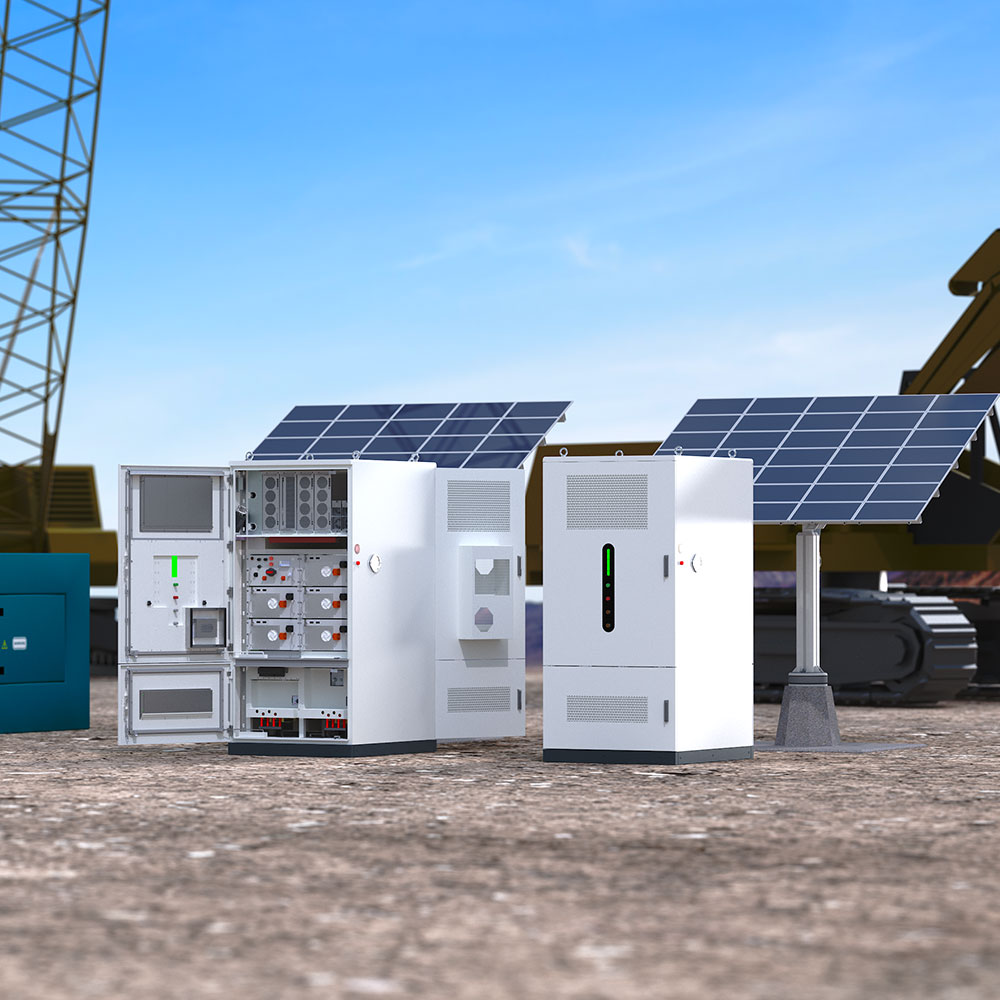

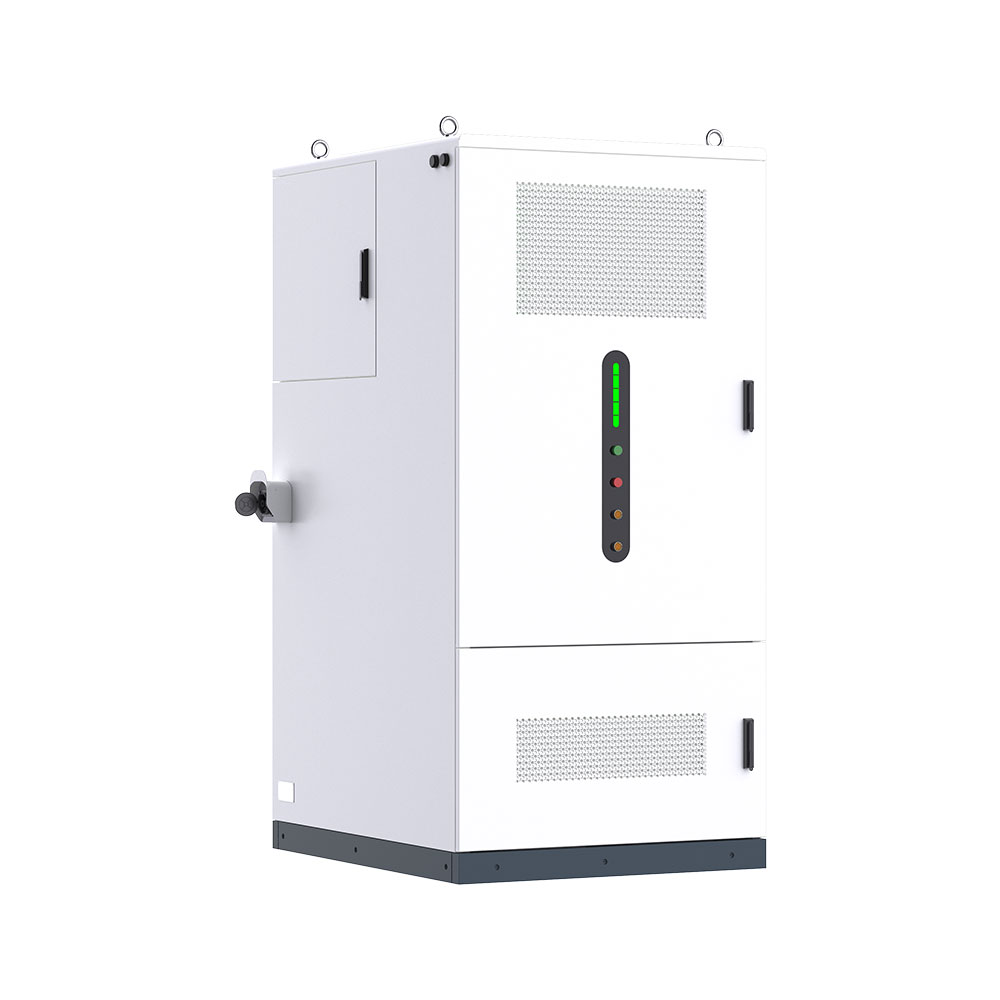

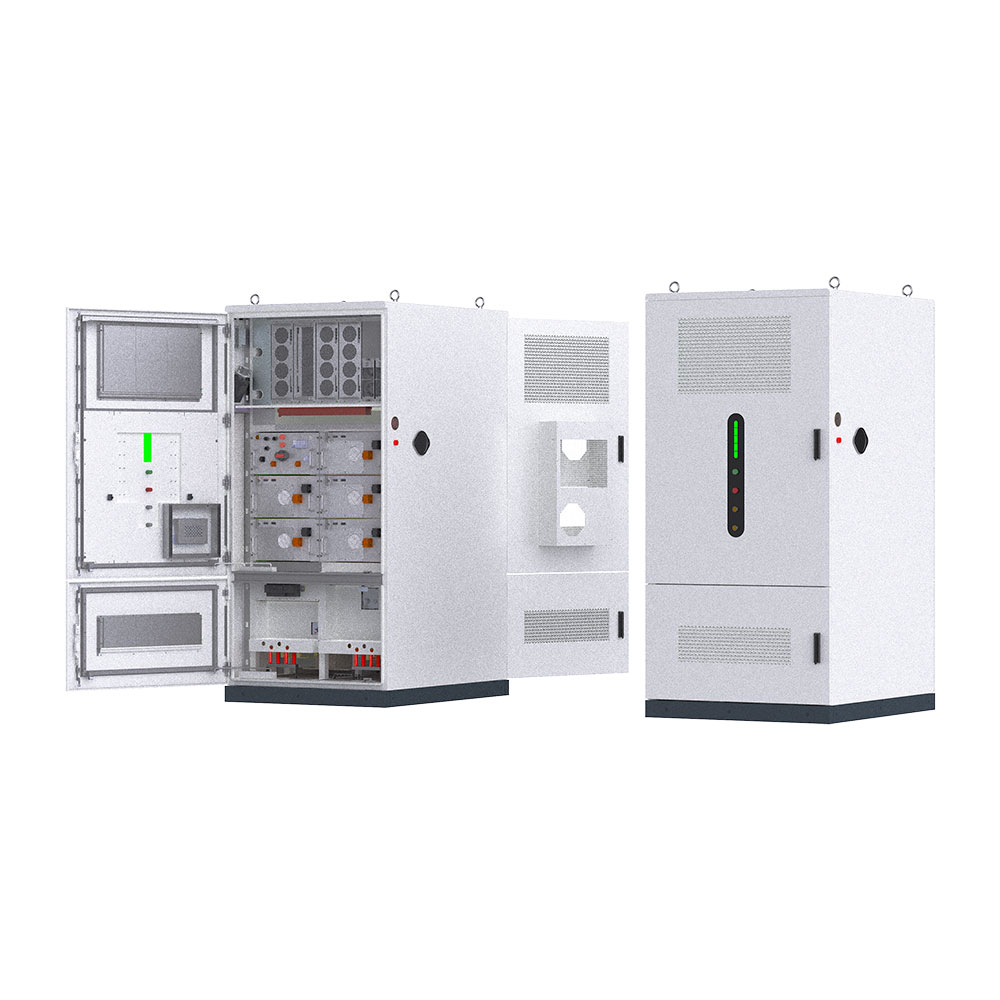

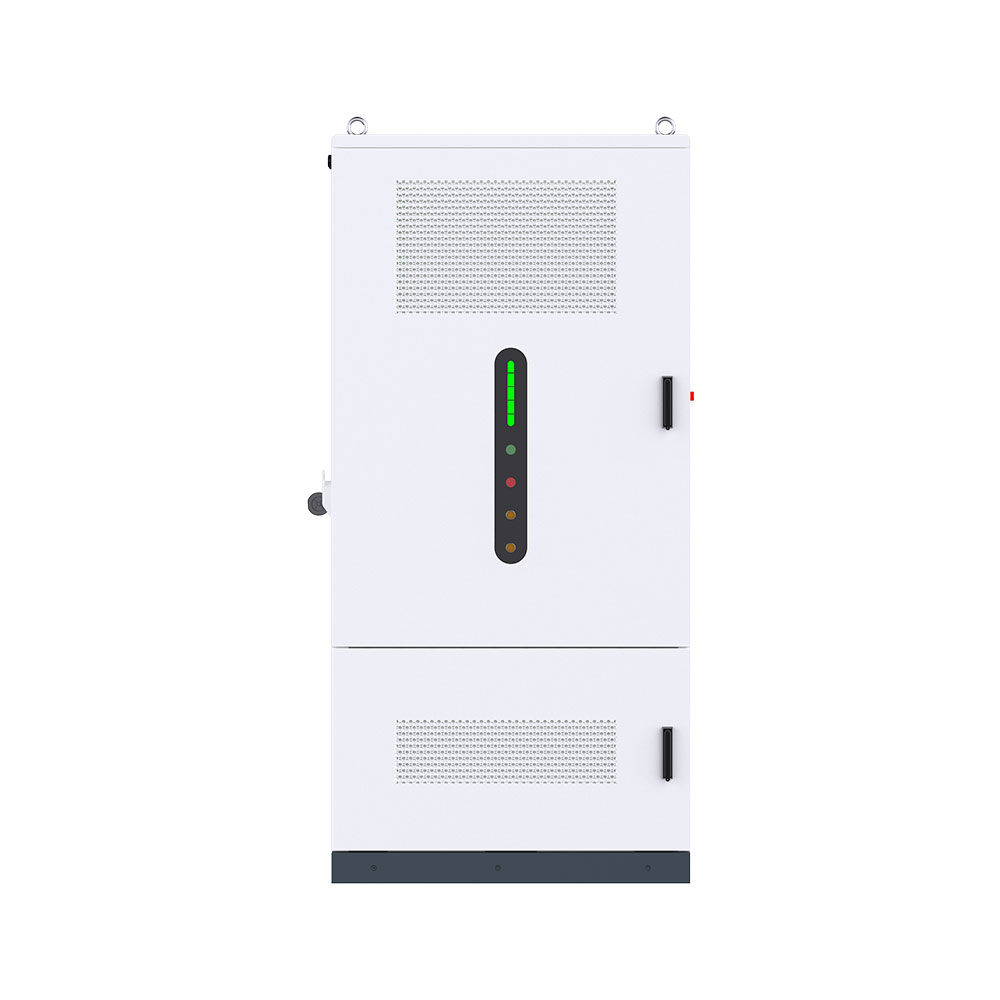

110kWh/50kW Integrated Solar + Diesel Generator + LiFePO4 Battery Storage Hybrid Grid Remote Area Microgrid Power Solution CN

Send Inquiry

Product Description

⚙️ Product Parameters

Capacity	110 kWh
Battery Voltage Range	308–401.5 Vdc
Diesel Generator Input Power	50 kW
PV Input Power	50 kW
Maximum Load Output Power	100 kW
Diesel Generator Input Voltage	400 ±15% VAC
PV Input Voltage	300–700 Vdc
Load Output Voltage	400 ±15% VAC
Operating Frequency	50 Hz
Battery Charge Rate	0.5C
Battery Discharge Rate	0.5C
Depth of Discharge	≤95%
Nominal Voltage	3.2 V
Cell Configuration	1P22S
Pack Voltage	70.4 V
Pack Weight	320 kg
Cycle Life	>6000 cycles
Operating Temperature	-20 to 50 ℃
Noise Level	<60 dB
Protection Rating	IP54
Cell Type	3.2 V / 314 Ah
Nominal Energy	22.1 kWh

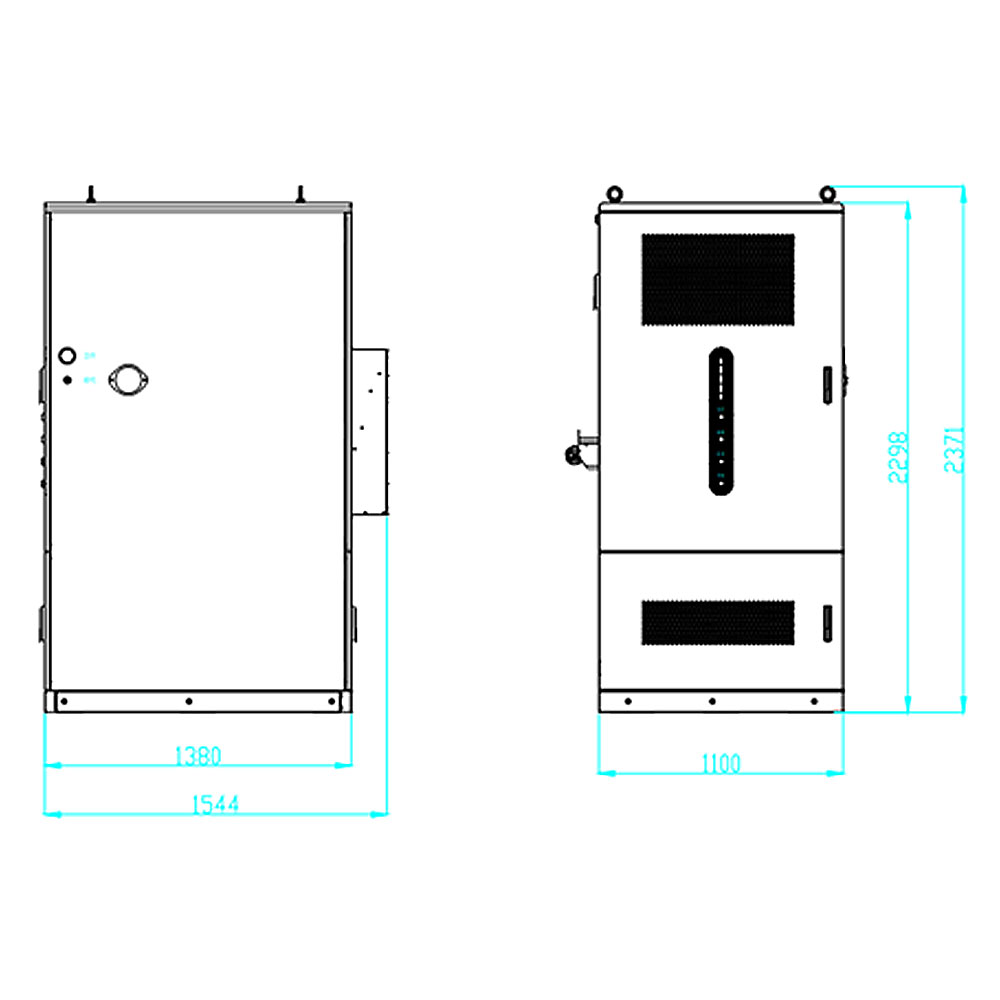

System Dimensions	1560 × 1100 × 2300 mm
System Weight	2 tons

📦 Product Introduction

🔗 Related Products

🏢 Factory & Profile

💡 Recommended Solutions

🌍 Exhibition

❓ Frequently Asked Questions

What is the cycle life of the battery system?

The system features high-quality cells providing a cycle life of more than 6000 cycles, ensuring long-term reliability for energy storage needs.

Is the system suitable for outdoor installation?

Yes, the system comes with an IP54 protection rating, making it resistant to dust and water splashes, suitable for various environmental conditions.

What is the operating temperature range?

The system is designed to operate efficiently in a wide temperature range from -20℃ up to 50℃.

Can it be integrated with solar panels and diesel generators?

Absolutely. The system supports a 50 kW PV input and a 50 kW diesel generator input, providing a versatile hybrid energy solution.

What type of battery cells are used in the 110kWh system?

The system utilizes 3.2 V / 314 Ah high-capacity Lithium Iron Phosphate (LiFePO4) cells for maximum safety and energy density.

What is the maximum output power supported?

The system supports a maximum load output power of 100 kW, suitable for industrial and commercial applications.
